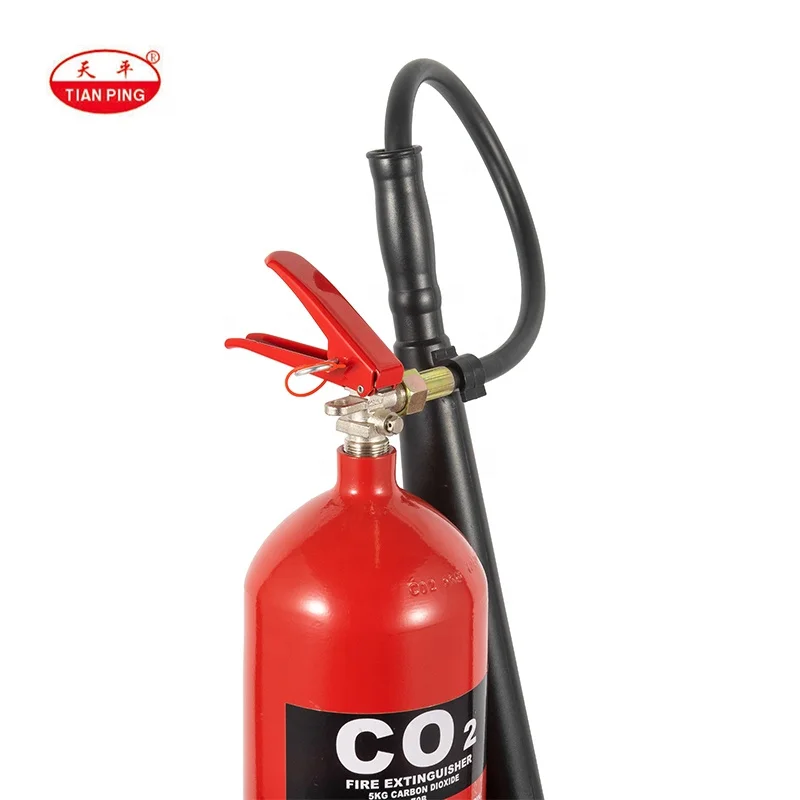

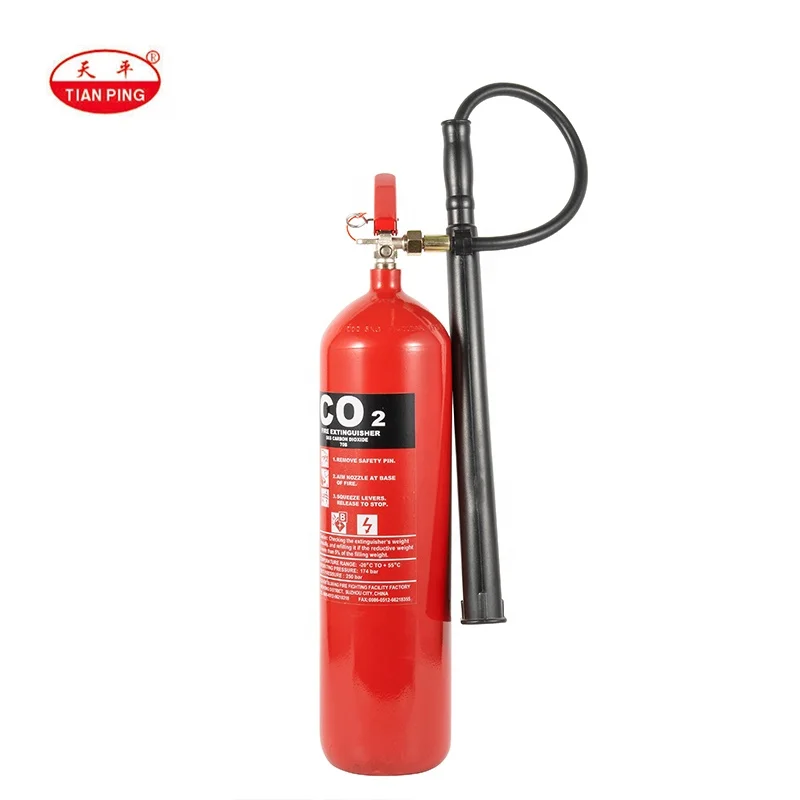

Out-diamteter: 152mm Volume: 7.5L Cylinder Length: 570mm Extinguisher Weight: 18kg Filling Weight: 5kg Temperature Range: -20 oC -60 oC Max Working Pressure: 174bar Test Pressure: 250bar Min wall thickness: 5mm Meterial: CK45 Fire rate: 70BC: Packing size: 69*20*17cm/6PCS
Capacity
4kg
4.5kg
5kg
6kg
6.8kg
7kg
9kg
10kg
Item No
XJ04-01C
XJ04-02C
XJ04-03C
XJ04-04C
XJ04-05C
XJ04-06C
XJ04-07C
XJ04-08C
Out-Diamter(mm)
152
152
152
152
152
152
152
152
Cylinder Height(mm)
455
520
580
650
725
750
940
1025
Volume(L)
6
6.7
7.5
9
10.15
10.5
13.43
15
Full Weight(kg)
13.2
14.8
16.7
18.8
20.6
22.4
27.4
30.5
Temperature Range
-30°C~60°C
-30°C~60°C
-30°C~60°C
-30°C~60°C
-30°C~60°C
-30°C~60°C
-30°C~60°C
-30°C~60°C
Max working pressure(bar)
174
174
174
174
174
174
174
174
Test pressure(bar)
250
250
250
250
250
250
250
250
Min Wall-thickness(mm)
5
5
5
5
5
5
5
5
Material
CK45
CK45
CK45
CK45
CK45
CK45
CK45
CK45
Fire Rate
34B
34B
70B
70B
70B
70B
70B
183B
Packing Size(mm)
58×20×17
65×20×17
69×20×17
77×20×17
82×20×17
86×20×17
110×20×17
118×20×17
Company Information
Certificate
Exhibition
Payment
Packing& Delivery
Our Services
FAQ
Q: What is your product range?
A: We can produce dry powder/co2 /foam /water/trolley extinguisher enjoying a high reputation as regular supplier to Europe, Middle East ,South America.etc.
Q: How to pay?
A: We accept T/T, D/P, and L/C.
Q: Do you have own factory?
A: Yes, we have factory in located in the eastern coastal economic developing area of China ,Suzhou City ,50 kilometers from Shanghai Port .
Q: Do we have technical support?
A: Yes, we have a professional engineering team.
Q: How to assure the quality?
A: We have gotten the certificate of BSI EN3, CE and ISO-9001.So our product quality is outstanding .
