57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00
Шаговый двигатель nema 34 с высоким крутящим моментом 86 мм
- Category: Stepper Motor >>>
- Supplier: Changzhou,Dewo,Motor,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
All series of stepper motor are produced.
Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.
1.8 Degree
| Type | Phase No. | Step Angle | Current(A) | Resistance(ohm±10%) | Inductance(mH±20%) | Holding Torque(kg.cm) | Wires No. | Weight(kg) | Body Length(mm) |
| DW86HS78-2004 | 2 | 1.8° | 2 | 1.2 | 10 | 28 | 4 | 1.7 | 78 |
| DW86HS78-3004A | 2 | 1.8° | 3 | 2 | 16 | 35 | 4 | 1.7 | 78 |
| DW86HS78-3504(4004) | 2 | 1.8° | 3.5/4.0 | 0.4 | 3 | 30 | 4 | 1.7 | 78 |
| DW86HS78-4206 | 3 | 1.8° | 4.2 | 0.9 | 4 | 45 | 6 | 1.7 | 78 |
| DW86HS78-5504 | 2 | 1.8° | 5.5 | 0.45 | 4 | 45 | 4 | 1.7 | 78 |
| DW86HS78-5608 | 4 | 1.8° | 5.6 | 0.9 | 4 | 45 | 8 | 1.7 | 78 |
| DW86HS82-4504 | 2 | 1.8° | 4.5 | 0.33 | 3 | 35 | 4 | 2.1 | 82 |
| DW86HS82-5608 | 4 | 1.8° | 4.5 | 0.6 | 3 | 35 | 8 | 2.1 | 82 |
| DW86HS100-5004 | 2 | 1.8° | 5 | 0.5 | 4 | 52 | 4 | 3 | 100 |
| DW86HS100-5008 | 4 | 1.8° | 5 | 1 | 4 | 50 | 8 | 3 | 100 |
| DW86HS118-2004 | 2 | 1.8° | 2 | 1.8 | 14 | 50 | 4 | 3.8 | 118 |
| DW86HS118-4006 | 3 | 1.8° | 4 | 1.1 | 6 | 50 | 6 | 3.8 | 118 |
| DW86HS118-4208 | 4 | 1.8° | 4 | 0.9 | 6 | 60 | 8 | 3.8 | 118 |
| DW86HS118-5004 | 2 | 1.8° | 5 | 0.6 | 2.8 | 60 | 4 | 3.8 | 118 |
| DW86HS118-6004 | 2 | 1.8° | 5.0/6.0 | 0.55 | 6 | 85 | 4 | 3.8 | 118 |
| DW86HS118-6008 | 4 | 1.8° | 6 | 1.1 | 6 | 85 | 8 | 3.8 | 118 |
| DW86HS118-7004 | 2 | 1.8° | 7 | 0.35 | 4 | 85 | 4 | 3.8 | 118 |
| DW86HS128-5608 | 4 | 1.8° | 5.6 | 1 | 8.5 | 75 | 8 | 3.8 | 128 |
| DW86HS156-5004 | 2 | 1.8° | 5 | 0.5 | 5.5 | 90 | 4 | 5.4 | 156 |
| DW86HS156-5504 | 2 | 1.8° | 5.5/6.2 | 0.7 | 9 | 120 | 4 | 5.4 | 156 |
| DW86HS156-5608 | 4 | 1.8° | 5.6 | 1.4 | 9 | 85 | 8 | 5.4 | 156 |

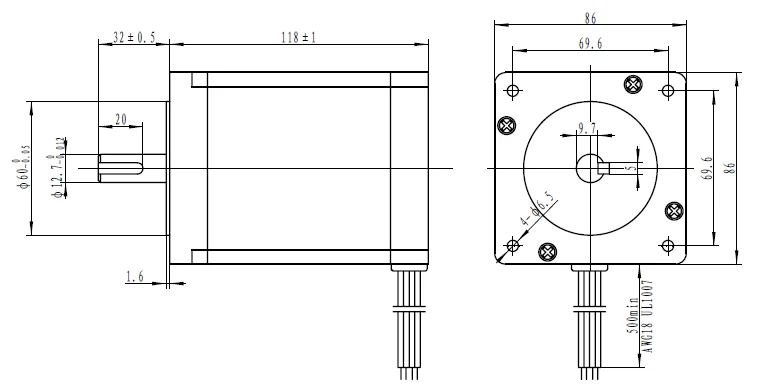

Dimension:
Wiring:

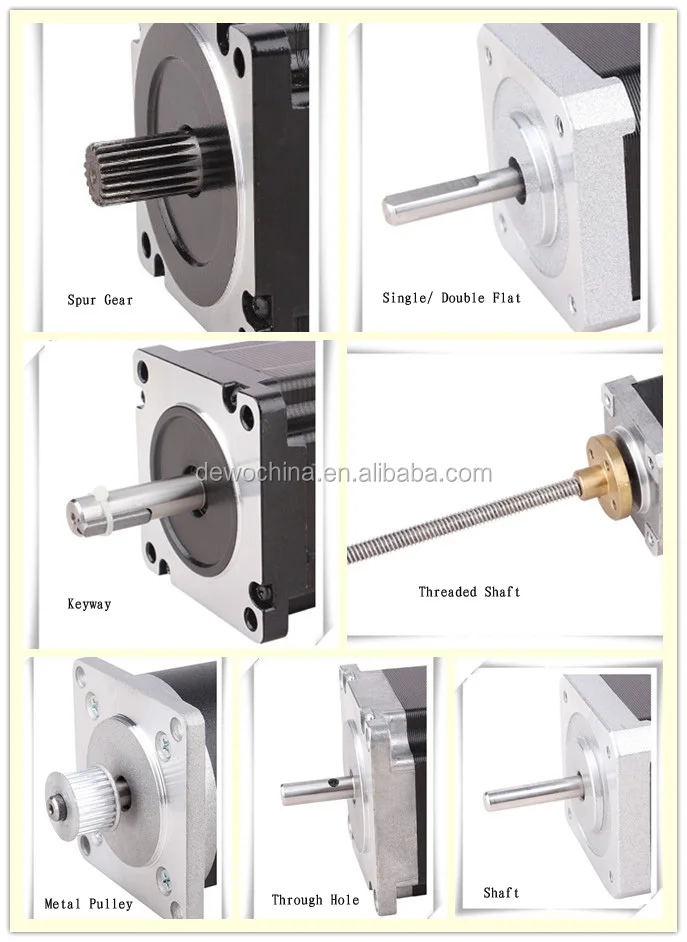

The shaft can be customized.
Packaging & Shipping
We provide standard packing for products.
Plastic foam will be put in carton boxes.
We deliver our goods by sea, air and courier service.
You may contact us to check the shipping status of your order.
Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.
Company Information
Changzhou Dewo Motor Co., Ltd., exporting stepper motors, servo motor,spindle motor,BLDC motor and their driver ,VFD. We spcialize in this field for many years, with the strength of high quality and competitive price in China.
We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!
our certification:
Our team and Exhibition:
Our Services
customization and OEM is available.
Warranty: 18 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
