Automatic Robot gluing machine

Share on (1556185897):


Price:

Quantity:


Product Overview

Description

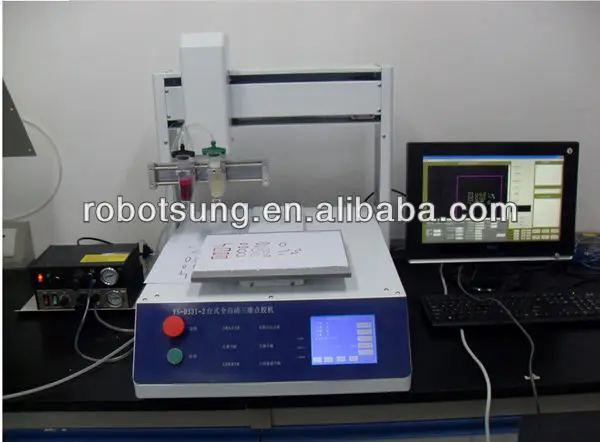

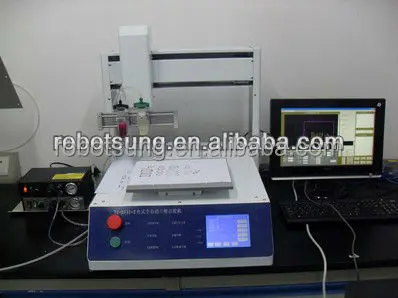

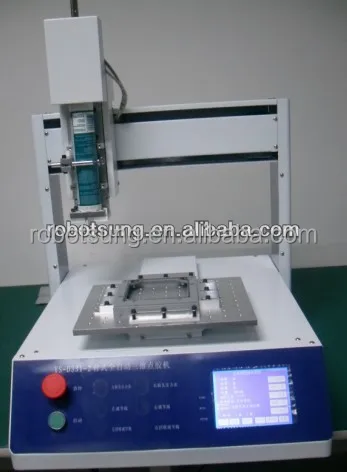

Automatic Robot gluing machine





Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.



Glue type



Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint,





Specification



Model

YS-D331-X

Working area(X/Y/Zmm)

300/300/60

Max. Speed

500mm/sec

Resolution

0.01mm

Repeatability

+/-0.01mm

Display

5.7’ LCD

Drive mode

Micro Stepping Motor

Power

220V /110V

Working enviroment

Temperature:5-40 degrees Celsius

Humidity:20-90%RH

Size(L*W*H)

660x650x550mm

Weight

70KG





Feature

  • 1 English panel, easy operation.
  • 2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
  • 3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
  • 4. Satisfy high quality glue dispensing by adjusting the parameters of screw
  • 5. Precise stepper motor, numerical control available
  • 6. Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
  • 7. According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
  • 8. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
  • 9.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.



All the picture show on the site are for your reference. Our product could match with other accessories (valve,tank,cartridge)  according to your actual situation or as your request.



300x300-glue-dispenser





We have another models;YS-D331-X,YS-D441-X,YS-D551-X.YS-D221-X,3 axis glue dispenser,4 axia glue dispenser.

How to choose them depand on the working area and your special requirement



SDC17612glue-dispense1AB.jpg2..jpg1





Package:wooden case (Free)



p2Package 2







About us



We are a professional manufacturer of dispensing equipment and liquid dispenser and all the accessories.Valve,pressure tank, cartridge,barrels,tips,dispensing pen,glue gun,connect and so on.Our main product including dispensing equipment and liquid  dispenser.We also have gantry conveyor robot.



Warranty:

3  years warranty for the mothr board,1 year warranty for the glue dispensing machie

We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are  insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.



Terms and conditions



Production lead time : 5-7 days



Payment terms:T/T in advance



Shipment term:Ex-work,or other shipping terms like FOB,CIF terms can be discussed.

Shipping:by DHL,Fedex,UPS,EMS,by sea etc.



Our office hour



Monday to Saturday



AM 8:00-12:00 PM:13:30-17:30



Notice(Saturday we only work on half day)







Tips:If you interested in our items or have some other questions,Please send me a inquire or contact our sales.





Automatic Robot gluing machine Automatic Robot gluing machine Automatic Robot gluing machine
