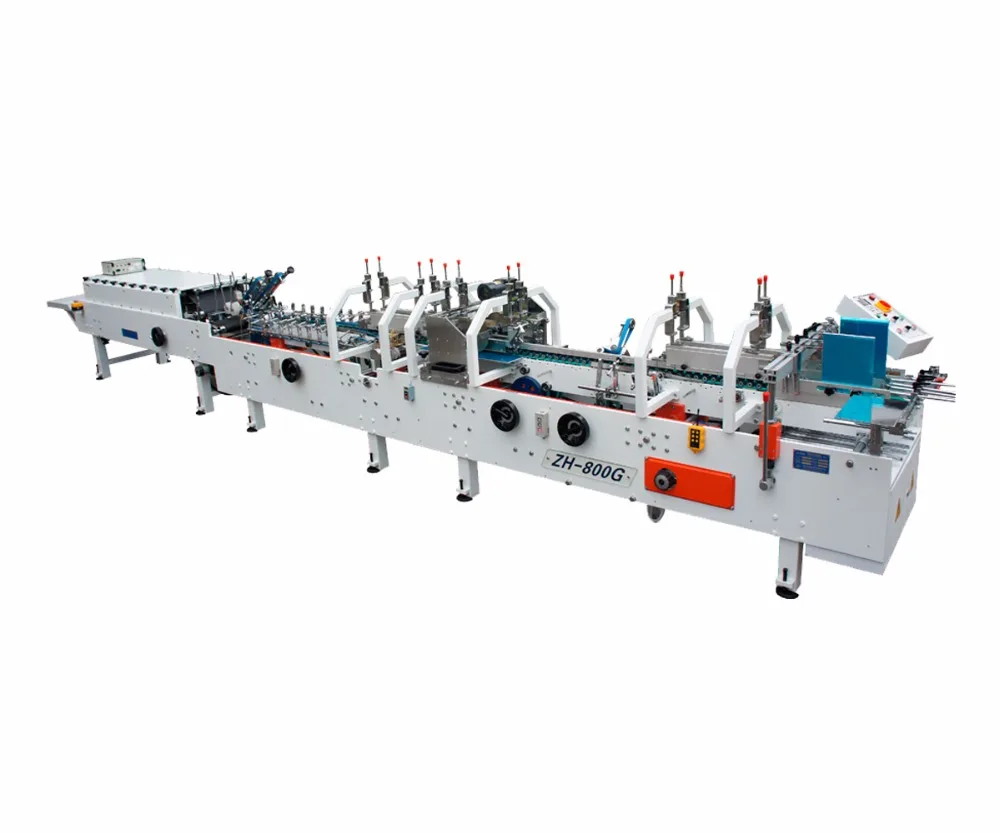

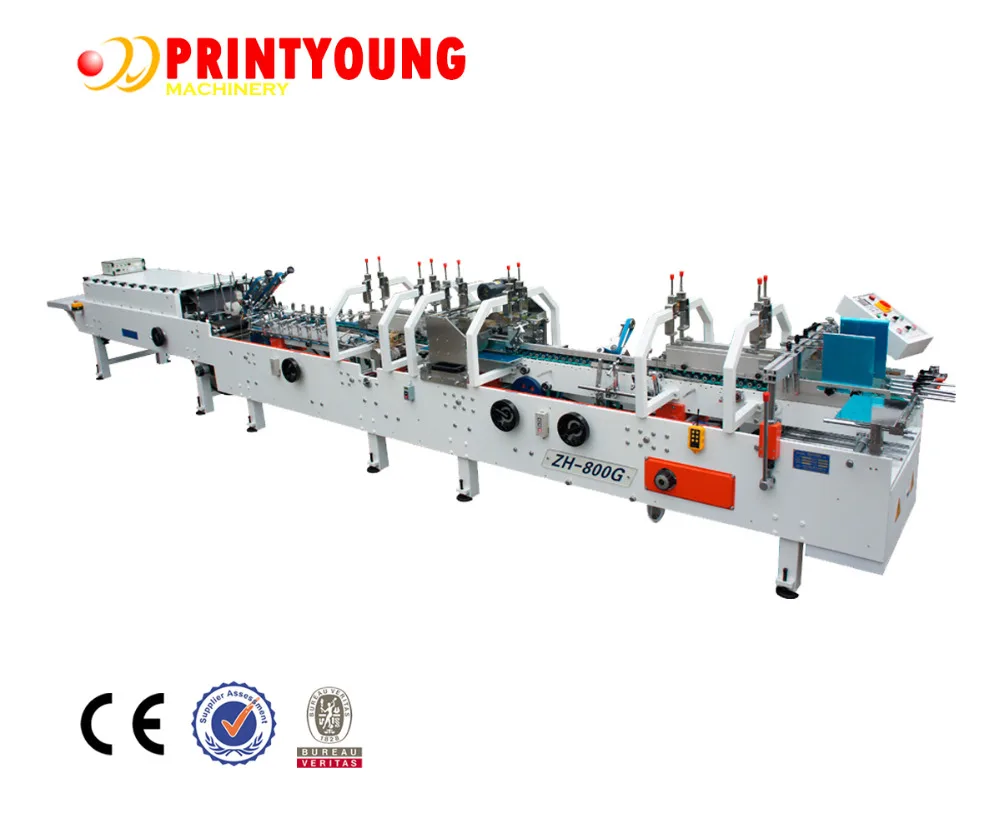

ZH 800G Automatic paper box folder and gluer machine

Product Overview

Description



ZH800G/880G/1000G is the most competitive folder gluer with crash lock bottom through our company independent research. It has two National Patents. Its easy operation, reasonable price and wide application make it a new leap forward in the history of folder gluer. It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box. Our machine is featured by multi-function, wide application, easy operation and lower price. Compared to older generation folder gluer, our machines simplify the complicated construction, reduce the difficulty of test run and decrease the machine's cost. Especially for the current packaging and printing industry, it brings new hope to the weak point of folder gluer industry: shorter delivery time, constricted function, more competitive price. It is ideal equipment in printing industry.



Features:

1.Line speed: 0~220m/min adjustable

2.Paperboard: 210~600g/m2 paperboard

3.Box forming:Either side folds, either sides pre-fold, and crash lock bottom

4.Paper board feeding:Continuous automatic

5.Way of folding: First, second and fourth lines fold 180°, third line fold 135°

6.Glue type: Cold glue

7.Power: 3.7Kw, AC220V, Single phase

8.Weight: 2000kg

9.Dimension: 8500×900×1300mm

10.The counting range: 0~999999(full-automatic)



Ten Functions:

Auto feeding, Lower gluing, Double-side grinding, Double-side gluing, Four-side folding, Crash lock bottom, Upper gluing, Folding, Wireless remote controller, Auto counting.



Technical Data:



Model	Box type	(A Max)	(A Min)	(B Max)	(B Min)	(C Max)	(C Min)	(D Max)	(E Min)
ZH-800G(D)	Straight line box(I)	560	106	500	65	270	50	7	6
	Pre-fold box(I)	560	180	500	65	270	90	10	6
	Crash lock bottom box(II)	560	160	500	65	270	80	40	6
ZH-880G(D)	Straight line box(I)	660	110	500	65	320	50	7	6
	Pre-fold box(I)	660	180	500	65	320	90	10	6
	Crash lock bottom box(II)	660	160	500	65	320	80	50	6
ZH-1000G(D)	Straight line box(I)	760	130	600	80	370	60	10	8
	Pre-fold box(I)	760	180	600	80	370	90	15	8
	Crash lock bottom box (II)	760	180	600	80	370	90	60	8

Main Box Samples:

Optional Box:
