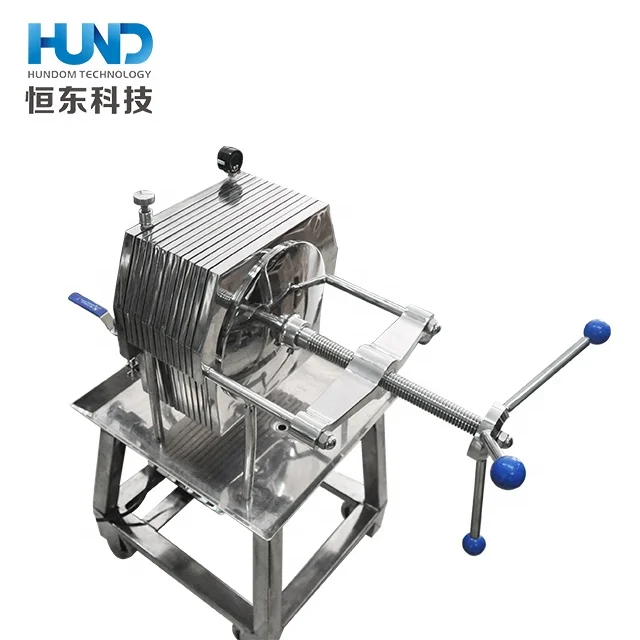

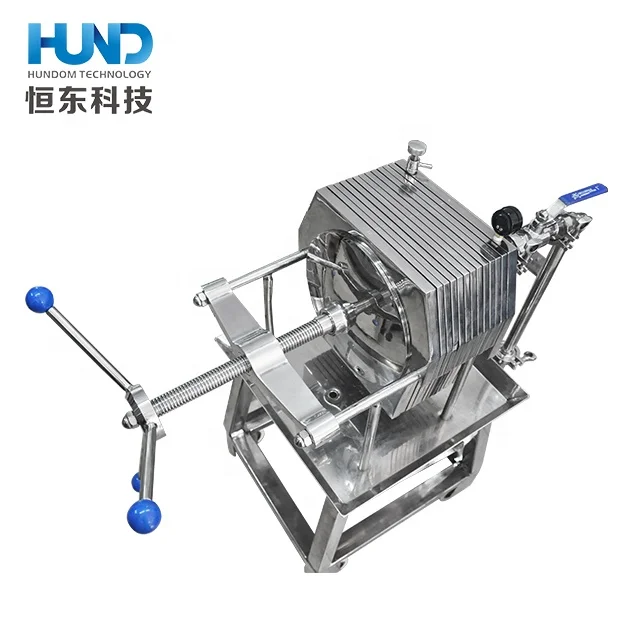

Stainless Steel Beer Plate Frame Filter With Electric Pump/Wine Press Filter/Juice Honey Syrup Filter

Product Overview

Description

Stainless steel beer plate frame filter with electric pump/wine press filter/juice honey syrup filter



working principle

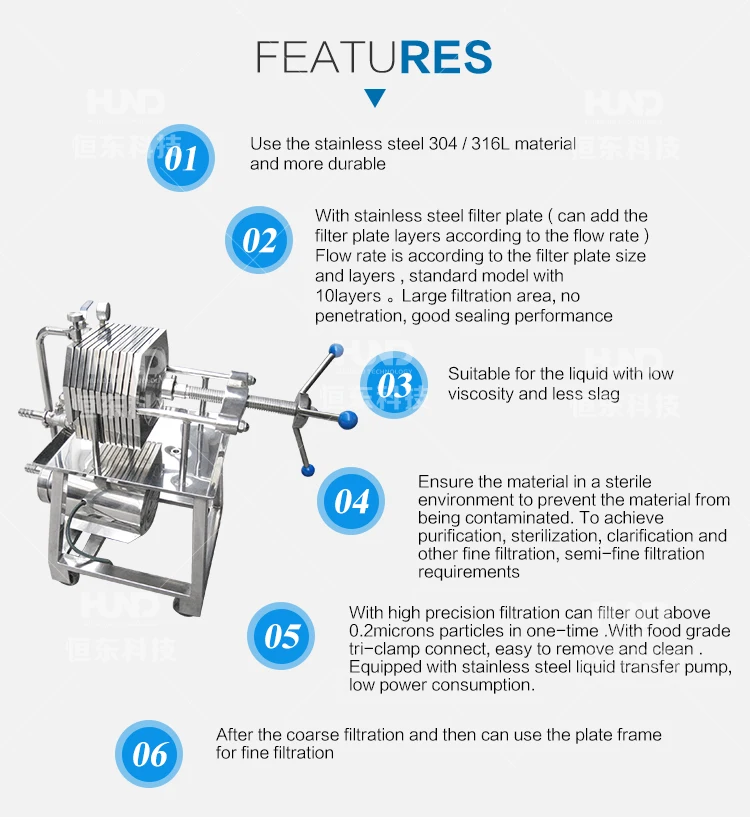

The equipment is multi-layer plate frame filter, which is applicable to the process operation with the requirements of fine filtration and semi-fine filtration such as purification,sterilization and defecation with sealed filtration in the liquid with low viscosity and little slagging content under the concentration of 50%. By directly adopting microporous filtration film,it can realize the sterile filtration without passing the microporous film.The equipment has characteristics such as large filtration area,large flow and wide applicable range, so it is widely used in the fields of pharmacy, chemical industry and food etc. The effect will be better if used for filtration of injection liquid medicine in pharmacy factories.





Technical Parameter :

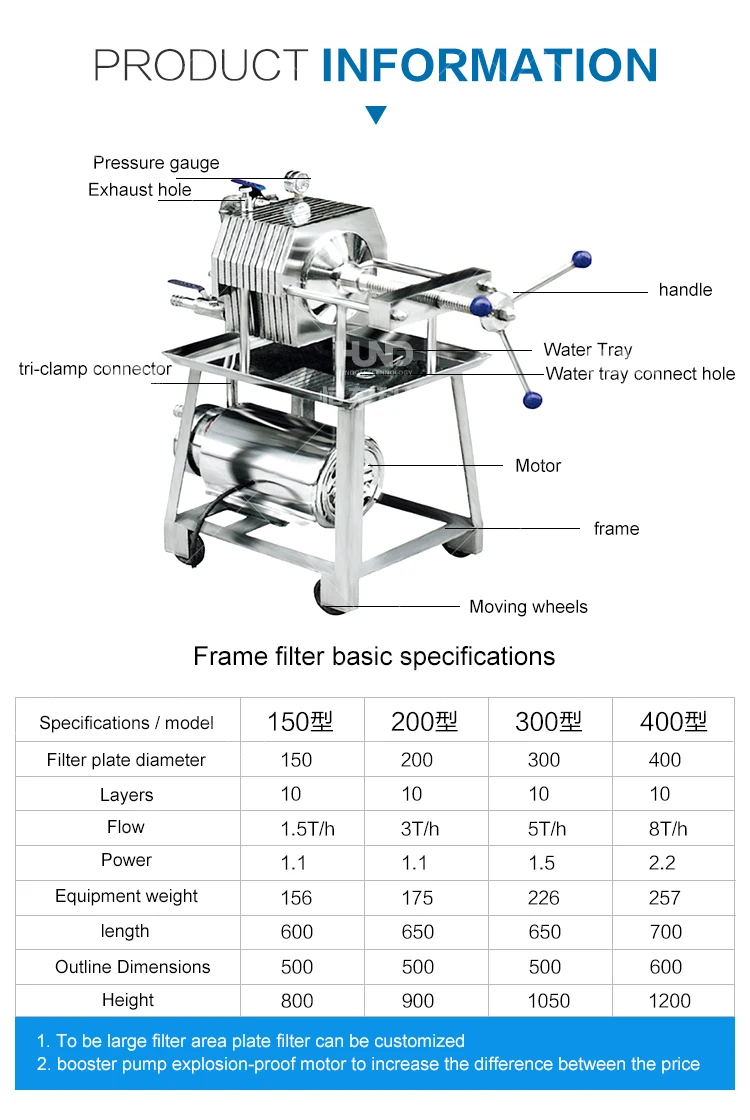

Model	Specification	Flow ( T/H )	Filter Layer	Motor Power ( kw )	Inlet / Outlet
WBG-150	150mm	1.5	10	0.75	27/22
WBG-200	200mm	3	10	1.1	27/22
WBG-300	300mm	5	10	1.5	27/27
WBG-400	400mm	8	10	2.2	50/32
