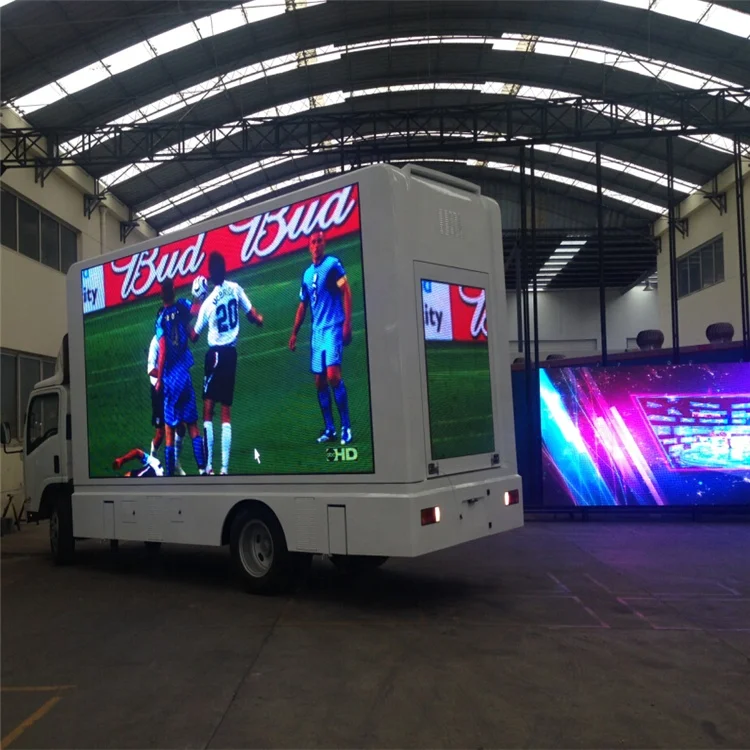

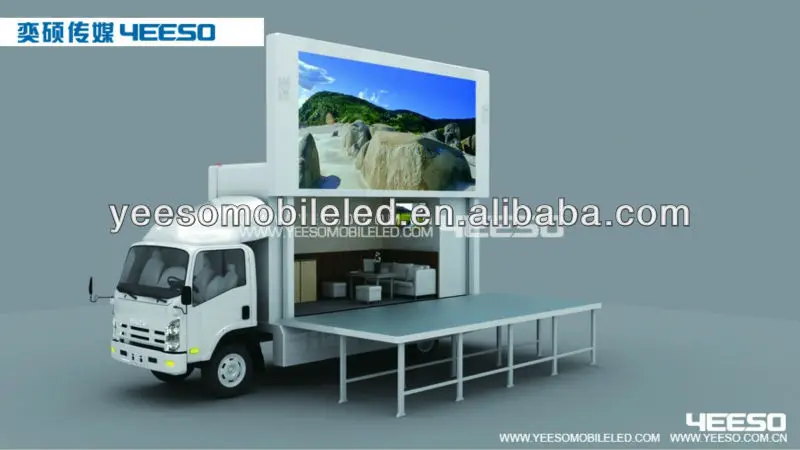

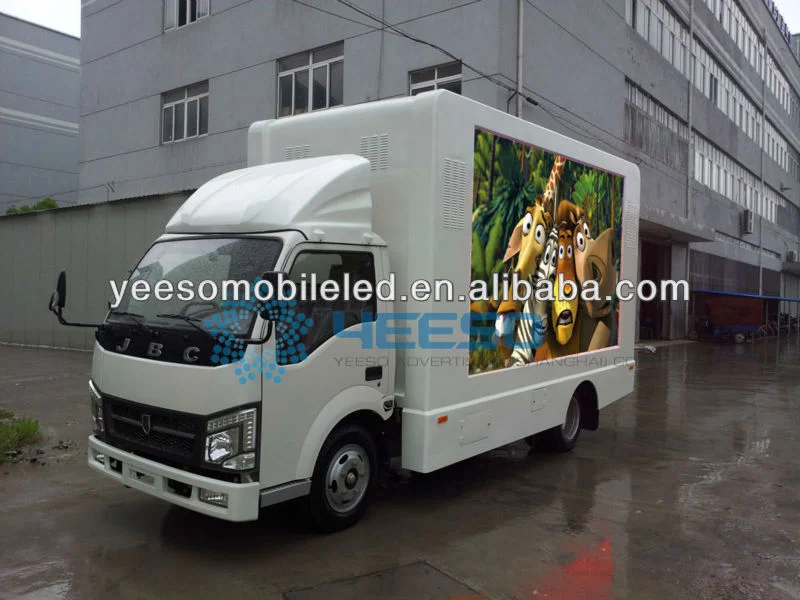

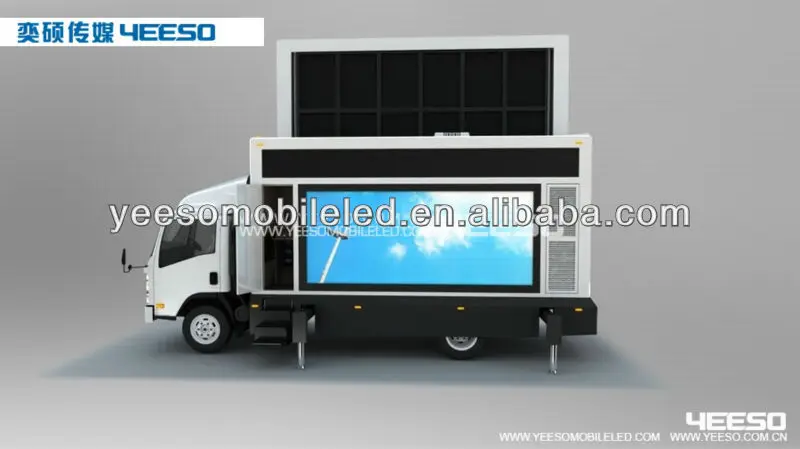

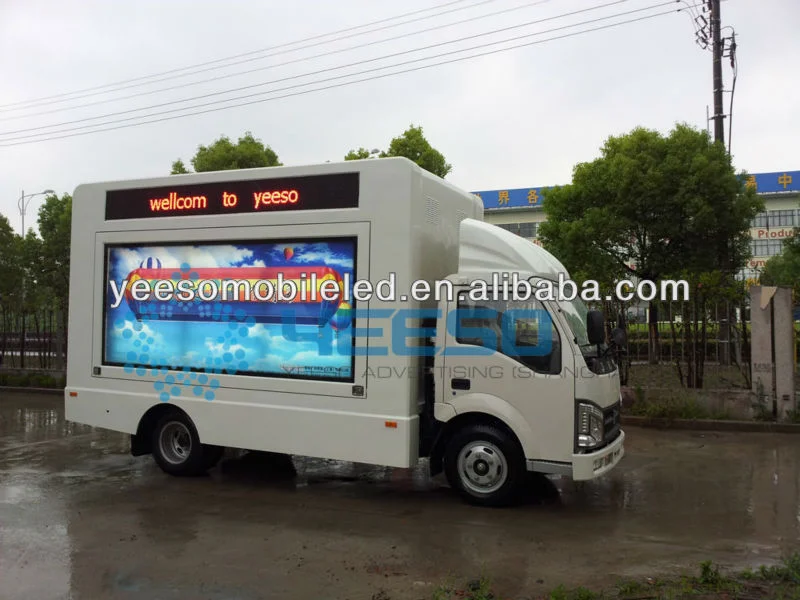

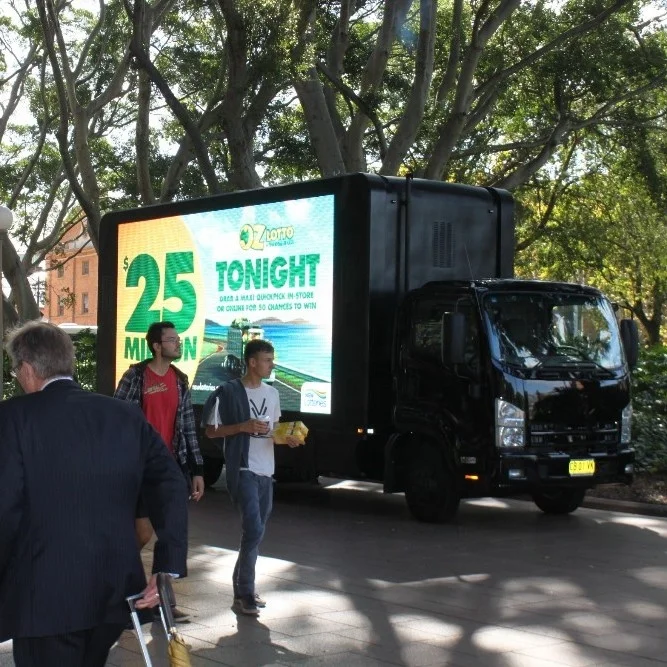

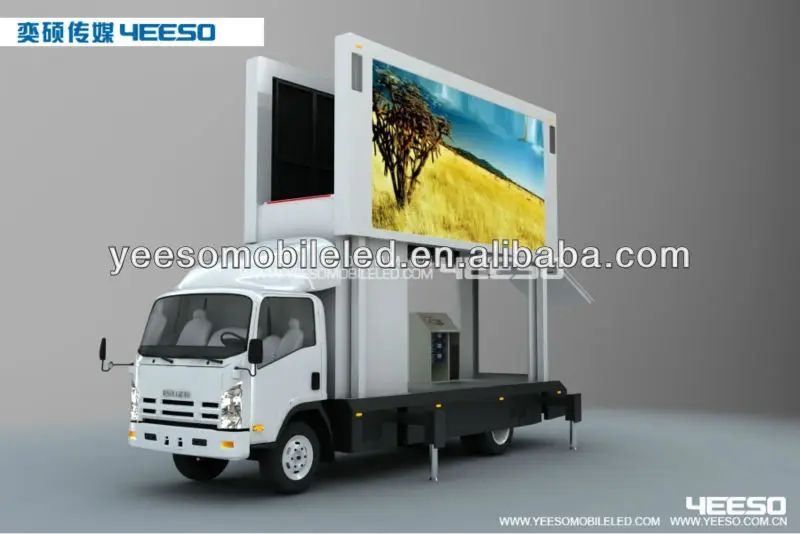

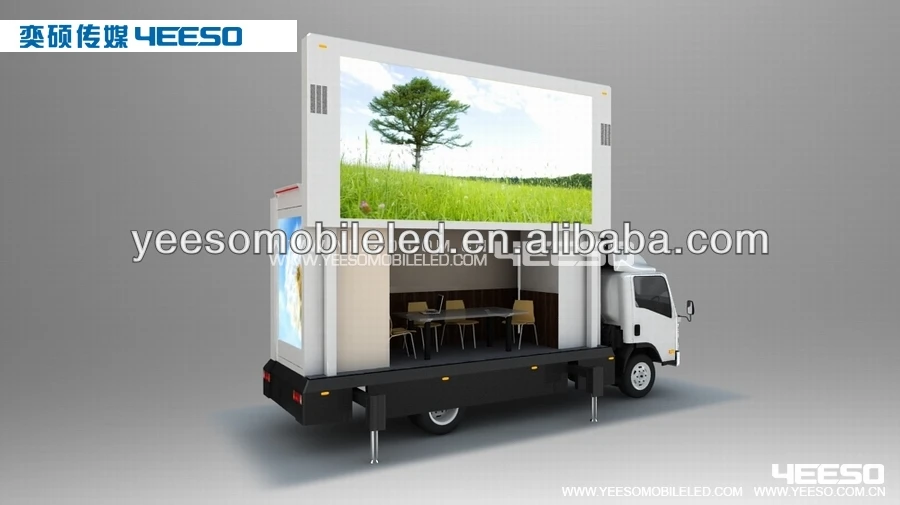

YEESO Outdoor Mobile LED Vehicle YES V8 With Stage or Meeting room which Can Customized By You!

Overall Description

Chassis Brand

YEESO

External Dimension

6800mm x 1920mm x 2350mm

Tire

650 rubber tire

Gross Mass

4750kg

Lifting and Supporting System

Hydraulic Lift Platform

Lifting type: scissor; Platform: 3200mm x 750mm x 40mm

Lifting Height

2000mm

Hydraulic Folding System

Slider type folding system

Loading bear

5T

Supporting System

Leading screw supporting legs, Lifting height: 300mm, each afford 5T

°

LED Display System

LED Screen Size

4800mm x 2400mm

Module Size

160mm(W) x 160mm(H)

Chip

R,G,B: EPISTAR

Pixel Pitch

10mm

Brightness

≥6500cd/ m²

Life Span

10,000.00h

Average Power Consumption

500W/ m²

Max Power Consumption

1200W/ m²

Outer Power Supply

Input Voltage

AV380

Output Voltage

AC220V

Electrical Current

50A

Power Consumption

Average: 0.5wh/ m²

Multi-media Control System

Industrial PC

Processor: Dual core CPU, Display card: 1G, Hard disk: 500G, CD-ROM: DVD, Internal storage: 2G

Monitor

KVM 15-inch LCD display

Power Amplifier

Unilateral output power: 200W

Speaker

Max power: 200W

Control System of LED Screen

LINSN

Press Release

News conferences, product launches, channel investment activities, press appearances , etc

Activities Road Show

Promotions, public relations activities, product marketing, branding promotion, draft activities, live shows and other sales

Live

Sporting events, live events, concerts, etc.

Parade Display

Product buildings parade promotion, exhibitions, fairs, shows, etc

Forum Lecture

Forums, conferences and seminars

Celebration &Ceremony

Real estate opening, anniversary celebration, the opening ceremony, festivals, ribbon-cutting ceremony, award ceremonies.

Election

promotion for election, policy promotion

Other Applications

Wedding live, auction, et
