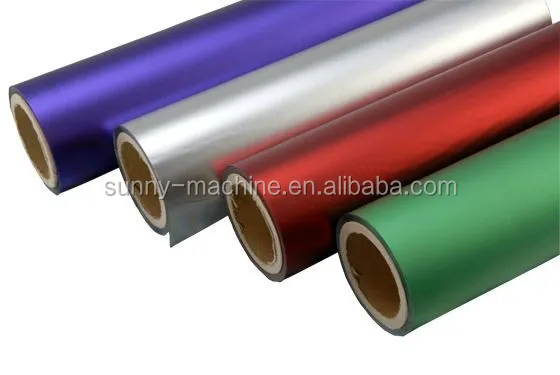

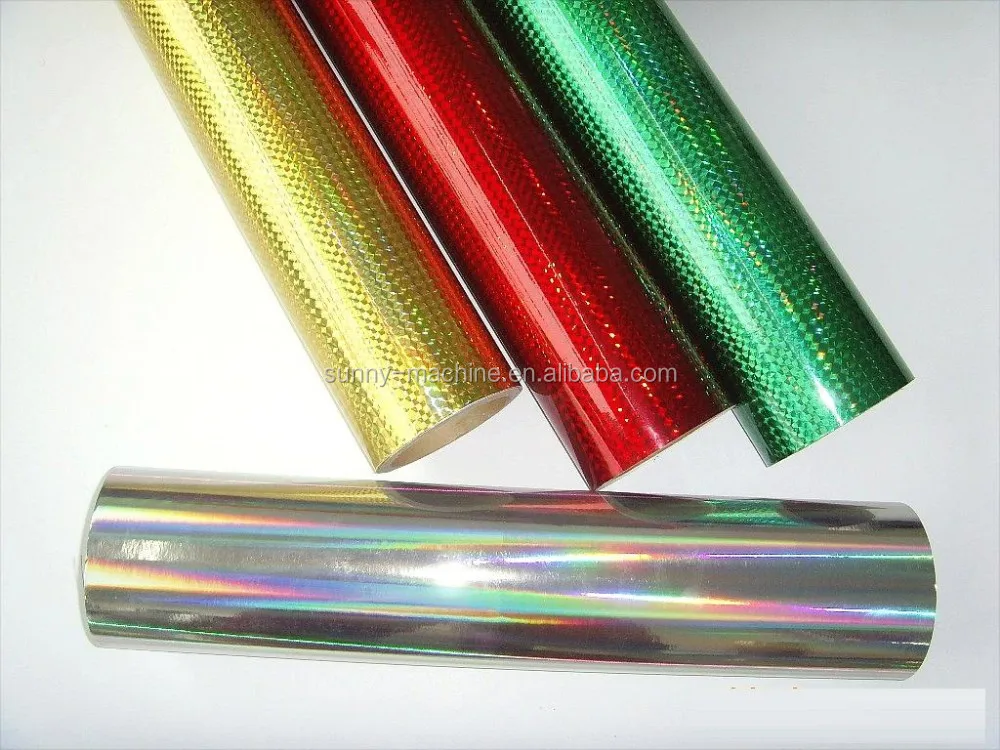

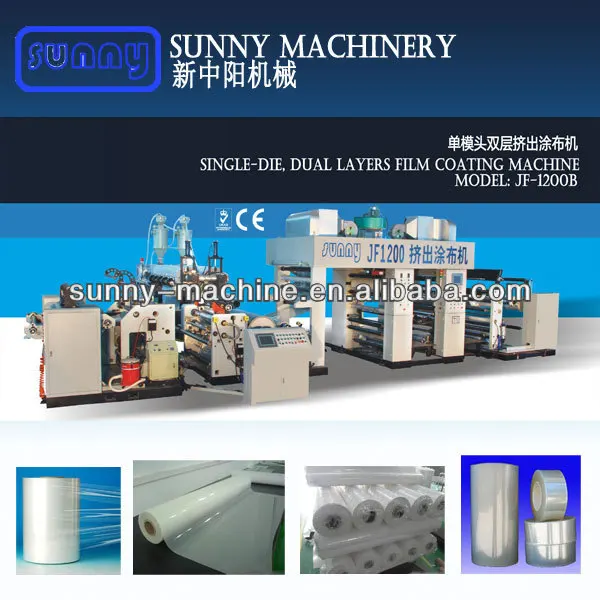

LDPE PP EVA EAA plastic extrusion coating machine
Machine unit main technical
Item | Parameters |
Apply film resin | LDPE,PP,EVA,EAA coating level |
Drench membrane width | 1200 mm |
Drench membrane thickness | 0.012-0.05 mm |
Drench membrane thickness deviation | 5% mm |
Laminating line speed | Max.200 m/min |
Max. extrusion output | 200×2 kg/h |
Guiding roller width | 1300mm |
Die width | 1470mm |
Die effective width | 1400 mm |
Max. unwind diameter | 800 mm |
Max. rewind diameter | 800 mm |
Paper-core specification | 3 inches |
Extruder power | 55 kw x 2 |
Screw diameter | 90mm L/D 35:1 |
Compressed air quantity demanded | 0.6 m3/min |
Compressed air pressure | 0.7 MPa |
Power supply | 3 Phase 5 lines 380v, 50Hz |
Whole machine power | About 550 kw |
External measurement | 18.9 M × 8 M × 3.8 M (L x W x H) |
Total weight | About 55 Tons |

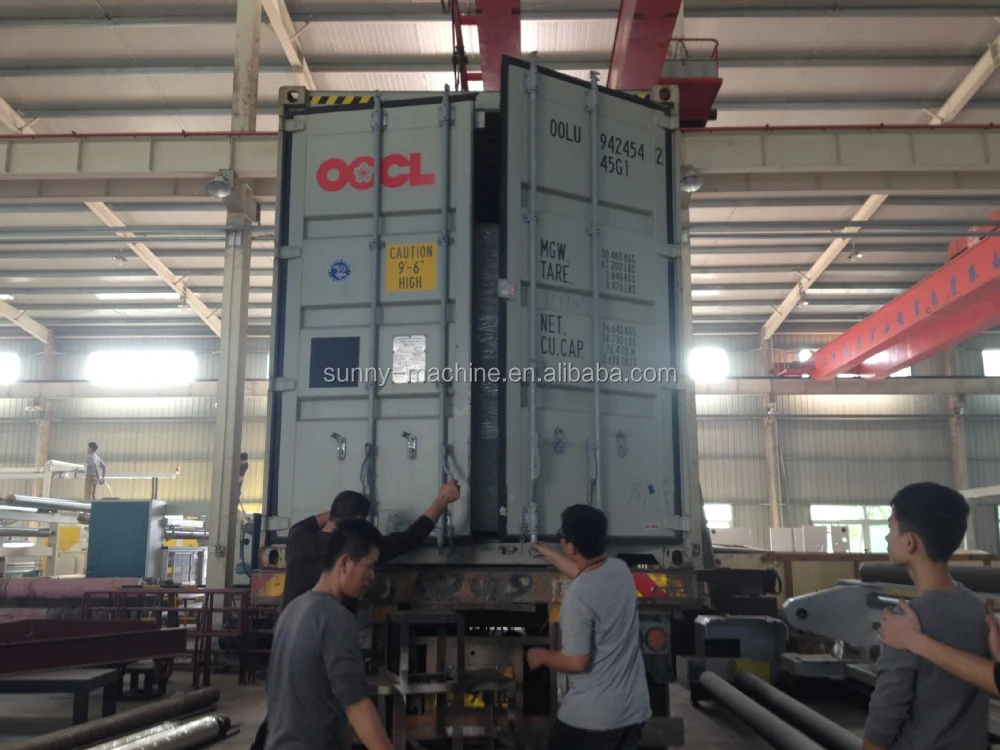

Seaworthy wooden stock


Professional service pre-sales
Products solutions
Factory solutions
Technical solution
Professional sales service
Project Information tracking
Technical support
Survey feedback
Installation tracking
We are an integrated professional Plant for manufacturing, designing and marketing of Slitting, Rewinding,Laminating, Coating, and Casting Film machinery facilities.
Over the years, we always set a motto of "science and technology as the guide, customer-focused", Products occupied the market quickly, and obtained widespread highly praise ,trust from the new and old clients.
Currently, 8 series of products and more than 70 models machinery has been developed as below:
1. High-speed wide range, plastic film etc 1 st time Slitting Series;
2. High-speed paper, plastic etc 2nd Slitting Series;
3. Special Slitting machine, Inspection machine, Rewinder Machine Series;
4. Gold & Silver Card-Paper Coating, Lamination, Peeling, Transferring machine Series;
5. High-speed CPP, CPE wide-range Casting film machine unit (1-6M) Series; CPP, CPE
6. High Glossy picture coating machine Series;
7. Multi-layers coextrusion tandem type extruder laminating machine unit (PE, PP, EVA);
8. UV 3D three-dimensional laser Carving Coating Machine;

Please feel free to contact if anything we can do for you, its our pleasure to be on service of you!

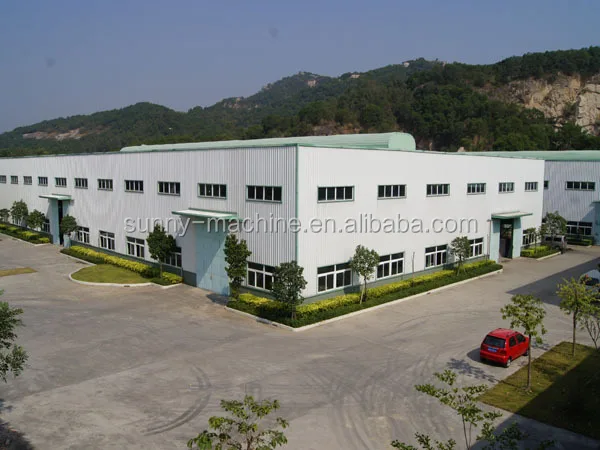

Shantou Jinping Sunny Machinery Factory
The 8th Plant, NO.277 University Road Shantou ,China
Tel: 0086-754-82121077
Fax: 0086-754-82120177
Website: www.sunnycn.com.cn
Whatsapp: +86-13417078406
Some other products:

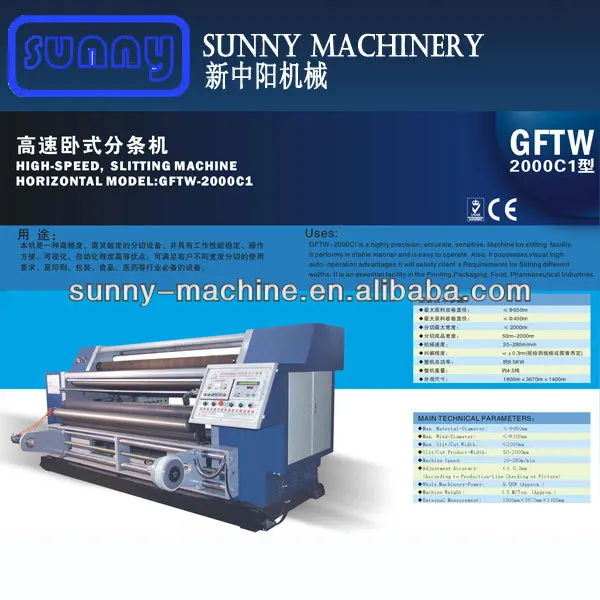

GFTW-2000C1SLITTING MACHINE

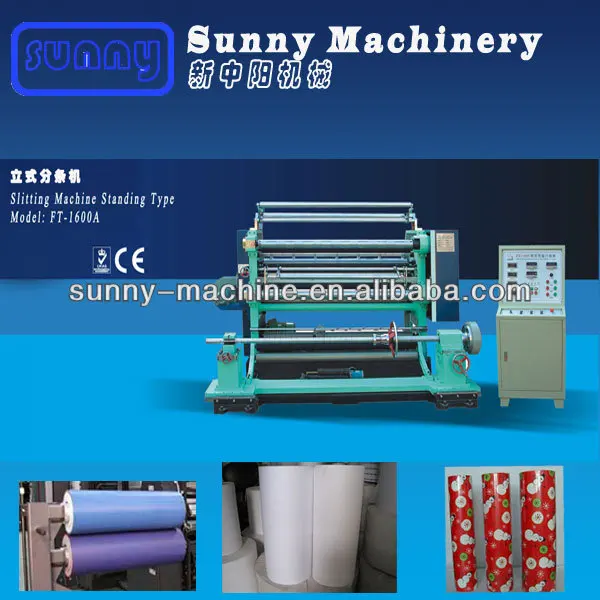

FT-1600A SLITTING MACHINE

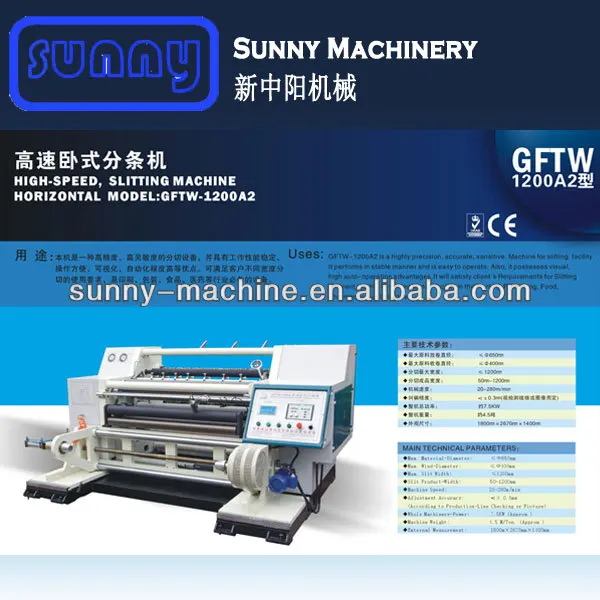

GFTW-1200A SLITTING MACHINE

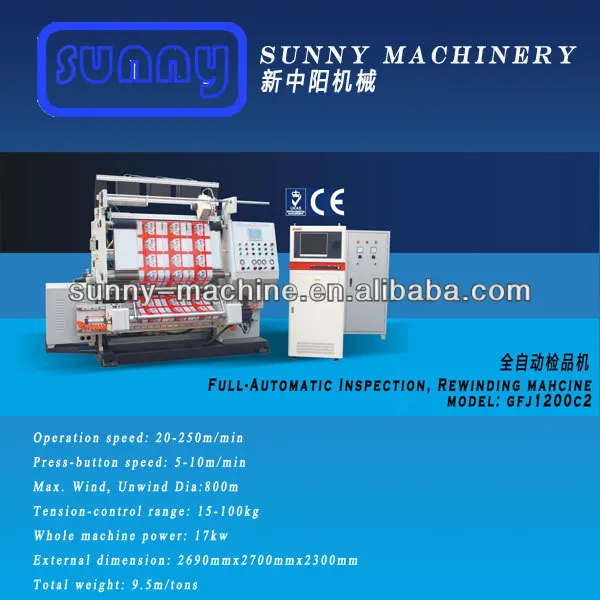

GFJ1200C2 INSPECTION MACHINE

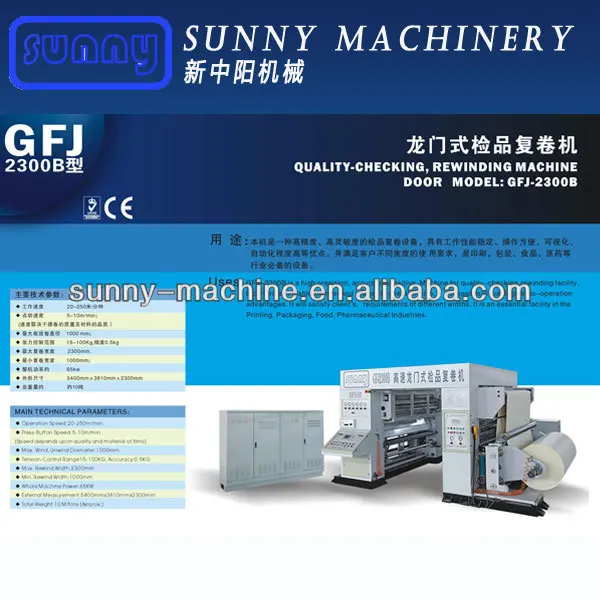

GFJ2300B REWINDER MACHINE

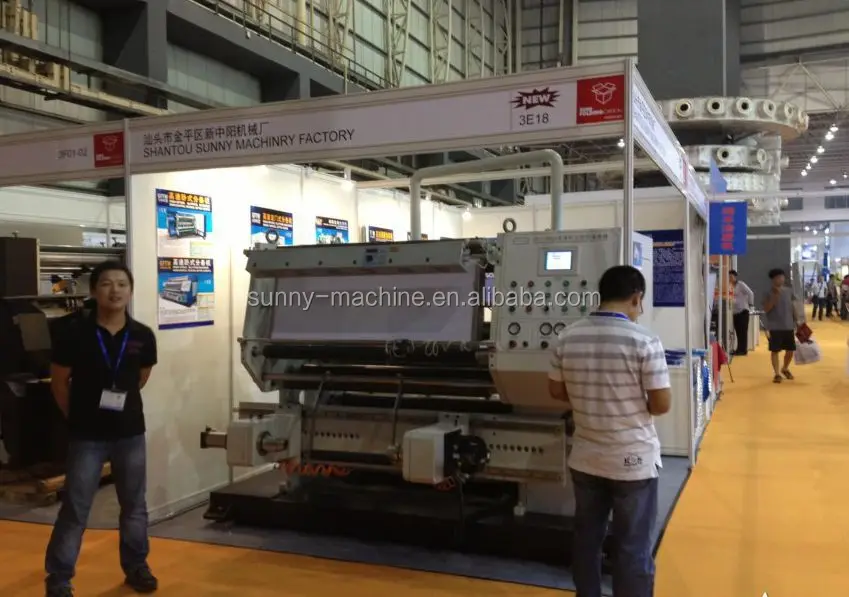

Recently exhibition information:
