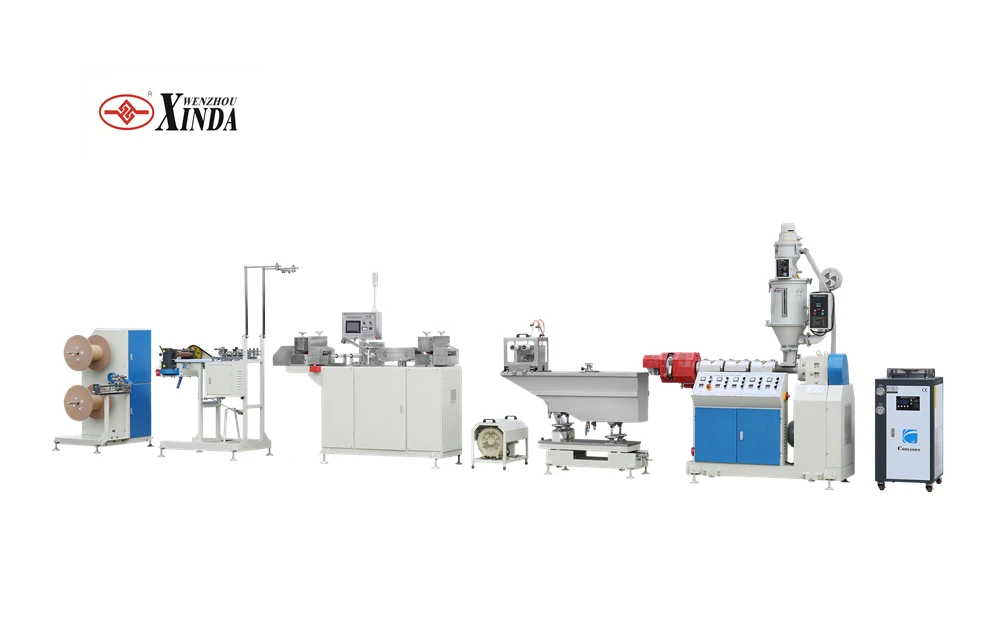

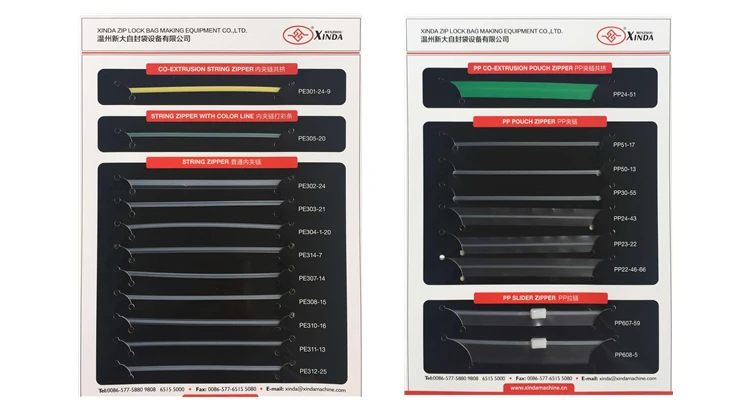

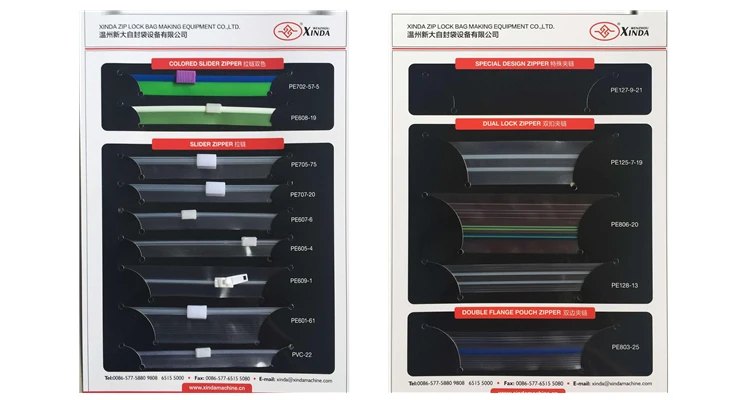

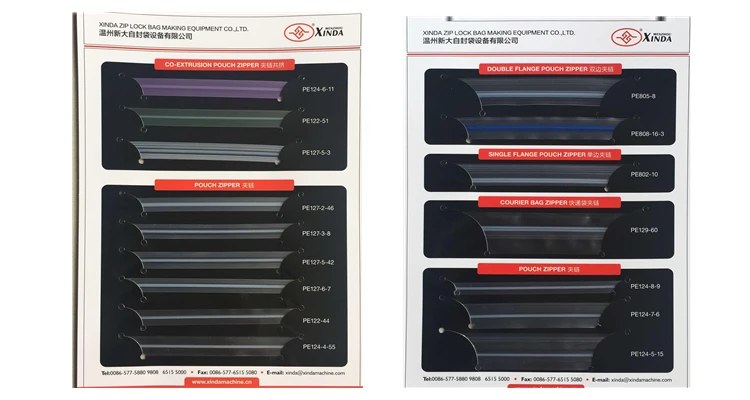

1. This extruder can produce various types of plastic zipper (strip) through changing its moulds. 2.The moulds can be designed according to customer's sample(requirement). 3.This extruder consists of chiller, main extruder, die head, mould, water tank (form the zipper at constant temperature), dewater device and air-drying device, traction part, zipper closing part and zipper winding part.
Choices
Choice 1: JL45 Standard Zipper Extruder(Mono-extrusion), to produce normal LDPE, PP zipper profiles Choice 2: JL45 Standard Zipper Extruder with one set of JL20 Mini Extruder, to produce zipper with one color line. Choice 3: JL45 Co-extrusion Zipper Extruder(with two sets of JL30 Extruder), to produce colored zipper and Co-extrusion zipper. Choice 4: Modified JL45 Zipper Extruder ,to produce special zipper, such as PVC, etc.
Specification
Model
JL-45
Material
LDPE,PP
Speed
10-50m/min
Zipper width
3-50mm
Thickness of zipper
0.3-2.2mm
Diameter of screw
45mm
Draw ratio of screw
25:1
Power
22kw
Heater
6.8kw
Main motor
5.5kw
Power of the auxiliary motor
1.1kw
Power of cooling water machine
3P
Power of dehydration and drying
2kw
Winding machine
1.1kw
Heater
6.8kw
Power
22kw
Overall dimensions
9350 X 1300 X 2200mm

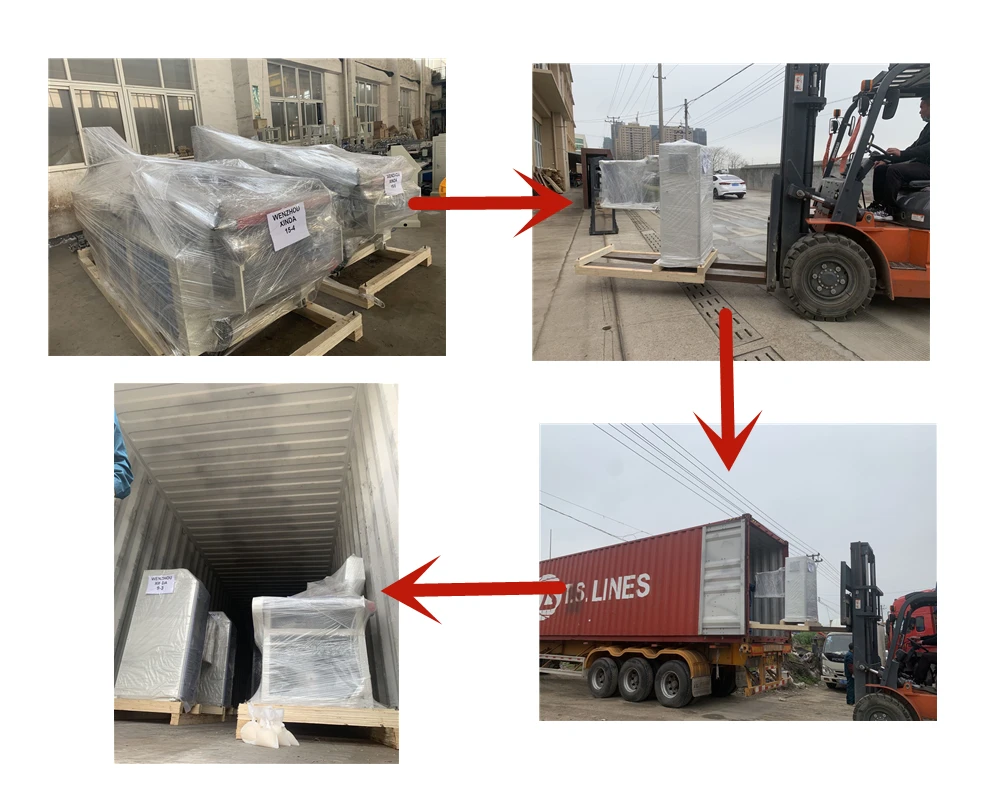

Packing & Delivery
Company Profie
FAQ
Q1- Is your company a factory or a trading company? A1- We are a factory. Q2- When is your company established? A2- our company is established in 1996. Q3- Where is your factory?How can I visit your company? A3- Our factory is located in Ruian city, Zhejiang province,China. It take about 45minutes from Shanghai by air(5 hours by train).All our clients from home and abroad are warmly welcome to visit us. Q4- What is type machines do you have? A4- Zipper film blowing machine, zipper bag making machine, zipper extruder, zipper bag making machine with zipper attachment. Q5- What is certificate of machine do you have? A5- CE, ISO9001:2008, and more than 10 piece Patent of machine.
