Автоматическая гидравлическая машина для запечатывания цилиндрических батарей 18650 для производственной линии цилиндрических батарей

Share on (1600052879079):


Price:

Quantity:


Product Overview

Description



Product Description



Cylindrical Battery Automatic 18650 Hydraulic Sealing Machine for Cylindrical Battery Production Line


Features
















































No.



Name



Detailed description



Advantage






1



Oil pressure part



Touch screen operation, the equipment is provided with sealing pressure by hydraulic station and hydraulic cylinder.



The positioning of copper sleeve is accurate, wear-resistant, and the whole process of mold positioning.






2



Feeding section



Adjustable speed motor drives wear resistant feeding belt.



Lengthen the conveying device, increase the discharging quantity, automatically and accurately deliver the material to reduce the workload of the staff.






3



Pusher part



The precision guide rail pushes the battery to achieve the pre sealing, two sealing and three sealing step-by-step completion.



Step feeding






4



Clamping part



It is made of high-quality imported materials with high precision and strict manufacturing, and 4 positioning and die seat sliding are designed.



4 positioning and matching die bases






5



Discharge part



The discharging mechanism automatically unloads the electric core to the discharging chute



Discharging and discharging are on the same side, which makes it easier for employees to operate






6



Electrical part



Mitsubishi Electric PLC, the whole machine is connected with multiple inductive switches; the equipment will automatically alarm and stop in case of abnormal conditions; equipped with emergency stop, door opening protection and other functions



Convenient and safe operation









Specifications


































Applicable steel shell model



18650/21700/26650 / 32650 /AA/AAA etc are available upon request



Rated voltage



380V,50Hz



Rated power



4.0KW



Working air pressure



0.5-0.6MPa



weight



670Kg



Height of material in and out and ground



910MM



External size



L1160*W700*H1680mm

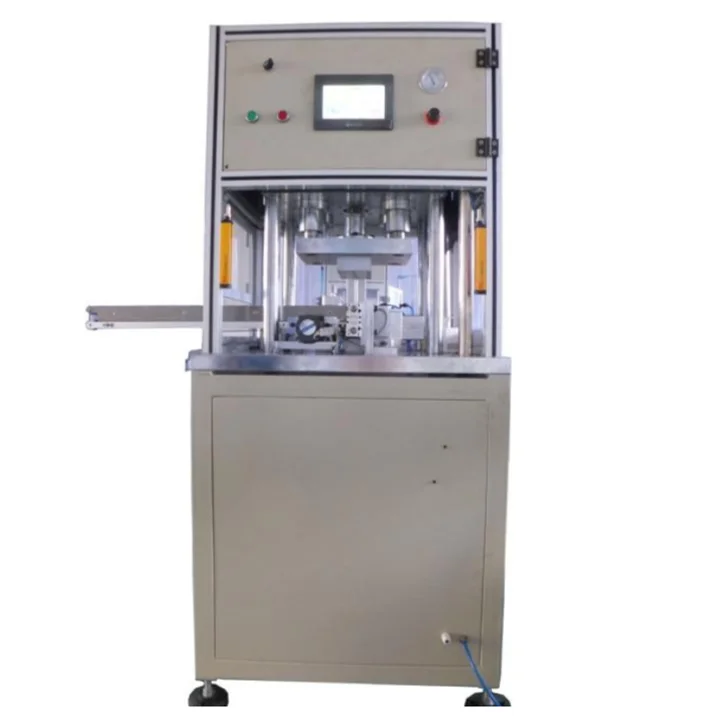

 Product Images























Our Company & Team










Certifications





Cooperative Partner










Packaging & Shipping




PACKAGE:


     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.


     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.


     3 Responsible for the damage during the shipping process, will change the damage part for you for free.





DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
