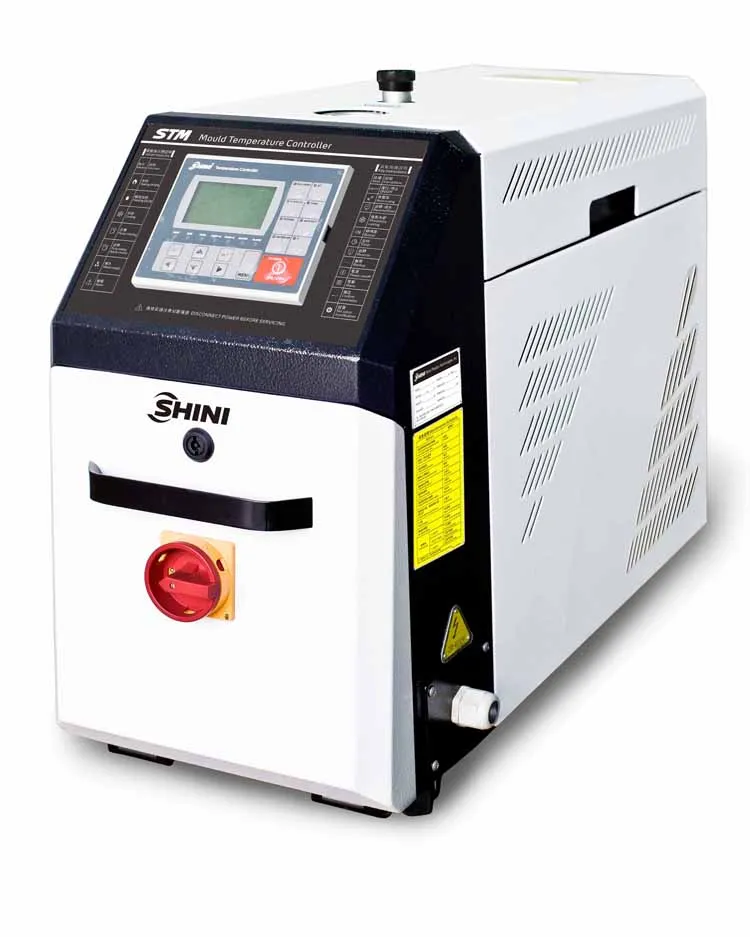

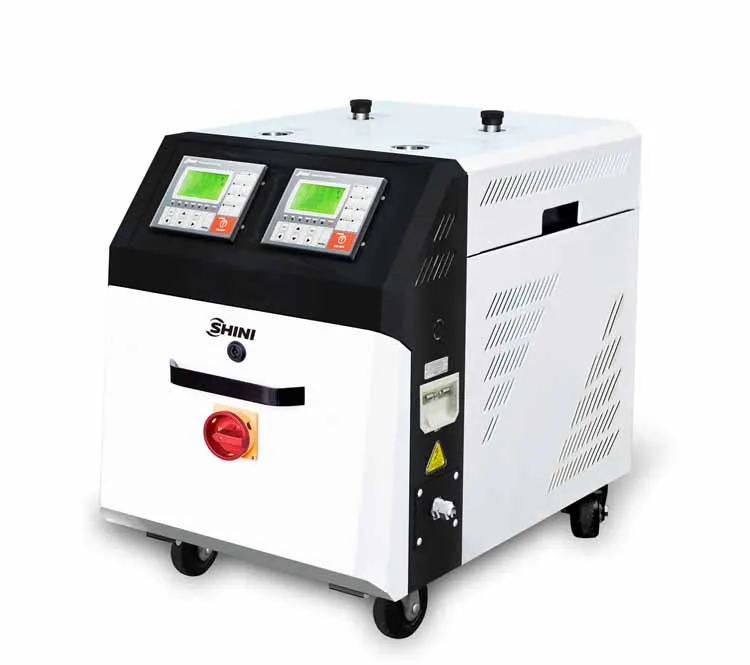

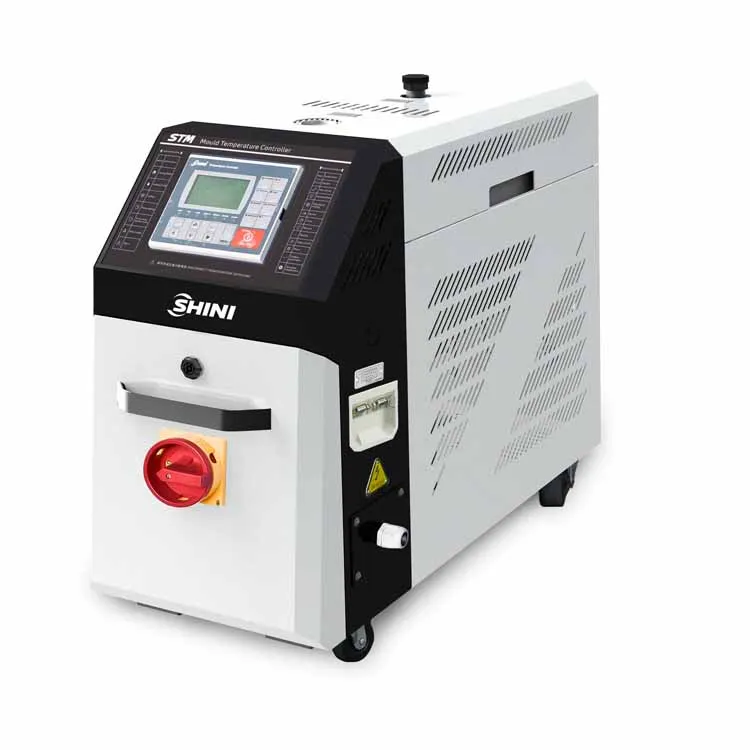

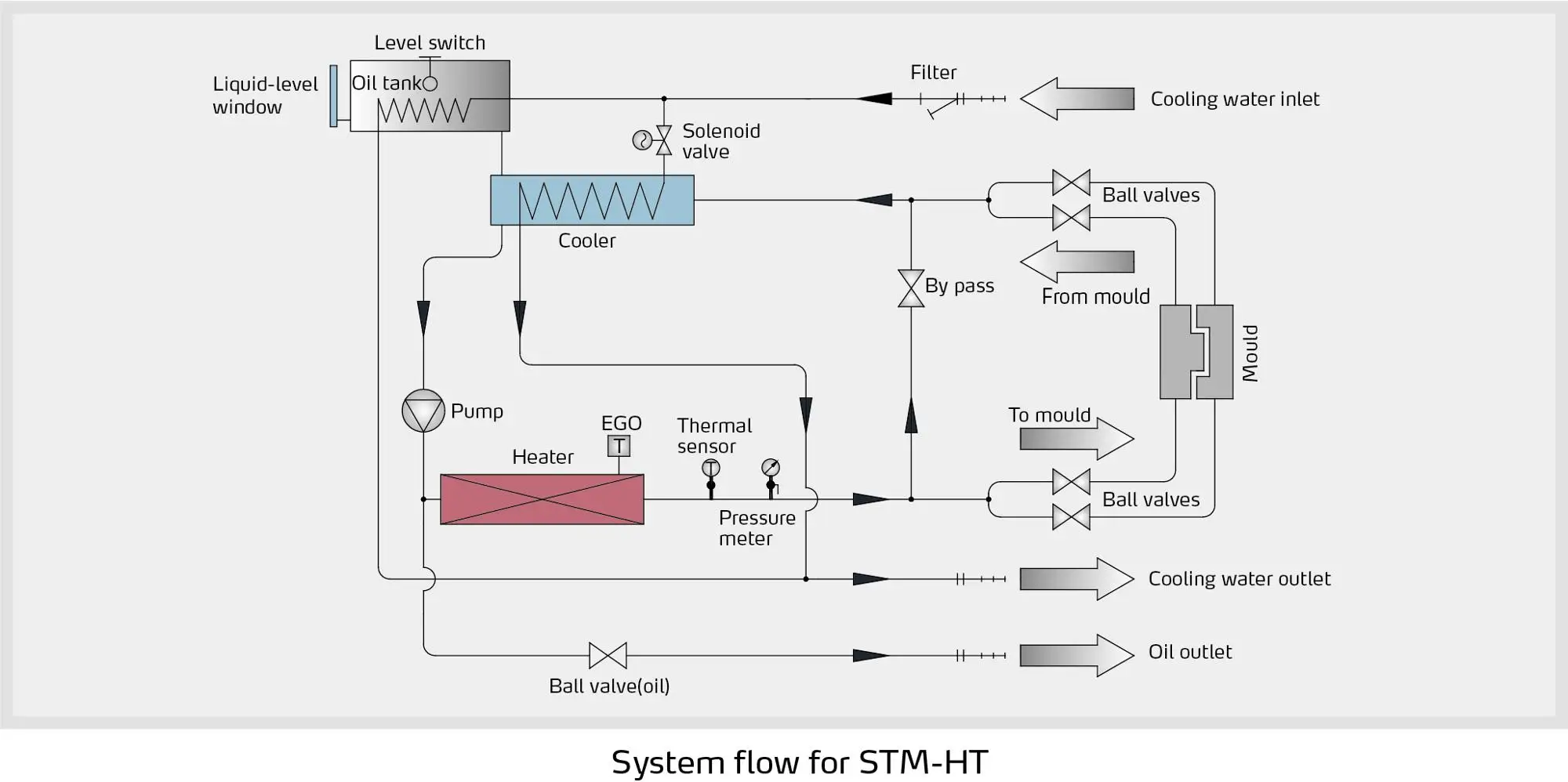

The STM-O series standard oil heater are used to heat up the mould and maintain this temperature, although they can be used in other similar applications. High temperature oil from the mould is returned to the cooling tank and cooled by indirect cooling. It is then pressurised by the high-pressure pump, sent to the heating tank and finally to the mould with a constant temperature. With our optimised design, oil can reach a maximum of 200℃ and the HANYOUNG temperature controller can maintain an accuracy of ±1℃.
Feature

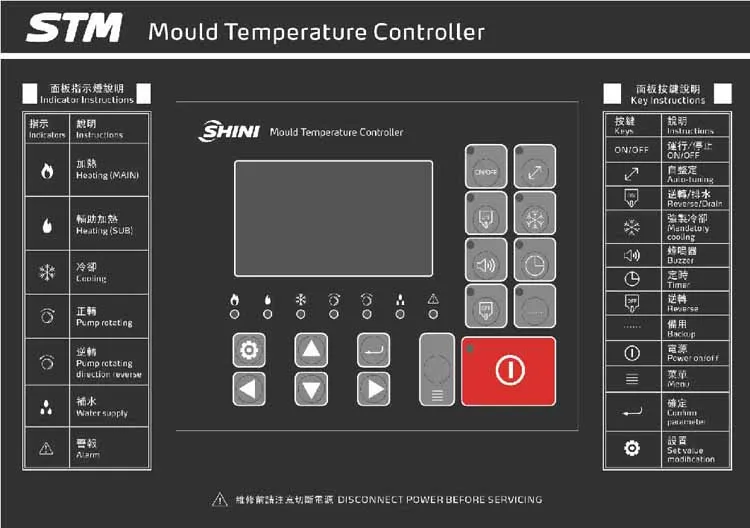

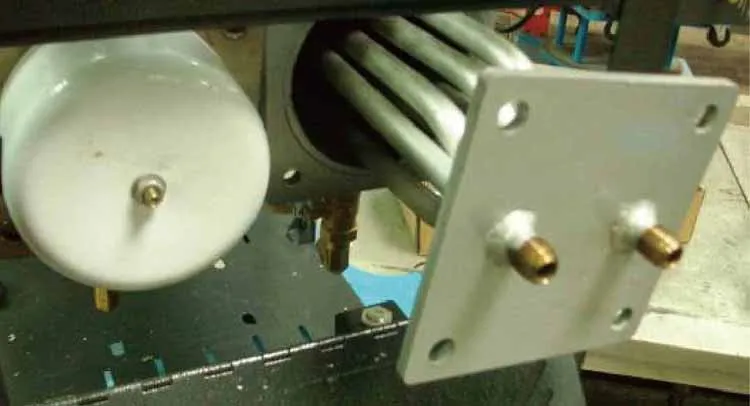

* Controller adopts 3.2" LCD for easy operation. * Equipped with the design of 7-day automatic start/stop timer. LCD screen can be converted between Chinese and English. The unit of temperature can be converted between oF and ℃. * I.D multi-stage temperature control system can maintain mould temperature with accuracy of ±0.5℃. * Adopts high efficiency high temperature pump, which can meet the demands of temperature control for precise moulds and mould loop with minor diameter to achieve precise temperature control and high efficient heat exchange. * Multiple safety devices including power reverse phase protection, pump overload protection, overheat protection and low level protection that can automatically detect abnormal performance and indicate this via visible alarm. * Pipe heater are made of stainless steel. * For standard STM-O, the heating temperature can reach 200℃,while for STM-HT, it can reach 300℃. * STM-HT is equipped with magnetic pump and its internal structure is made of high pressure resistance stainless steel to prevent any explosion. * Adopted Ethernet communication function to realize central monitoring online.
Model STM-
Max. Temp.
Pipe Heater (kW)

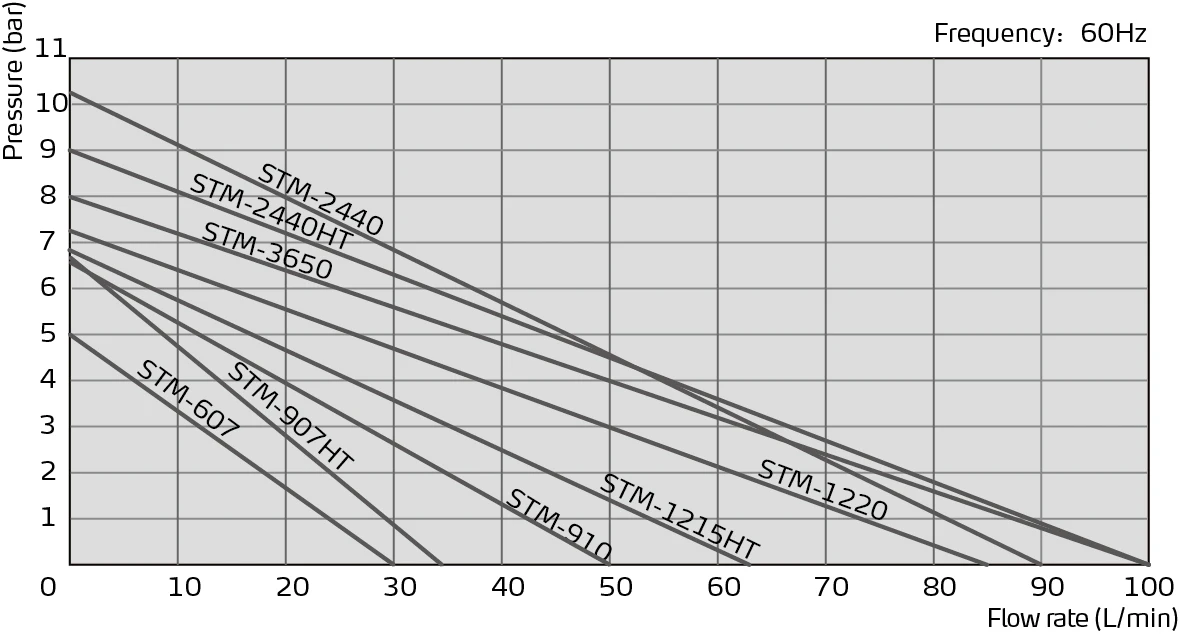

Pump Power (kW) (50 / 60Hz)
Max. pump Flow(L / min) (50 / 60Hz)
Max. pump Pressure (bar) (50 / 60Hz)
Heating Tank Number
Main / Sub. Oil Tank (L)
Cooling Method
607
200℃
6
0.55 / 0.63
27 / 30
3.8 / 5
1
6 / 3.2
Indirect
607D
6×2
0.55×2
27×2
3.8
2
6×2 / 3.2×2
910
9
0.75 / 0.92
42 / 50
5.0 / 6.4
1
6 / 3.2
910D
9×2
0.75×2 / 0.92×2
42×2 / 50×2
5.0 / 6.4
2
6×2 / 3.2×2
1220
12
1.5 / 1.9
74 / 84
6.2 / 7.2
1
6.8 / 11.8
2440
24
2.8 / 3.4
90/ 90
8.0 / 10.2
2
11 / 16
3650
36
4.0 / 4.0
100 / 100
8.0 / 8.0
3
14 / 16
Size Information
Model STM-
Inlet/Outlet(inch)
Dimensions (mm)
(H×W×D)
Weight
(kg)
607
3/4 / 3/4
700x350x900
70
607D
3/4 / 3/4
700x535x900
120
910
3/4 / 3/4
700x350x900
70
910D
3/4 / 3/4
700x535x900
140
1220
1 / 1
755x320x900
100
2440
1 / 1
899x407x1009
145
3650
11/4 / 11/4
928x407x999
155
Packing&Shipping
After Sales Service
After Sales Service
User-oriented: on customer service, Shini adopt considerable and flexible ways to meet all kinds of requirements. Humanization: on product design, Shini adheres to user-friendly principle; by improving new technologies to realize design humanization to the maximum. One-stop: on business cooperation, Shini provides one-stop experience, and creates trustful and friendly long-term cooperation.
Company Introduction

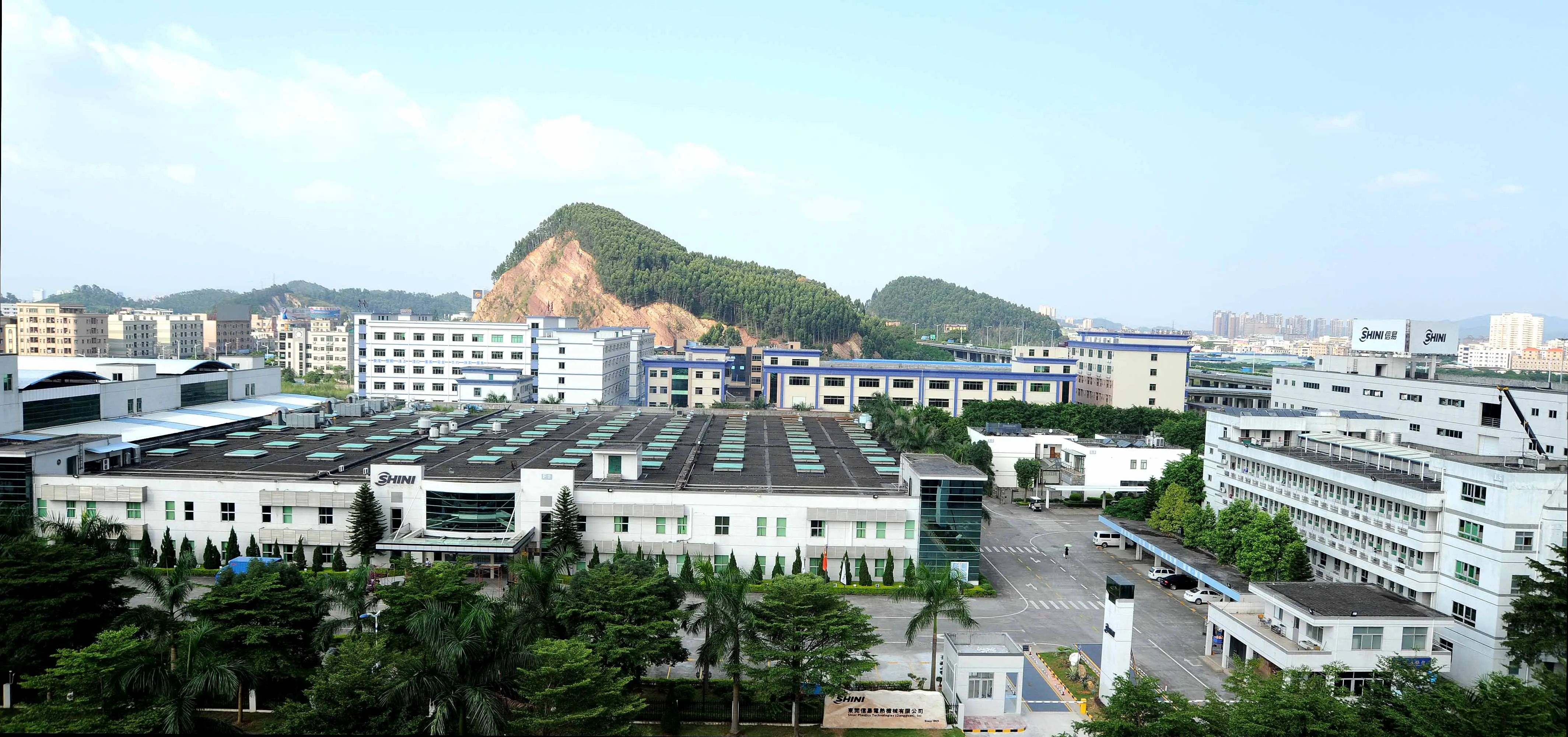

In 1969, Shini Electrical Work Shop was established in Taipei by I-Fun Wu, who is the founder of Shini Group. Its major products include band heater, pipe heater, motor service and design plus assembly for control box. In 1975, Shin I Electrical Work Shop began to produce SHD hopper dryer and entered into the line of plastic auxiliary machinery industry. In 1978, Shin I Electrical Work Shop was renamed as “Shini Electric Heaters Co., Ltd”. Since then, Shini was officially established. Along with the development of enterprise, Shini keeps expanding its scale. Besides Taiwan factory, Shini also has manufacturing facility respectively in Dongguan, Ningbo, Pinghu, India, and Chongqing, a technical & logistics center in USA, a branch office in German. What’s more, it setup a Corporate Technology Center, CTC is responsible for the research and development, application, global marketing and technical support for all series of Shini products. Thus, it realizes industrial distribution of “one technologies center, six manufacturing bases”. With eight series of plastics auxiliary equipment and complete system solution, we can offer customers “one-stop shopping” experience. In 2013, Shini accomplished rebranding and transformed to international brand for giving off more dazzling light. We develop our distinct and remarkable enterprise culture as we grow to enhance collective strength and build an outstanding internal image. we are going to follow the pace of the times, to actively take social responsibility and to make our own contribution to the development.
