WENSUI Mold Injection Machine Temperature Rapid Heating Oil Heater Controller
WENSUI Mold Injection Machine Temperature Rapid Heating Oil Heater Controller
WENSUI Mold Injection Machine Temperature Rapid Heating Oil Heater Controller
WENSUI Mold Injection Machine Temperature Rapid Heating Oil Heater Controller
WENSUI Mold Injection Machine Temperature Rapid Heating Oil Heater Controller
WENSUI Mold Injection Machine Temperature Rapid Heating Oil Heater Controller

WENSUI Mold Injection Machine Temperature Rapid Heating Oil Heater Controller

Share on (60466276354):


Price:

Quantity:


Product Overview

Description



Product Features


✔Controlled by microcontroller, and consists of LCD screen and keyboard.

✔P.I.D. multi-stage temperature control maintains mold temperature with accuracy of ±0.5°C.

✔Chinese and English interface is available; easy to operate system and to understand warning messages.

✔The electrical and heating equipment are separated to avoid high temperature damage to machine.

✔Adopted high quality and efficiency pump, applicable to all kinds of mold temperature control requirement.

✔The inside is made of stainless steel that resists corrosion and stands high pressure with high heating efficiency.

✔6 safety and protective measures include broken thermocouple alarm, reversed phase, faulty phase, overload, overheat and water shortage.



Specifications


Model
Medium
Pump Power
(L/min) Max.Flow Rate
Pump Lift   (m)
Tank Capacity (L)
Heating Power (kw)
Inlet/ Ourlet Diameter(inch)
Dimension (cm)
Net Weight   (kg)
WSTO-06W



Heat Transfer Oil
0.37
35
30
10
6
3/8''*3
96*30*60
62
WSTO-09W
0.75
50
30
10
9
3/8''*3
96*30*60
65
WSTO-12W
1.5
80
45
10
12
3/8''*4
596*30*60
75
WSTO-24W
2.2
320
30
10
24
3/8''*4
125*44*105
1120
WSTO-36W
3.75
550
35
10
36
1.5''
125*44*105
130
WSTO-60W
3.75
550
35
10
54
1.5''
125*44*105
135


The above model 's Max. Temp is 200 ℃.



Product Details


Oil Type Mold Temperature Controller
Widely used for Plastic molding, Die casting of light guide plate, Rubber tire, Roller, Chemical reaction kettle, Adhesive
industry, Plastication and mixing industry etc.
In a broad sense, called temperature control equipment,Contains heating and freezing temperature control.


P.I.D Temperature Control
>P.I.D temperature control, temperature error in ±0.1 degree, constant temperature for a long time, high efficiency, energy
saving

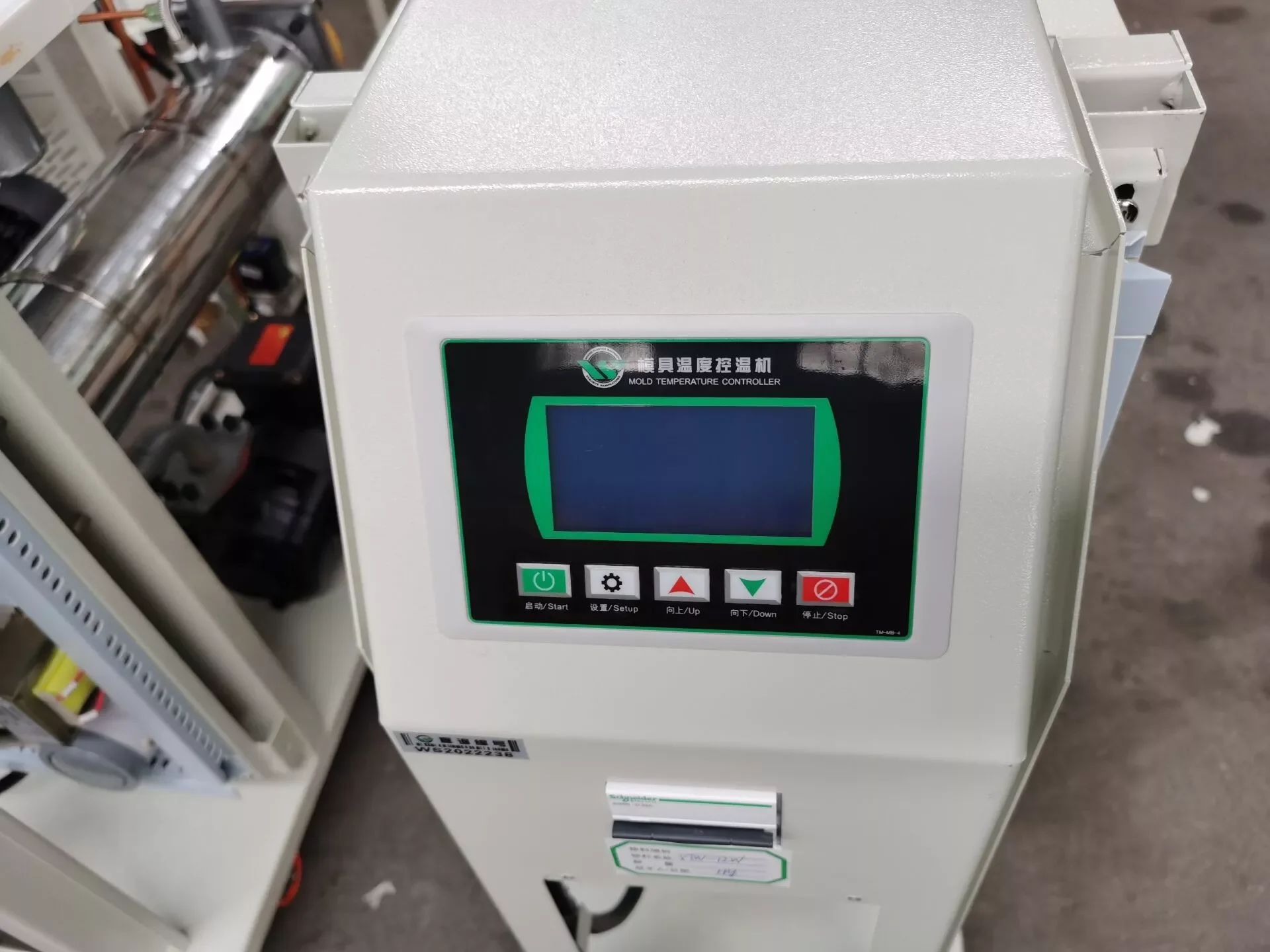

>The LCD screen directly displays the measured temperature and the set temperature
Siemens Appliances
>All series use Siemens electronic components, more stable performance
>With six protection functions: power automatic exhaust, shutdown automatic cooling, thermocouple off couple alarm, power missing
phase, phase protection, overheating protection


Water Pump
Domestic brand olenac water pump, reliable, stable and safe performance, at the same time with water pump protection function
Special Design of Welding Port
One end of the heating bucket is baffle plane and the other end is arc welding, which can effectively relieve water pressure
impact and better prevent leakage of welding port.


Certification




Exhibition






Our Company


Wensui, founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia. Welcome to browse our website www.wensui.com if necessary.
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )




FAQ


Q: How many years have your factory been established?
A:Our factory established from 1990,but most of our engineers are working in this industry over 30 year.


Q: How long is your delivery time ?
A:we have a few stock .but if produce,
1 set for normal machine need about 3-7 working days ,
if 1 or more containers, need about 15-20 working days.


Q:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage(because of the quality problem ,except wearing parts),our company provide these parts for free.


Q:What is your payment term ?
A:TT 100% before shipment ,LC at sign,Western Union or Trade Assurance order recommended.
