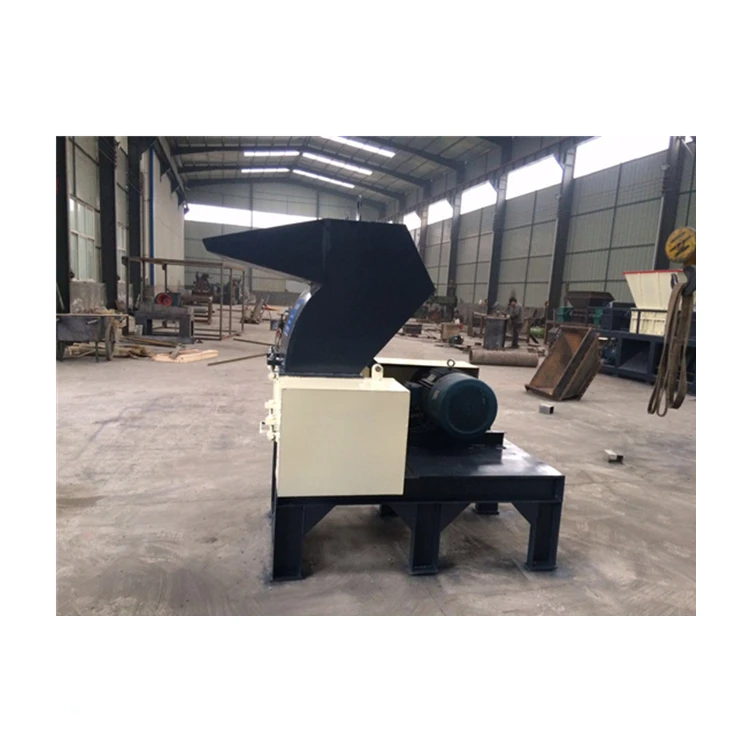

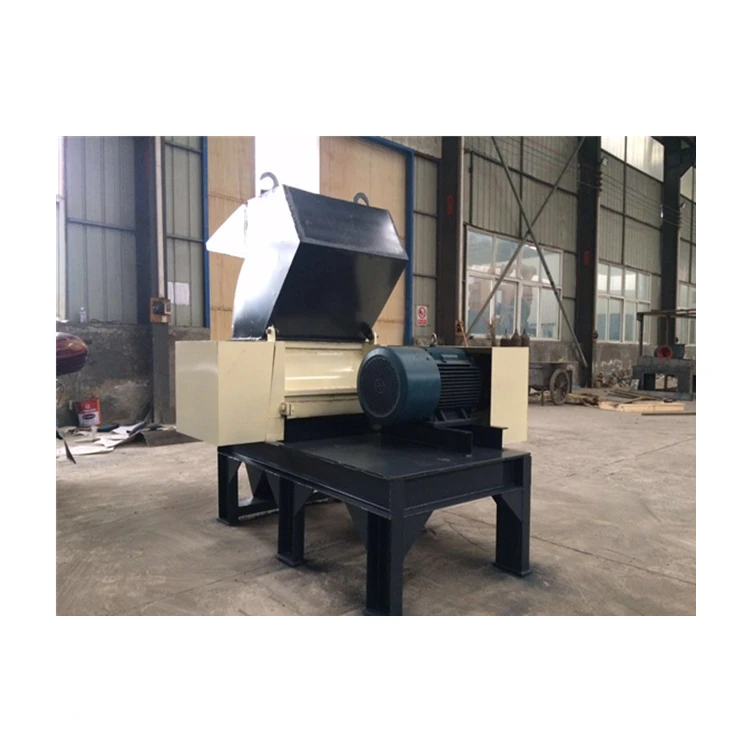

Машина для переработки пластика с дробилкой пластика

Product Overview

Description

Plastic shredder blades from China manufacture

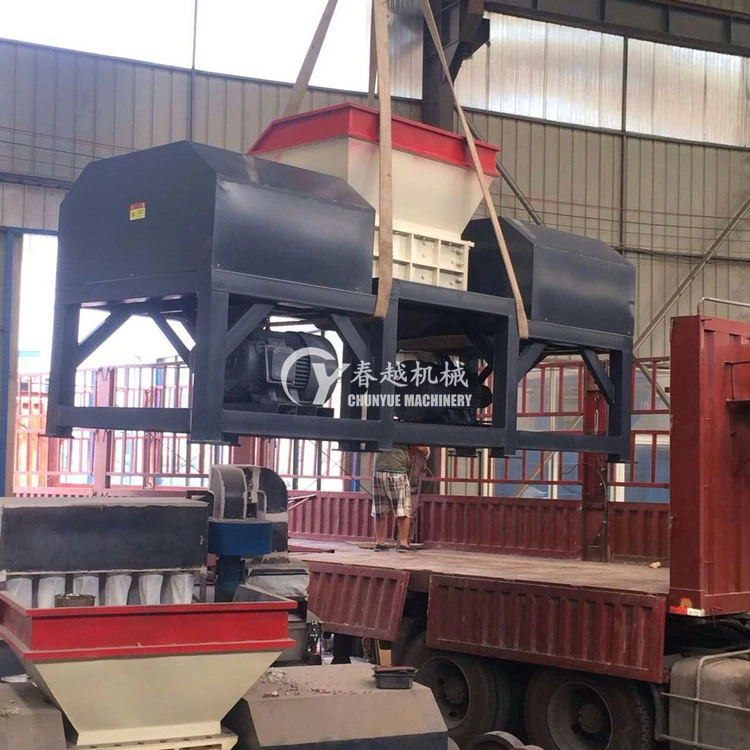

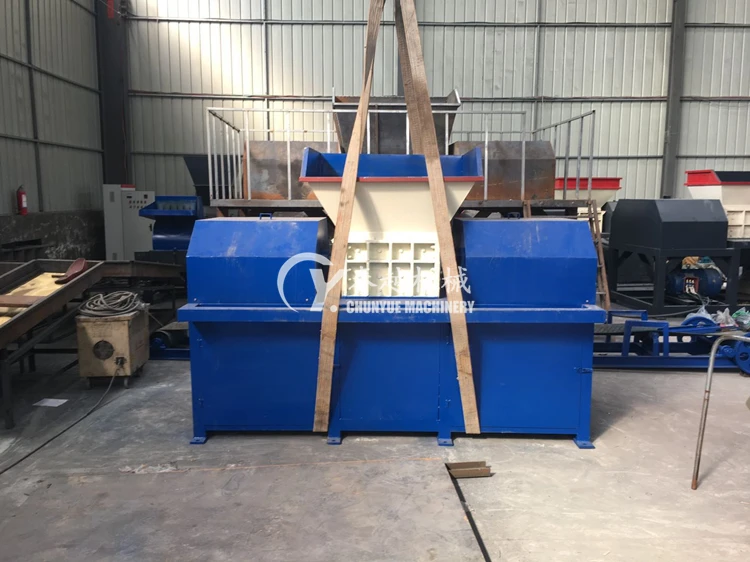

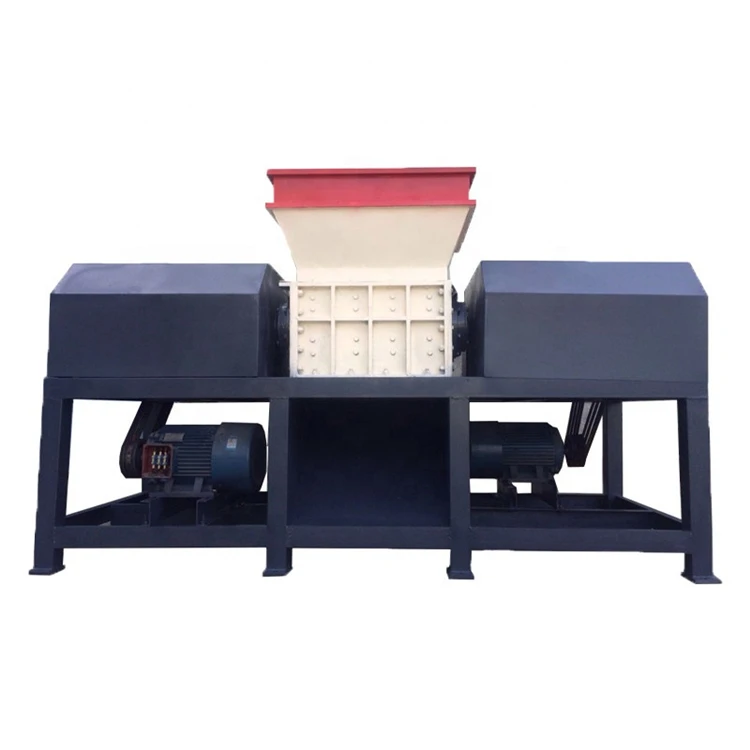

The double shredder machine adopts two double shafts individual drive,so during production ,make the material produce homologous's squeezed ,that reach mechanical feed function,special cutter shaft structure and quadrangle rotary type tool,in the low speed and high torque's production process,won't appear wind shaft or jammed devices ,thus improve the production efficiency,the equipment is suitable for crushing various materials with high toughness and viscosity.



Model	ZY-D600	ZY-D800	ZY-D1000	ZY-D1200
Motor power (kw)	7.5+7.5	15+15	18.5+18.5	30+30
Capacity (kg/h)	500-600	700-800	800-1000	1000-1200
Cutter (pcs)	22	30	30	36
Shredding room size (mm)	600x430	800x430	1000x500	1000x580
Weight (kg)	2300	3300	5000	6800

 The application of the shredder generally includes:
1.Shred the unqualified product into smaller pieces for recycling.
2.Reduce the volume of raw raw materials for mixing with other materials.
3.Shredding organic matter to make biofuel.
4.Shred some textile materials to facilitate the recycling of the fibers, such as the smashing of the carpet.



Advantage of the Plastic shredder blades from China manufacture

1.Thick knife, high crushing power, all alloy steel casting tools, long service life.

2. Feed hopper: Put the material to be crushed, in order to prevent the material from splashing out.

3.the frame plate thickness, can resist high torque, very strong.

4.Use name brand reduction box and Quiet operation with low speed
5. Discharging conveyor system: It adopts independent power system which is integrally fixed on the shredder.

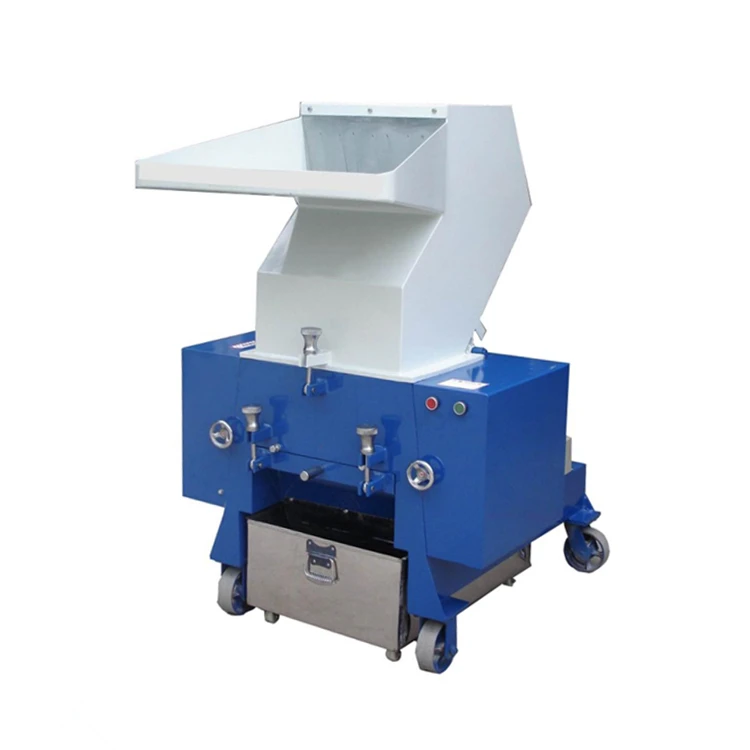

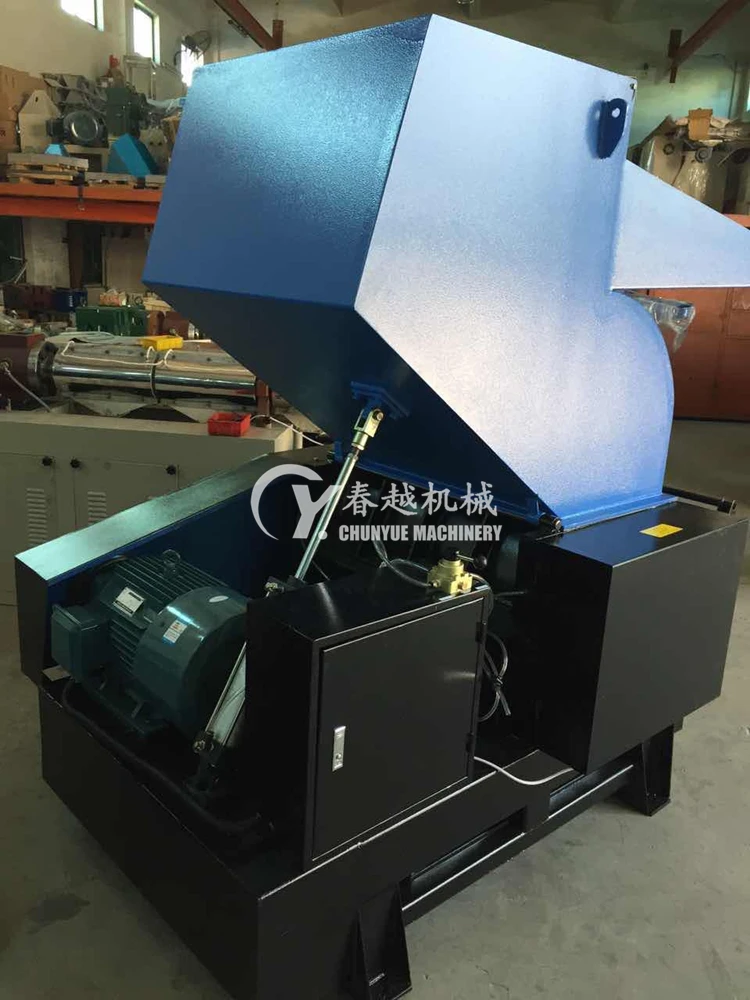

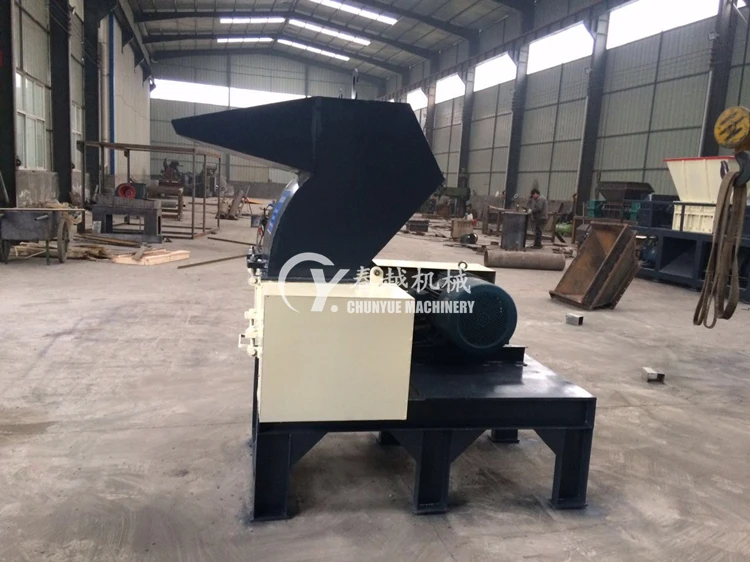

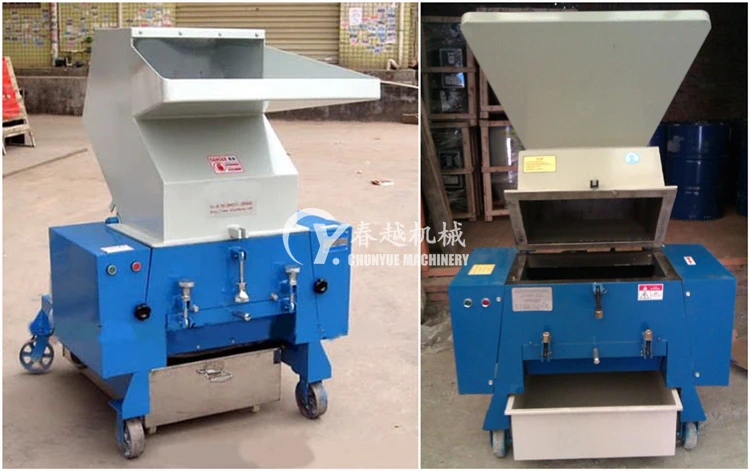

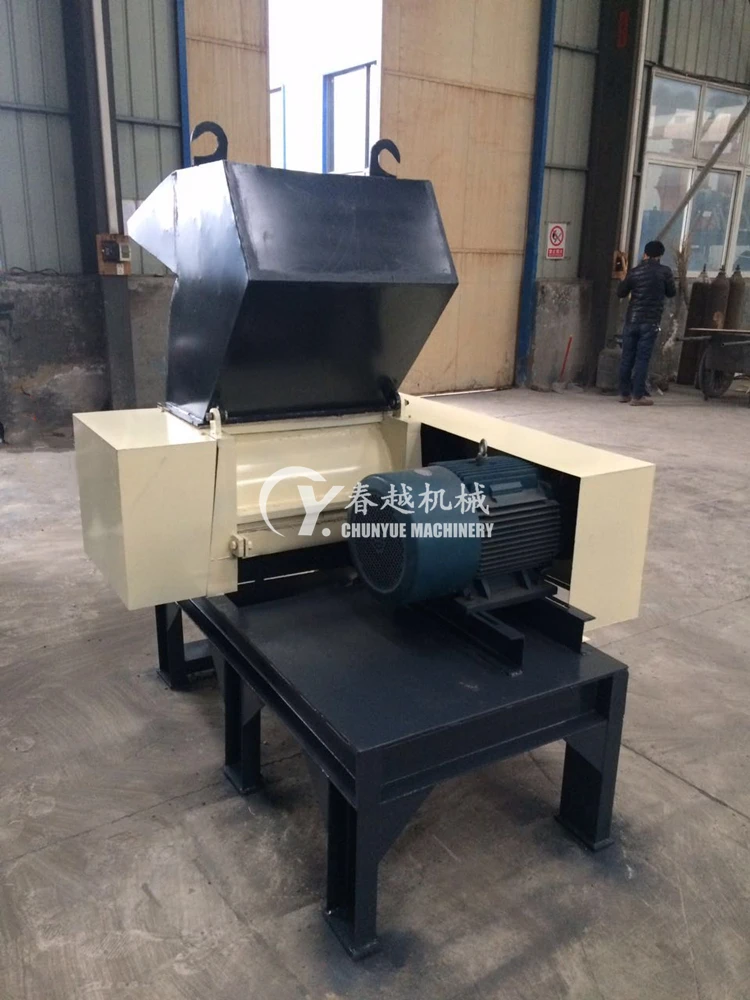

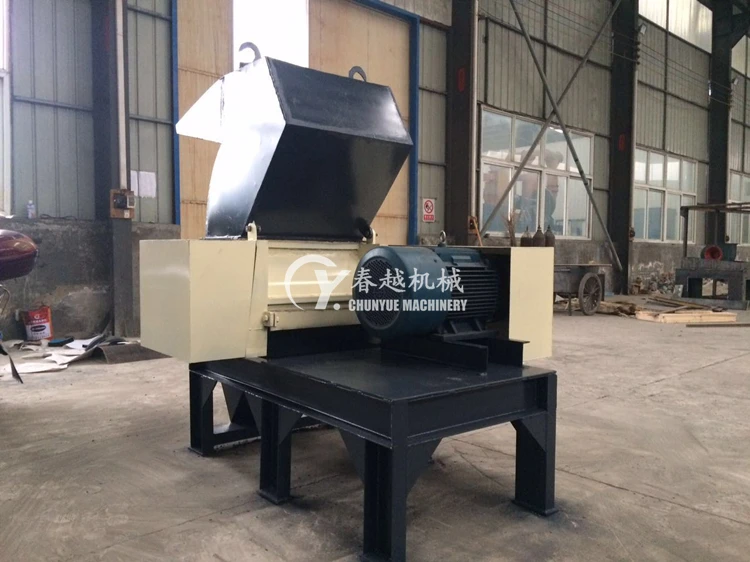

Model	CY-300	CY-400	CY-500
Motor power (kw)	4-5.5	7.5-15	11-15
Capacity (kg/h)	80-100	100-140	150-200
Cutter Size (mm)	300	400	500
Outside Dimension (mm)	1100x800x1150	1200x850x1200	1400x1150x1700
Cricumgyrate Blade Rotate Speed	600	600	600
Weight (kg)	300	480	720







The function of

cutter is break the material to the fragment,such as metal,plastics,wood and so on.

Different knife rooler can be used for different material requirements.
The correct choice of knife roller can greatly improve the design performance and production efficiency.
