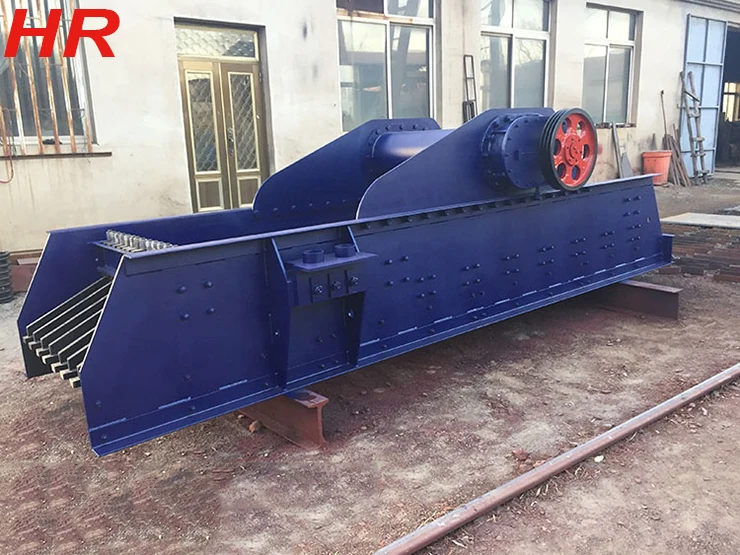

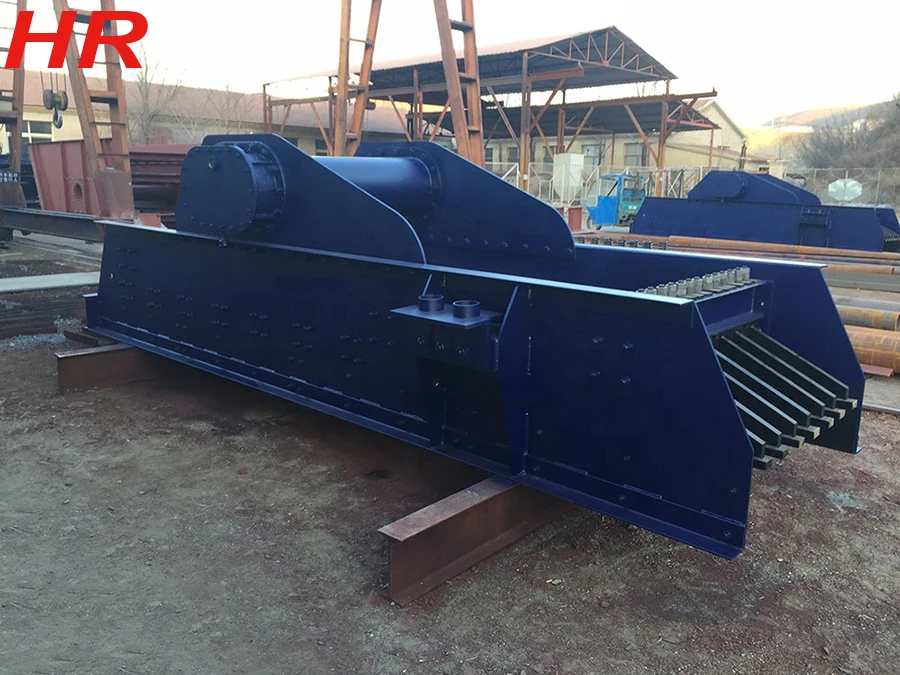

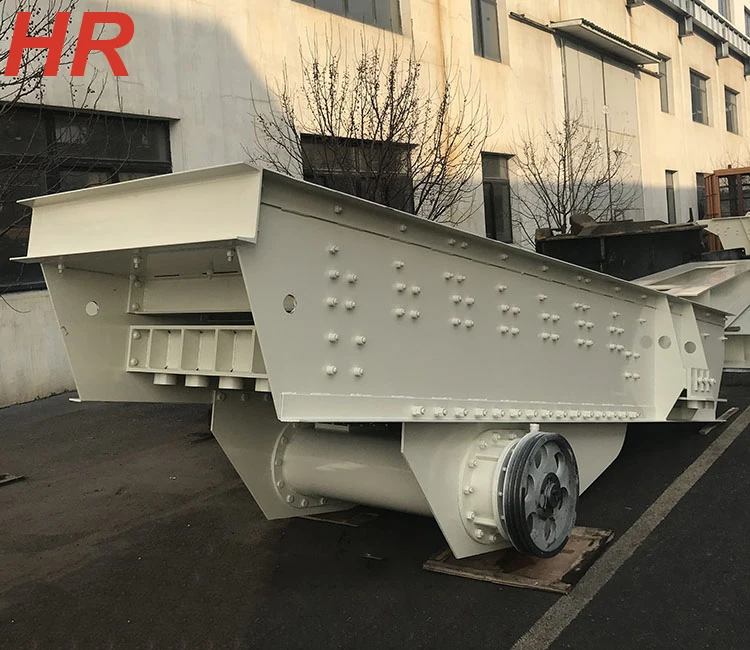

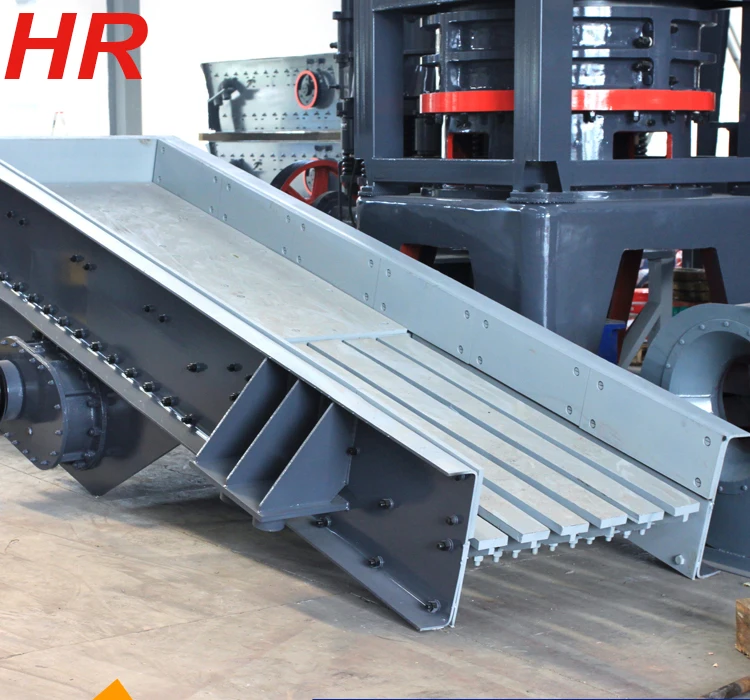

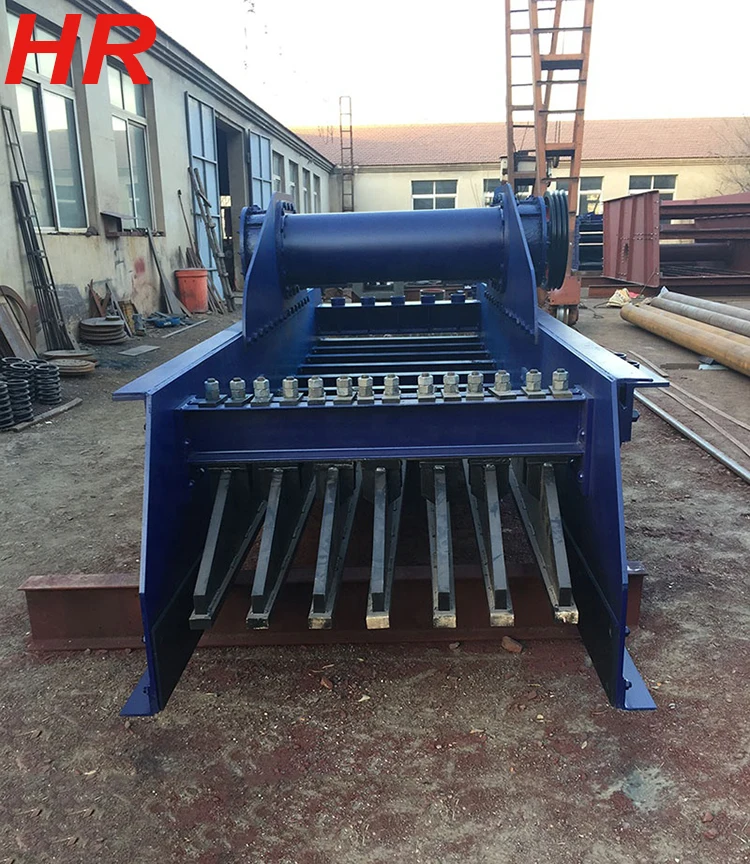

Description This series vibration feeder is a kind of new type vibrating feeder equipment. It also has replaced the electromagnetic vibrating feeder widely in many occasions.Because it uses vibration motor as vibration source, so its speed and power have a very stong controllability, by controlling the speed and transmission power of the motor can quantitatively control the feeding capacity. So it is very convenient in the actual application. Vibrating feeders are widely used in mining,building material, silicate and chemical industry in the crushing and screening plants. In the sand stone production line,vibrating feeder can send materials to crusher evenly and continuously. Vibrating feeder can be used in metallurgical industry, coal mining industry , mining selecting, building chemical and grinding industry,etc.
Features 1. Advanced structure, maximum strength frame, heavy eccentric shaft enhances the screen stroke; 2. Its screen deck is available in single, double, triple and four decks; 3. Can use steel-plate screen cloth, steel-wire weave screen cloth, rubber plate cloth and polyurethane screen cloth; 4. The slope of screen can be chosen between 15 degree and 25 degree, the standard slope of screen is 20 degree; 5. It is easily installed on portable plant or firm foundation with easy maintenance.

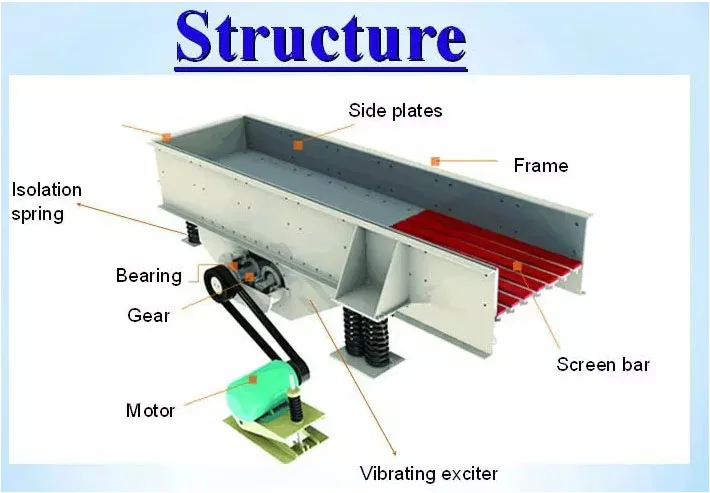

Working Principle Vibrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.
Technical Parameters
MODEL
Desk area(mm)
Feeding(mm)
Capacity(t/h)
Power(kw)
Weight(kg)
ZSW0725
2500*750
<300
180
7.5
2200
ZSW0936
3660*915
<500
300
11
3780
ZSW1248
4800*1170
<650
400
22
5520
2ZSW1150
5000*1100
<600
350
18.5
4900
2ZSW1348
4800*1300
<700
500
22
5100
2ZSW1360
6000*1300
<700
500
22
6200
2ZSW1550
5000*1500
<750
600
22
7300
2ZSW1860
6000*1800
<900
800
30
9650
2ZSW2160
6000*2100
<1000
1500
37
11000
Company Profile
Shenyang Haorui Machinery Manufacture Co.,Ltd is a manufacturer of a wide variety of Mining equipment, which we provide to customers all over the world. Our primary products include: Jaw Crusher, Cone Crusher, Ball Mill, Feeding Equipment, Vibrating Screen, and their related spare parts.
As a direct manufacturer and dealer of mining equipment with 10 years of experience in this field, in addition to our professional technology support, HAORUI is able to offer the most reliable, high-quality mining equipment to our customers. Our premium products are widely used in various fields, such as: the mining, metallurgy, highway, railway, and chemical industries. Our Crushers are widely used for stone crushing in the fields of mining, metallurgy, and building material; Ball Mill are widely used for Gold Mining, Copper Mining and so on.and our Vibrating Screens are sought after for dry and wet screening in the coal, mining, quarry, and other industries.
Our Advantages
Service, Quality, Cost Our goal is to provide minining equipment of excellent quality and reliability, in order to establish a reputation and relationship with our customers which will keep them customers for life.
We have a strict quality control system in place throughout the entire production process, so our products are all of the highest quality and reliability. We also offer OEM service upon request. If you have a need for any mining equipment, or related spare parts, please feel free to contact us. We are dedicated to serving each of our customers to their complete satisfaction.
Pre-sale service
Carefully packing
After-sale service
FAQ
Q: Hi, are you mining machinery manufacturer? A: Yes, our company warmly welcome clients to visit our plant at anytime. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...
Q: which country have your products been exported? A: We have been exported business for 10 years and we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...
Q: What Information should customers give us, So that we can be able to provide you suitable quotation and service. A: What minerals are you separating? What's the maximum size of your raw minerals? How much capacity do you need per hour for your project?
Q: How long is the warrenty of your equipments? Does your company supply the spare parts? A: The warranty period of HR equipments is one year. And of course we will supply the spare parts for you at lowest cost.
Q: If I need the complete mineral processing line, can you help us to build it? A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas. HR can set a complete processing line just as your require.
