Дешевая земля геодезический прибор лазерный теодолит DE2A L
- Category: Theodolites >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1600056361686):
Product Overview
Description
Product Description
Introduction
The laser line has good visibility under 200m. Horizontal and vertical angles can be obsewed simultaneously on the large LCD displays. Other standard features include a horizontal angle zero set，automatic power off to conserve batteries，and a battery life indicator on the LCD display.
Feature
•Gcod visibility of the laser line.
•Large LCD display.
•Independent lilf sensor can auto-corrected.
•More convenience when the instruments is combined with the Diagonal Eyepiece.
•International common funofion modes are adopted to make operation simple and standard.
•Connected with eleclronic book makes data to be auto-recorded and auto-processed maps.

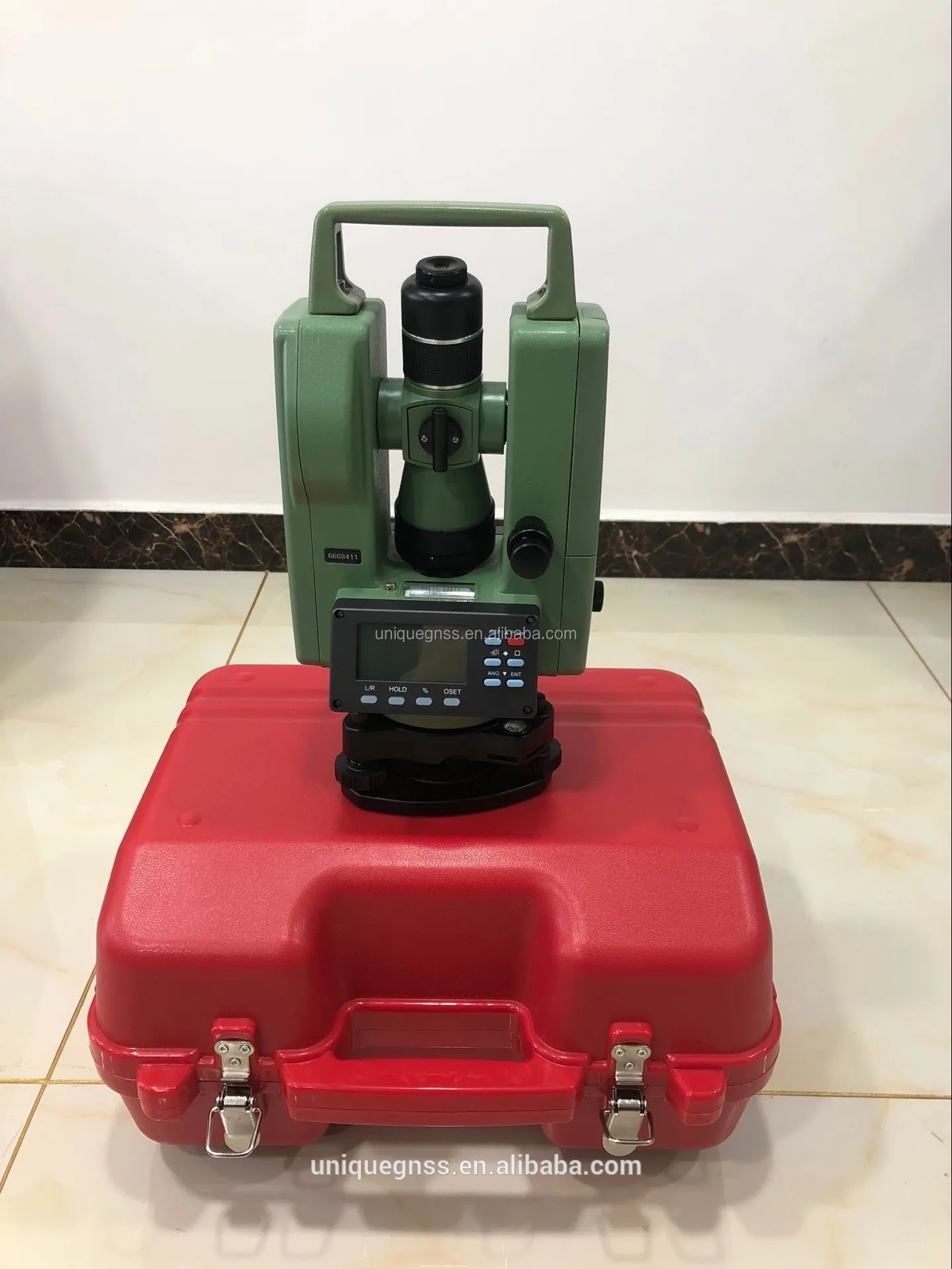

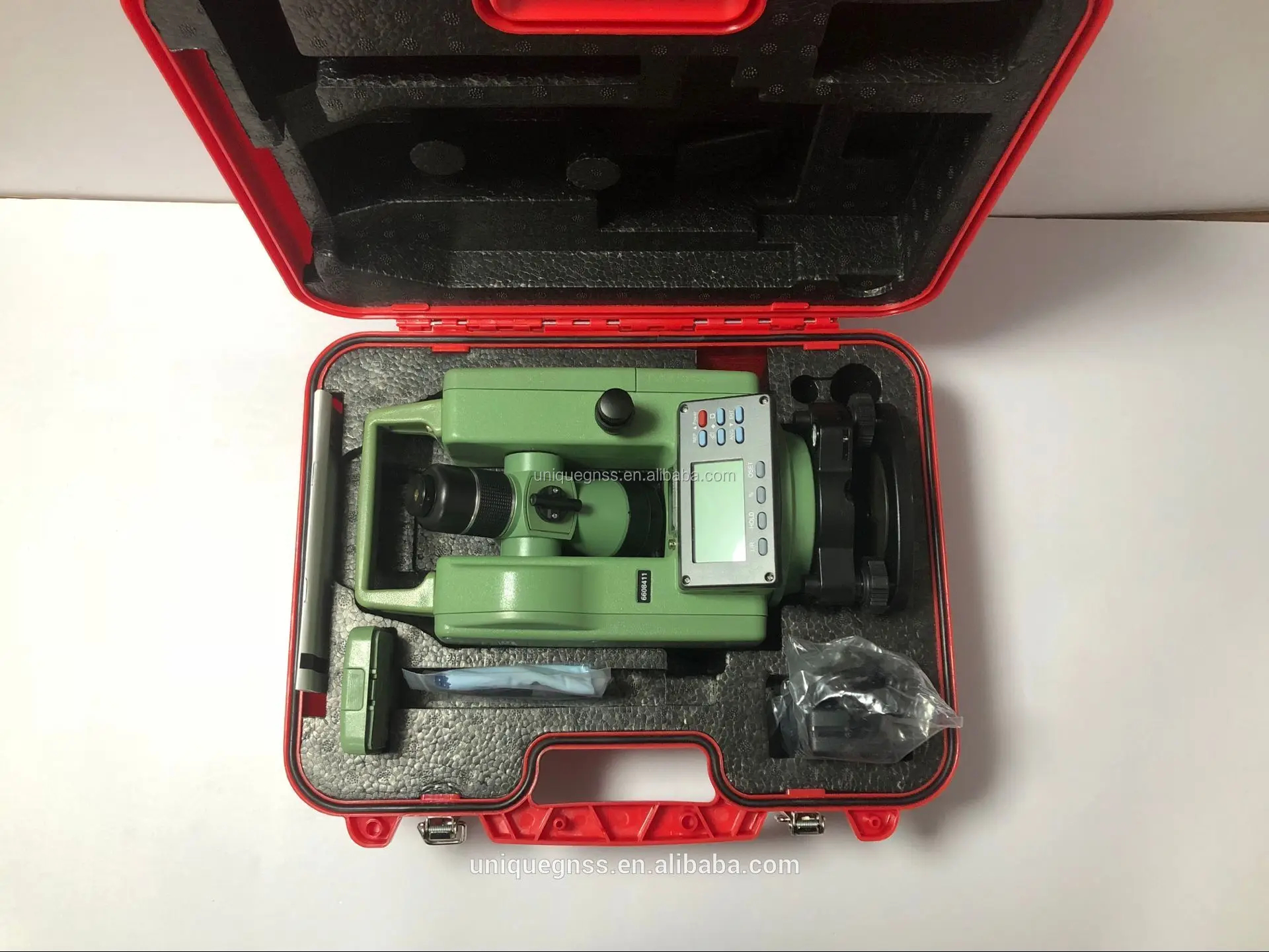

Detailed Images
Specification
Telescope | ||
Magnification | 30X | |
Image | Erect | |
Shortest sighting distance | 1.0m | |
Field of view | 1°30′ | |
Angle measurement | ||
Accuracy | 2″, 5″ | |
Minimum display | 1″, 5″, 10″ | |
Compensator | ||
Type | Single axis liquid tilt sensor | |
Range | ±3′ | |
Electronic Reference | ||
Battery Type | Rechargeable/ 4 x AA alkaline batteries | |
Battery volume | 1800mAh, 6V (Ni-MH battery) | |
Battery life | 15 hours | |
Others | ||
Plummet | Optical/Laser | |
Data output | Asynchronous serial in RS-232 | |
Weight | 5.5kg | |
Working temperature | -20℃ ~ +45℃ | |
