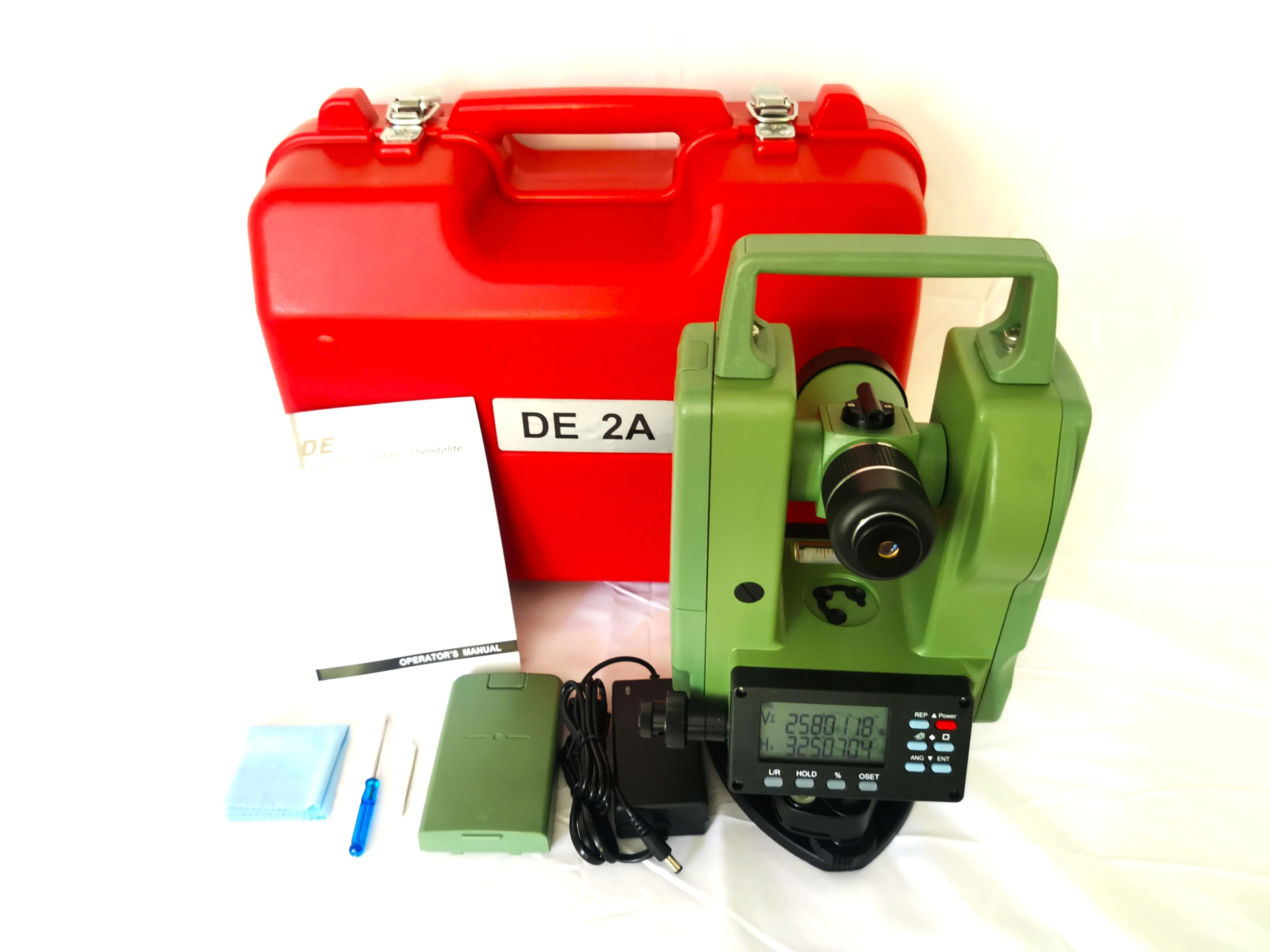

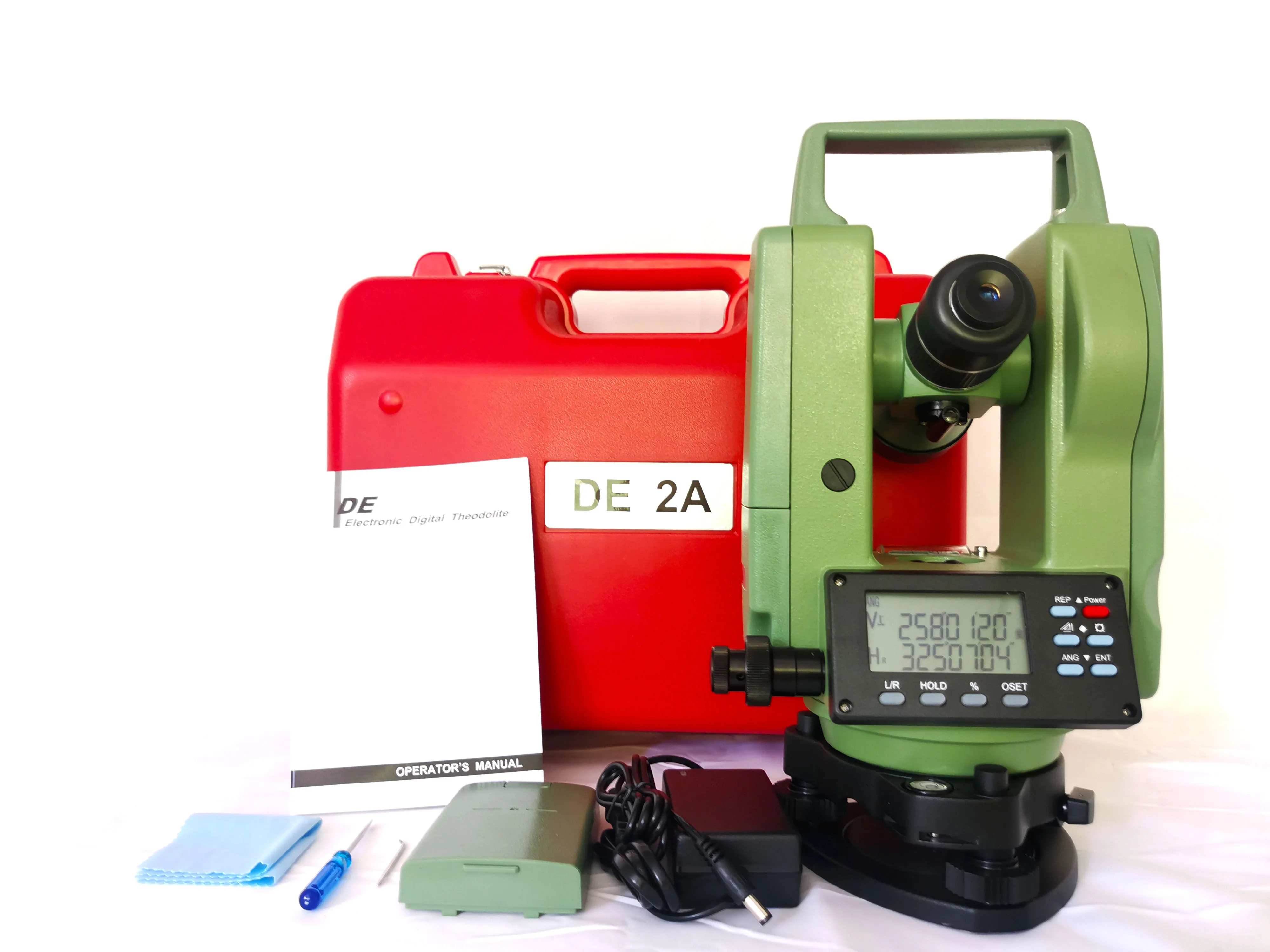

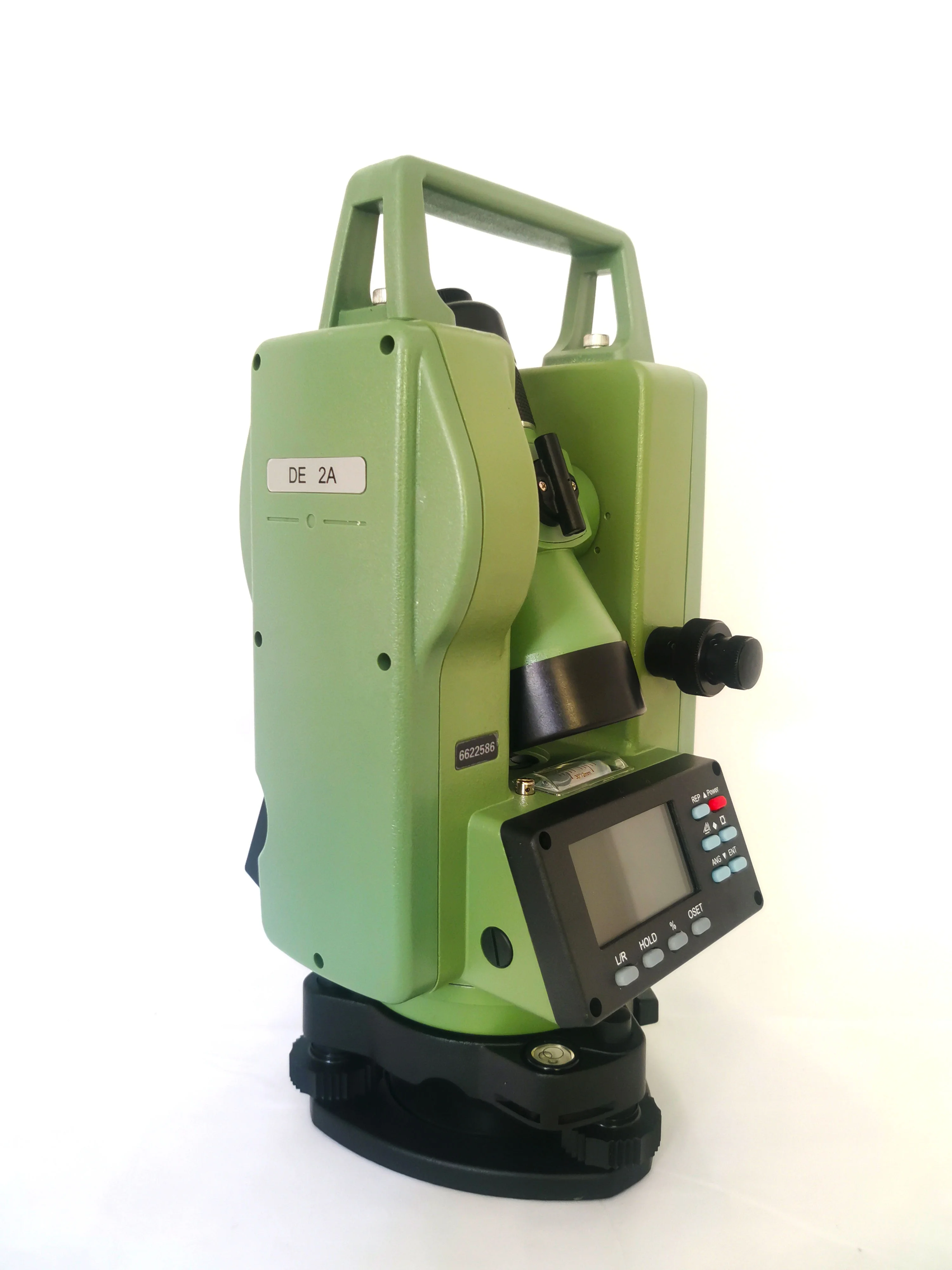

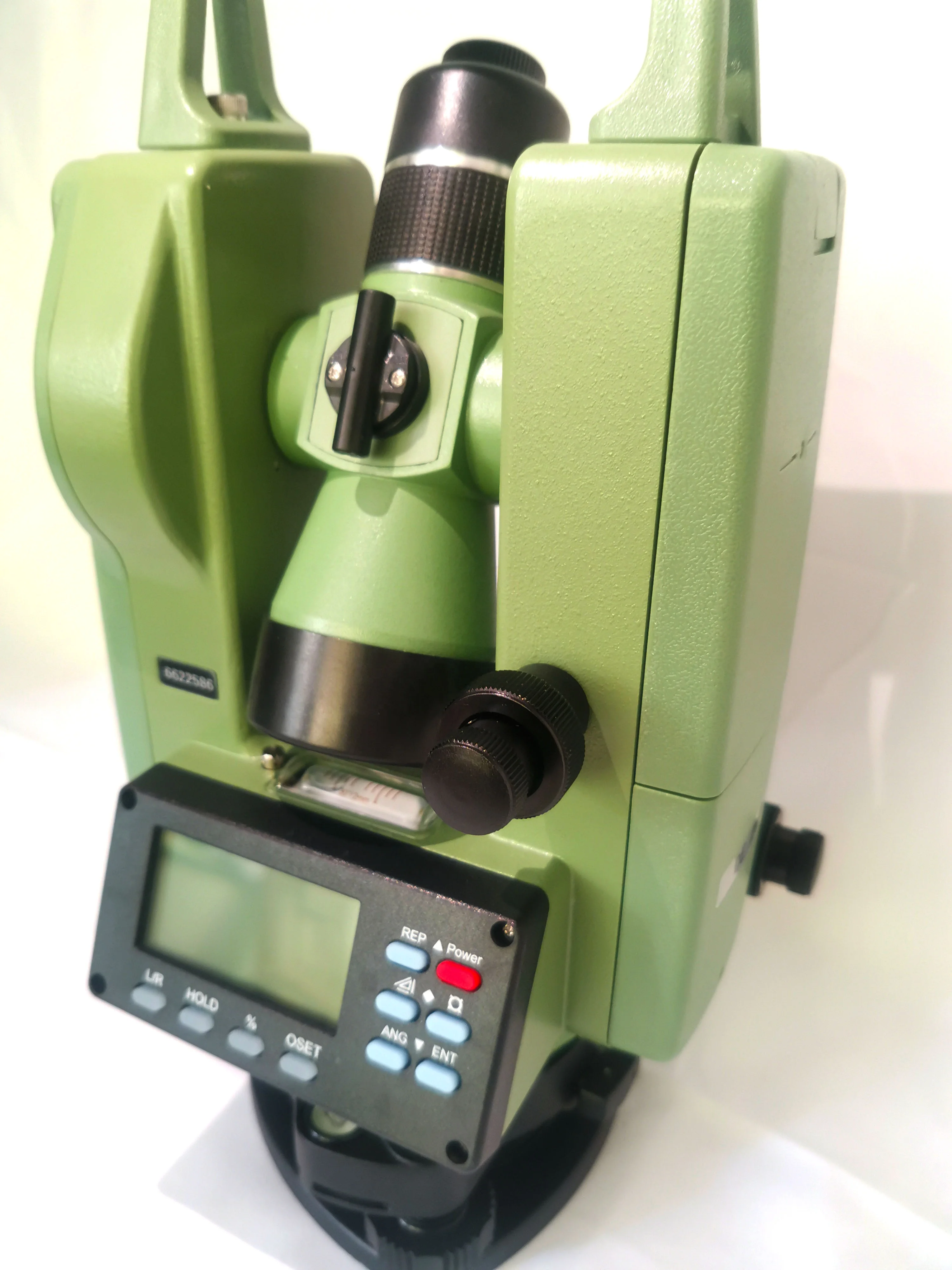

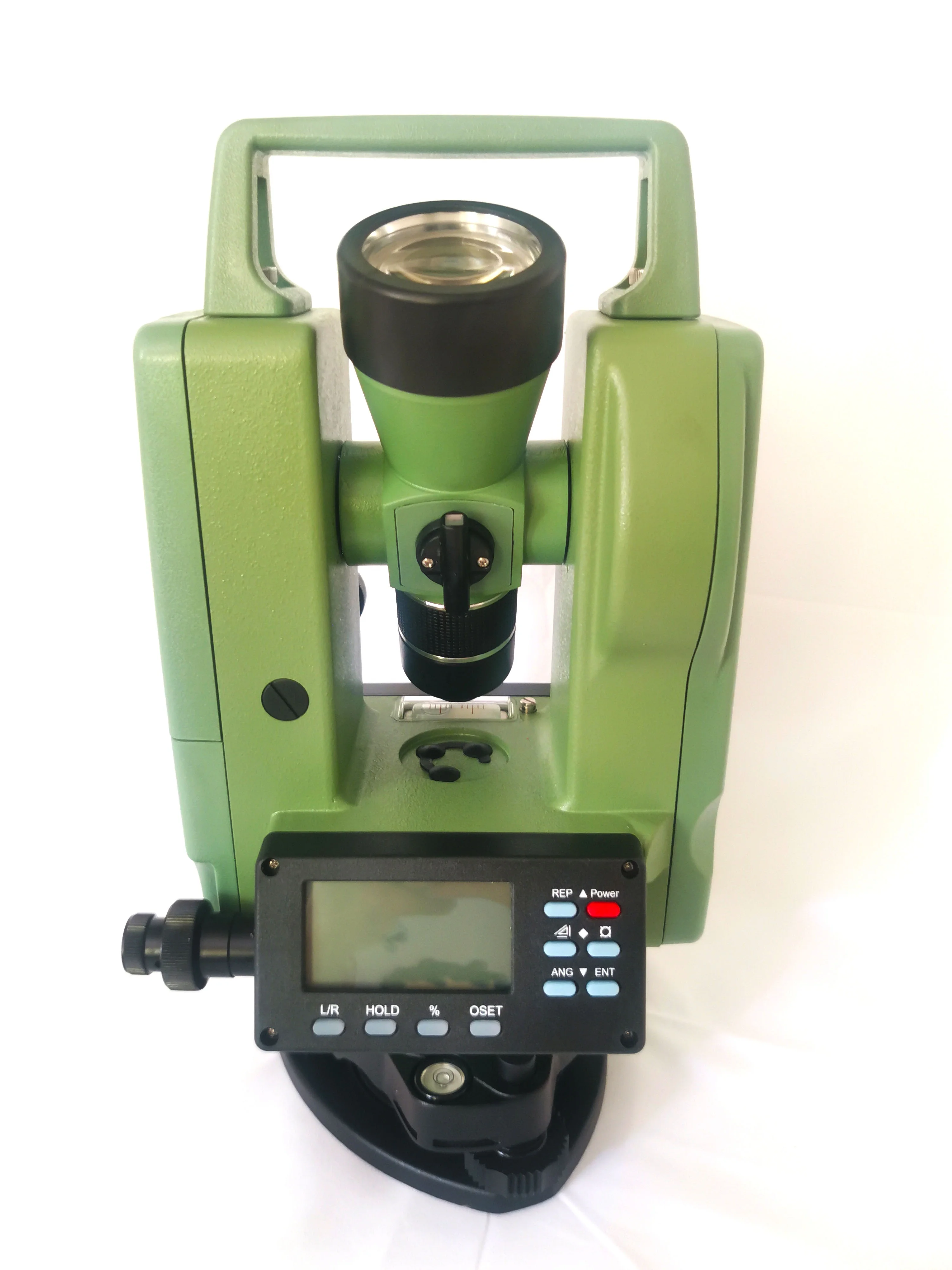

Industrial Grade Dadi De2al Theodolite with Touch Screen
- Category: Theodolites >>>
- Supplier: Nanjing Cetu Surveying Instrument Co. Ltd.
Share on (1600828114776):
Product Overview
Description
Product Description
• Absolute coding angle measurement system, digital and intelligent angle measurement, stable and reliable work
• Double-sided LCD panel, clear display and easy to operate
• Highly integrated circuit board, high-quality IC components, imported CCD sensor, quality assurance
• Using steel shaft system, imported lubricating grease, metal shell, long service life
• Independent tilt sensor for automatic correction of tilt errors
• Sealed waterproof telescope
• Coaxial locking screw and fine-tuning screw for easy measurement
• International common functional mode, easy and standardized operation
• Double-sided LCD panel, clear display and easy to operate
• Highly integrated circuit board, high-quality IC components, imported CCD sensor, quality assurance
• Using steel shaft system, imported lubricating grease, metal shell, long service life
• Independent tilt sensor for automatic correction of tilt errors
• Sealed waterproof telescope
• Coaxial locking screw and fine-tuning screw for easy measurement
• International common functional mode, easy and standardized operation
Product Paramenters
Telescope | ||
Imaging | Positive | |
Magnification | 30X | |
Objective lens effective aperture | 47mm | |
Resolution | 3.75'' | |
Field Angle | 1°30′ | |
Shortest Sight Distance | 1m | |
Stadia Multiplication Constant | 100 | |
Lens Barrel Length | 162mm | |
Angle Measurement | ||
Angle Measure Method | Absolute Encode | |
Angle Measure Precision | 2″, 5″ | |
Minimum reading | 1″,5″,10″ | |
Angle Measure Unit | 360°,400gon,6400mil | |
Level | ||
Long Level | 30″/2mm | |
Circle Level | 8′/2mm | |
Compensation | ||
System | Liquid capacitive | |
Working Range | ±3′ | |
Resolution | 1″ | |
Plummer (Laser & Optical Optional) | ||
Optical Plummer | ||
Imaging | Positive | |
Magnification | 3X | |
Focus range | 0.3m~∞ | |
Field Angle | 5° | |
Laser Plummer | ||
Laser Wavelength | 650nm | |
Laser Power | 5mw | |
Laser Level | II | |
Effective Range | 0~3m | |
Spot Size | 1mm/1.5m | |
Battery | ||
Power Source | Rechargeable NiMH Battery | |
Voltage | DC 6V | |
Continous Working Time | BDC1800mAh About 10 hours | |
Temperature | ||
Working Temperature | -20ºC~+45ºC | |
Size & Weight | ||
Size | 180X166X355mm | |
Center High | 232mm | |
Weight | 6.5kg | |
Company Profile
Nanjing Cetu Surveying Instrument Co.,Ltd
was founded in 2015. Our company is known as Nanjing Jingwei Surveying Instrument Sales and Service Center (founded in 1992),
which was the former sales & service platform of Nanjing Surveying instrument Factory.
The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie,
etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition,
Trimble(America) authorized our company as a special contractor.customers.
which was the former sales & service platform of Nanjing Surveying instrument Factory.
The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie,
etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition,
Trimble(America) authorized our company as a special contractor.customers.
Certifications

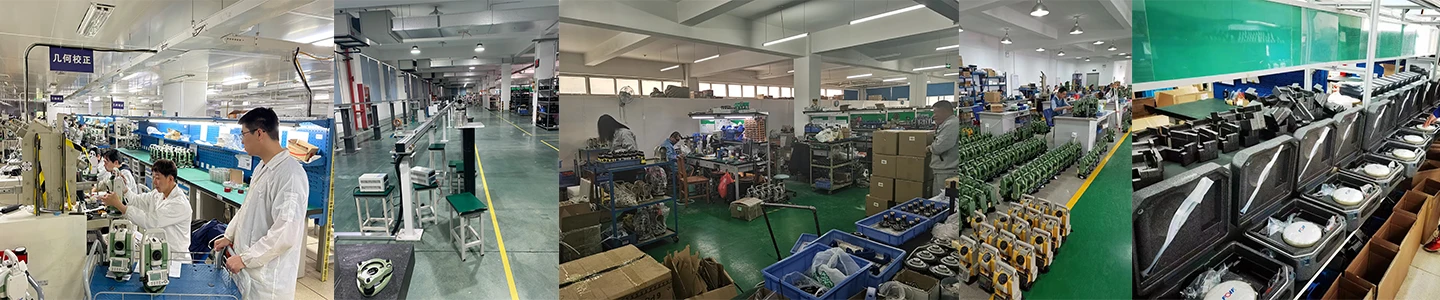

Manufacturing Factory
