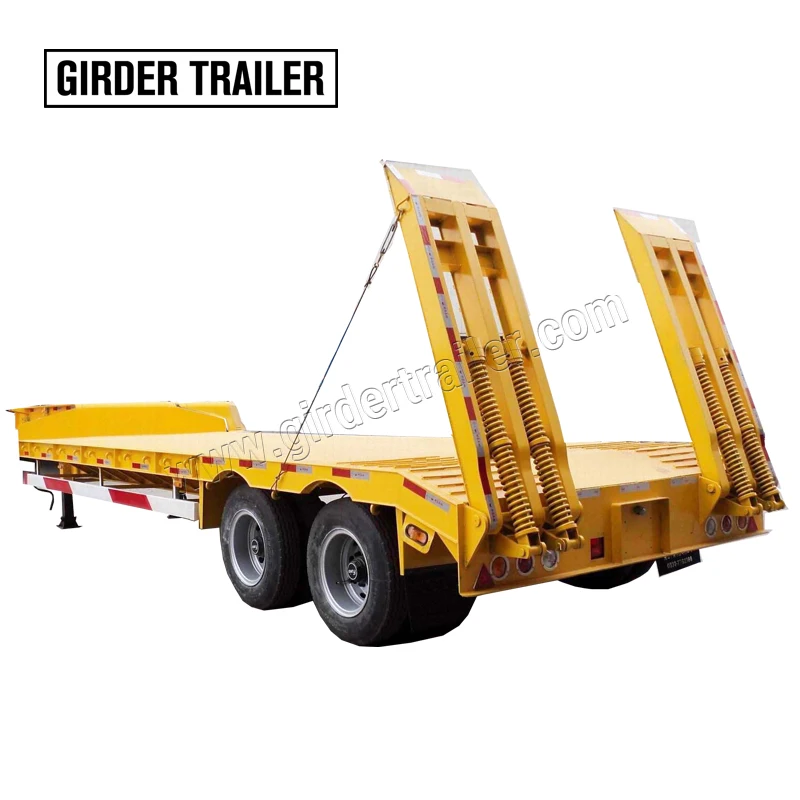

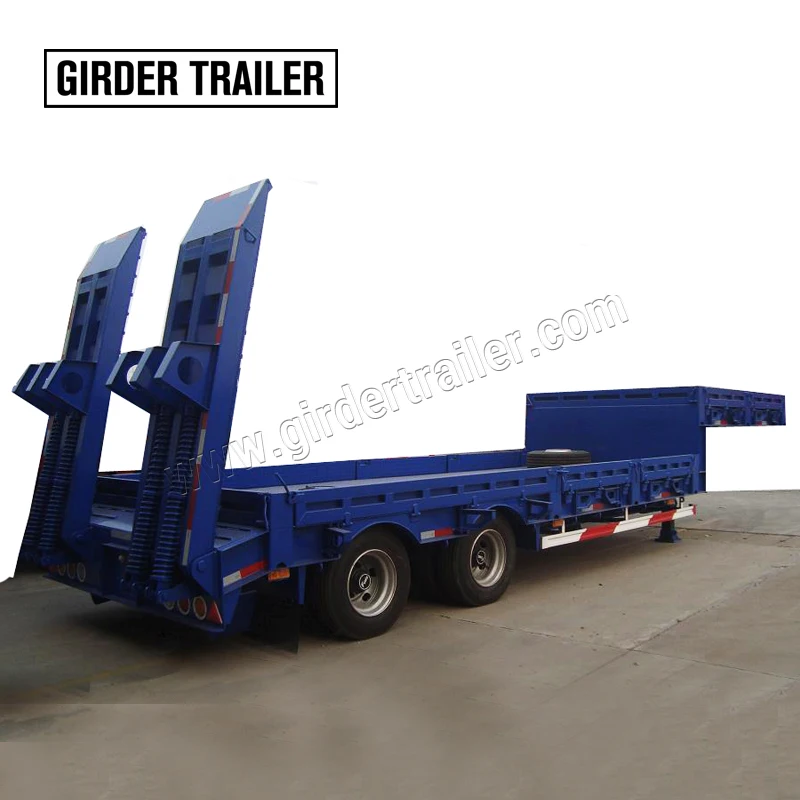

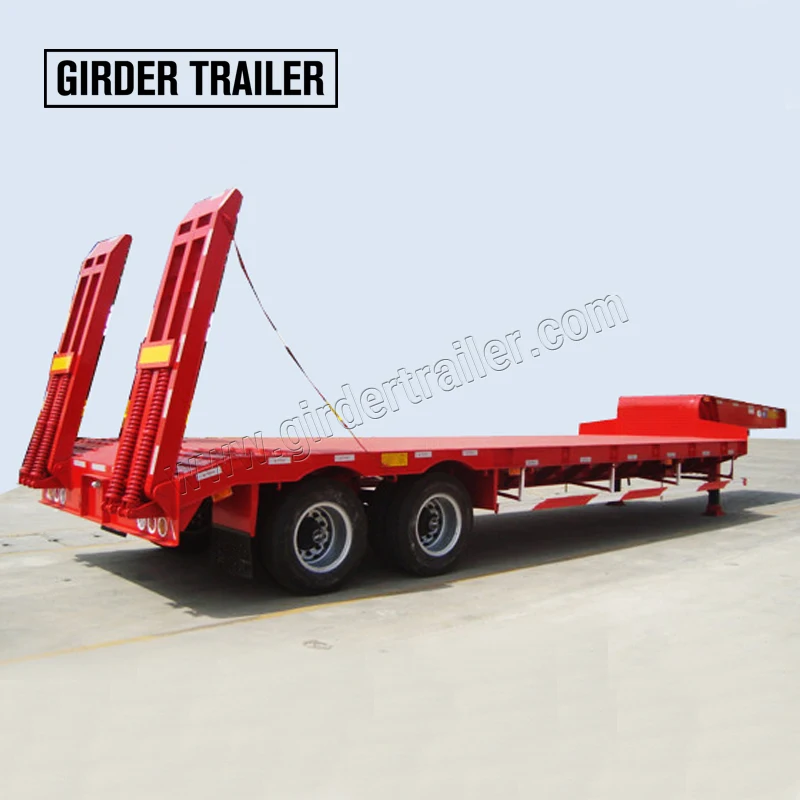

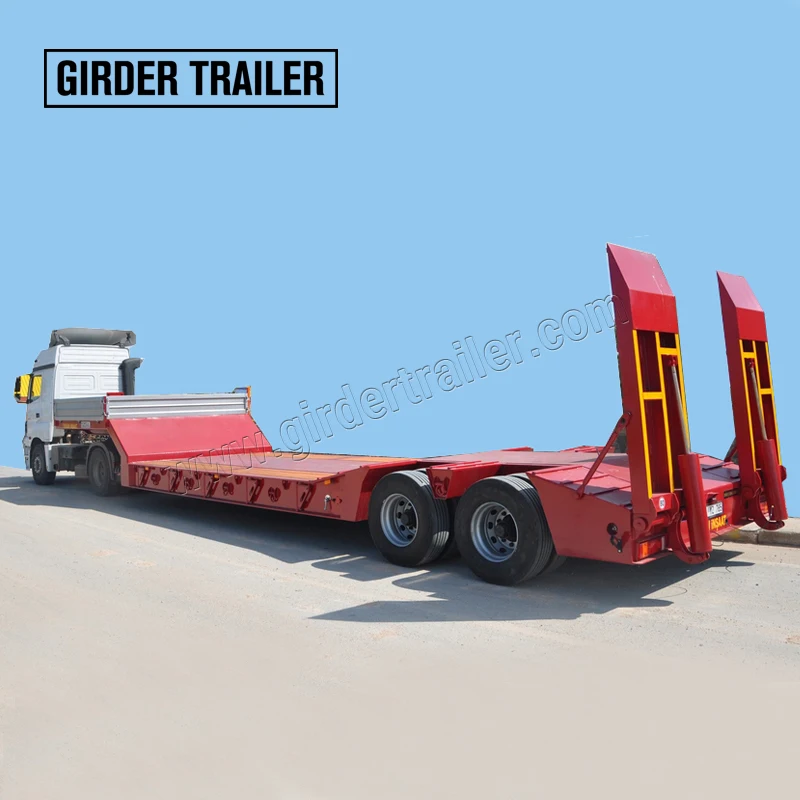

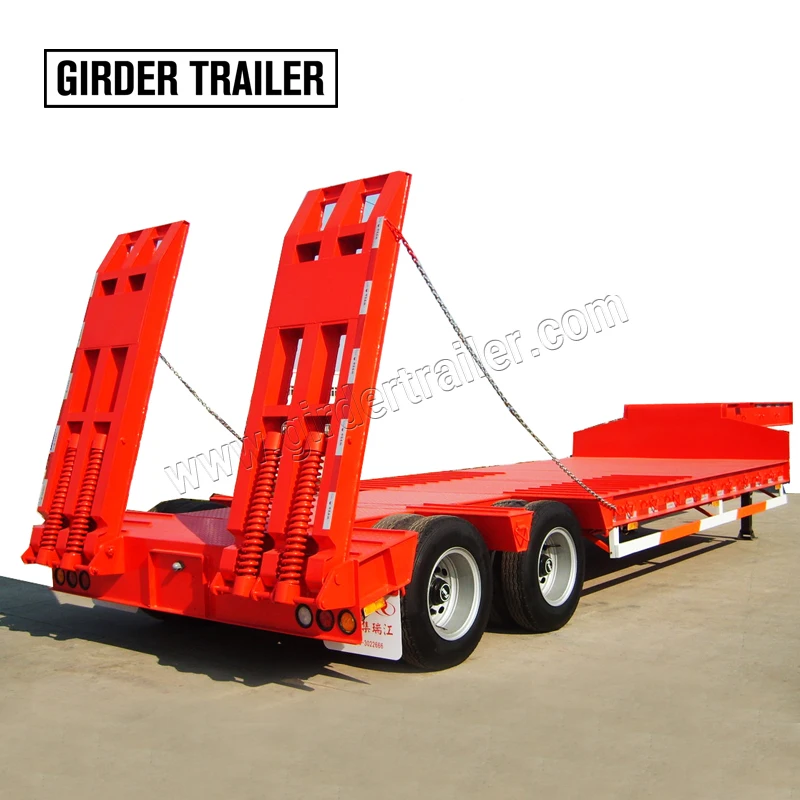

China brand new European standard ADR KH 2 axles 30 tons capacity lowbed low loader semi trailers for sale
- Category: >>>
- Supplier: Qingdao Shiyun Trailer Co. Ltd.
Share on (1600057712700):
Product Overview
Description
Product Description
Low bed semi truck trailer,Lowboy semi trailers
QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.
Features:
1.Suspension is mechanical spring suspension or air suspension
2. Can be designed flatbed type or concave beam type
3. Side bracket is an option for widening drop deck, removable and swinging
4. The design can be expose tires type or covered tires type
5. The ramps can be mechanical spring type or hydraulic type optional
6. Can be with twist lock for container transporting
7. Commercial trailer or military trailer optional
1.Suspension is mechanical spring suspension or air suspension
2. Can be designed flatbed type or concave beam type
3. Side bracket is an option for widening drop deck, removable and swinging
4. The design can be expose tires type or covered tires type
5. The ramps can be mechanical spring type or hydraulic type optional
6. Can be with twist lock for container transporting
7. Commercial trailer or military trailer optional
Specification
Type | Model | Payload (kgs) | Tare weight (kgs) | Dimensions (mm) | |||
Normal lowboy trailer | GT0301TDP | 60000 | 9900 | 13000*3000*1100 | |||
Cantilever lowboy trailer | GTZX0604TDP | 80000 | 12000 | 13500*3000*1000 | |||
Steering axles lowbed trailer | GTZX0301TDP | 80000 | 11000 | 13500*3000*1000 | |||
Front loading lowbed trailer | GTQZ0301TDP | 50000 | 10000 | 14500*3000*800 | |||
Over heavy duty lowbed trailer | According to customers requirement | ||||||
Item | specifications | Remark | |
Material | High strength Carbon steel | ||
Main beam | Heavy duty H beam | beam extendable optional | |
Axles | 13 ton(16ton,20ton) capacity | OCT,FUWA,BPW or other Brand | |
Suspension | Mechanical suspension | Air /cantilever suspension optional | |
Leaf spring | Leaf spring | Air bag lifting /cantilever optional | |
Tire | 12R22.5 ,11.00R20,12.00R20, 315/80R22.5 | Size and brand optional | |
Rim | 9.00-22.5,8.00V-20,8.5-20 | Other size optional | |
King pin | 2’’/3.5’’ bolt type,SAE standard | Welding on type optional | |
Landing gear | 28 Ton two speed | JOST or equivalent brand | |
Platform | Checked plate 4mm | Other thickness optional | |
Ladder | 1 pair spring mechanical ladder | Hydraulic ladder optional | |
Side beam | I beam | ||
Braking system | Dual line brake system,Double air chamber ,brake valve,40L air tanks ;ABS optional | ||
Electrical | LED light , 7 ways ,24V | ||
Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting | ||
Accessory | Tool box,oil tank,spraying system optional | ||
Above data can be customized per your local regulation and requirement.
Related Products

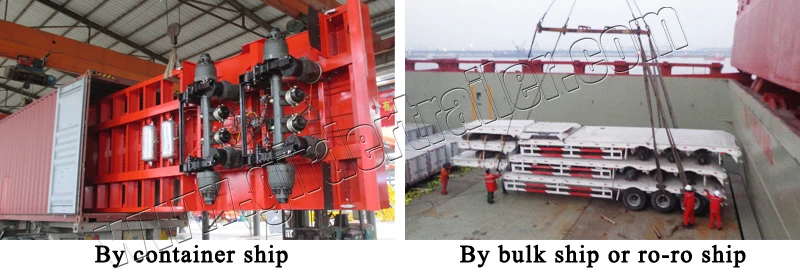

Packing & Delivery
