LKS 750/930 Semi Or Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /Manual Creasing And Die Cutting Machine
LKS-750/930 Semi Or Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /Manual Creasing And Die Cutting Machine
LKS-750/930 Semi Or Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /Manual Creasing And Die Cutting Machine
LKS-750/930 Semi Or Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /Manual Creasing And Die Cutting Machine
LKS-750/930 Semi Or Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /Manual Creasing And Die Cutting Machine
LKS-750/930 Semi Or Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /Manual Creasing And Die Cutting Machine
LKS-750/930 Semi Or Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /Manual Creasing And Die Cutting Machine

LKS 750/930 Semi Or Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /Manual Creasing And Die Cutting Machine

Share on (1600057960312):


Price:$3,000.00 - $4,100.00

Quantity:


Product Overview

Description





Product Description

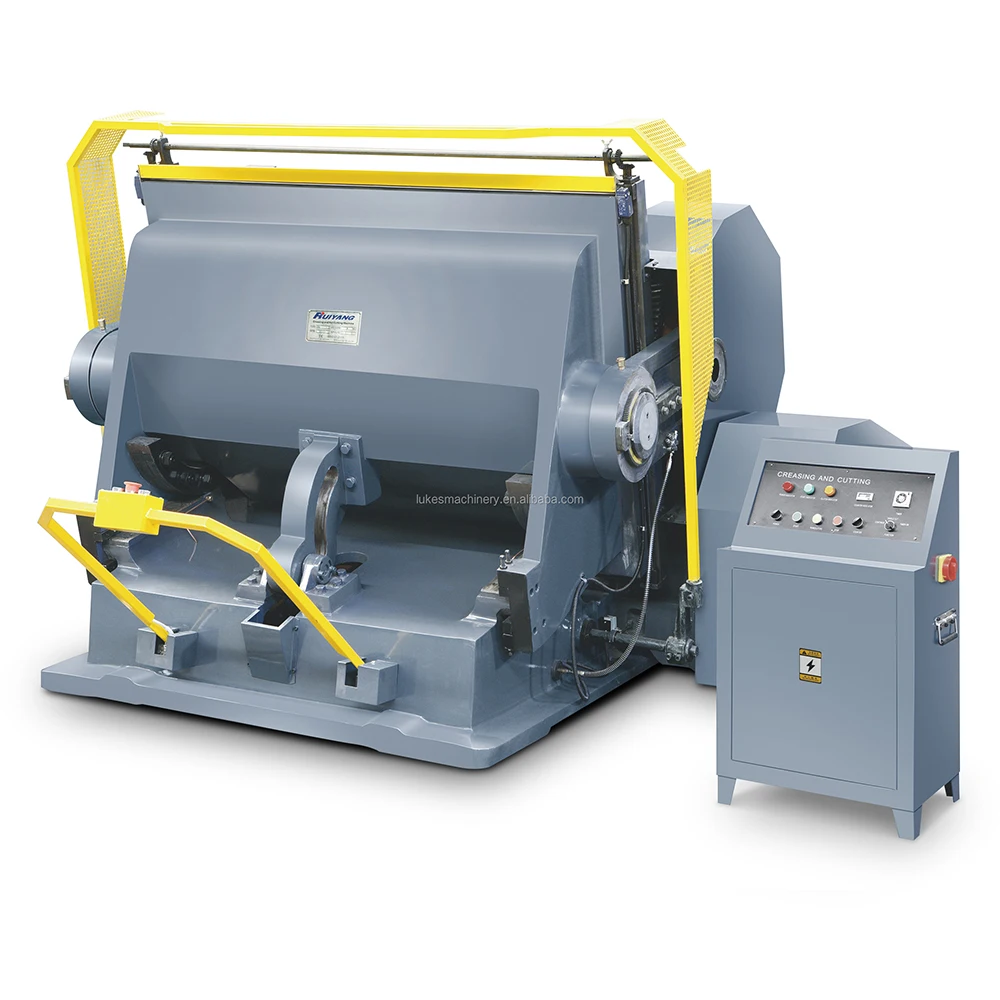

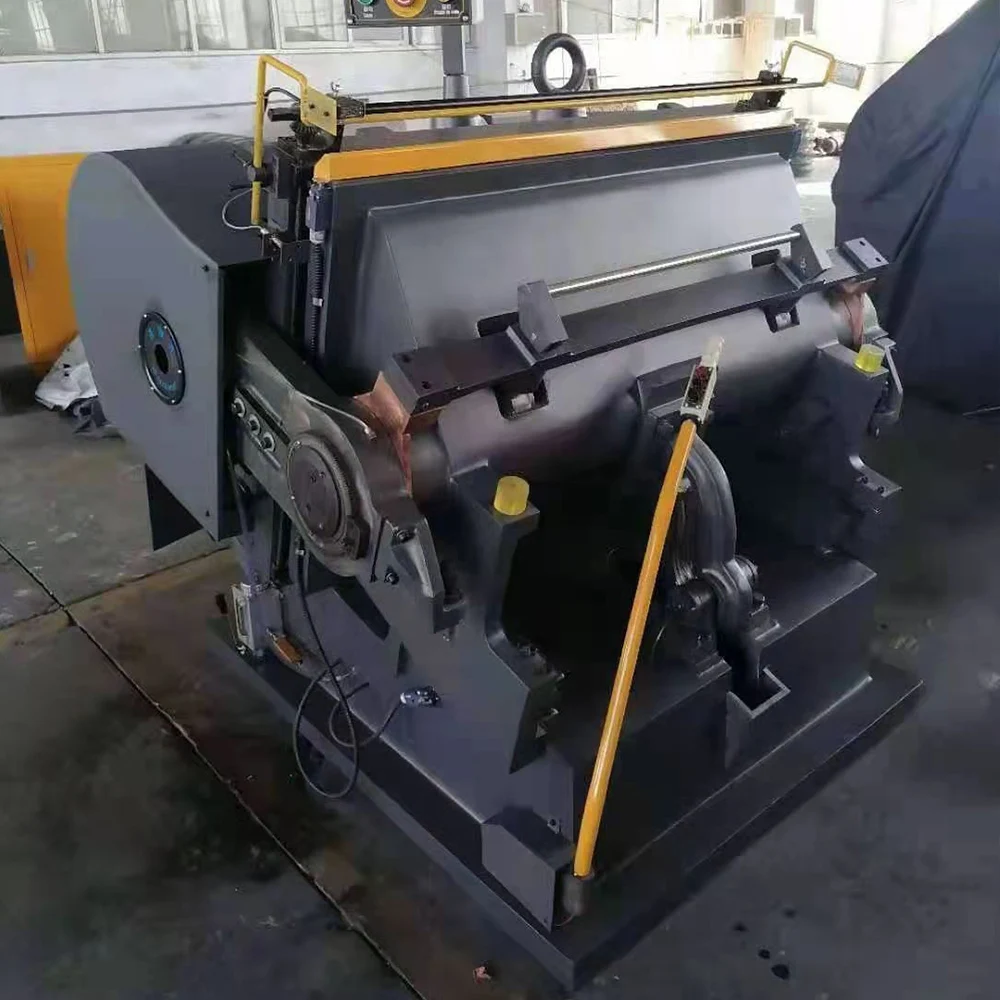

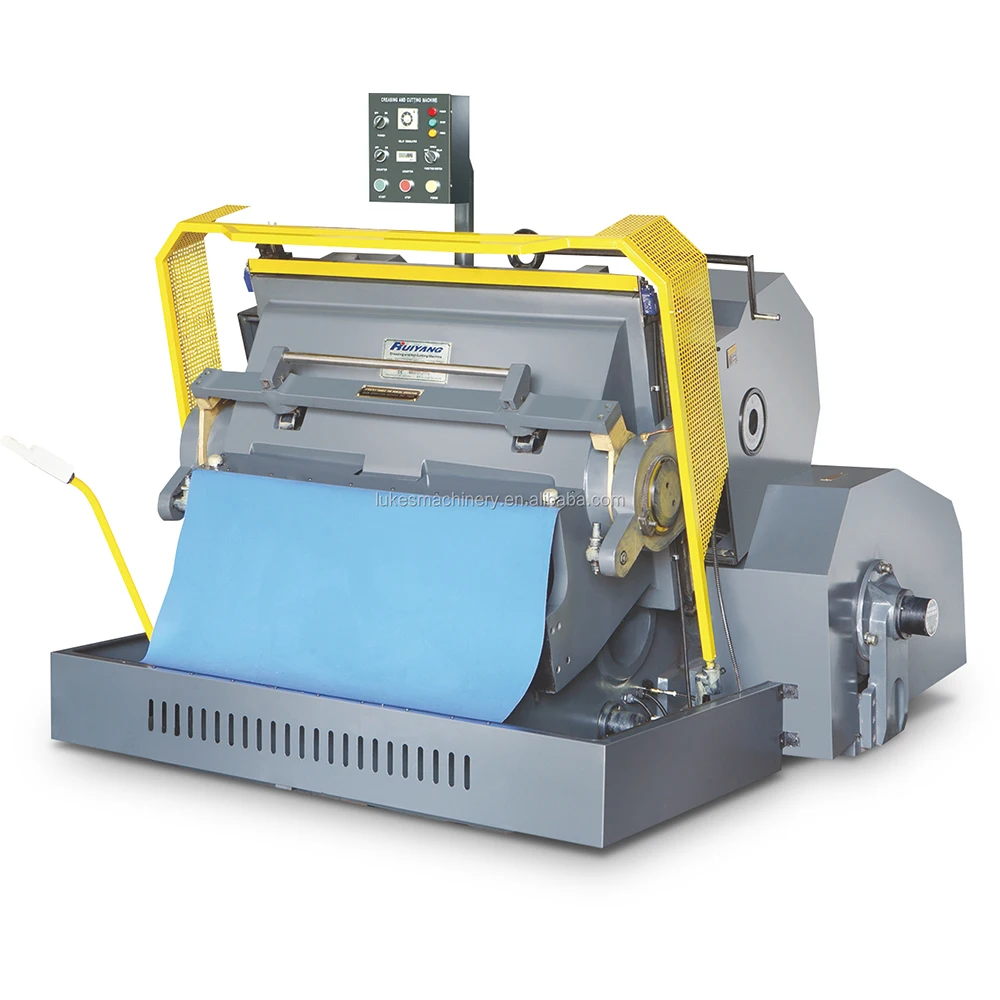

Manual Creasing And Die Cutting Machine




Purpose:

This machine is one of popular and hot sale products in market for small quantity die punching jobs , which suit for paper board / cardboard / duplex board /craft sheet / Plastic pvc pet material for forming different shape carton based on your die mold. It has small investment cost and high return profit.



Features:

1. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
2.High strength due to whole body casting with high quality material.

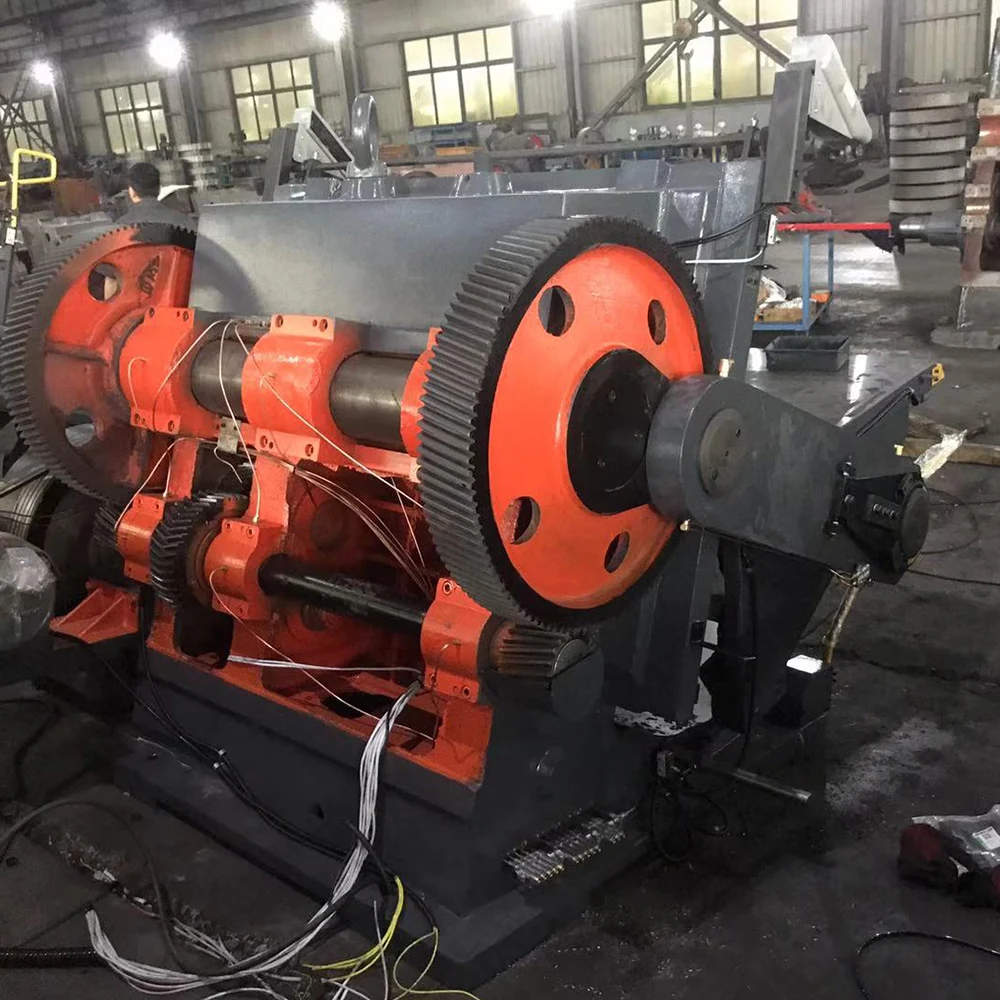

3. Smooth running, high pressure and low noise with 4-step helical gear mechanism.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. Operational altitude is reasonably arranged, moving-bed opens to its maximum.

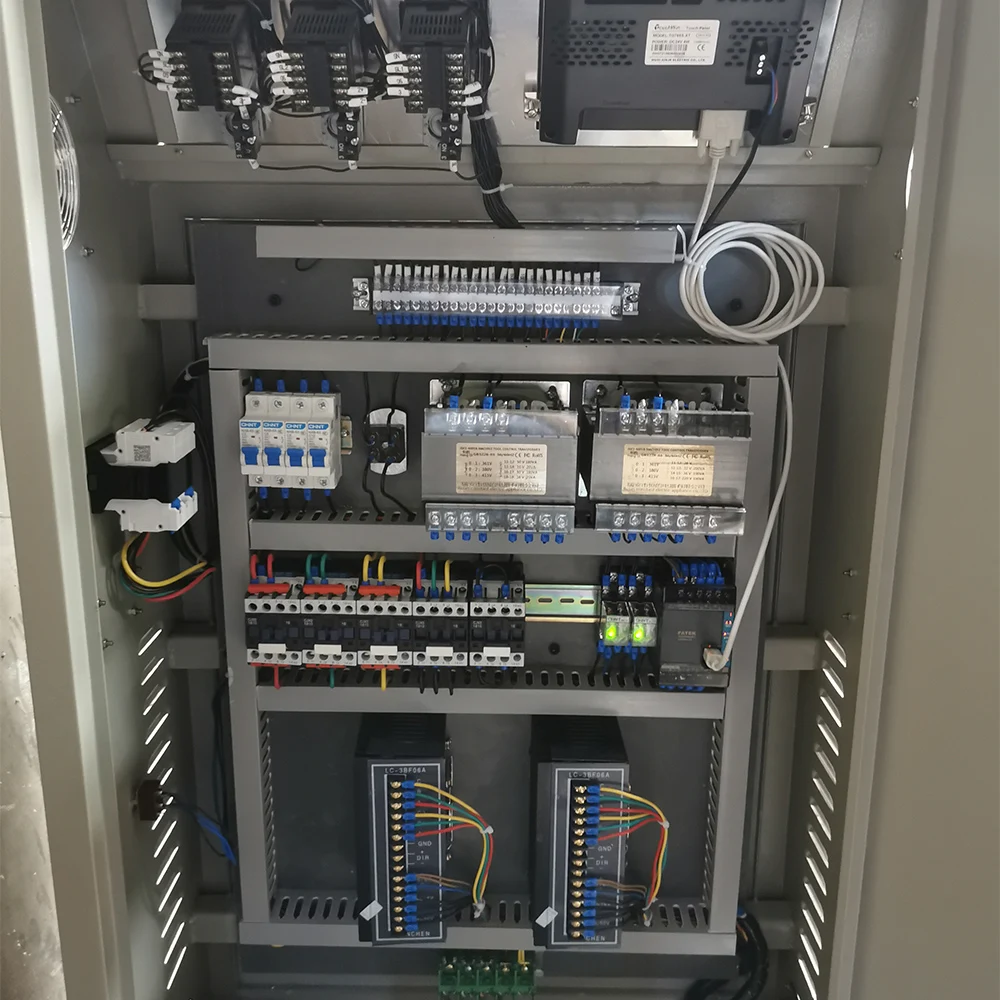

6. Electrical system is designed in conformity with IEC standard.
7. The functions of single operation, continuous operation and opening delay are available; delay range is adjustable.
8. Reliable safety system.Concentrated lubricating system.
9. The lubrication system of centralized refueling and manual refueling (optional) can better guarantee the smooth oil path and facilitate the maintenance of the lubrication system.
10. The shaft sleeve of the transmission part adopts compound copper sleeve (to ensure lubrication) and pure copper copper sleeve of the connecting rod.Make the machine more precise.




Specification



Model
Inner chase size

Speed
Max. rule length
motor power

Weight

        Dimension
ML750
750X520mm
25
< 15m
2.2kw
2000kg
1650x1400x1500mm
ML930
930X670mm
23 +3
< 25
4kw
3000kg
1750x1900x1700mm
ML1040
1040x720mm
23 +3
< 28m
4kw
3500kg
2000x2010x1900mm
ML 1100
1100x800mm
22+ 3
< 35m
5.5kw
4500 kg
2020x2010x1900mm
ML 1200
1200x820mm
20 +2
< 32m
5.5kw
5000kg
1020x2020x1950mm
ML 1300
1300x920mm
15 +2
< 40m
7.5kw
6000kg
2600x2100x1950mm
ML 1400
1400x1000mm
15+2
< 45m
7.5kw
7000kg
2600x2150x1950mm
ML 1500
1500x1050mm
14+ 2
< 45m
7.5kw
7500kg
2650x2200x2000mm
ML 1600
1600x1250mm
13 + 2
< 50m
11 kw
11500kg
2850x2250x2100mm
ML 1800
1800x1400mm
13 +2
< 60m
15 kw
13000kg
3150x2250x2250mm
ML 2000
2000x1400mm
12 +2
< 65m
15kw
15500kg
3150x2250x2300mm
ML 2200
2200x1400mm
12 +2
< 68m
18 kw
16500kg
3300x2250x2300mm
ML 2500
2500x1500mm
12 +2
< 70m
22 kw
18500kg
3600x2250x2500mm
ML 2600
2600x1500mm
12 +2
< 70m
22kw
2000kg
3700x2250x2500mm
ML 2800
2800x1500mm
12 +2
< 75m
22kw
23000kg
3900x2300x2800mm
ML 3000
3000x1600mm
12 +2
< 80m
30kw
35000kg
4200x2300x3000mm


Details Images






Package & Delivery




Application


Manual die cutting machine also was called Die Cutting Machine or Platen Punching & Creasing Press , which is mainly used for cardboard, corrugated cardboard, plastic and leather , applicable to printing packaging decoration and plastic industries.

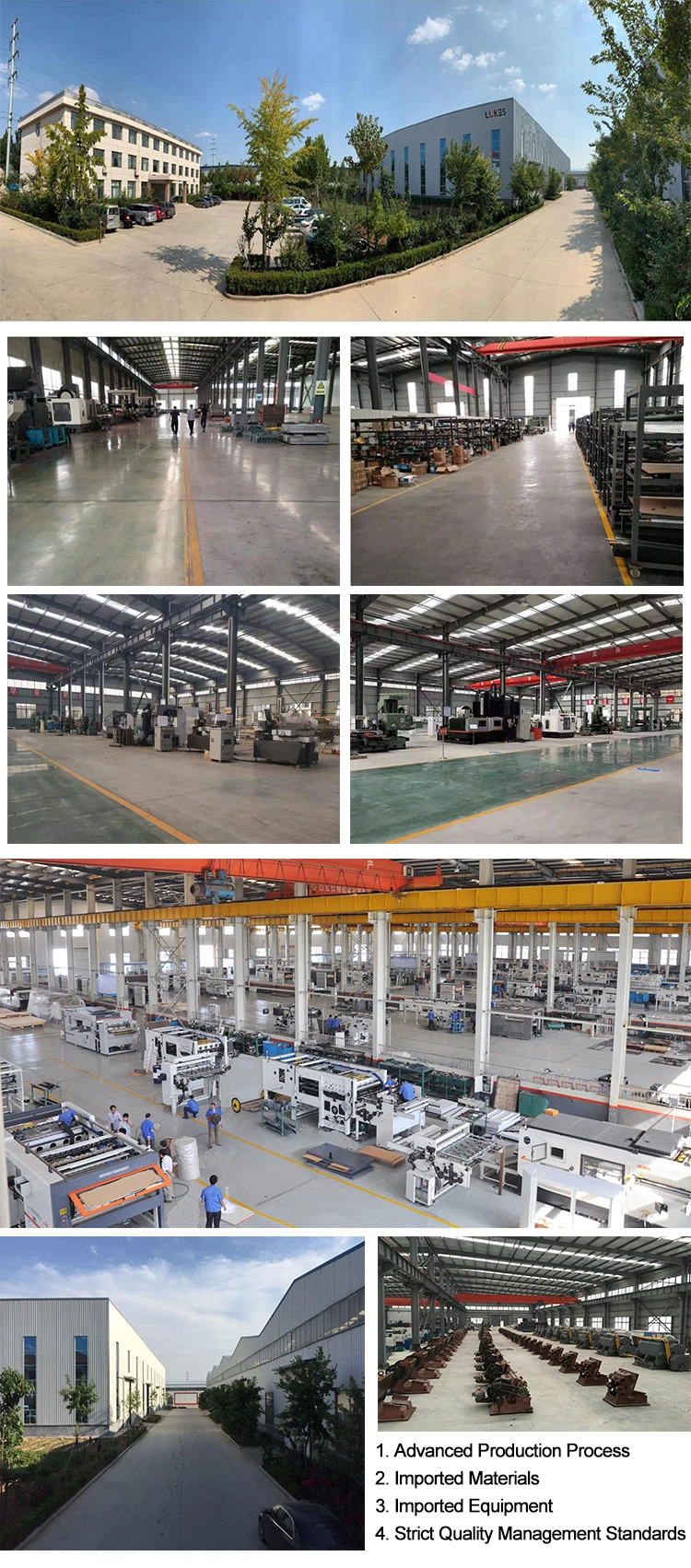

Company Profile


Lukes machinery is a leading manufacturer and supplier for design 、manufacturer 、sale and service of flat bed die cutting machine and folder gluer machine as well as corrugated converting equipment such as flexo printing machine with case marker/ flute laminating machine /stitching machine and handle stripping machine for more than 15 years in package filed .
We have a professional team with 12 excellent technical engineers 8 after sales engineers and rich experience sales of corrugated /cardboard package industry and keeps good relations with many equipment factories.
Lukes group is not only on order fulfillment but also promoting a cordial relation with our clients forever to get best result. We takes a consultative approach and likes to full understand the needs of our client so that we are able to offer the best solution.
We will serve every of our clients with professional knowledge of packages industry by heart
Looking forward to hearing from you to initiate a long term and satisfying relationship.






Certifications










FAQ


1. What is your delivery time ?
Normal delivery time is 30-55working days beside less stock model after received your deposit .

2.How was your machine warranty ?
our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply cost
spare parts and free maintenance knowledge .

3.How can you do after sales service ?
beside the quality guarantee, our company also regards the after sales service, using a full arrange of
service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on
phone / on site technical support / on site service / preventive maintenance also training again.

4.What’s your payment terms ?
30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also accepted for us .
