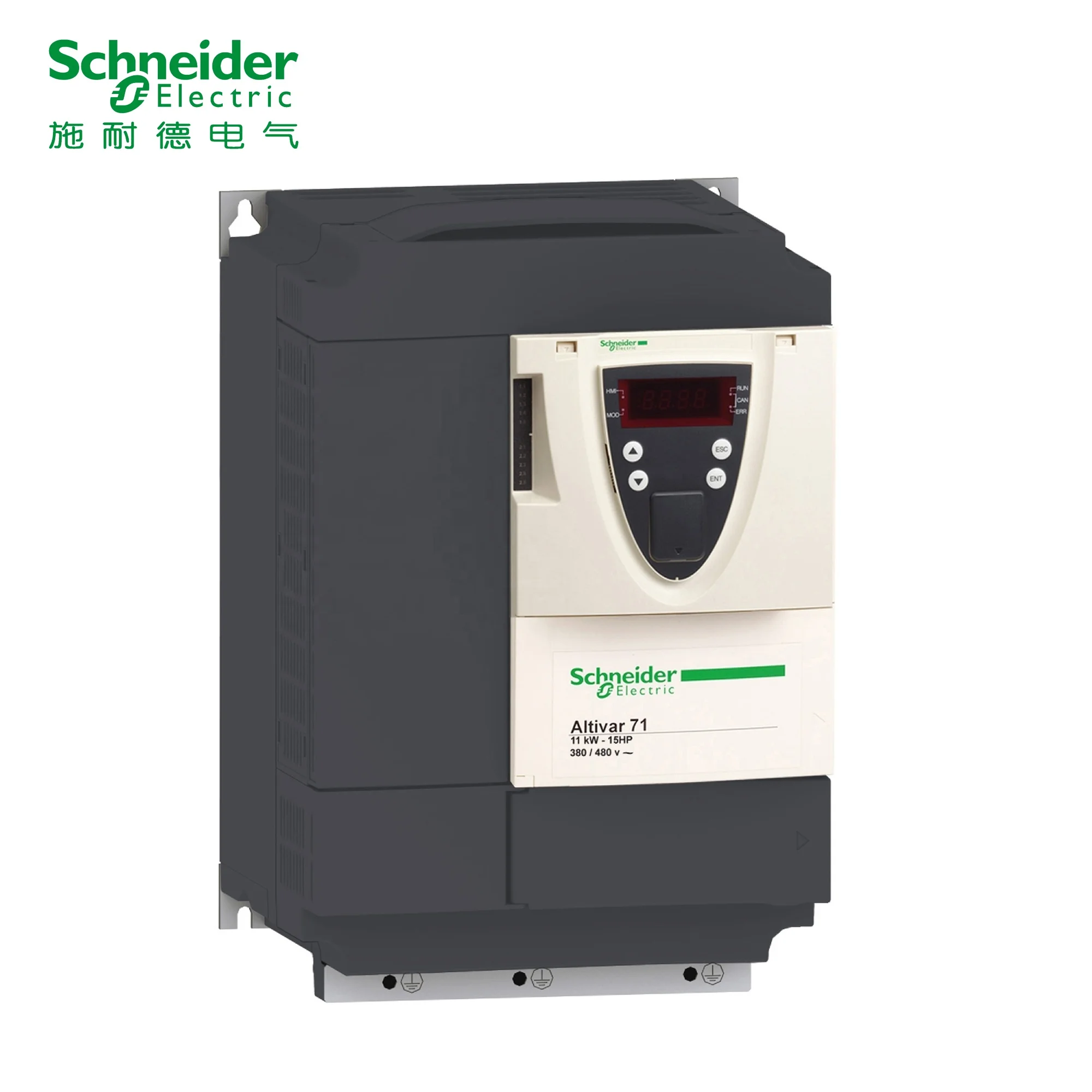

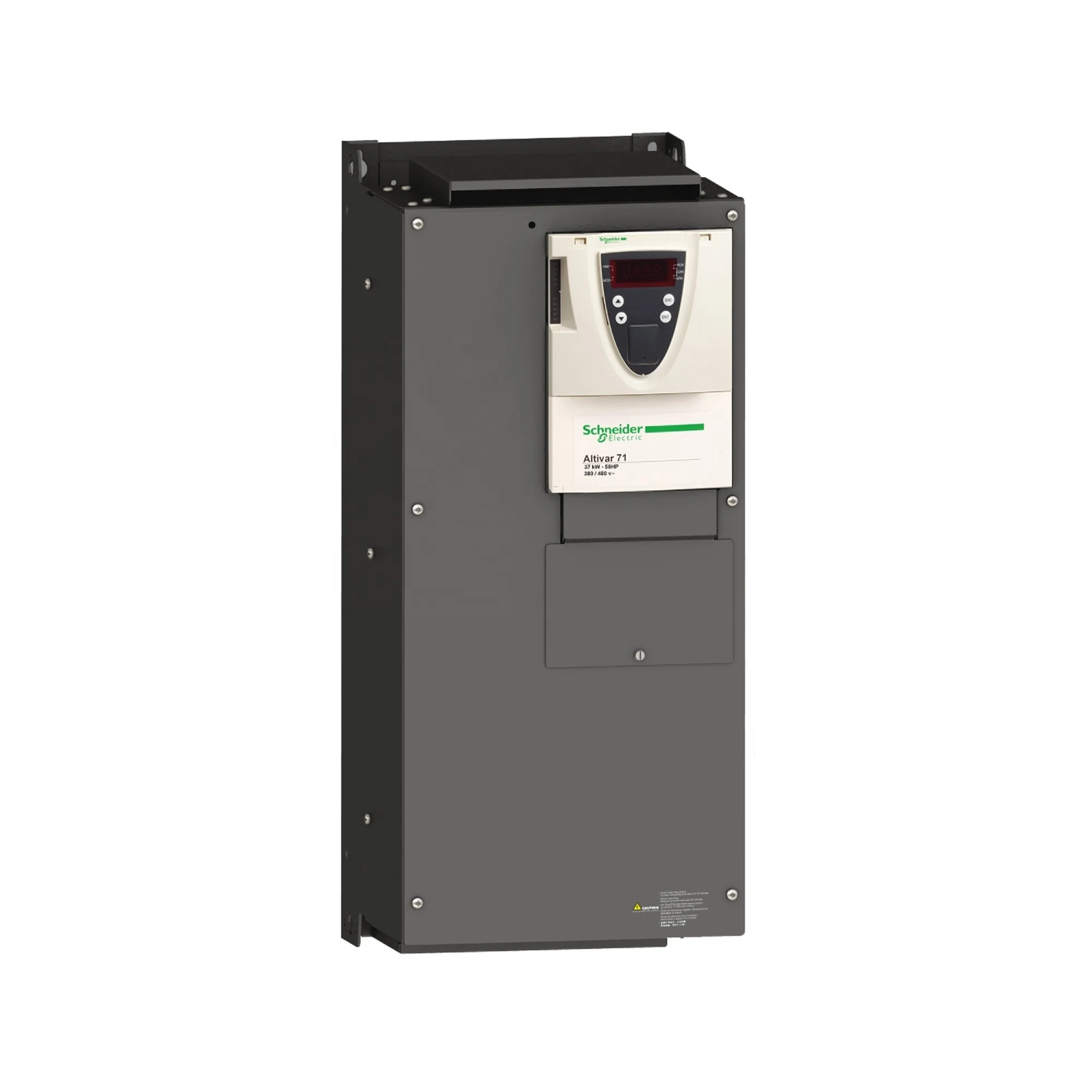

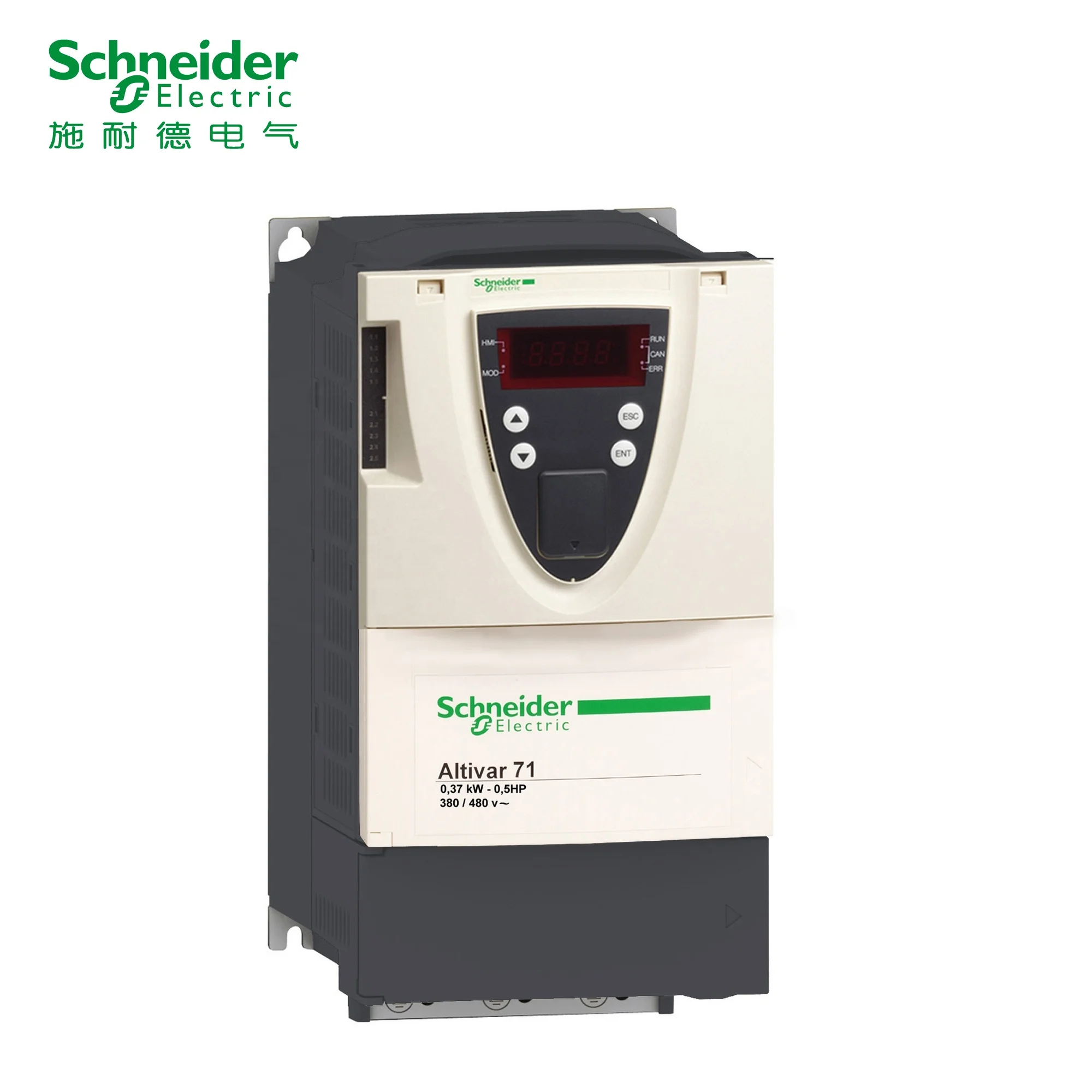

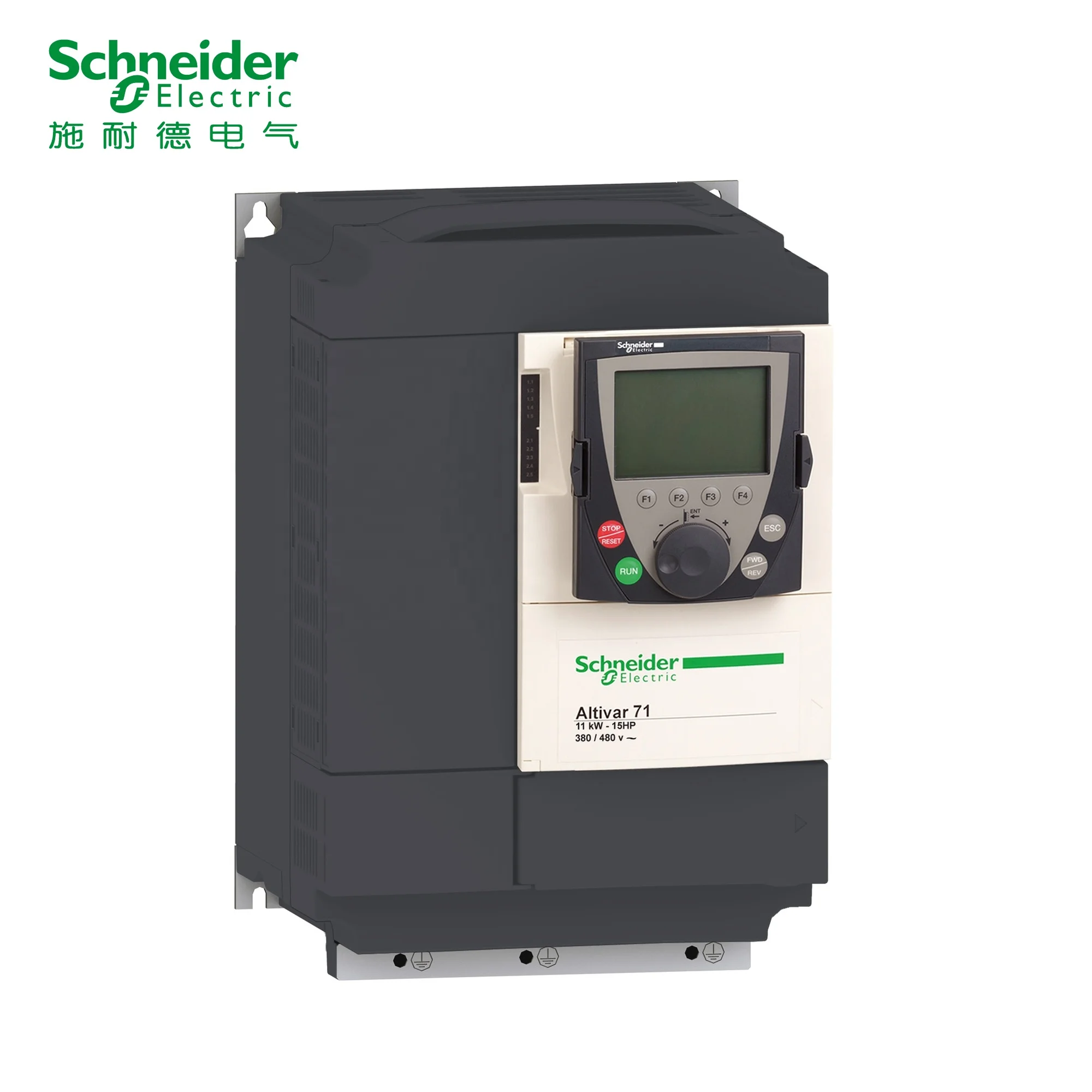

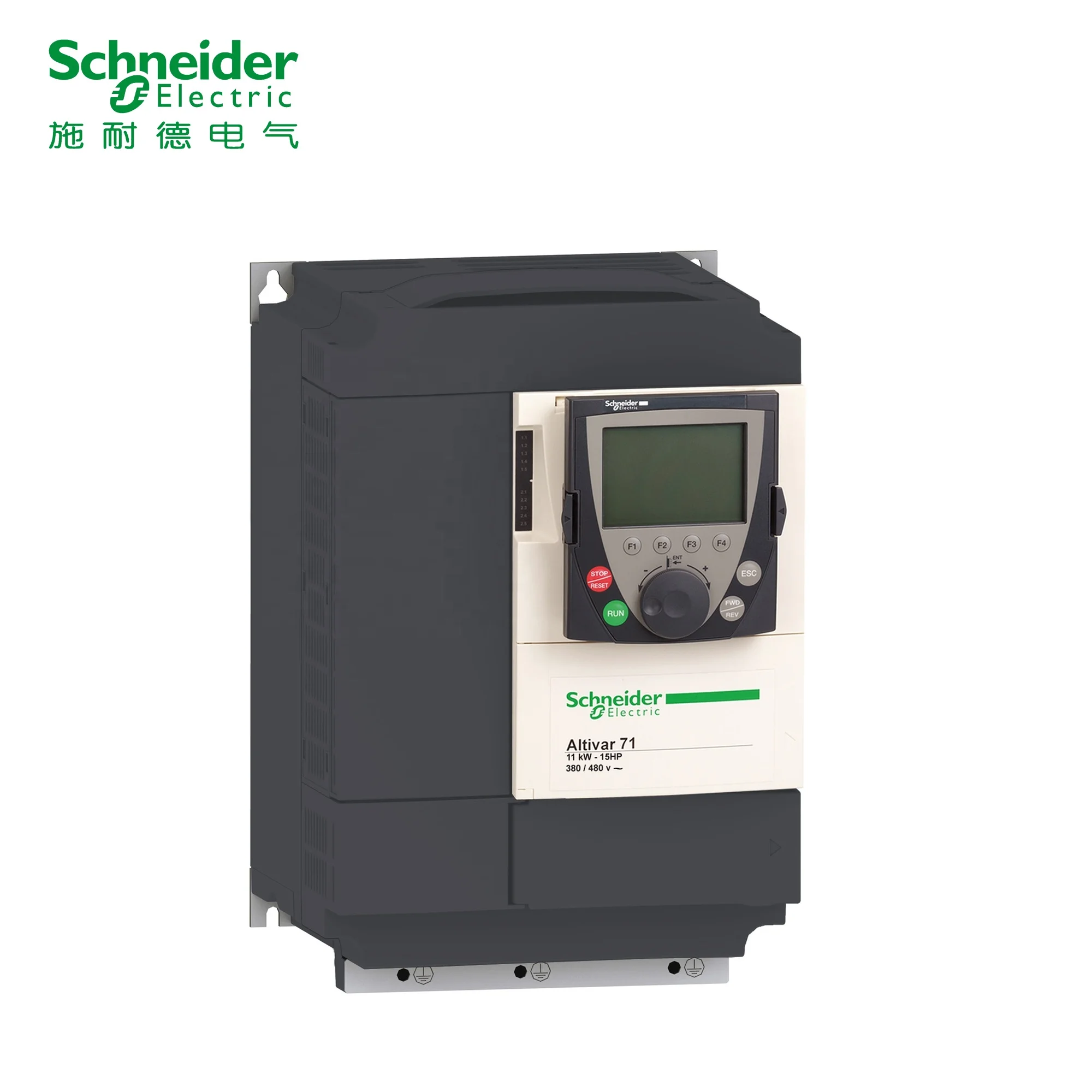

Altivar 71 series inverter drive AC 22kW 30hp ATV71HD22N4 ATV71HD22N4Z ATV71HD22N4Z383 three phase inverter

Share on (1600059626742):


Price:$500.00 - $600.00

Quantity:


Product Overview

Description


Product Description

Product Application

With different motor control types and a large number of built-in functions, Altivar 71 series inverters can meet the most stringent requirements and are suitable as the most demanding inverters:
a. Torque and speed accuracy at very low speed, high dynamic performance of flux vector control (with or without sensor) b. Expanded frequency range, suitable for high-speed motor drive
c. Provide voltage/frequency ratio control method, suitable for
d. riving special motor and motor for parallel connection d. Open-loop mode synchronous motor control mode can improve static speed accuracy and save power
e. ENA function makes the unbalanced machine run smoothly

Frequency inverters for 3-phase synchronous and asynchronous motors from 0.37 to 630 kW The function of the Altivar 71 frequency converter has improved its performance and increased the possibility of the machine being used in multiple applications.
1, Hoisting
2, Handling
3, Packaging
4, Textile machines
5, Wood-working machines
6, Process machinery


Altivar 71 series frequency inverter
Application
Hoisting, Handling, Packaging, Textile machines, Wood-working machines
Part name
Altivar 71 series frequency inverter
Type
H1000(G7)
Output Power
0.37KW~630KW
Package
Wooden box/carton
More Yaskawa Inverter H1000 Series are as following :
Motor power(kW) / Maximum Horse Power Rating(P) / Model / Weight(kg) / Size(mm)
0.75 1\t\tATV71H075N4\t3.00 \t130*230*175
1.5\t 2\t\tATV71HU15N4\t3.00 \t130*230*175
2.2\t 3\t\tATV71HU22N4\t3.00 \t130*230*175
3\t –\t\tATV71HU30N4\t4.00 \t155*260*187
4\t 5\t\tATV71HU40N4\t4.00 \t155*260*187
5.5\t 7.5\t\tATV71HU55N4\t5.50 \t175*295*187
7.5\t 10\t\tATV71HU75N4\t5.50 \t175*295*187
11\t 15\t\tATV71HD11N4\t7.00 \t210*295*213
15\t 20\t\tATV71HD15N4\t22.00 \t230*400*213
18.5 25\t\tATV71HD18N4\t22.00 \t230*400*213
22\t 30\t\tATV71HD22N4\t30.00 \t240*420*236
30\t 40\t\tATV71HD30N4\t37.00 \t240*550*266
37\t 50\t\tATV71HD37N4\t37.00 \t240*550*266
45\t 60\t\tATV71HD45N4\t44.00 \t320*630*290
55\t 75\t\tATV71HD55N4\t44.00 \t320*630*290
75\t 100\t\tATV71HD75N4\t44.00 \t320*630*290
90\t 125\t\tATV71HD90N4\t100.00 \t320*920*377
110\t 150\t\tATV71HC11N4\t122.00 \t360*1022*377
132\t 200\t\tATV71HC13N4\t116.00 \t340*1190*377
160\t 250\t\tATV71HC16N4\t163.00 \t440*1190*377
200\t 300\t\tATV71HC20N4\t207.00 \t595*1190*377
220\t 350\t\tATV71HC25N4\t207.00 \t595*1190*377
250\t 400\t\tATV71HC25N4 207.00 595*1190*377
280\t 450\t\tATV71HC28N4\t207.00 \t595*1190*377
315\t 500\t\tATV71HC31N4\t320.00 \t890*1390*377
355\t –\t\tATV71HC40N4\t330.00 \t890*1390*377
400\t 600\t ATV71HC40N4 330.00 890*1390*377
500\t 700\t\tATV71HC50N4\t435.00 \t1120*1390*377
