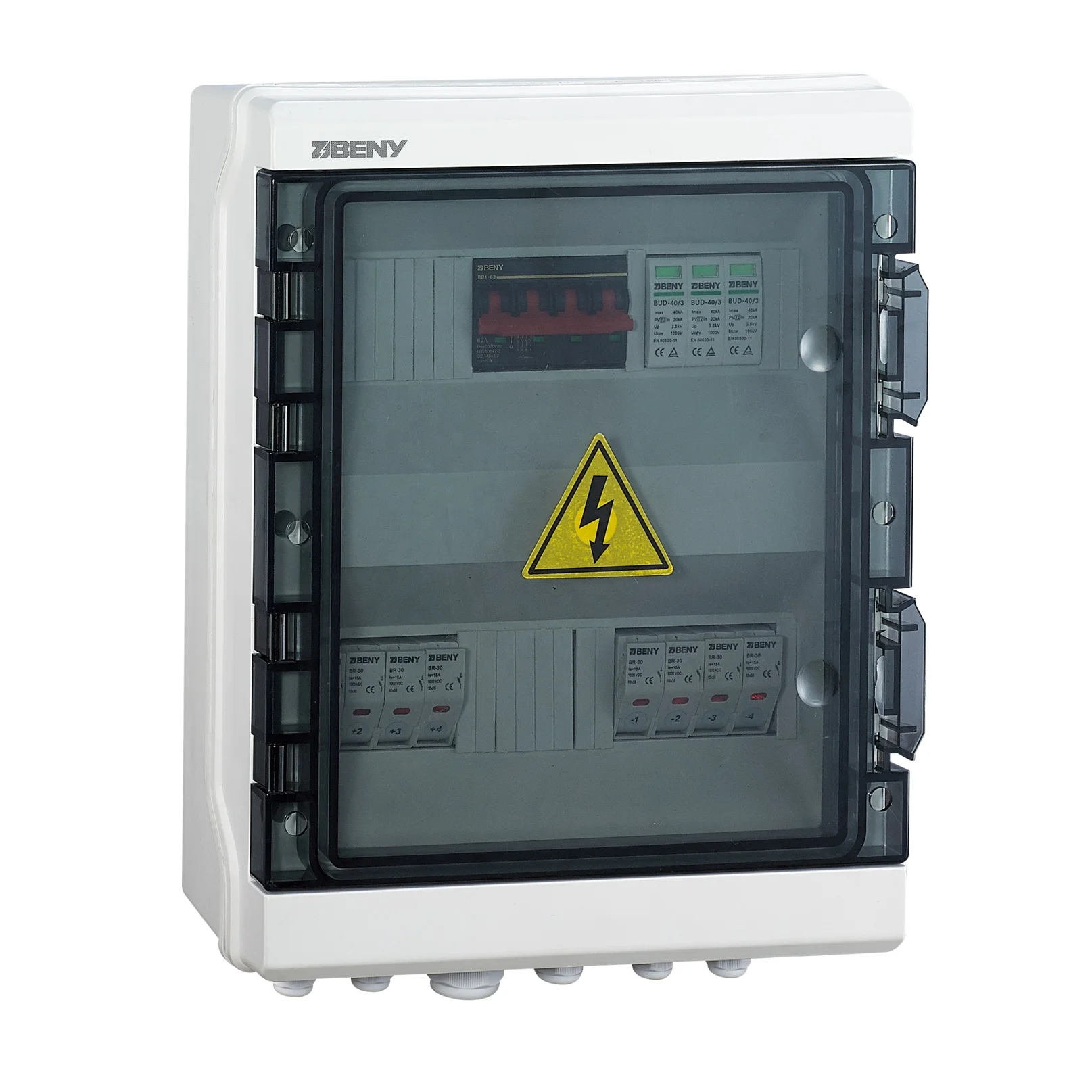

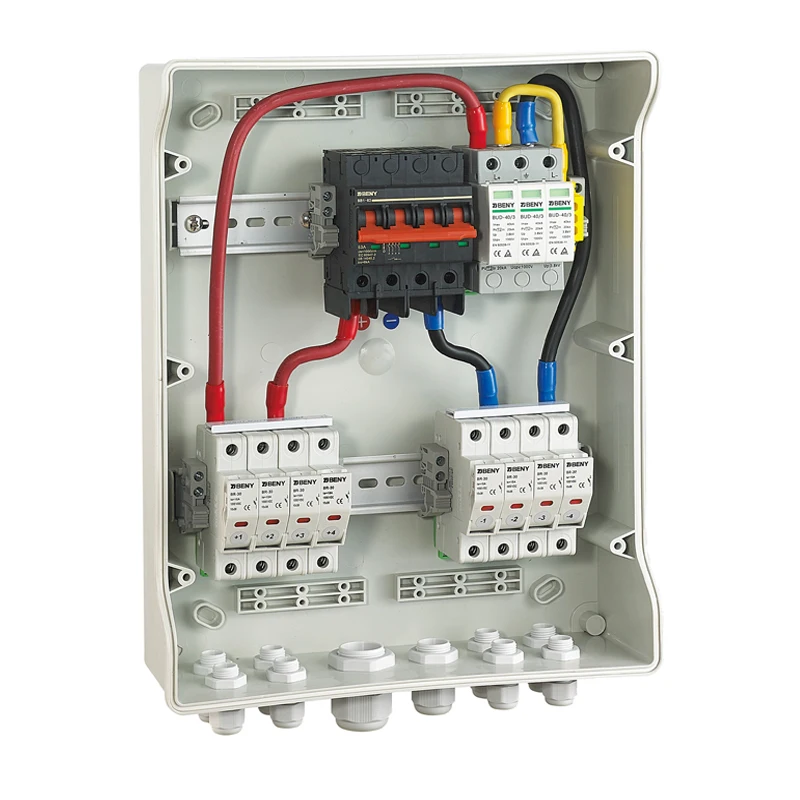

Solar Combiner Box 4 in 1 out integrated
Solar Combiner Box 4 in 1 out integrated
Solar Combiner Box 4 in 1 out integrated

Solar Combiner Box 4 in 1 out integrated

Share on (1600062338319):


Price:$95.00 - $104.50

Quantity:


Product Overview

Description



Products Description


BHS-4/1 1000V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.
-Protections including over-voltage, over-load for longer the solar system working life.
-Equipped with the most reliable DC components bring maximum protection.

BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.


Product Paramenters


General Data
Model No.
BHS-4/1
Input
4 strings
Output
1 string
Maximum Voltage
1000V
Max DC Short Circuit Current Per Input（Isc）
15A（Changeable）
Maximum Current Output
63A
Enclosure
BX-26
Material Type
Polycarbonate/ABS
Degree of Protection
IP65
Degree of Resistance to Impacts
IK10
Dimension（W*H*D）
292*370*132mm
Cable input Entry
PG09 Cable Gland,2.5-16mm²
Output Cable Gland
PG21 2.5-16mm²
DC Switch Disconnector
BB1H-63
Rated Insulation Voltage （Ui）
1000V
Rated Current（Le）
63A
Certification
CB,CE
DC Surge Arrester
BUD-40/3
Max Operation Voltage（Ucpv）
1000V
Maximum Discharge Current
40KA
Certification
TUV,CE
DC Fuse Holder
BR-30
Rated WorKing Voltage
1000V
Fuse Link
10*38mm Littel 15A
Certification
UL,CB,CE


Company Profile






Details Images

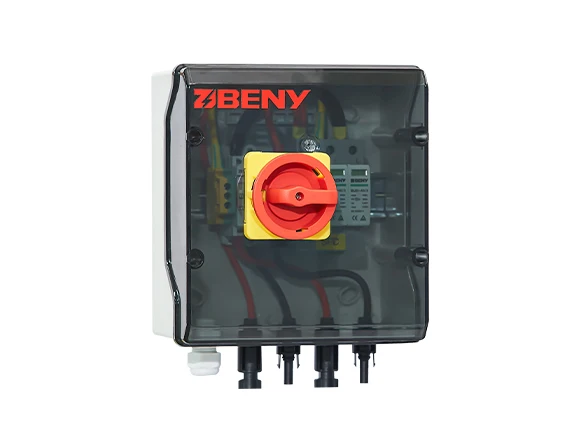

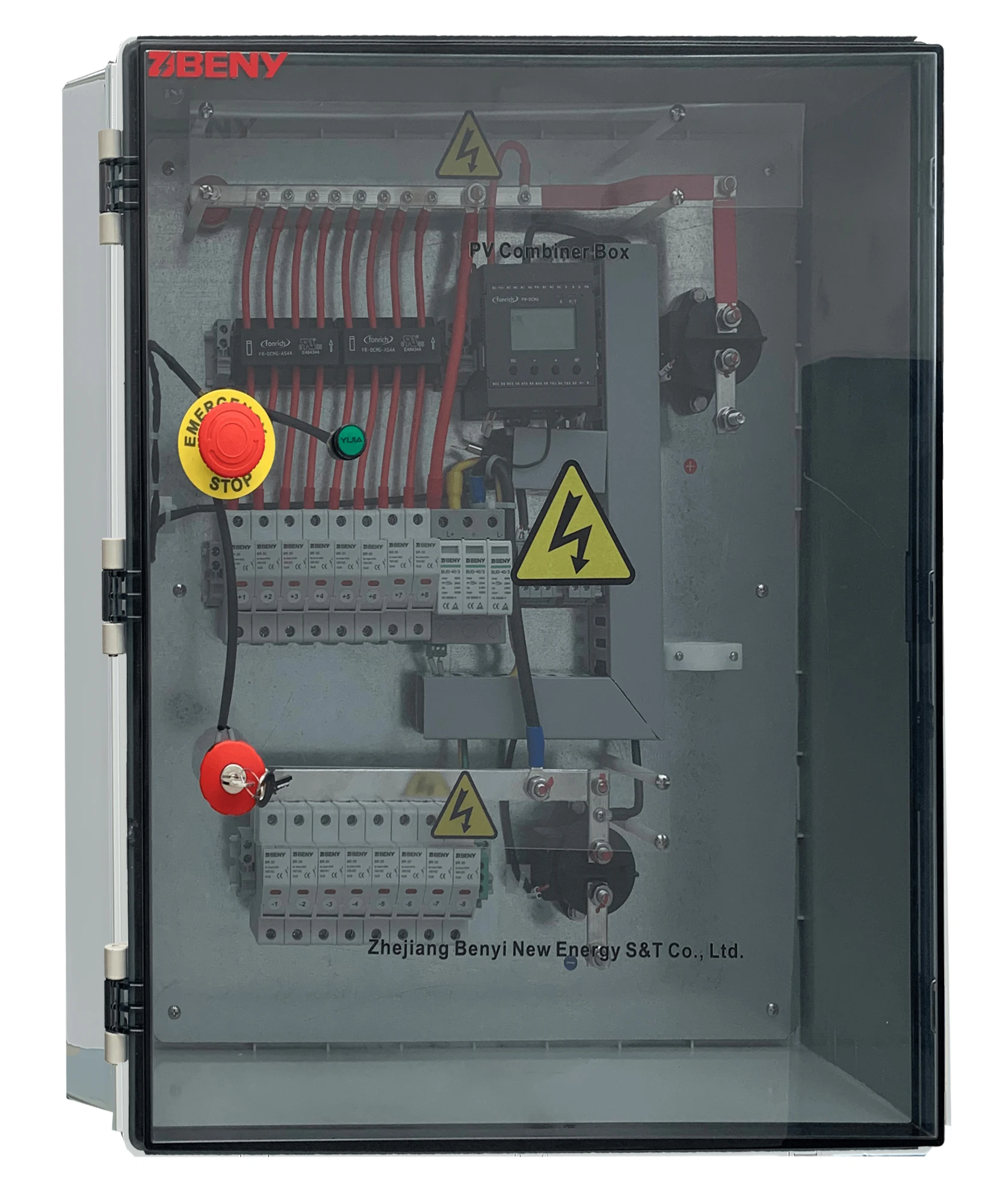

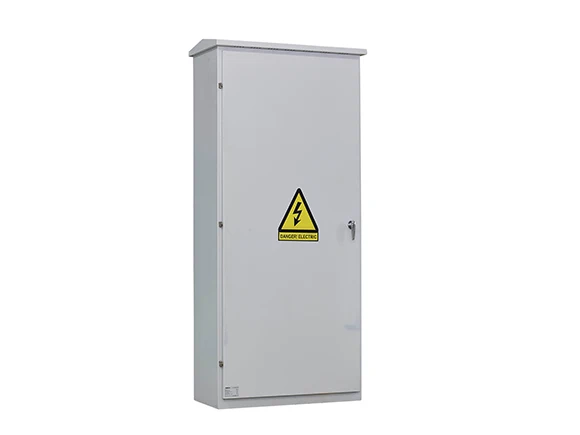

Recommend Products
