Mooch test YR1030 Resistance Voltage internal resistance Tester battery vapcell YR1030 lithium battery YR1030 tested
- Category: Battery Testers >>>
- Supplier: Shenzhen Vapcell Technology Co. Ltd.
Share on (1600062829936):
Product Overview
Description
Mooch test YR1030 Resistance Voltage internal resistance Tester battery vapcell YR1030 lithium battery YR1030 tested
Product Description
Professional Third Party (Mooch) Tested:
https://www.facebook.com/batterymooch/posts/2036393779983531?pnref=story
Specification:
| Model | Battery Internal Resistance Tester YR1030 |
| Voltage testing range | 0-1.999V, 2-19.99V, 20-45V |
| Voltage resolution ratio | 1mV, 10mV, 100mV |
| Inner resistance testing range | 0-19.9mΩ, 20-199.99mΩ, 2000-20000mΩ,200-19999mΩ |
| 2Ω-19.99mΩ,20Ω-200Ω, | |
| Accuracy | 0.01mΩ, 0.1mΩ, 10mΩ,100mΩ |
| Operating temperature | 10-40℃ |
| Suitable battery | lead acid,li-ion, lithium polyuner, IiFePO4,alkaline. dry cell, nickel lndrogen,nickel cadmium, coin cell,etc |
| Structure | LCD display testing results |
| Simple operation with Button press | |
| Notice | This machine can not test battery with voltage more than 45V, |
| Please don’t test battery more than 45V. It will damage the machine. | |
| Guarantee that the battery positive and negative connection is right. | |
| Dimension(L*W*H) | 130*72*30mm |
| Weight | 200g |

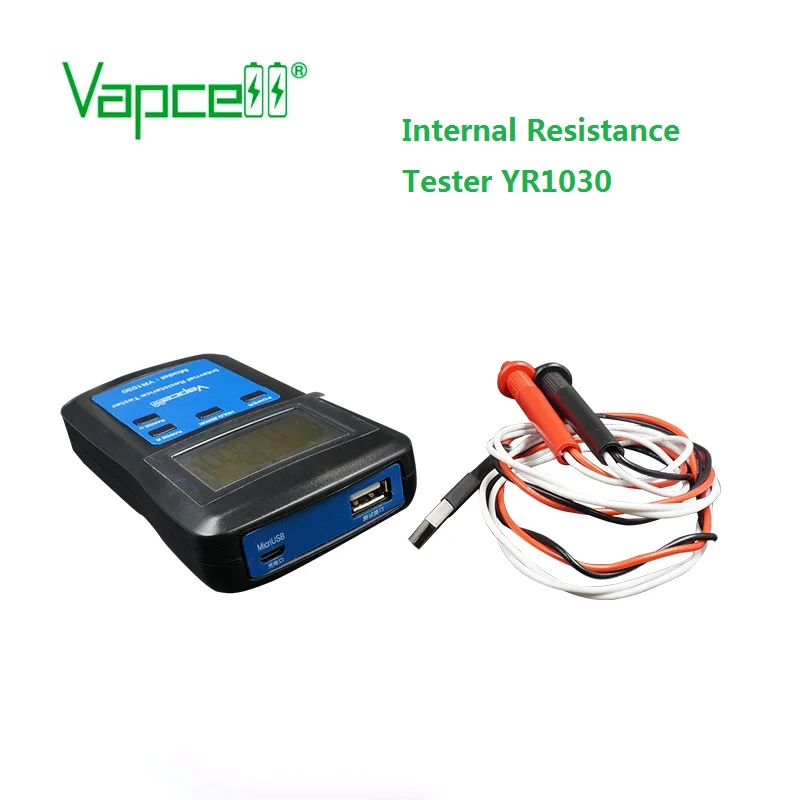

u Vapcell YR1030 Internal resistance tester is a great tester.Portable,easy,efficient,precise to test many types of batteries .
u It can test lead acid, li-ion, Lipo, Lifepo4, alkaline cell ,dry cell, nickel hydrogen, nickel cadmium, coin cell,etc.
Safety instructions:
u The maximum input voltage on the internal resistance and voltage range measurement does not more than DC 30V. Under any conditions can not enter the AC signal.
u The charging port uses the MICRO-MINI charging port.
Standard configuration:

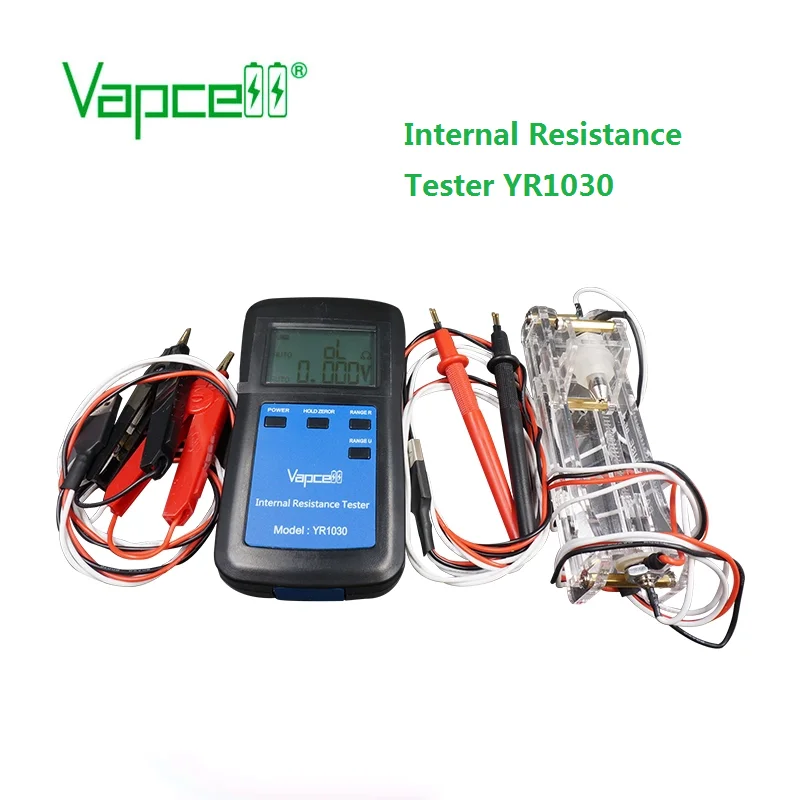

u 1 * Internal resistance tester
u 1 * test line (red,white* black,white)
u 1 * user manual
Measuring the battery:
u Normal mode
u 1. Connect the test lines and turn on the power. Make sure that the measured battery voltage does not exceed the instrument upper limit of 45V.
u 2. The two test pens(each pen has two lines and probes) were connected to the positive and negative battery. PS: Red and white line is connect the positive; black and white is connected negative.
u 3. wait to display stablely and read value.
Packaging & Shipping
Natural Packing
Each 2 batteries packed in one Vapcell zipper box or plastic case ,10kg batteries in standard Vapcell export carton.
