- Item Name: Battery Internal Resistance Tester
- Model No.: YR1035+
- Voltage Measuring Range: 0-100V
- Internal Impedance Measuring Range: 0-200Ω
True four-wire 1Khz AC sinusoidal battery internal resistance meter. The maximum resolution of internal resistance is 0.00001Ω, and the maximum measurement range of internal resistance is 200.0Ω.
The maximum voltage resolution is 0.00001V, and the maximum voltage measurement range is ±99.999V. Tested lithium battery voltage can display to 0.0001V, ensuring high sensitivity. It can measure positive and negative voltages.
It can measure lead acid, lithium ion, lithium polymer, lithium iron phosphate, alkaline, dry battery, nickel metal hydride, nickel cadmium, button battery, etc. Use ZR function to measure internal resistance below 5 milliohms with higher accuracy.
- High precision
- Smart anti-reverse connection
- Widely used
Accessories Meet Your Needs:
- Kelvin clips are suitable for measuring lead terminals, sheet-shaped pole ears, etc. Just clamp the positive and negative poles of battery to free your hands;

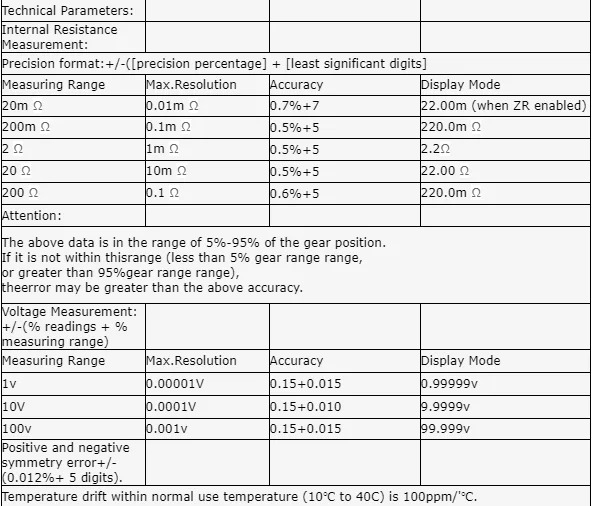

- Range Resolution Accuracy ± (% reading + % range)
- 1V 0.00001V 0.15+0.015
- 10V 0.0001V 0.15+0.010
- 100V 0.001V 0.15+0.015
- Positive and negative symmetry error ± (0.012% + 5 words)
- Temperature drift within normal use temperature (10 ° C -40 ° C) 100ppm / ° Ck
Please allow minor errors due to manual measurement.
Item color displayed in photos may be showing slightly different since monitors are not calibrated same.

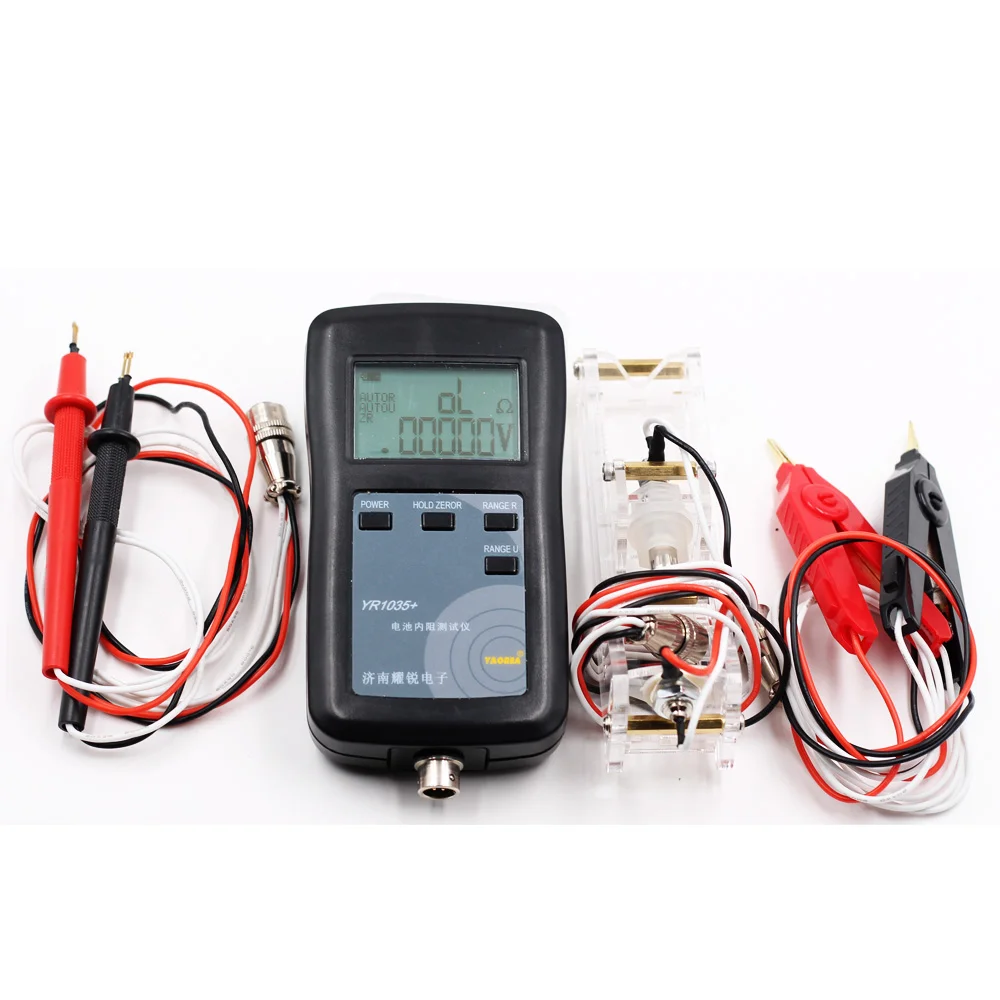

- 1 x YR1035+ Tester
- 1 x Set of Kelvin Clips
Note: Batteries are not included.
