Silicone sealant mixer making machine production line
US $600.00-$650.00

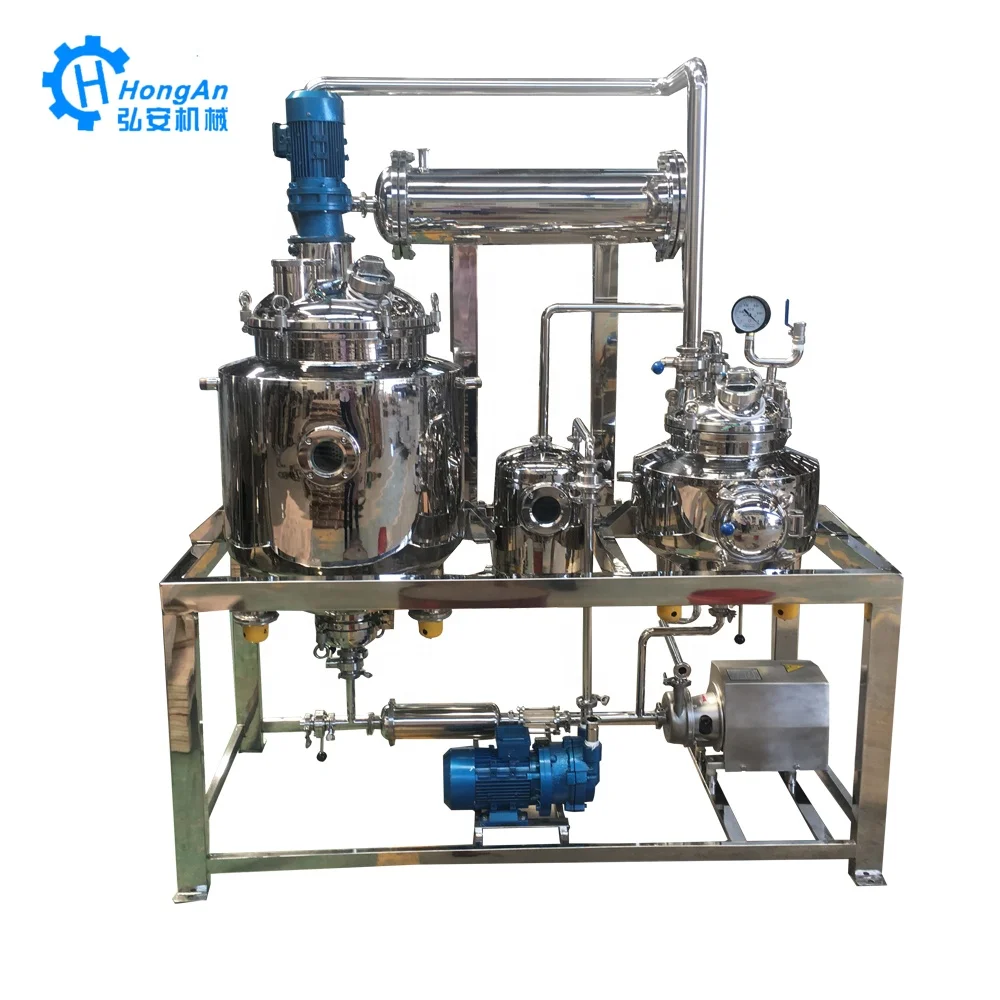

Stainless Steel Milk Cosmetic Soap Detergent Juice Beverage Mixing Tank With Agitator
- Category: Mixing Equipment >>>
- Supplier: Wenzhou Hongan Machinery Co. Ltd.
Share on (1600064935596):
Product Overview
Description
Product Name | Mixing tank |
Material | Medium Contact Part SS304.SS316.orSS316L |
Function | storage,emulsify,mixing,heating,etc |
Package | Export Wooden Case or according the customer requirement |
Introduction
1.Made of single-layer stainless steel structure.
2.Materials are all sanitary stainless steel SUS 304/316L.
3.Humanized structure design and easy to operate.
4.Transition area of interior wall on tank adopts arc
for transition to ensure no dead corner of
sanitation.
5.Heat type:electric heating jacket ,hot water jacket etc you can choose
Volume (L) | Body Dimension (mm*mm) | Total Height (mm) | Inlet and outlet (mm) | Power (KW) | ||||
500 | 840*1000 | 2250 | 38 | 0.55 | ||||
600 | 920*1000 | 2300 | 38 | 0.55 | ||||
700 | 990*1000 | 2300 | 38 | 0.55 | ||||
800 | 950*1220 | 2500 | 38 | 0.55 | ||||
900 | 1010*1220 | 2500 | 38 | 0.55 | ||||
1000 | 1060*1220 | 2550 | 51 | 0.75 | ||||
1500 | 1160*1500 | 2850 | 51 | 0.75 | ||||
2000 | 1340*1500 | 2900 | 51 | 1.1 | ||||
3000 | 1410*2000 | 3400 | 51 | 1.5 | ||||
4000 | 1620*2000 | 3450 | 51 | 1.5 | ||||
5000 | 1810*2000 | 3500 | 51 | 2.2 | ||||
6000 | 1980*2000 | 3550 | 51 | 2.2 | ||||
Note:we can make various volume according the customer requirement.it can be made according to special requirement of customer .The total height is accordance with outlet height of 800mm.If bottom outlet height change,then total height should be adjusted. | ||||||||
Details Images

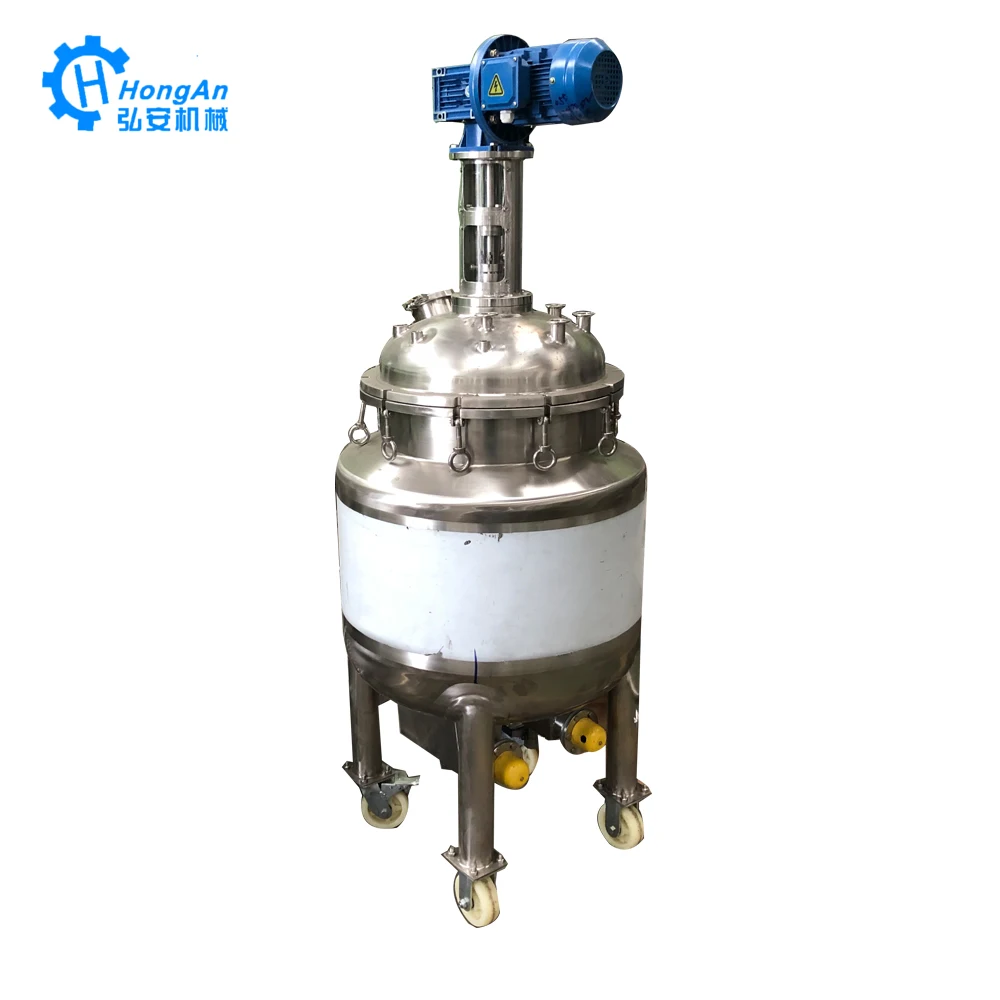

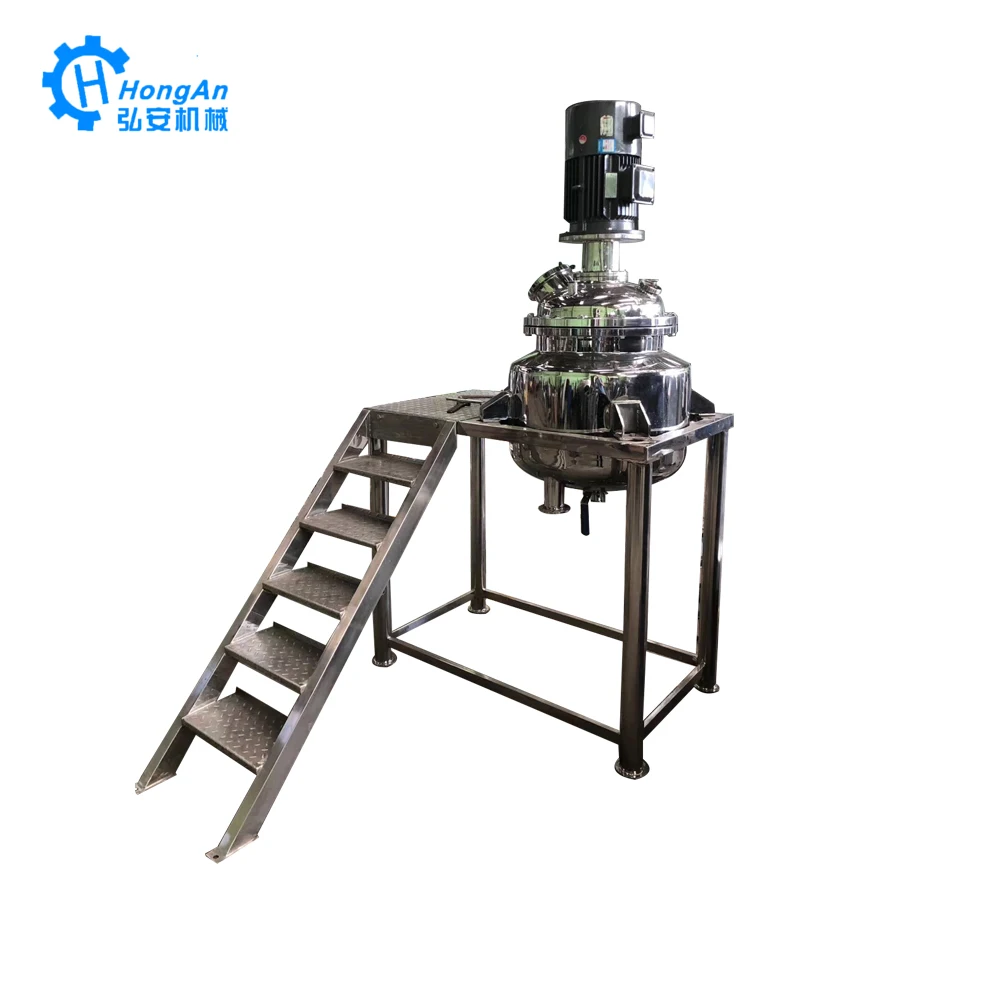

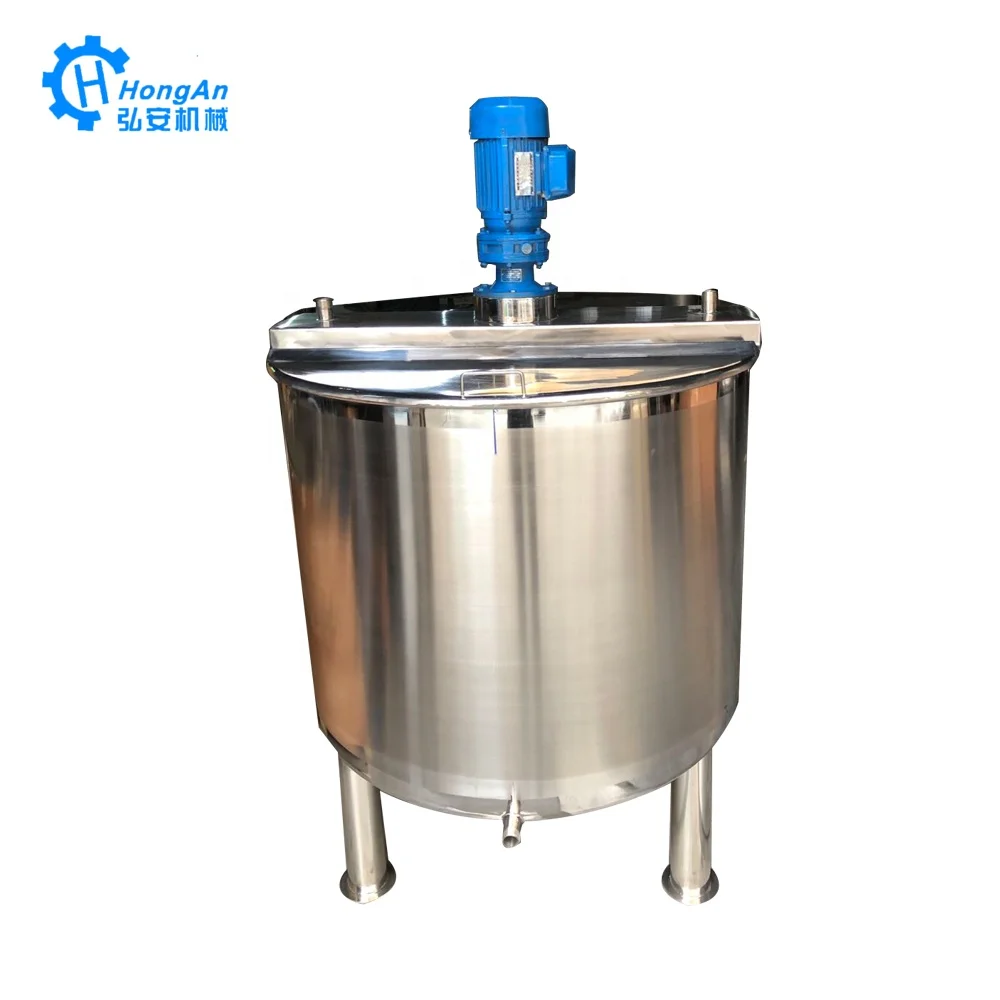

Electric heating mixing tank with homogenizer
Shape:Flat bottom and flat top with hinge

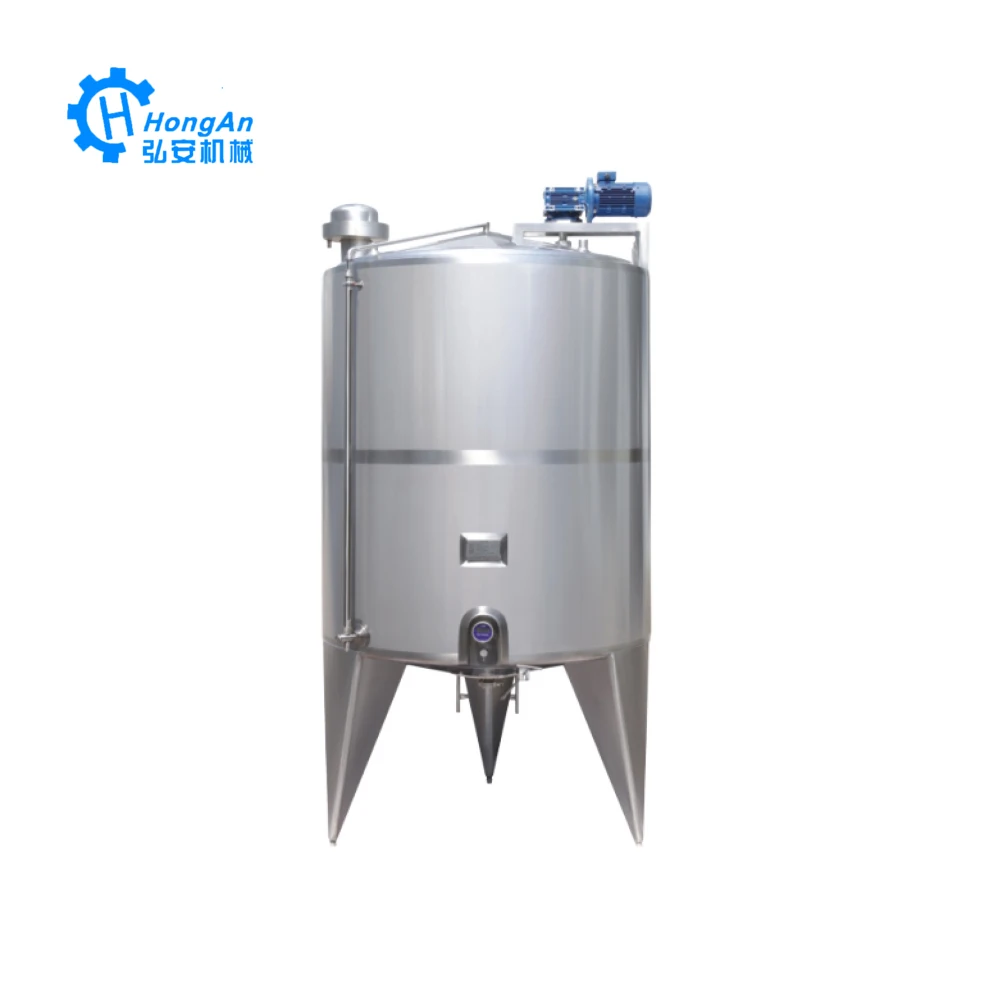

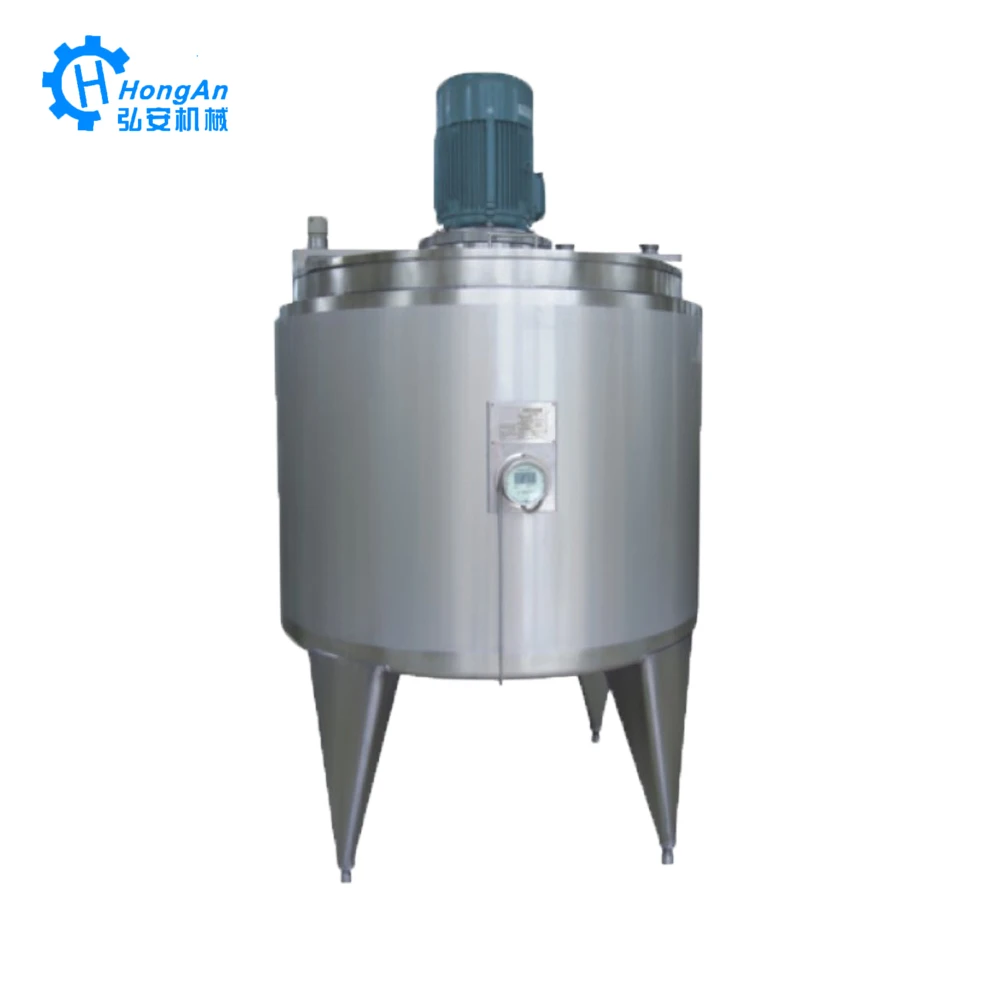

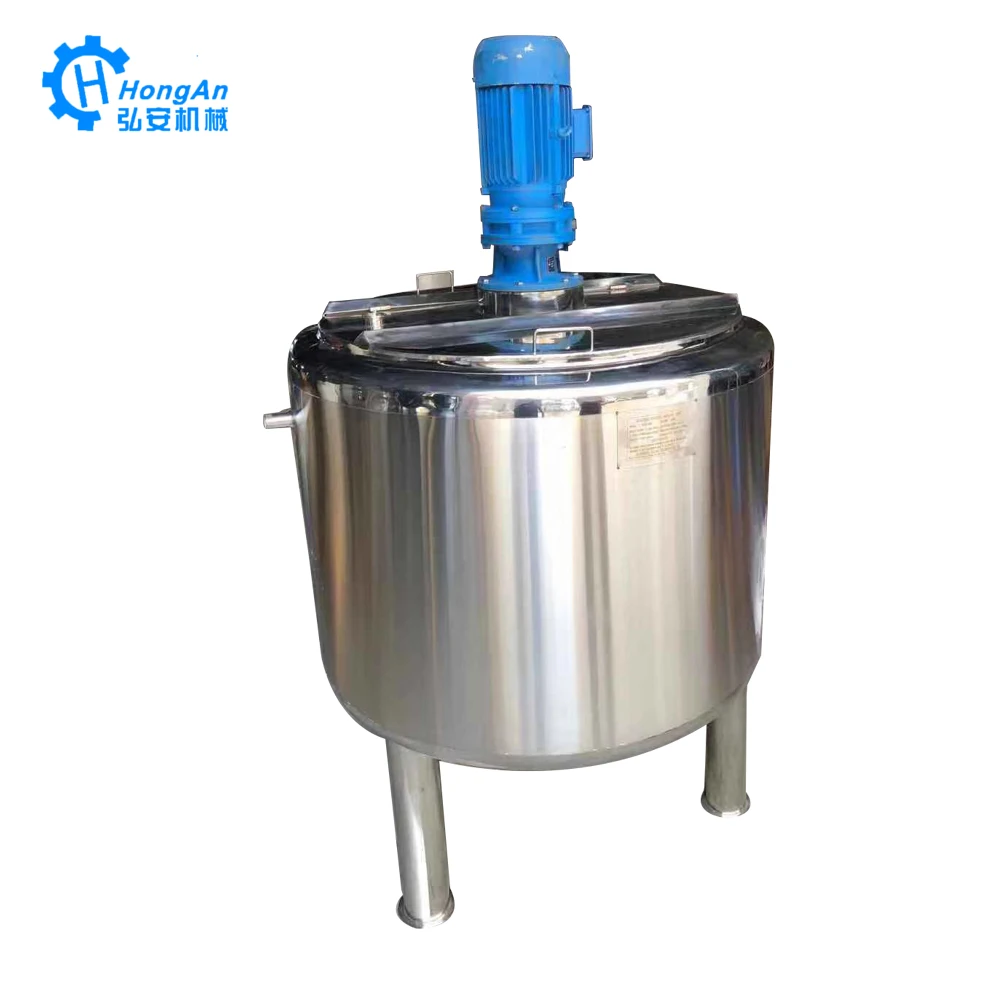

Electric heating mixing tank with agitator

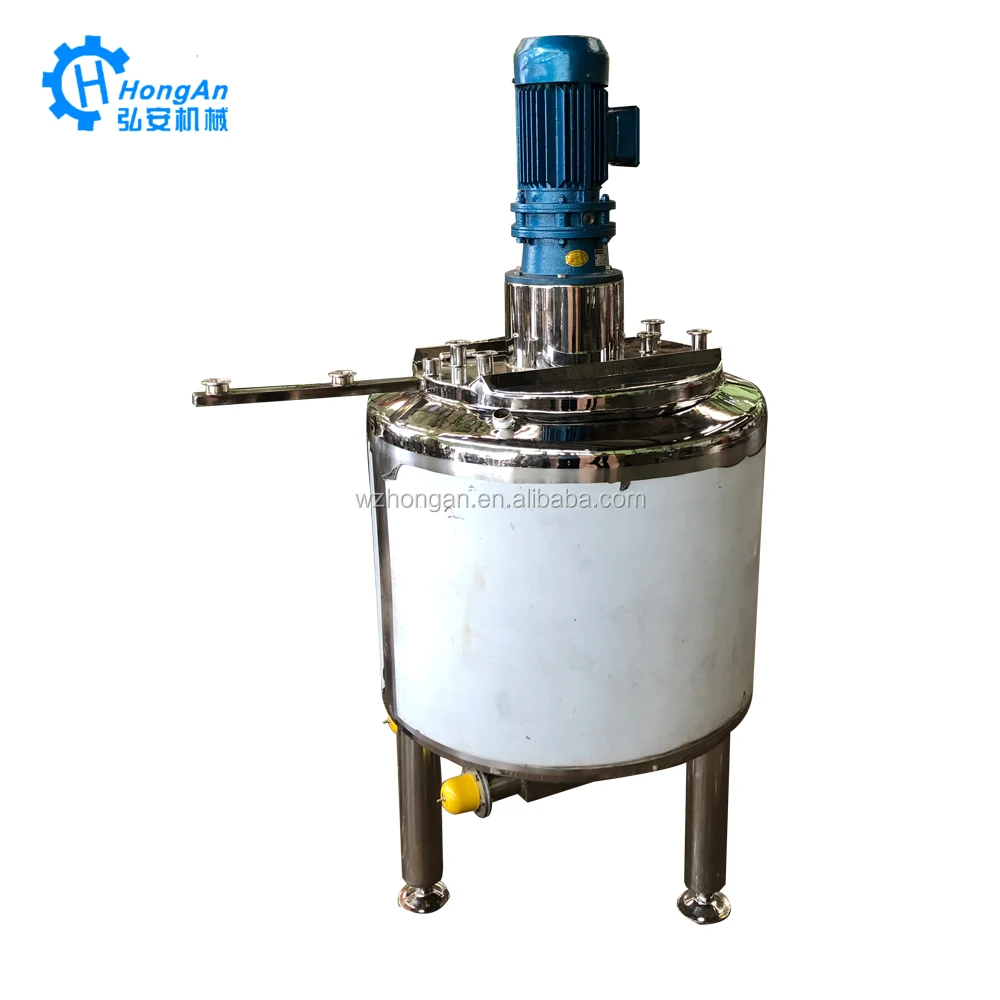

Disk bottom and disk top with manhole

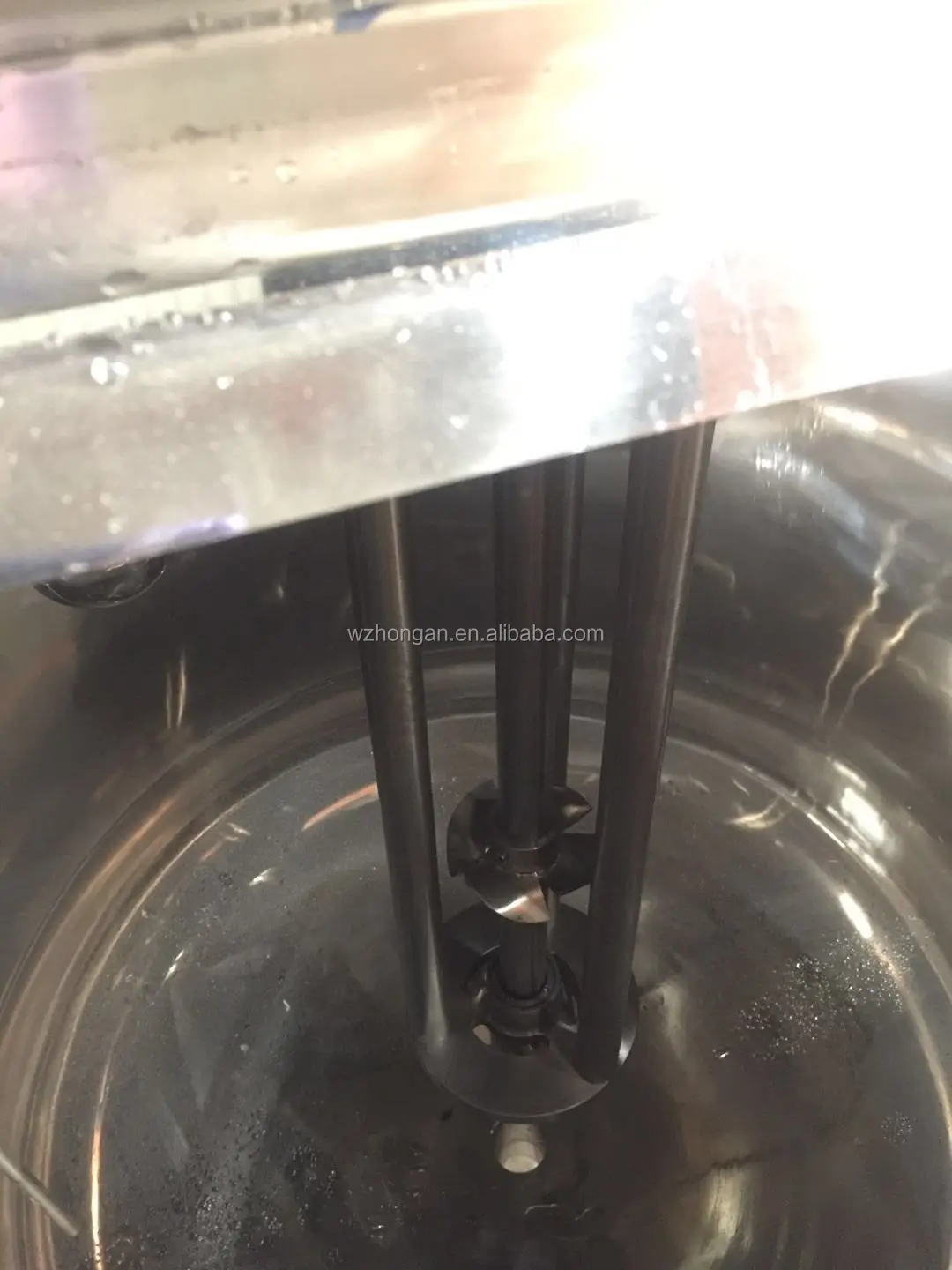

Internal details

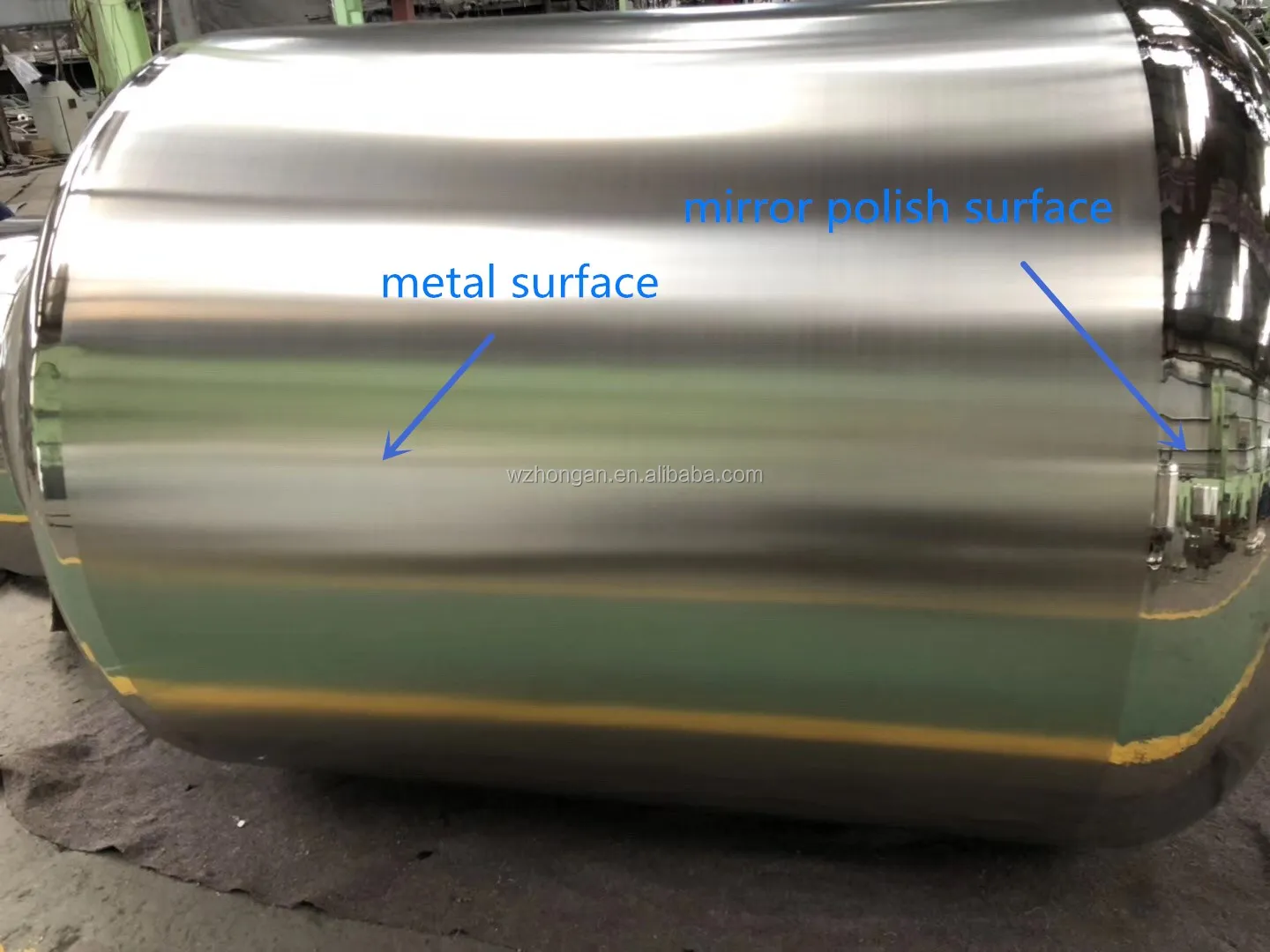

High quality mirror polished with homogeinzer

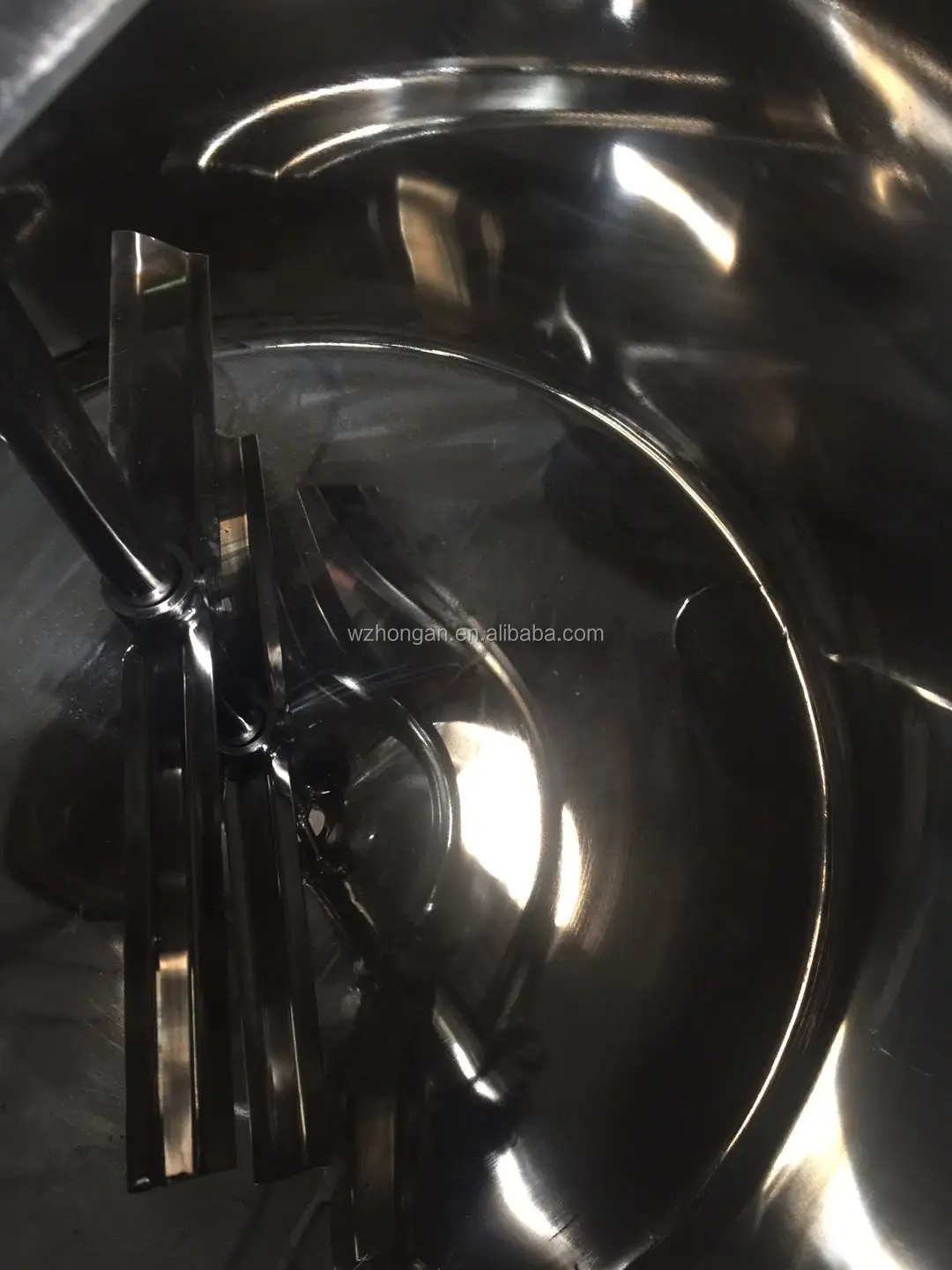

Internal details
High quality mirror polished with agitator
