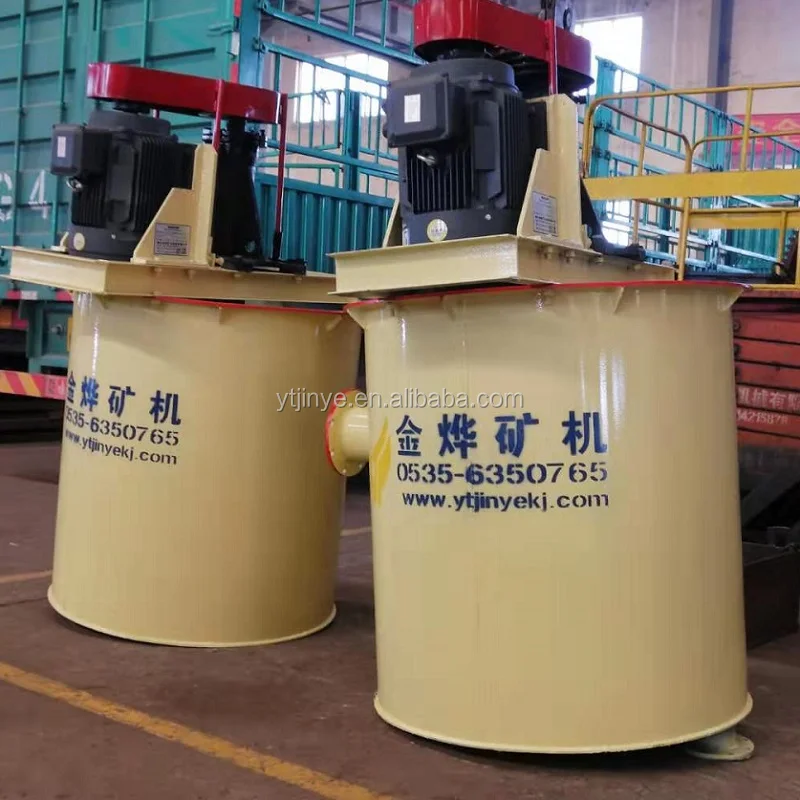

Double impeller high efficiency agitating tank is applicable to carbon process and rubber chemical process. Its upper and lower layer of impellers are of steel plate encapsulated with rubber,which are connected by means of bolts. With the features like good equilibrium,easy replacement and long service life.
Parameter of Double Impeller Leaching and Agitation tank
Model
Specs of tank
Diameter x Height
Effective volume
(m3)
Impeller revolution
(r.p.m)
Diamater of impeller
(mm)
Motor model
(kw)
SJ2.0 X 2.5
2000 x 2500
6
52
909
2.2
SJ2.5 X 3.15
2500 X 3150
13.14
52
935
2.2
SJ3.0 X 3.0
3000 X 3000
18
40.85
1130
4
SJ3.0 X 3.15
3000 X 3150
18.93
43
1130
4
SJ3.0 X 3.5
3000 X 3500
21
43
1130
4
SJ3.15X3.55
3150X3550
24
43
1260
4
SJ3.5 X 3.5
3500 X 3500
30
52
1310
5.5
SJ3.5X4.0
3500X4000
32.7
52
1310
5.5
SJ3.55X4.0
3550X4000
33.6
43
1310
4
SJ3.7X4.2
3700X4200
38.4
42
1310
4
SJ4.0X4.5
4000X4500
48
35
1750
7.5
SJ4.5X5.0
4500X5000
71.57
35
1750
7.5
SJ5.0X5.6
5000X5600
98
31
2046
11
SJ5.5X6.0
5500X6000
112
31
2100
11
SJ7.0X7.5
7000X7500
245.4
21
2400
22
SJ7.5X8.0
7500X8000
268.6
21
2900
18.5
SJ8.0X8.5
8000X8500
342
18.5
3200
30
SJ8.5X9.0
8500X9000
395
18.5
3300
30
Feature of structure
1. For ventilation, the hollow shaft is used to ventilate to the lower end, so that the air passes through the hollow shaft and enters the stirring tank, so that the gas is evenly dispersed.
2. A new type of impeller with a large diameter is adopted, and the rotation speed is very low. The stirring power is very small, thereby reducing carbon wear.
3. There is a certain control on the stirring intensity, so that the concentration and fineness in the stirring tank have a uniform distribution. Increased cyanide in and out rates and carbon adsorption rates
Certifications
Process Flow Cart
Working Principle

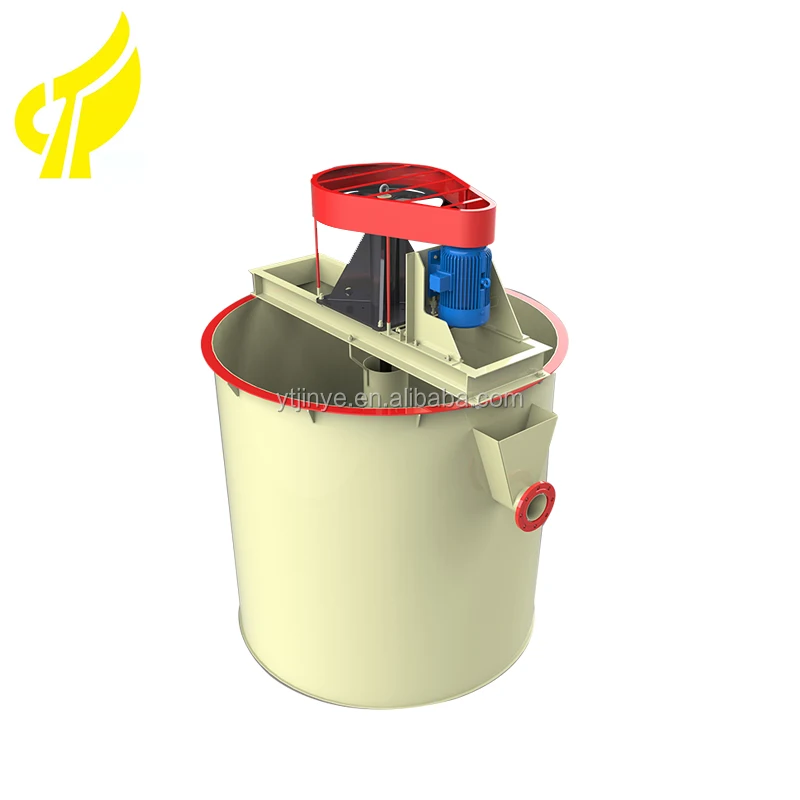

The machine is mainly composed of a circular tank and an agitator. The drive system consisting of motor, reducer and support base drives the agitator to rotate. The agitator has the lower and upper impellers, each with four blades. The blades rotation produces strong thrust which forces the pulp to flow from up to down at the center of the tank. The pulp diffuses along the radial direction at the bottom of the tank then flows upward along the circular wall of the tank, thus a closed cycle is formed. If the machine is used as a leaching tank, the leaching agent solution and air are filled into the tank, and the leaching agent and air are evenly distributed in the tank to leach gold. If the machine is used as the adsorption tank, activated carbon or other materials with strong adsorption capacity is put into the tank to adsorb gold dissolved in the solution. Usually at least six tanks work together continuously to complete the whole circuit to recover gold as much as possible.
Application
Application of double impeller leaching and agitation tank
This agitation tank series are used for the agitation, leaching and carbon adsorption in the gold cyanide plant with particle size of -200 meshes more than 90% and the concentration of less than 45%. It can also be used for mixing, agitation and leaching operation in industries such as metallurgy, chemical industry and light industry under corresponding conditions.
Our Service
●Pre-sales service:
We provide you with the pro-phase plan, process flow design and manufacturer equipment according to your special demand
●Sales service:
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
●After-sales service:
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service:
One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
