The bigger the impeller diameter is, the more powerful the agitating capacity is.
The higher the impeller RPM is, the more powerful the agitating capacity is.
The umbrella shape of impeller greatly increases the agitating capacity.
That the agitating capacity is boosted improves the circulation ability of minerals and reagents.
The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.
Umbrella-shaped impellers produce huge downward pressures, increasing the suction and circulation capacity.
Only when the surface of mineral is completely reacted with reagent, the beneficiation standard is improved.
Application
Leaching Tank — Product application
It is used for the preliminary agitation of ore pulp before the floatation beneficiation.
Work Principle
Leaching Tank — Product principle

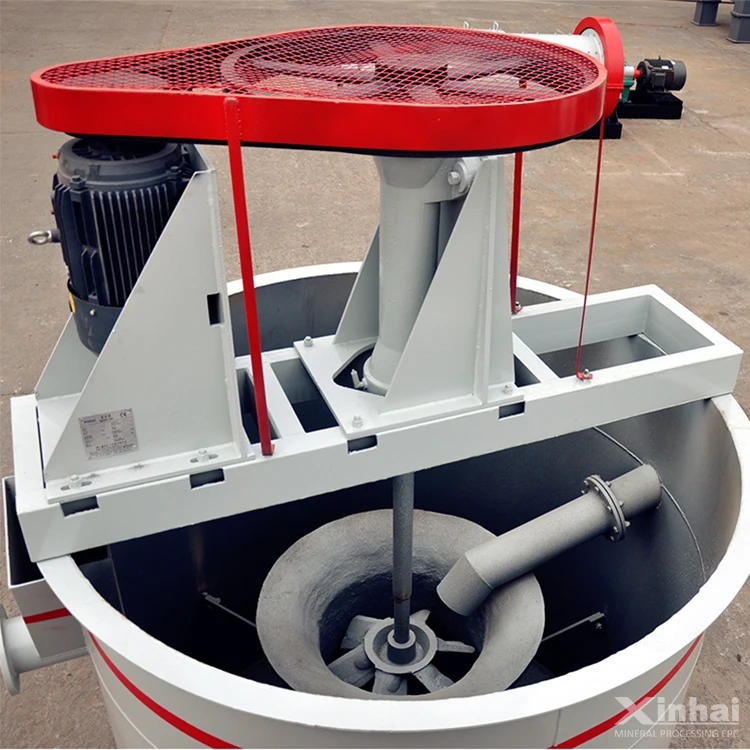

The high speed rotation of impellers can stir ore pulps, which cause ore particles and reagents fully contact.
Model
Effective
volume (m3)
Impeller
RPM (r.p.m)
Impeller
diameter (mm)
Motor
Model
Motor power (kw)
Weight (kg)
GBJ-1000×1000
0.58
530
240
Y112M-6
2.2
548
GBJ-1250×1250
1.15
350
Y100L2-4
3
1108
GBJ-1500×1500
2.2
320
420
Y132M2-6
5.5
2207
GBJ-2000×2000
4.4
240
560
Y160M-6
7.5
3110
GBJ-2500×2500
9.2
272
560
Y180L-6
15
3939
GBJ-3000×3000
19.1
220
700
Y225S-8
18.5
6320
GBJ-4000×4000
45
153
1000
Y225M-8
22
9560
