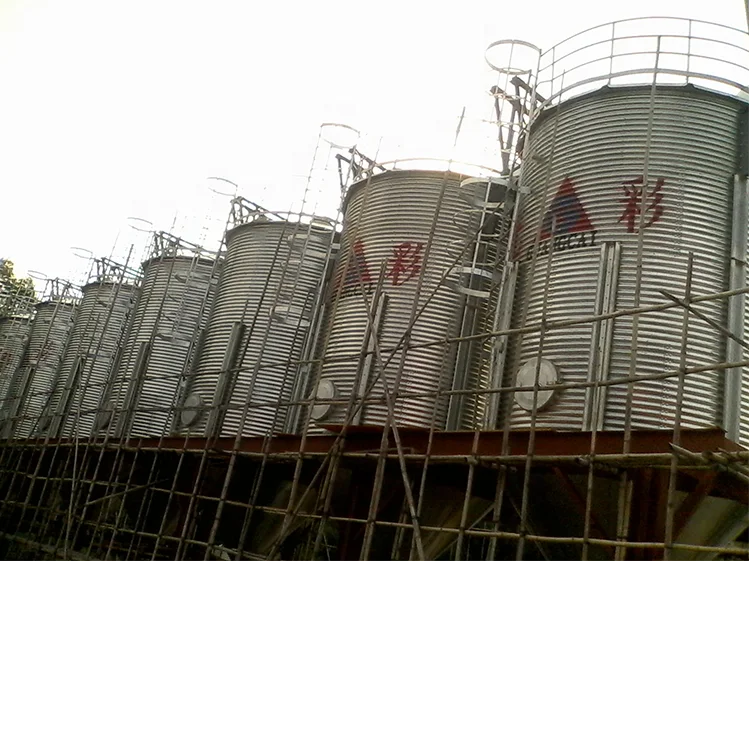

grain storage tank Coffee bean silo

Product Overview

Description

Company Profile:

Suzhou Guangcai Steel Silo is professional team in R&D, design, production, installation, process design, automation control and steel silo, conveyor, cleaning, dust removal machine, instllation amd commissioning, and training of personnel to provide one-stop service for customers, 5-1000t cone bottom steel silo and 10-15000T flat bottom silo. Electronc thermometer, ventilation, induced draft, dust removal, analog display can be confugured as well as the design and manufacture of a variety of non-standard products. Our products are widely used in feed industry, rice industry, oil industry, flour industry, port, beer industry, starch industry, alchol industry, etc.



Our  Used Grain Storage Tank Advantage:



Mechanical working;



Convenient installation;



Lower cost, saving building material and area of land, occupying less land;



Effectively reducing pests and rats;



Large capacity of storage;



Safety and reliability;



Can be removed, very short construction period (1-3 months);



Energy-conserving and environment-protective: advanced run-in & run-out installation and dust collection system, no pollution on the surrounding environment;



Widely used in the industry of feed, grain, cement and mineral powder, etc;



Highly increasing enterprise benefit.



 Bolted silo capacity from 872~1855 m³



main grains physical properties
grain name	gravity density	mass density	internal friction angle	friction coefficient
	kN/m3	kN/m3	°	concrete	steel sheet
paddy	6	550	35	0.5	0.35
rice	8.5	790	30	0.42	0.3
maize	7.8	720	28	0.42	0.32
wheat	8	750	25	0.4	0.3
soybean	7.5	700	25	0.4	0.3
flour	6	600	40	0.4	0.3
sunflower seed	5.5		30	0.4	0.3
barley	6.5		27	0.4	0.4
bran	4		40	0.3	0.3





grain name
Silo Type	Capacity(m ³)	Rings	Height(m)		Bulk density (T)
			Eave height	Peak height	maize	paddy	wheat	soybean
					0.72	0.55	0.75	0.7
JSZP10009	872	11	10.135	12.485	627.84	479.6	654	610.4
JSZP10010	961.4		11.255	13.605	692.208	528.77	721.05	672.98
JSZP10011	1050.8		12.375	14.725	756.576	577.94	788.1	735.56
JSZP10012	1140.2		13.495	15.845	820.944	627.11	855.15	798.14
JSZP10013	1229.6		14.615	16.965	885.312	676.28	922.2	860.72
JSZP10014	1319		15.735	18.085	949.68	725.45	989.25	923.3
JSZP10015	1408.4		16.855	19.205	1014.048	774.62	1056.3	985.88
JSZP10016	1497.8		17.975	20.325	1078.416	823.79	1123.35	1048.46
JSZP10017	1587.2		19.095	21.445	1142.784	872.96	1190.4	1111.04
JSZP10018	1676.6		20.215	22.565	1207.152	922.13	1257.45	1173.62
JSZP10019	1766		21.335	23.685	1271.52	971.3	1324.5	1236.2
JSZP10020	1855.4		22.455	24.805	1335.888	1020.47	1391.55	1298.78

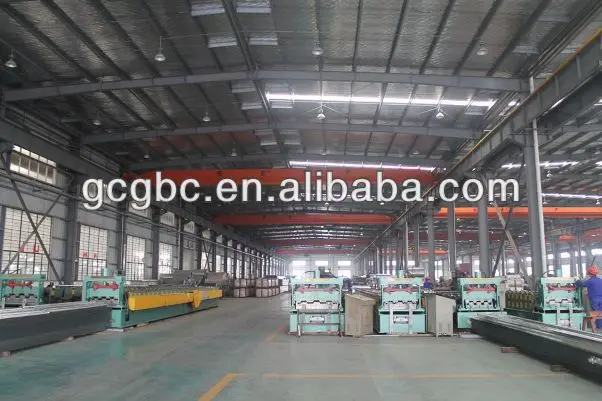

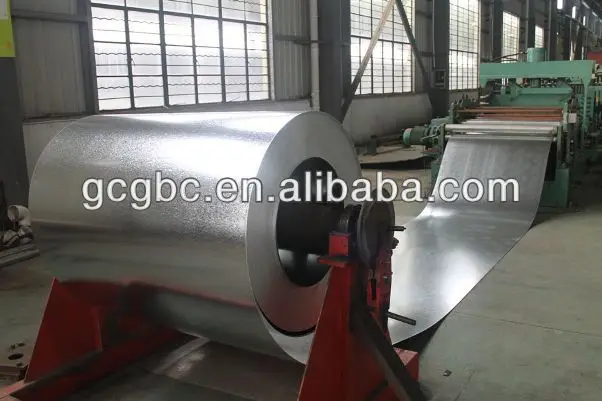

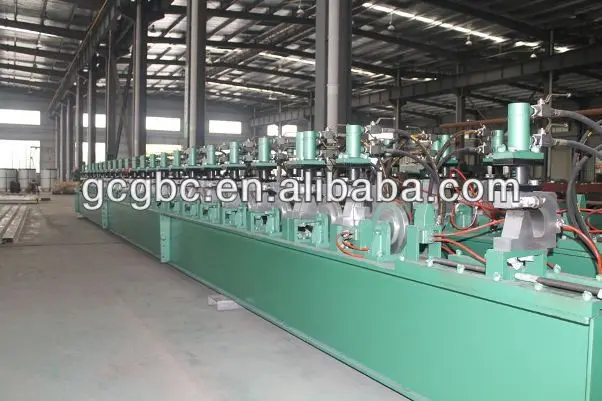

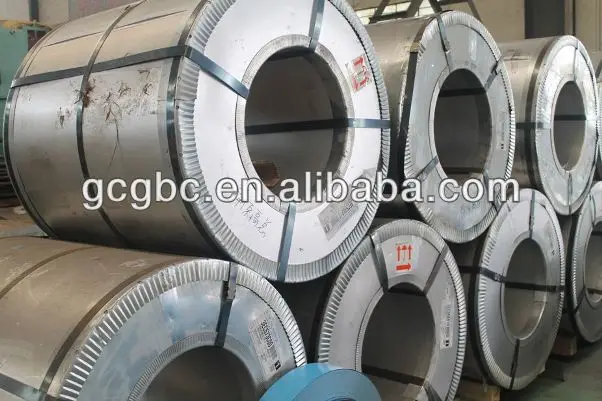

Our Factory

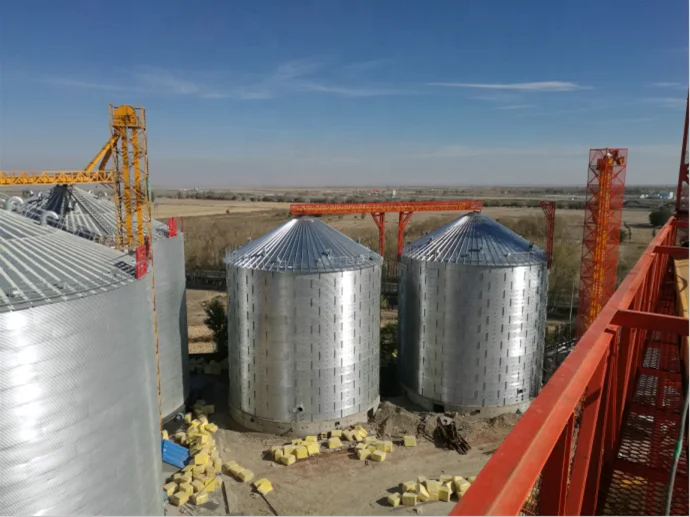

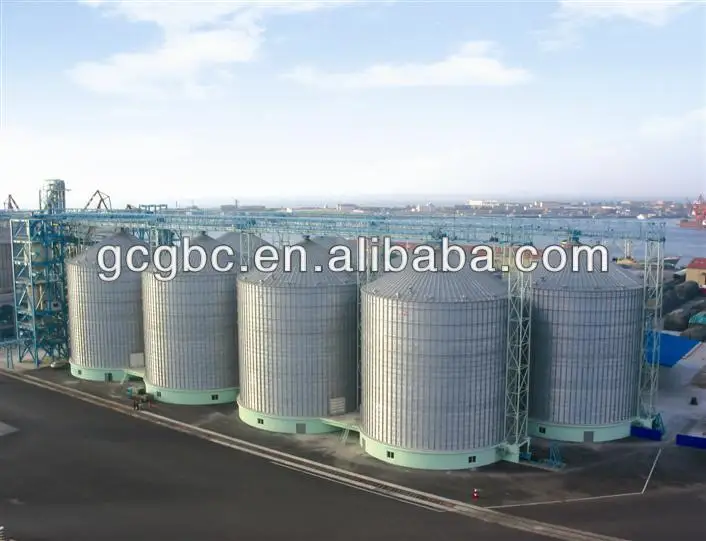

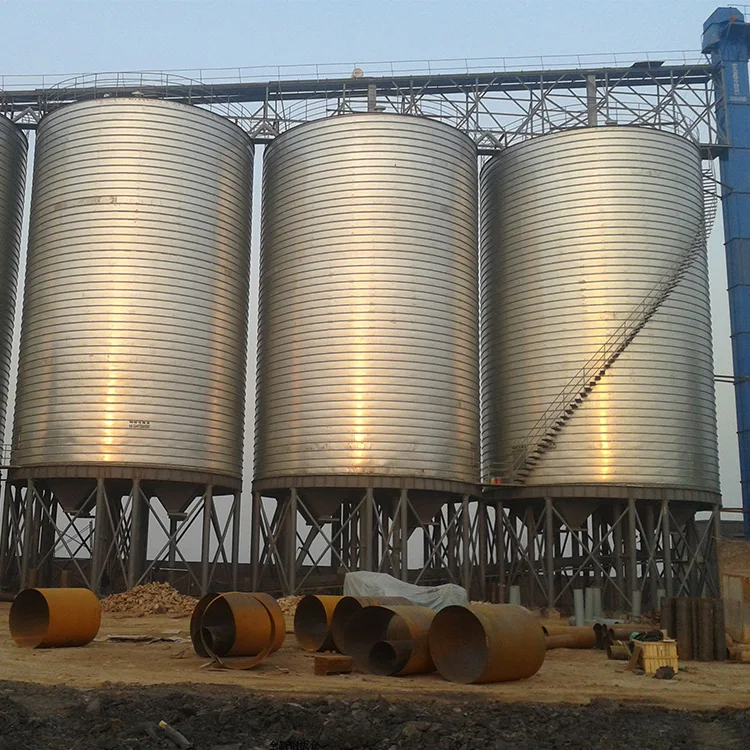

Projects:
