Product Overview

Description


Product Description

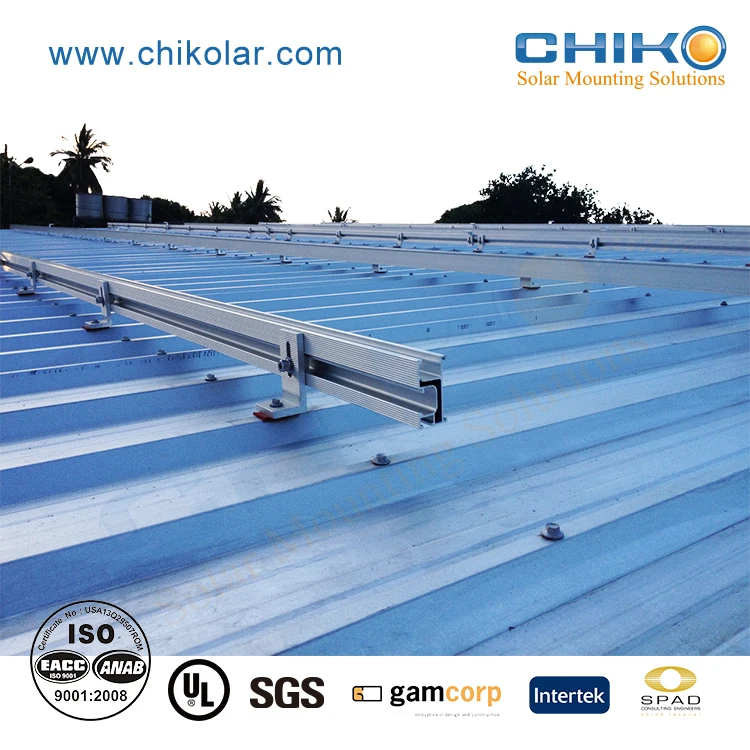

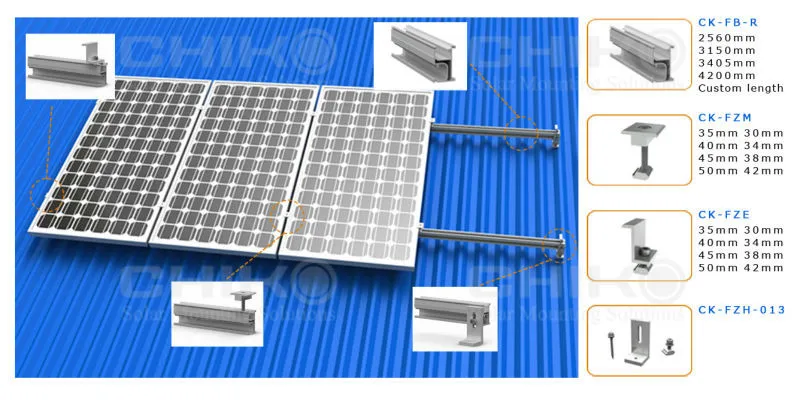

Metal Roof Solar Mounting
The chiko Solar tin roof mounting system is designed as a modular unit assembly system with quality material ,which enables an installer to install any module in almost any mounting situation or configuration.
No.
Item No.
Descriptions
Quantity   (1x8=8 Panels)
1
CK-FTS-162R43
CHIKO Tin Roof Clamp L Feet
12
2
CK-FT-R7B1-4200
CHIKO ALU Rail No.7--4200mm
4
3
CK-154R7-40-40
CHIKO Mid Clamp 40 mm For 7 Rail
14
4
CK-103R7-40-40
CHIKO End Clamp 40mm for 7 Rail
4
5
CK-590-1-200
CHIKO Rail Splice Kit For 7 Rail
2
6
CK-GTC-R3A
CHIKO Grounding Clip for 07# Rail
14
7
CK-076R7-3-20
CHIKO Grounding Lug for 07Rail
2
Quantity will be adjusted upon the spacing and arrays

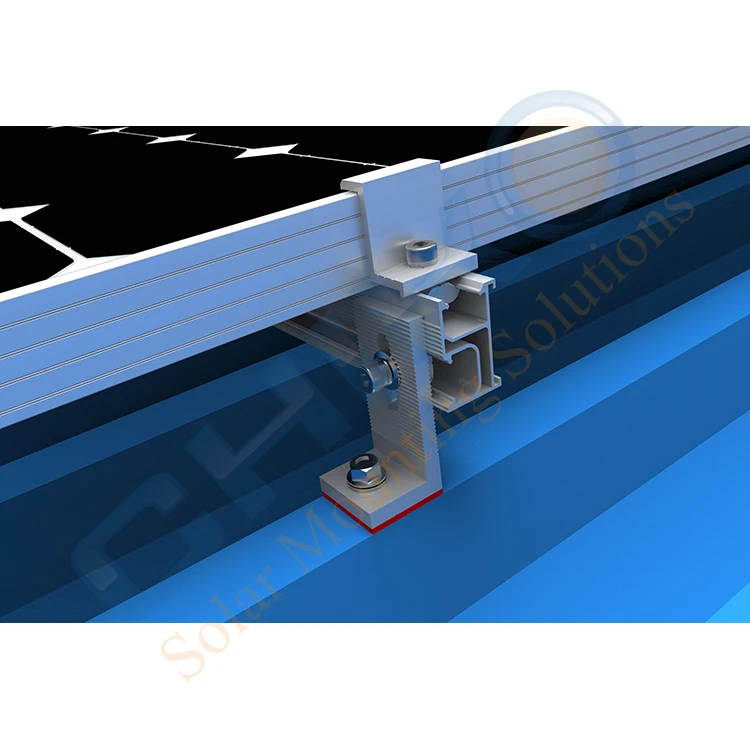

The Aoolication of L Feet Mounts
CHIKO L feet have been widely used on universal corrugated metal sheet roof. It can fix to the roof rafter directly. Also, it can be applied with hanger bolts and CHIKO deigning roof clamps.

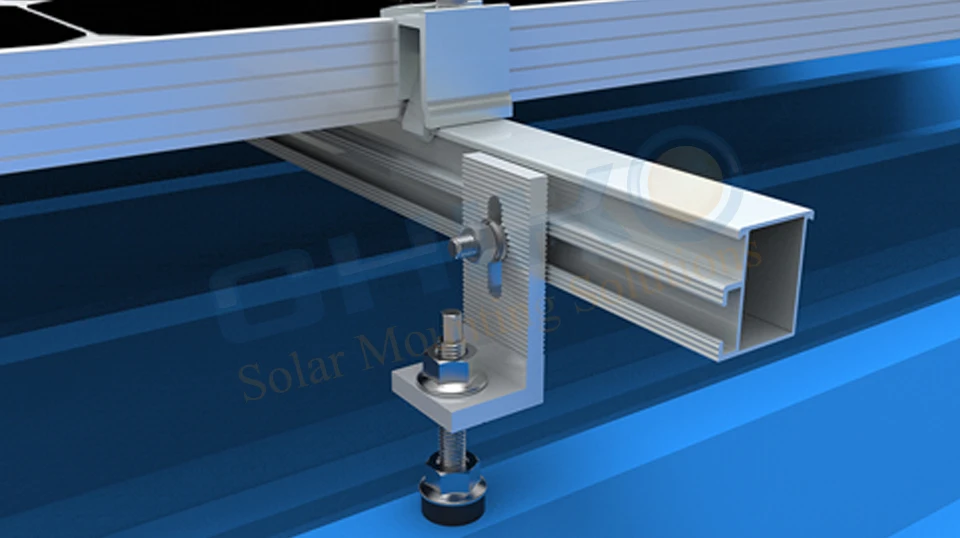

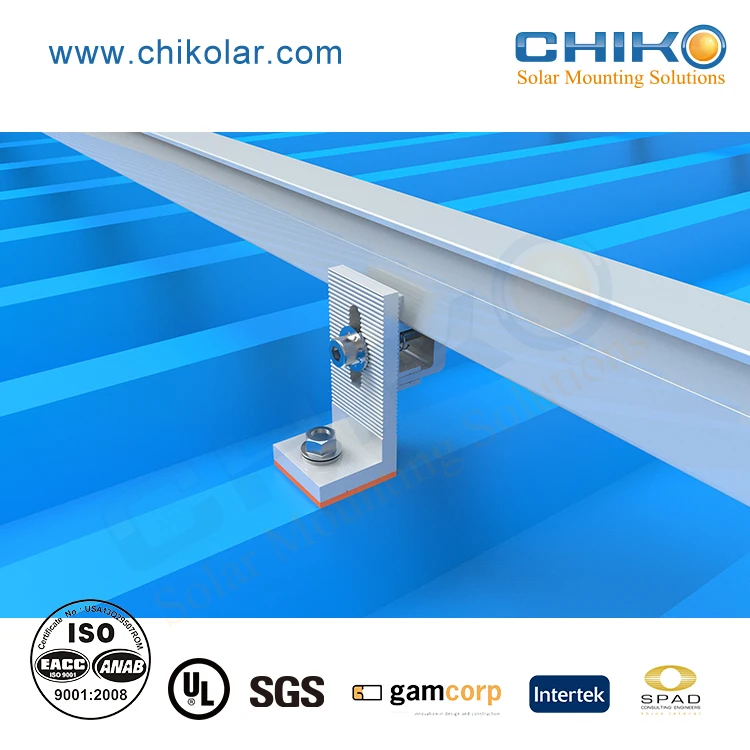

  • Fix to roof directly

It can be fixed on metal roof whether wooden rafter or steel purlin.
This solution is most cost-saving and install conveniently



  • Apply with Hanger bolt

Hanger bolt is more stable than L feet only. It can make structure taller so that air can go throungh.

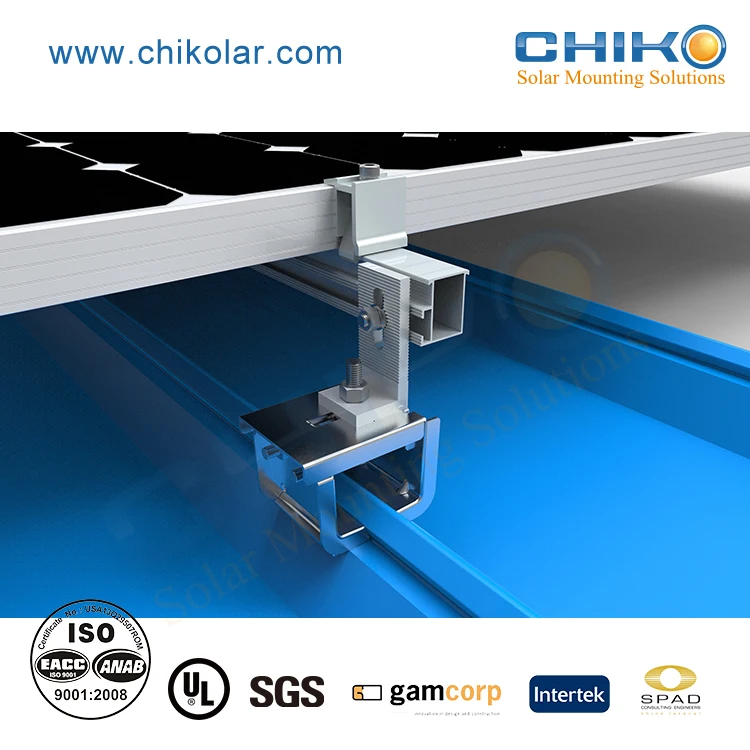

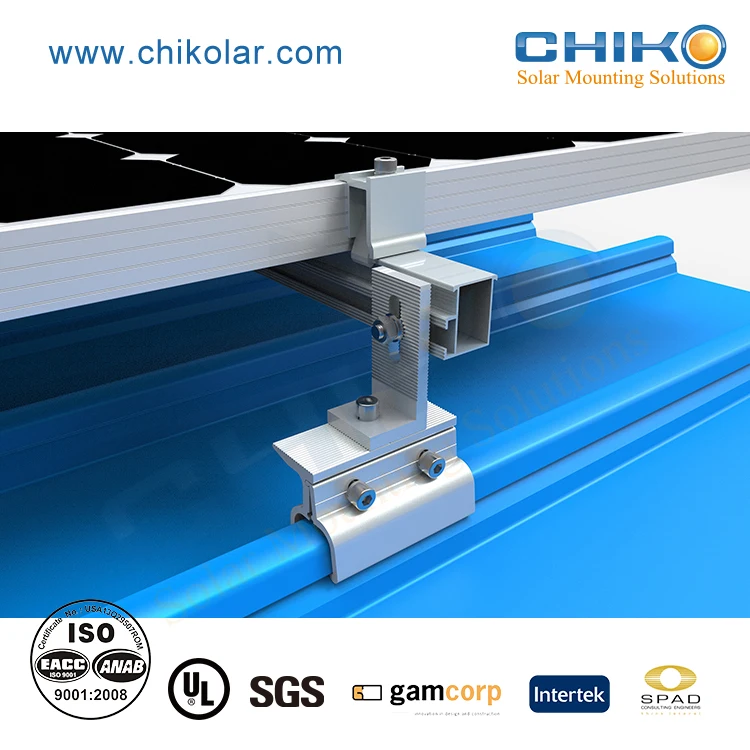

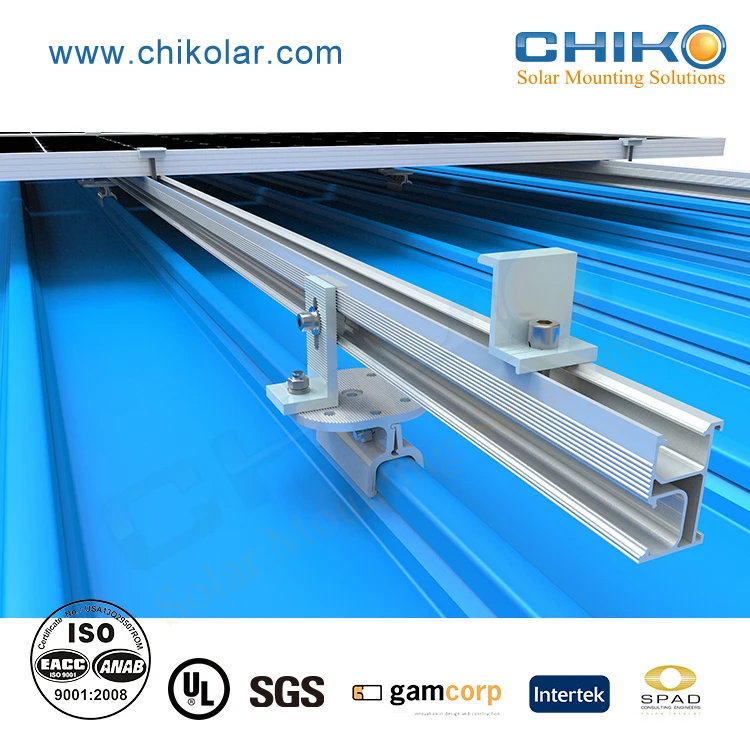

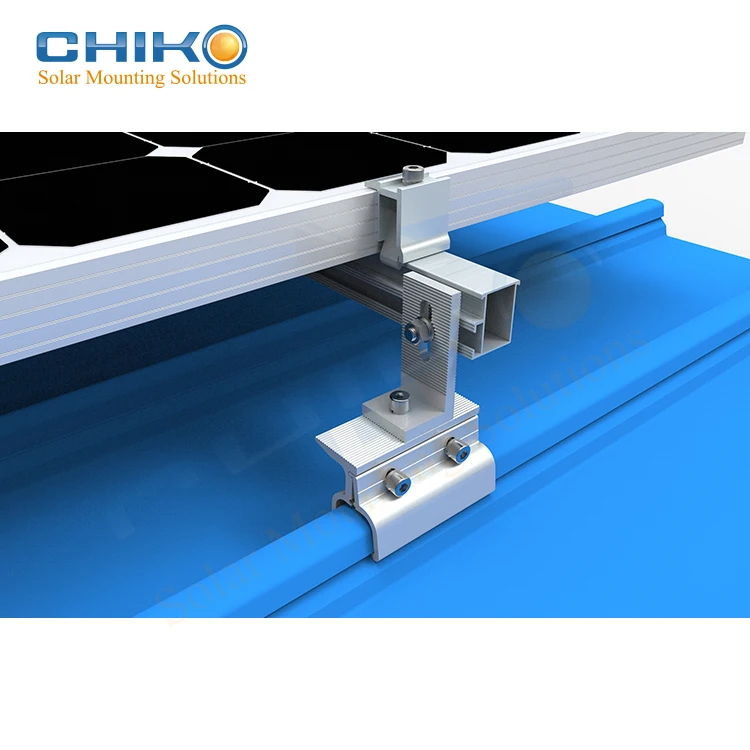

  • Apply with roof clamps

Standing seam roof clamp can clip with metal roof without  drilling. Flexible with many kinds of metal roof.
CHIKO Project For Reference

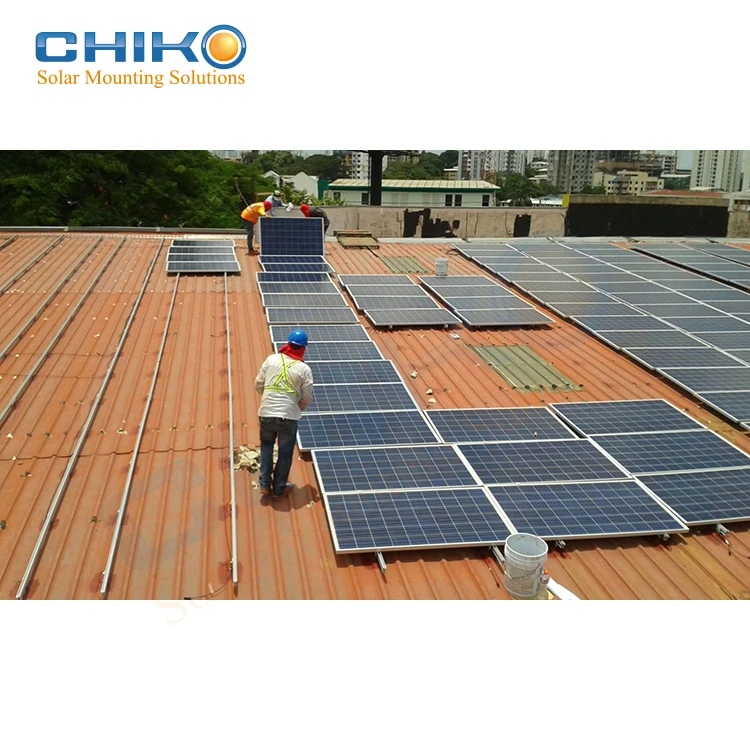

CHIKO 4MW Metal roof solar Mounting Project In Panama
Related Products
Our Service
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
WHY CHOOSE CHIKO ?
• Cost-effective - Factory manufacturing • Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years

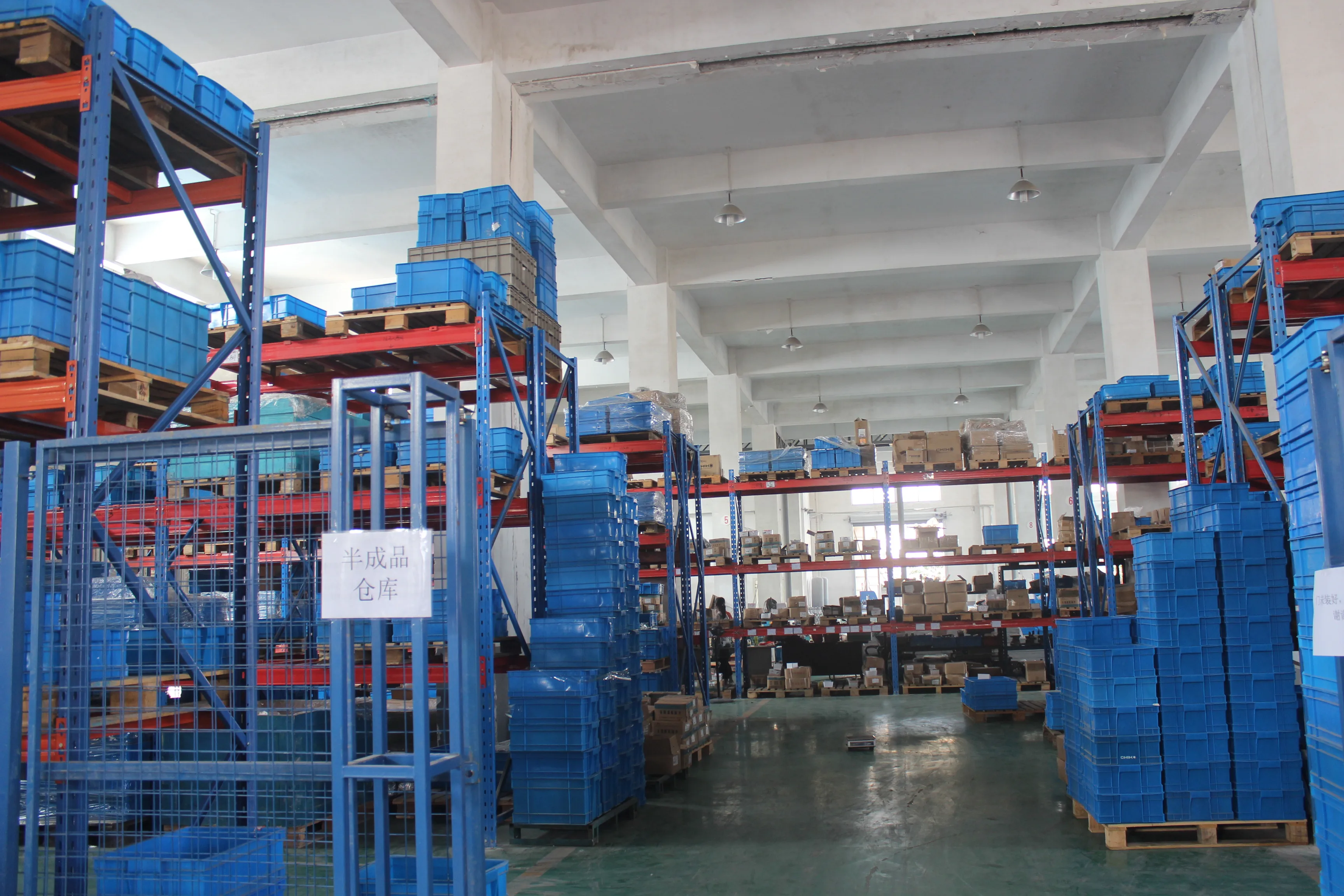

• Delivery - Globally warehouse
Packing&Shipping
CHIKO Packaging:  Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages
CHIKO Shipping Lead-time:  1-2 weeks after the order payment confirm
Company Introduction
CHIKO Solar designs and manufactures high quality solar mounting systems for pitched roof, flat roof and groundopen areas. Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
CHIKO Solar is a leading manufacturer in solar industry. We provide design & manufacture & sales & service customers support from our head quarters in Shanghai.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide best services.We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
Quality
With CHIKO, you will meet leading highest standard quality. All of our Aluminum profiles are made 6005 T5 with surface protection anodic oxidation 12-15 micron (µ), hooks and bolts are made of Stain- less steel 304.Ground mounting systems that made of Q235 steel will be hot dip galvanized with a averagethickness 80 micron (µ).

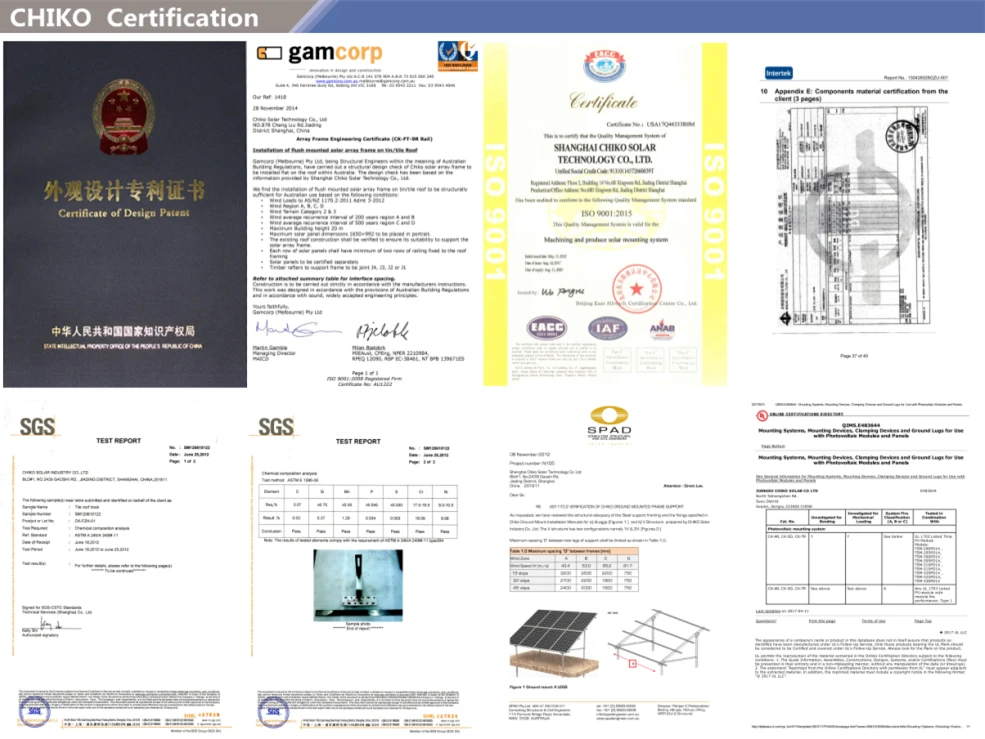

Production Certification
CHIKO Solar have obtained product certifications, and management system endorsement granted and approved by leading testing agencies including UL SGS Gamcorp MCS Intertek, SPAD etc. Our product designs are based on the following Australian Standards and sections of Building Code of Australia relevant to structural issues.
