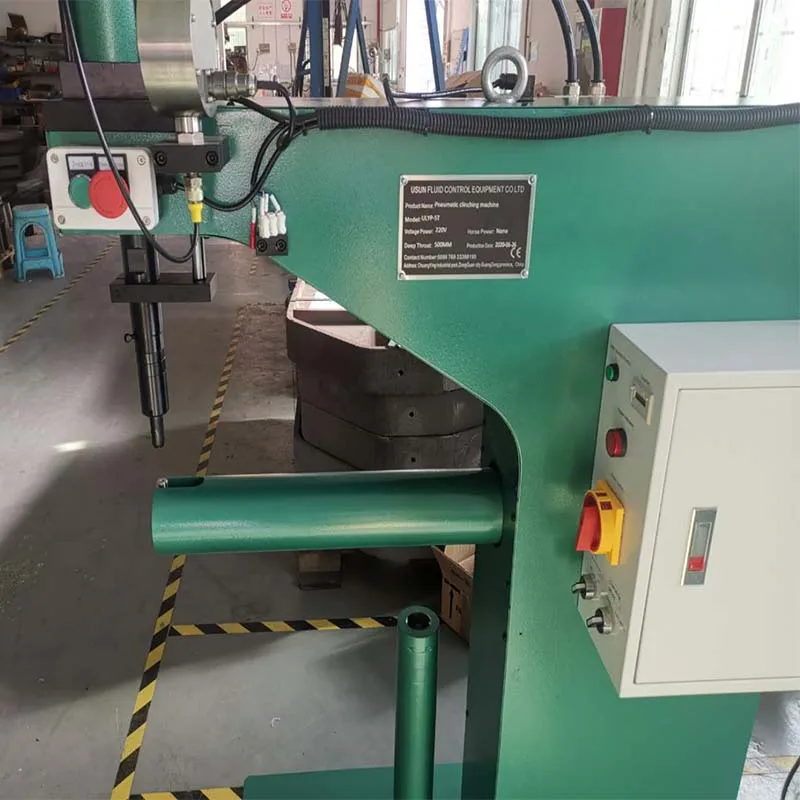

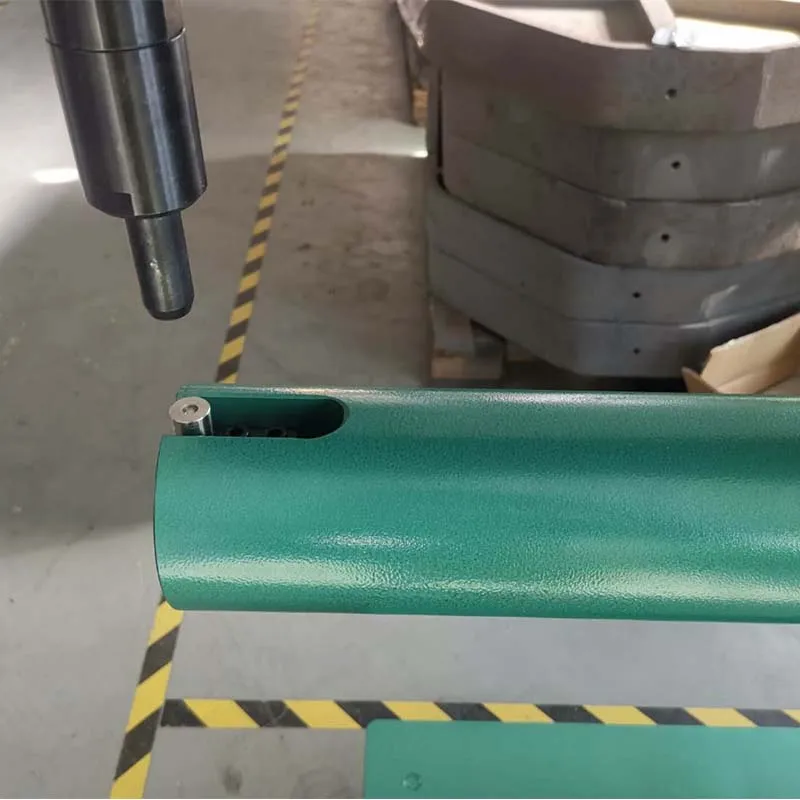

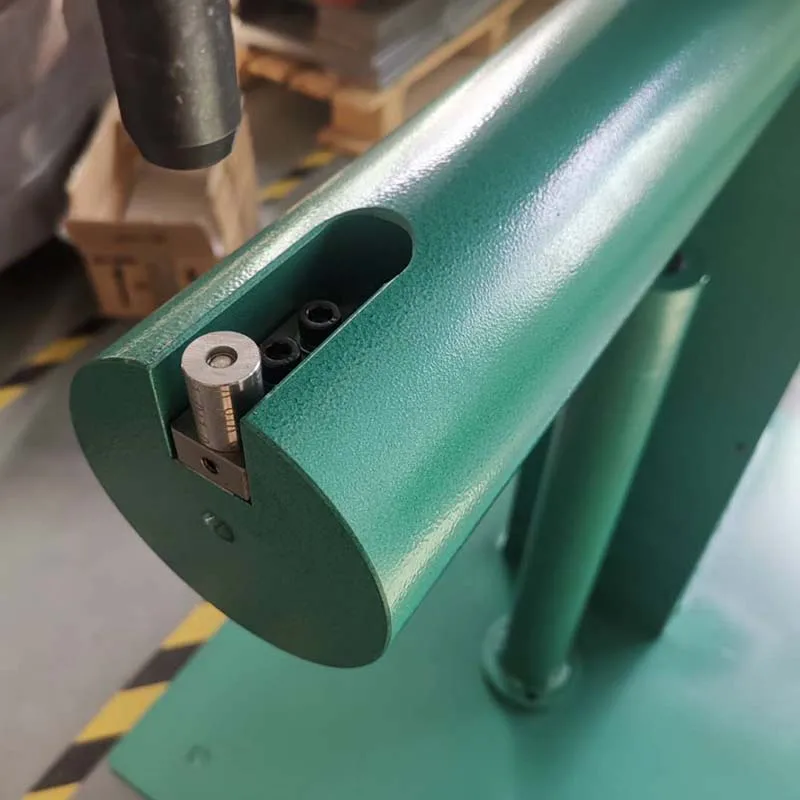

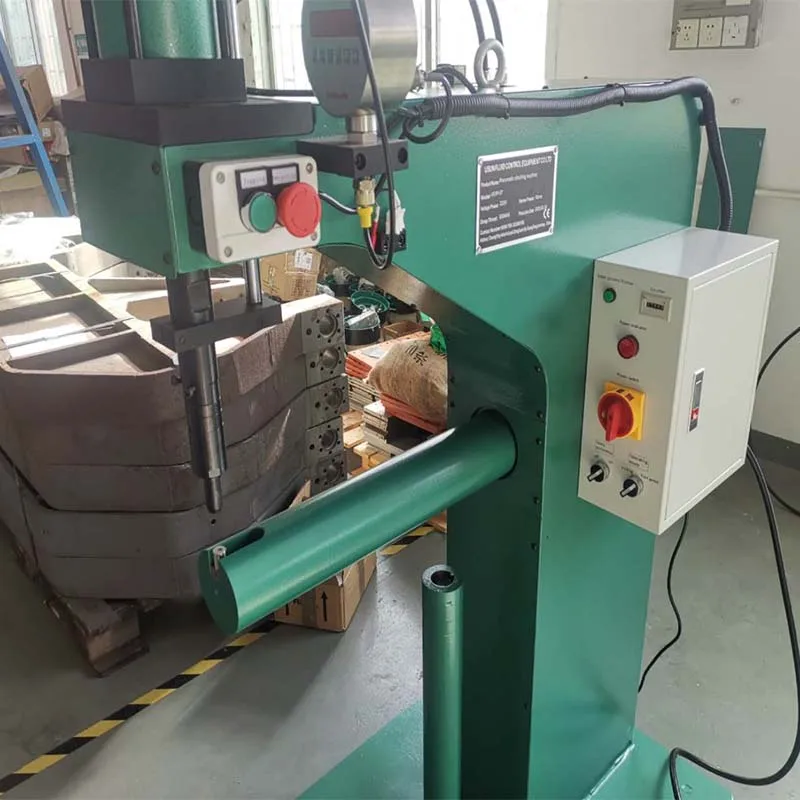

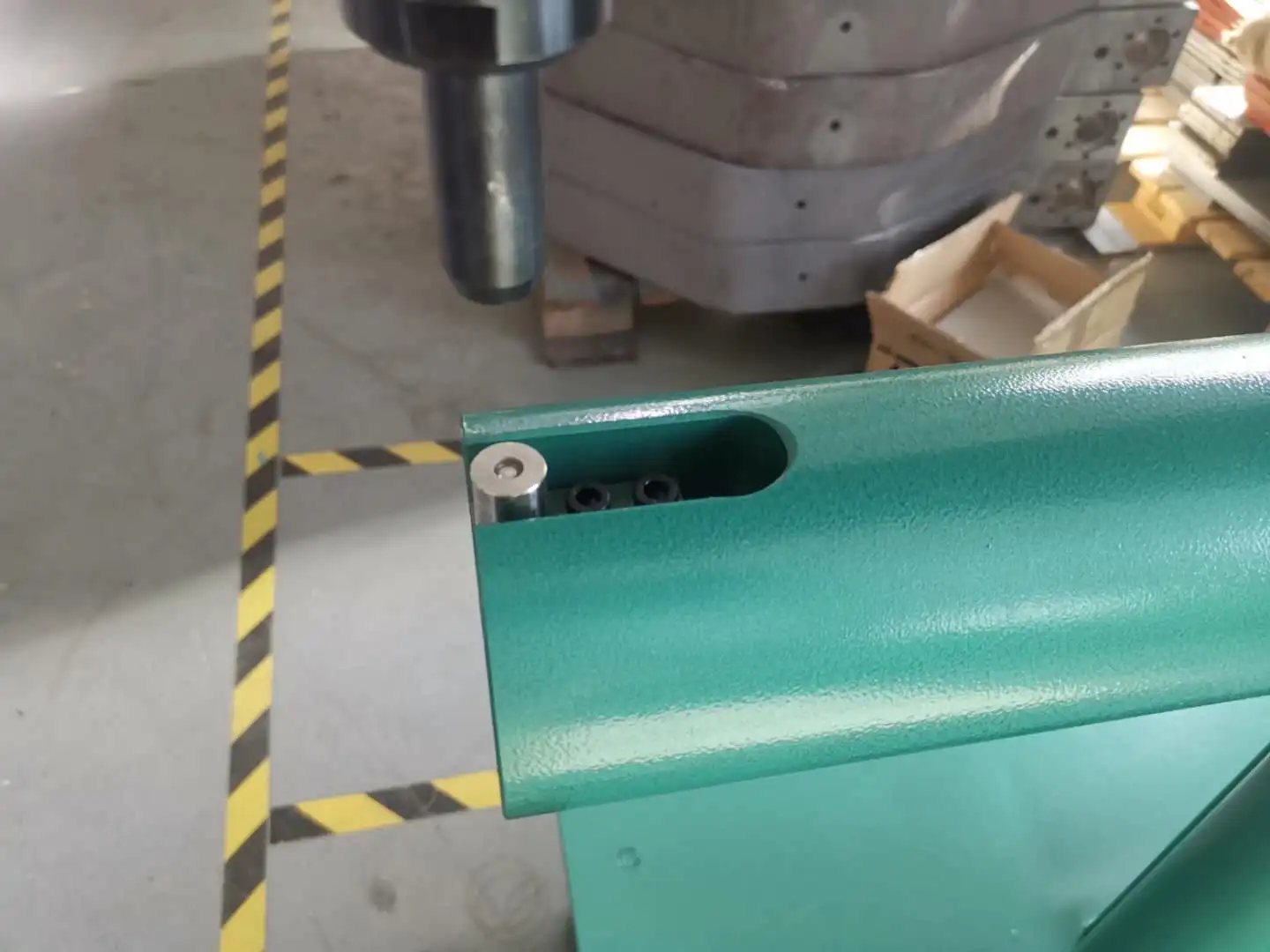

New arrival Usun Model : ULYE 5 Tons C frame air hydraulic riveting clinching press machine for round air valve

Product Overview

Description



New arrival USUN Model:ULYE-5T   5 Tons air hydraulic riveting press machine for round air valve clinching





1)ULYE-2 Series C-frame console pressess are specialized riveting equipments without rivets. In stead of all previous methods which have involved economic and technical problems, they will join different materials by means of a deep drawing-pressing process, and which do so without damage to the surface, purely by displacing and forming.



2) It assures you with high productive efficiency as well as full process automaticly monitoring and joining strength checking.



3) In the process of pressing , sheet metals of different thicknesses or materials, even with adhesives or other intermediate layers are fully joined.



4) In industrial applications,Its available of clinching for single sheet thicknesses of 0.5 mm up to a total layer thickness of



11.0 mm and up to 7500 N tensile strength. In laboratory tests significantly higher values have already been achieved!



Product Main features



1)  Compact structure, clean design



2) Increased productivity with automatic feeding system and multi-point riveting



3) Large anti-ejecting forces and anti-torsion torques



4) High flexibility with height-adjustable



5) High stroke frequency High stroke frequency



6) Easy maintenance and changeable



7) Available for riveting nuts diameter larger than M10

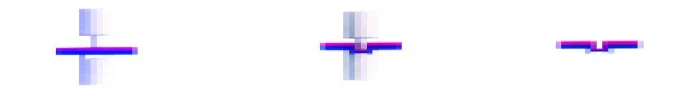

No rivets connection  Clinching procession

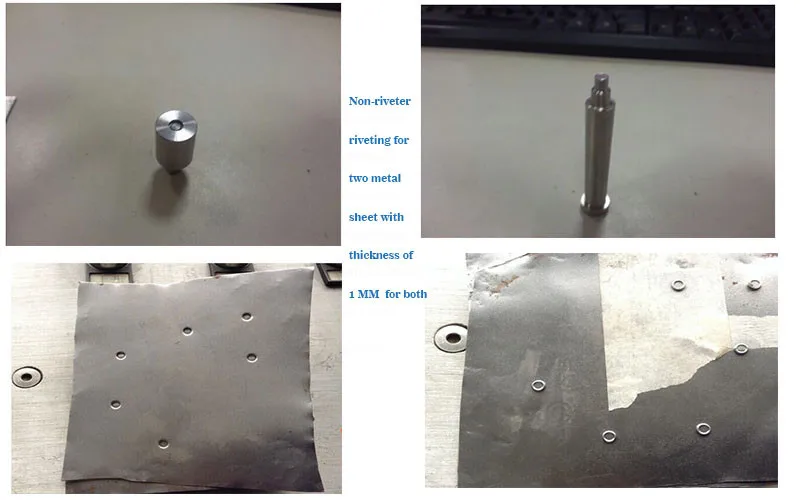

Real clinching samples for C frame riveting machine
