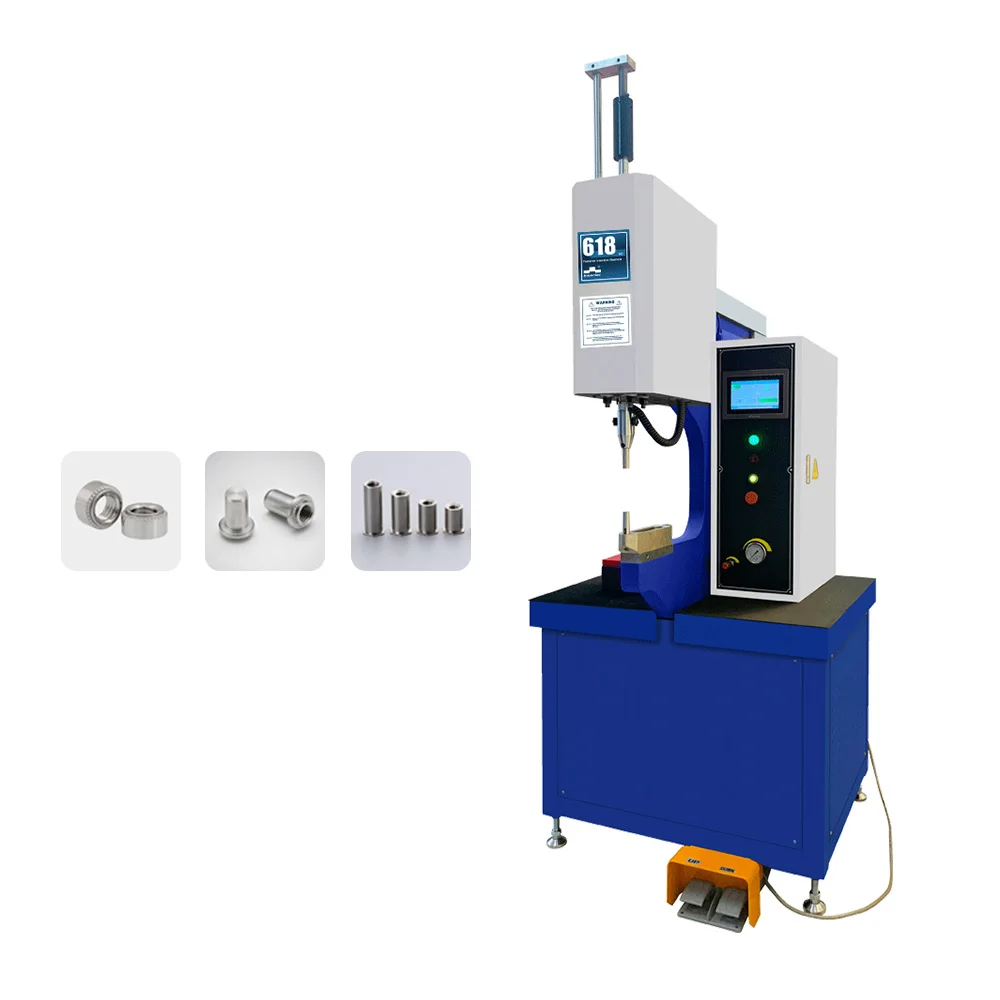

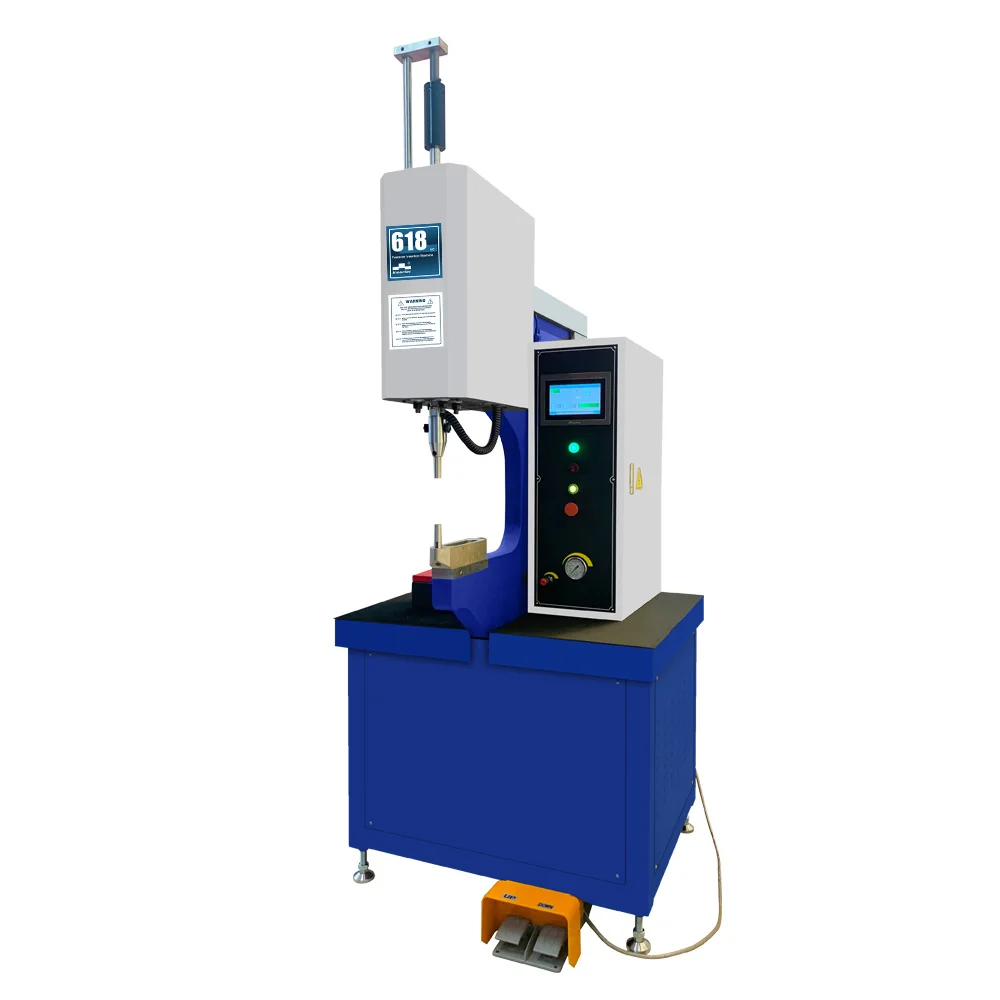

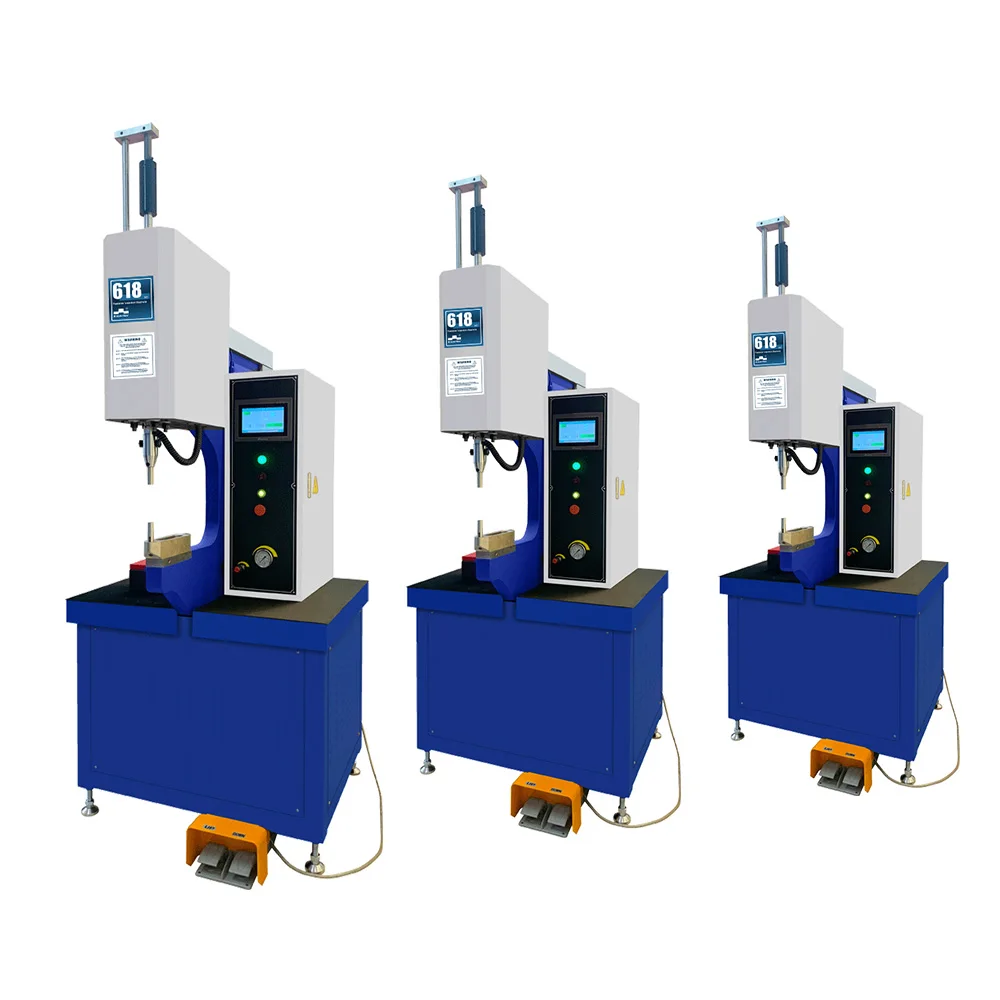

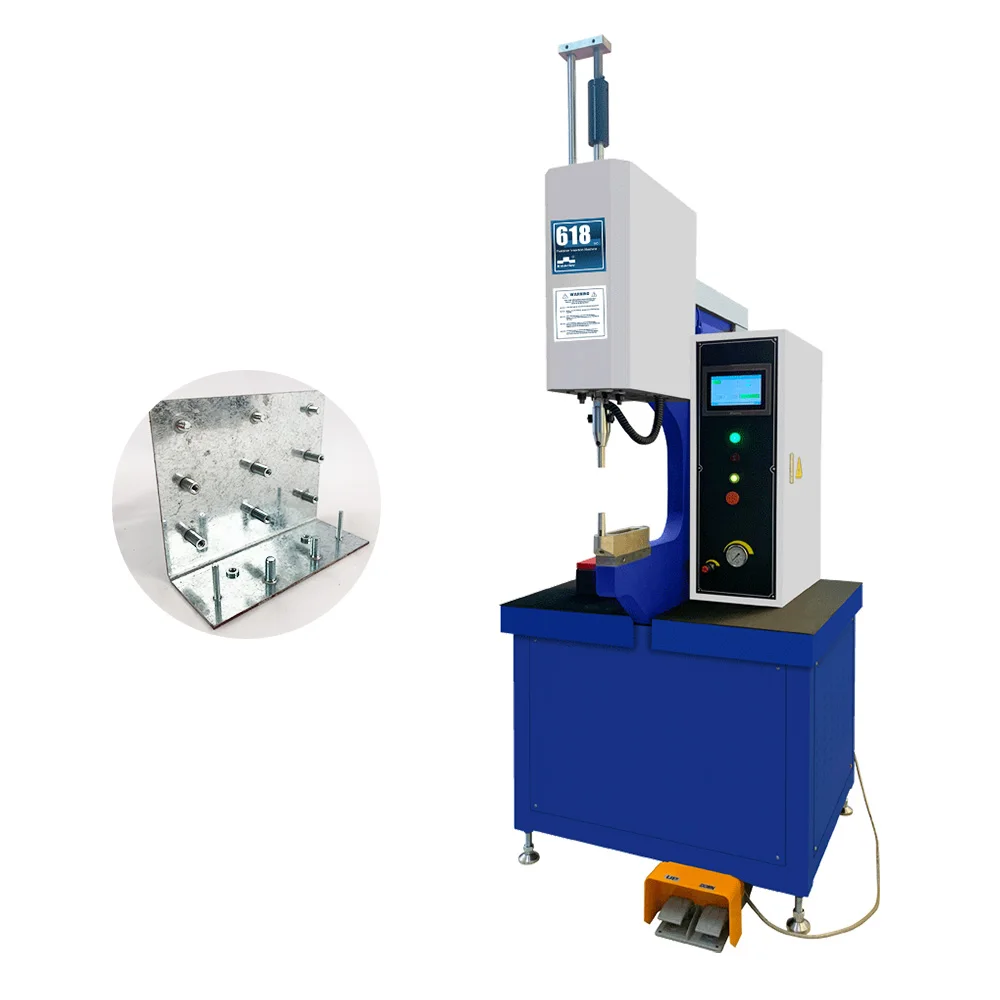

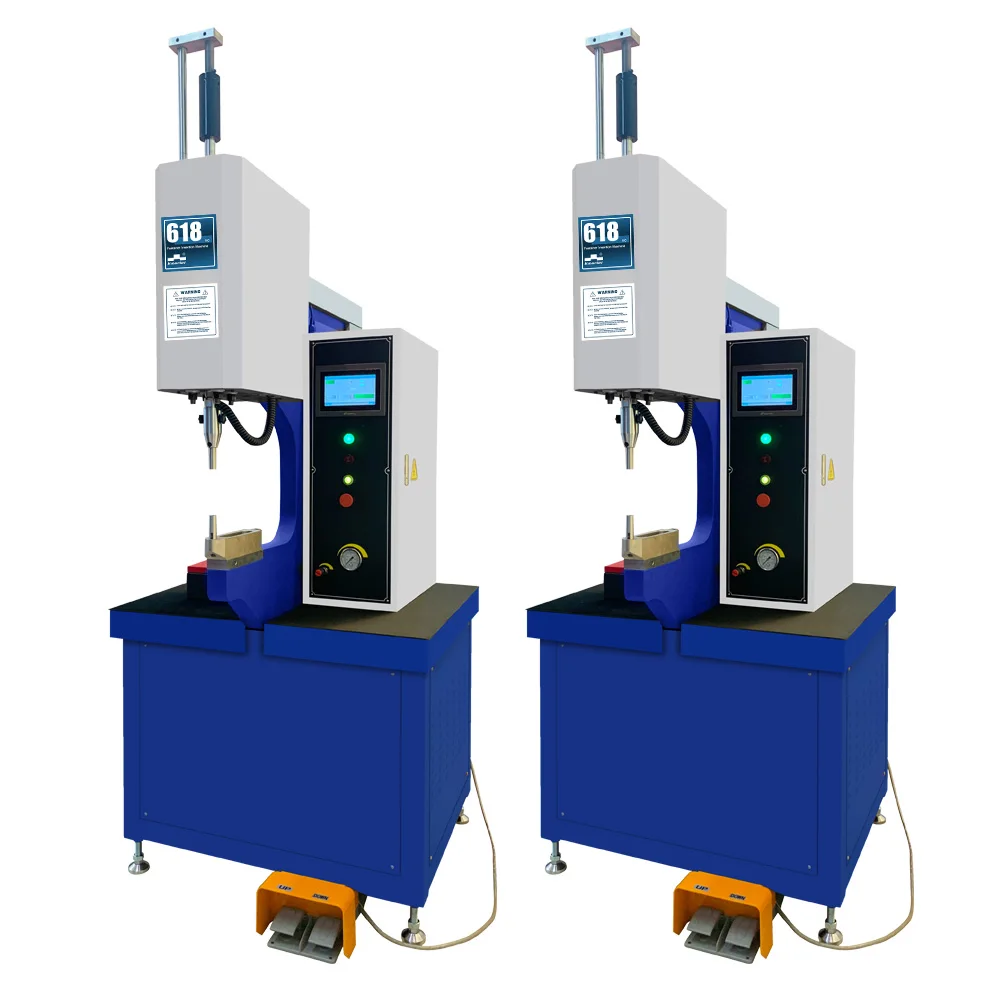

7 дюймов сенсорный экран PLC драйвер один насос гидравлическая система 618 крепежная деталь вставки машины
- Category: Riveting Machine >>>
- Supplier: Dongguan Insertion Machinery Co. Ltd.
Share on (1600379305716):
Product Overview
Description
Product Futrue
- 6 ton (57KN) ram force , 18 inch(450mm) throat depth. one pump 200mm/s;
- Equipper with PLC control system and safety system.
-The positive stop cylinder is specially designed for soft workpieces such as PC board. plastic, glass and aluminum. It preventsthe plate from being deformed or crushed when the fastener is pressed. The product thickness can be accurate to ±0.05mm. Proprietary stress test adjustment button, allowing you to find the right force within 10 seconds. Ram force repeat accuracy ±1%
-7 inch touch screen, set leak proof count number according to single workpiece. The upper tool riveting once,the counter count once,after reaching leak proof count number,buzzer will alarm to prevent leakproof
-Assist to handling the big workpiece to cover lower tool by laser locating light reference
-Making the operator to full protection on the conductive and non-conductive work mode,which greatly enhanced the confidence and plug efficiency for the operator. No security risks.
-Upgrade to automatic feeding
Product Parameters
Product name | Fastener insertion machine |
Max riveting capacity | M10 nut M8 standoff M6 stud carbon steel |
Model | 618NC |
Force | 450LBS.(2KN) TO 12000LBS.( 57KN ) |
Throat depth | 450MM |
Throat lengh | 400MM |
Stroke lengh | 200MM |
Main power | 3.75kw |
Current | 4A |
Hydraulic oil | 46#/32# |
Oil tank reawevoir | 60L |
Air press | 0.4-0.1KG |
Power supply | 380V 3phase 50/60HZ 5 core |
Dimension(L*W*H) | 41*36*78(1100MM*960MM*2000MM) |
Weight | (650KG) |
Product Description
Related Products
FAQ
1：Optional tools for NC machines？
Optional tooling can be easily installed on all new and existing INSERTER Series 618 presses..
2. What are the advantages of NC machine screen？
3:There is no pressure when the upper die comes down during riveting. What is the reason?
1. There is oil on the installed mold, just sand it with sandpaper
Optional tooling can be easily installed on all new and existing INSERTER Series 618 presses..
2. What are the advantages of NC machine screen？
Embedded touch screen One touch setting
3:There is no pressure when the upper die comes down during riveting. What is the reason?
1. There is oil on the installed mold, just sand it with sandpaper
2. The 24V relay of the electric control box is not working properly, all the 24V relays are unplugged and confused and plugged in again
4. why should you buy from us not from other suppliers?
INSERTER MACHINERY CO.LTD is an enterprise specializing in Resource Sheet Metal Joint solution.Specializing in Inserting, Clinching, Punching, Riveting, Spot welding, tapping , assembling and all kinds of rivet & welding fasteners.
5. Is there CE certification?
Yes,we have
4. why should you buy from us not from other suppliers?
INSERTER MACHINERY CO.LTD is an enterprise specializing in Resource Sheet Metal Joint solution.Specializing in Inserting, Clinching, Punching, Riveting, Spot welding, tapping , assembling and all kinds of rivet & welding fasteners.
5. Is there CE certification?
Yes,we have
