CASH COUPON SALE! Chinese Sunward 1 ton crawler small digger mini excavator price for sale
- Category: Excavators >>>
- Supplier: Sunward Intelligent Equipment Co. Ltd.
Share on (1600073900755):
Product Overview
Description
Product Description
Promotions of Resume work
1. Get Up To $1000 Off Your Purchase With This Cash Coupon, Now!!
$1,000 cash coupon only for $ 499.
2. Buy this coupon you can use it in all special models from Sunward's full range of excavators!!! something important is we have agents in more than 100 countries in the world! We can provide the spot to you, and you can choose to buy the equipment in the physical store
Please contact customer service for more details!!!
3. Limited number(ONLY 20) first come first served!!
If you still can see this page, is mean this coupon are still in stock
Tips: The cash coupon only can used on new negotiated excavators orders after 18 March 2020.
CASH COUPON SALE! sunward all special models one ton mini crawler excavators
| Parameter List | |||
|---|---|---|---|
| Type of cab | Canopy | ||
| Bucket capacity,std. | 0.022m³ | ||
| Bucket width | 320mm | ||
| Machine weight | 1010kg | ||
Dimensions | Overall length | 2640mm | |
| Overall height | 2250mm | ||
| Overall width | 750mm | ||
| Ground clearance | 131mm | ||

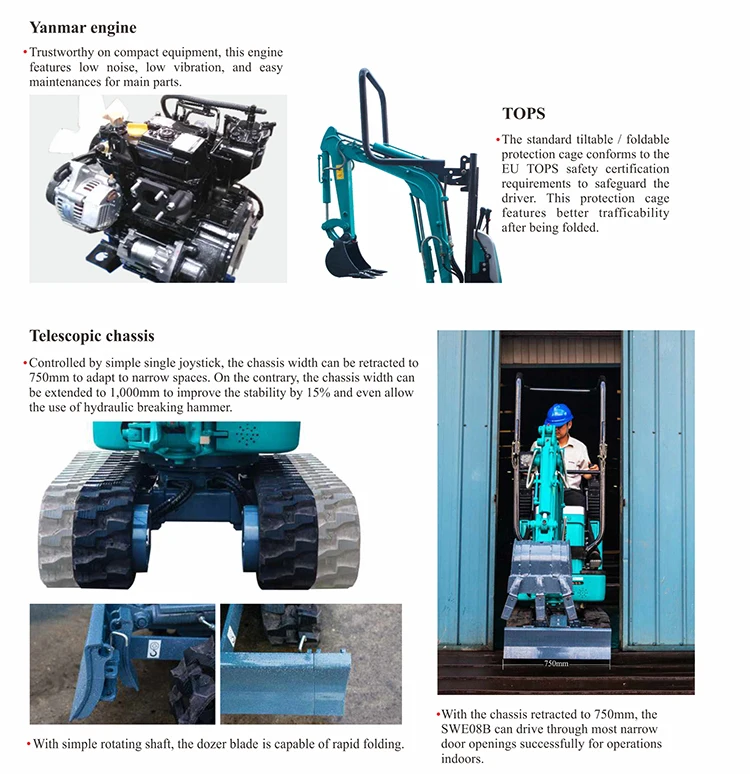

Engine | Brand | Yanmar | |
| Model | 2TNV70-PSU | ||
| Displacement | 0.57L | ||
| Output | 7.2kW/2400rpm | ||
Working ranges
| Max. cutting height | 3085mm | |
| Max. loading height | 2305mm | ||
| Max. digging depth | 1825mm | ||
| Max. digging reach | 3180mm | ||
| oom swing angle(left/right) | 73°/53° | ||
| Front swing radius | 1221mm | ||
| Tail swing radius | 750mm | ||
| Max. digging force(Arm) | 5.8kN | ||
| Max. digging force(Bucket) | 9.4kN | ||
| Track | Type | Rubber track | |
| Track width | 180mm | ||
Undercarrige | Track length | 1299mm | |
| Length to center of rollers | 975mm | ||
| Lenhth to center of track | 560/820 mm | ||
| Travelling speed(High/Low) | 2.9/1.5 km/h | ||
| Gradeability | 30° | ||
| Swing speed | 8.2rpm | ||
| Ground pressure | 24.5kPa | ||
| Dozer size | Width | 750/1000 mm | |
| Height | 190mm | ||
| Lifting capacity (Height/Depth) | 225/225 mm | ||
Hydraulic pumps | Type | 3 Gear pump | |
| Displacement | 3*9.6L/min | ||
Hydraulic pressur | 2*16MPa | ||
| Fuel tank capacity | 10L | ||
| Hydraulic oil tank capacity | 9.5L | ||
