High efficiency Titanhorse PV solar tracking system vertical slewing drive

Product Overview

Description

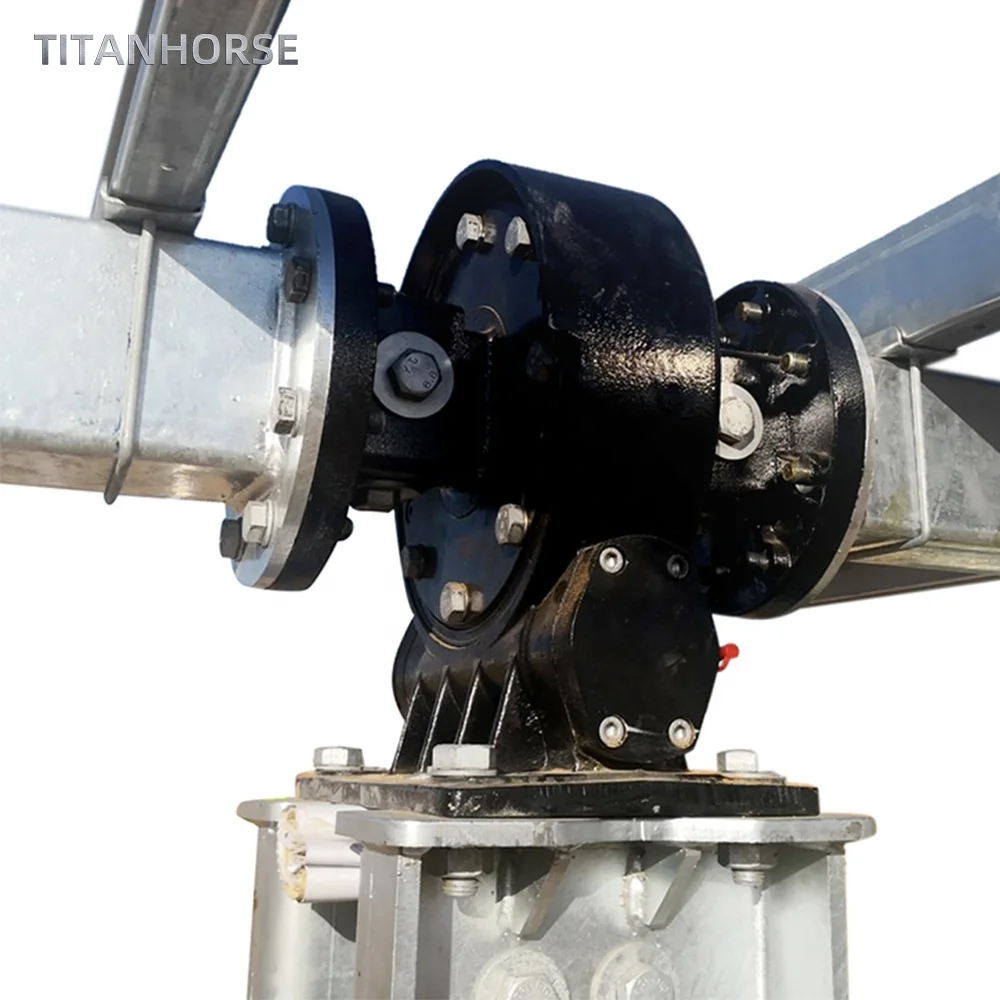

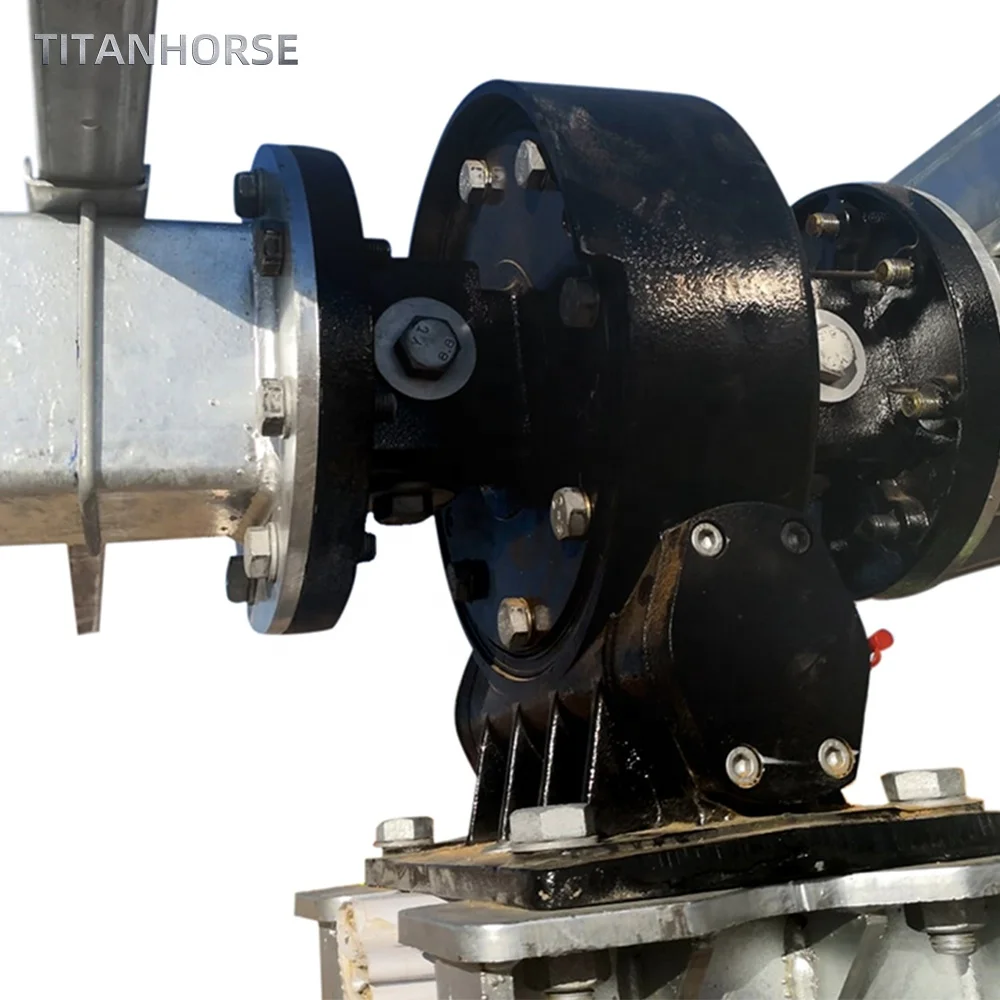

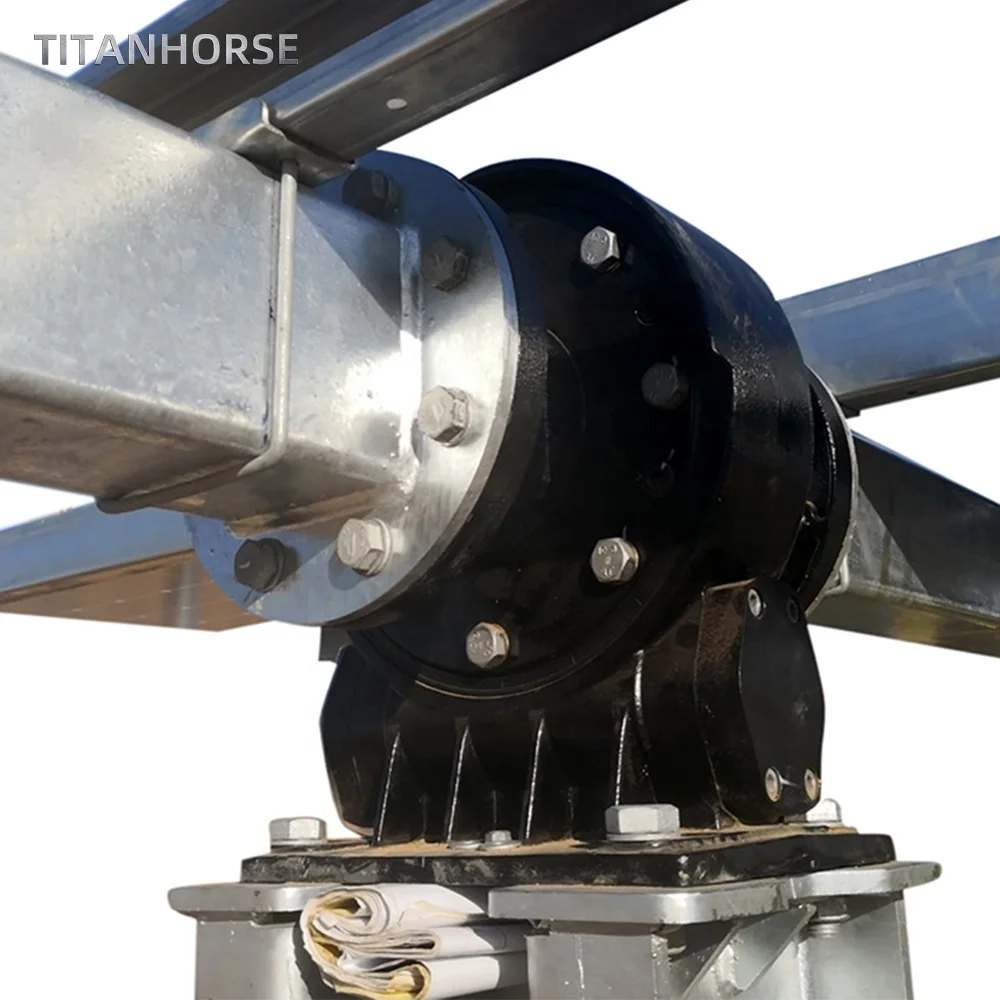

High efficiency Titanhorse PV solar tracking system vertical slewing drive

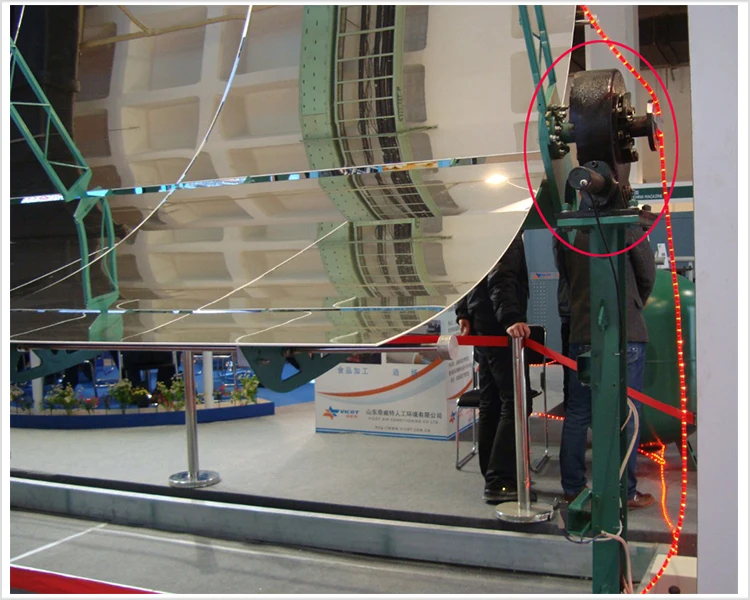

A slewing drive is also called slewing gear drive or slewing reducer or sewing speed reducer, etc. It is typically used in aerospace area, solar power systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recently years, it has been prosperously used in photovoltaic power generation systems.



When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for 10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference. For more specific and detailed information, please contact Sammie(Skype: titanhorse1995) directly.

A slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.

Brief Selection Sheet:

Type Slewing Drive data	3’’	5’’	7’’	9’’	12’’	14’’	17’’	21’’	25’’
Rated output torque/kN.m	0.4	0.6	1	6.5	7.5	8	10	15	18
Tilting moment torque/kN.m	1.1	1.8	13.5	33.9	54.3	67.8	135.6	203	271
Static load rating, axial/kN	30	76	133	338	475	555	970	1598	2360
Static load rating, radial/kN	16.6	22.6	53	135	190	222	390	640	945
Dynamic load rating, axial/kN	9.6	13.8	32	81	114	133	235	385	590
Dynamic load rating, radial/kN	8.4	11.8	28	71	100	117	205	335	470
Gear ratio	62:1	62:1	73:1	61:1	78:1	85:1	102:1	125:1	150:1
Self-locking gears	yes	yes	yes	yes	yes	yes	yes	yes	yes
Weight/ kg	12	20	21	49	61	64	105	149	204
Suitable Panel Area/ m2	3-5	6-9	10-17	18-30	31-45	46-60	61-95	96-120	120-165
