EBTN display Touch Digital Multimeter 6000 Count Digital Multimeter Ncv Function Neutral Live Wire Test Digital Multimeter
- Category: Multimeters >>>
- Supplier: Shenzhen Kace Technology Co. Ltd.
Share on (1600077135151):
Product Overview
Description

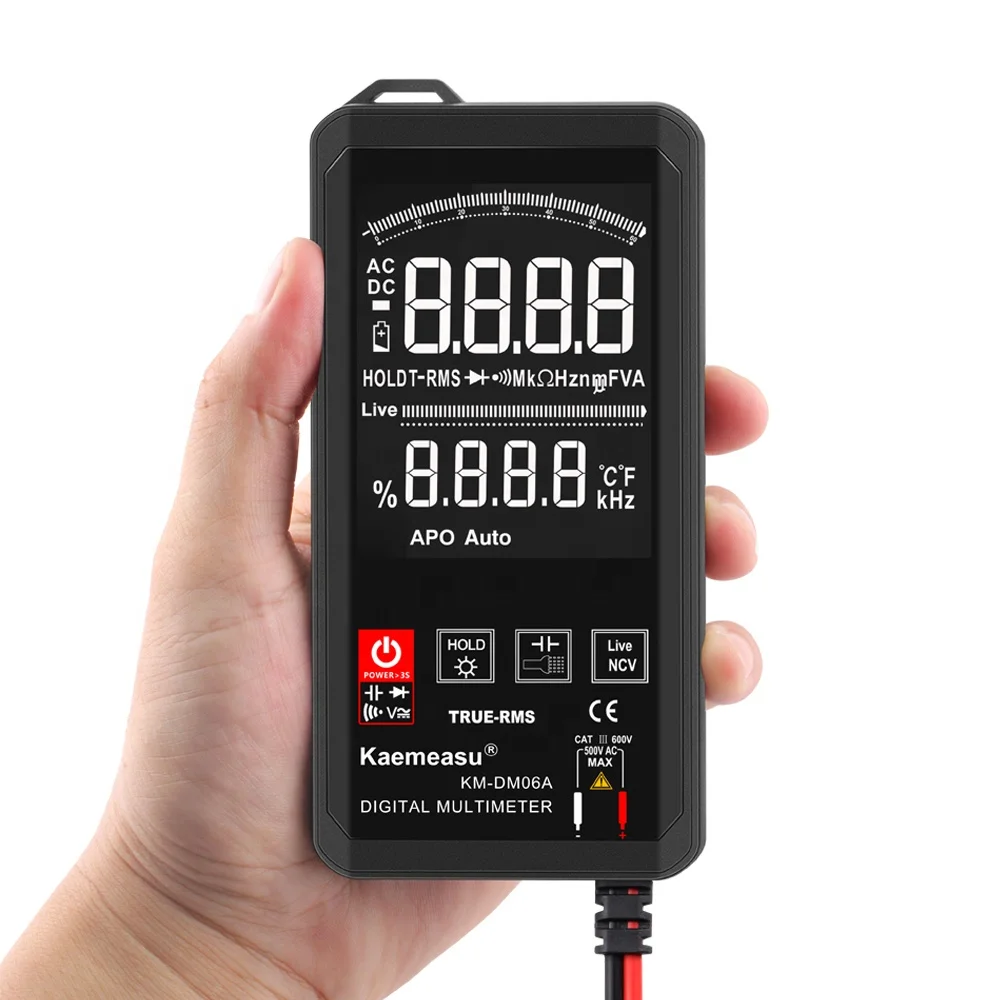

Touch Digital Multimeter

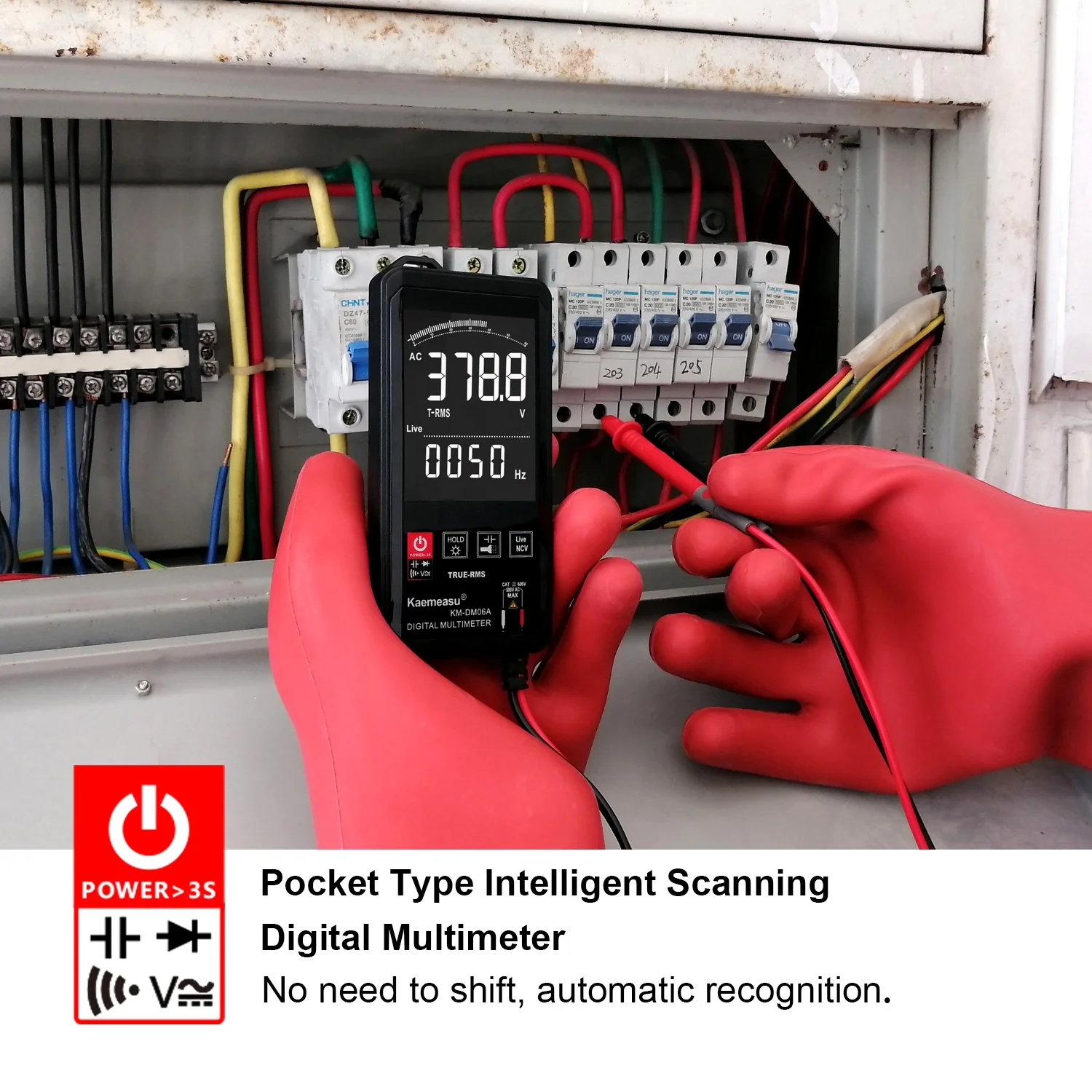

6000counts is a pocket type 3 5 / 6-digit pocket type real effective value intelligent scanning digital instrument; the series is triple display: main display, secondary display, analog bar. Except for the display frequency of AC voltage measurement sub display, other function sub display is normal temperature. In the process of using, users can operate continuously. There is no need to turn the dial to select the function. The meter will automatically recognize and measure based on the input AC or DC current/resistance. It has stable performance, high precision, high reliability, clear reading and overload protection. Driven by AAA 1.5V battery, the instrument adopts large screen LCD display and adopts boost power supply. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight. The meter is easy to carry and is very popular among users.
This series of instruments can manually switch and measure DC voltage and AC voltage, capacitance, NDV, diode, continuity test,live wire judgment and true RMS. It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.
General Characteristics

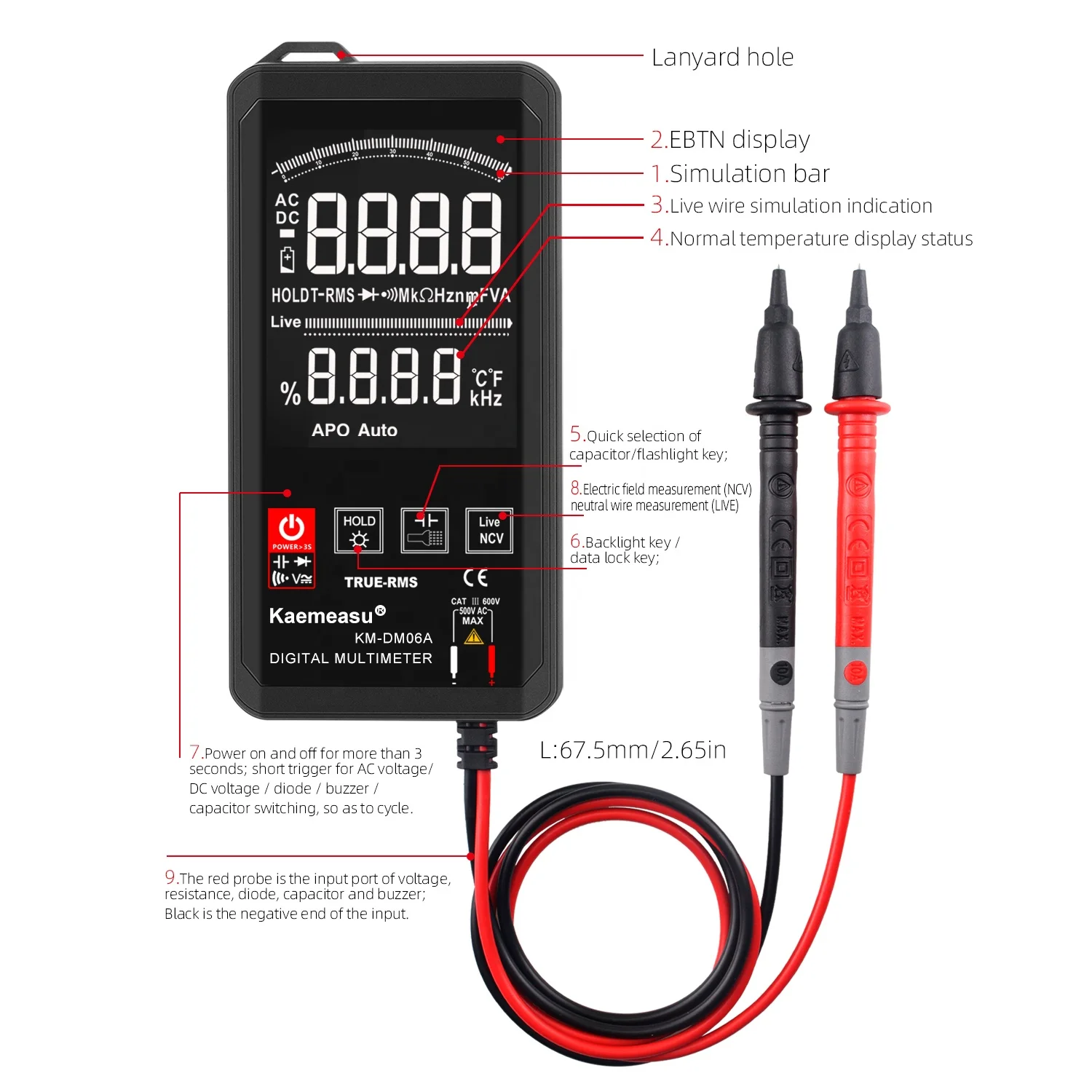

1-1. Display mode: triple display LCD; main display, sub display, analog bar;
1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 times per second;
1-5. Over range display: The highest position shows “OL”;
1-6.Continuous power operation function;
1-7. Low voltage display;
1-8. Working environment：(0～40)℃，relative humidity＜80%;
1-9. Power: AAA 2* 1.5V battery（Not included）;
1-10. Volume (size): 139×68×18mm (L×W×H);
1-11. Weight：about 170g（including 1.5V battery）.
This series of instruments can manually switch and measure DC voltage and AC voltage, capacitance, NDV, diode, continuity test,live wire judgment and true RMS. It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.
General Characteristics
1-1. Display mode: triple display LCD; main display, sub display, analog bar;
1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 times per second;
1-5. Over range display: The highest position shows “OL”;
1-6.Continuous power operation function;
1-7. Low voltage display;
1-8. Working environment：(0～40)℃，relative humidity＜80%;
1-9. Power: AAA 2* 1.5V battery（Not included）;
1-10. Volume (size): 139×68×18mm (L×W×H);
1-11. Weight：about 170g（including 1.5V battery）.
Function
DC voltage DCV | 6V/60V/600V/1000V |
AC voltage ACV | :6V/60V/600V/750V |
Resistor | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
Capacitor | 10nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF |
Diode /Continuity test | √ |
Touch key | √ |
Continuous power operation | √ |

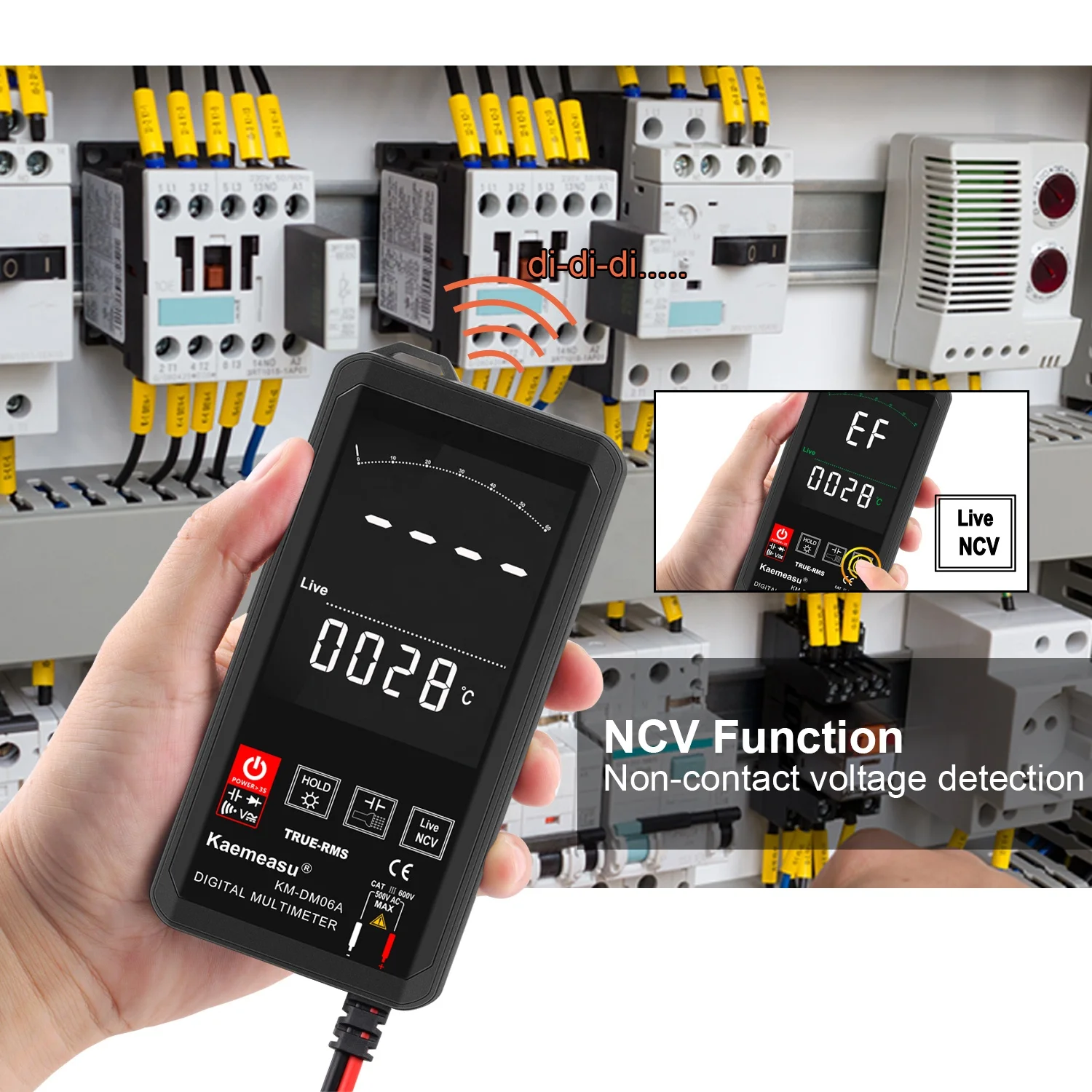

NCV | √ |

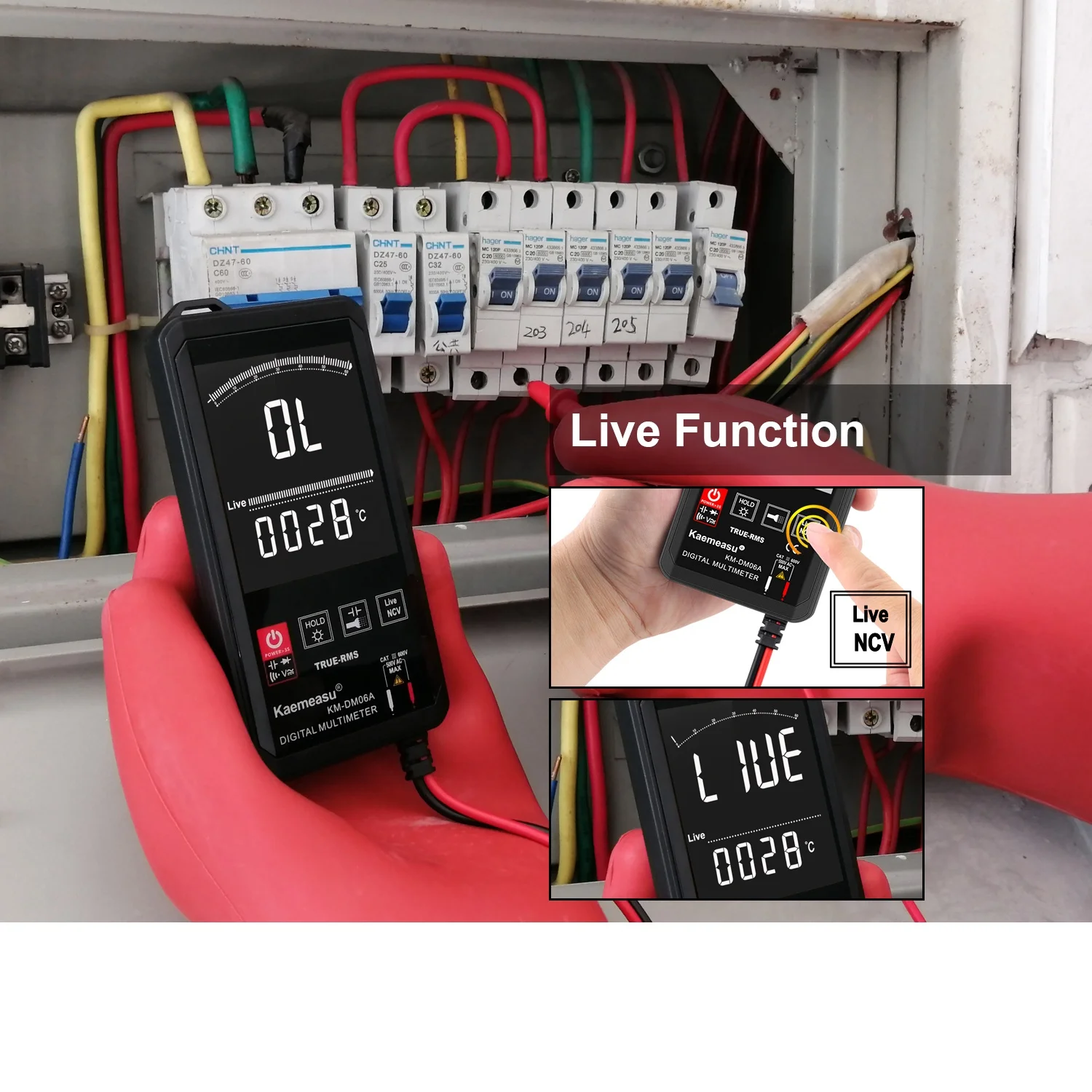

live wire/Neutral wire test | √ |
Full unit symbol | √ |
Backlight manual/Auto off | √ |
True RMS measurement | √ |
Temperature(℃/℉) | √ |
Flashlight lighting | √ |
FAQ
1. Leading time for order?
1-3 days for sample order, 5-10 days for bulk order
2. Shipment information?
Sample is shipped by UPS, DHL. Fedex,etc, takes 3-5 days.
Bulk order can be shipped by air or by sea.
3. What's your MOQ?
Without logo: No MOQ limit
With logo: 300pcs.
4. For Amazon seller.
We can ship to amazon warehouse directly, only need offer us Amazon lables, will handle all things.
5. What is your diffuser warranty?
18 months warranty, longer than most of factories in China
6. What is your defective rate?
We are offering full inspection, and our defective rate under 0.1%
7. How to do if there is diffuser broken?
Just send us video or photos, will make replacement in your next shipment.
8. OEM Service
Customization on diffuser and package box.
9. What kind of Power adapter you can offer?
UK, Australia, European and American power adapters are available.
1-3 days for sample order, 5-10 days for bulk order
2. Shipment information?
Sample is shipped by UPS, DHL. Fedex,etc, takes 3-5 days.
Bulk order can be shipped by air or by sea.
3. What's your MOQ?
Without logo: No MOQ limit
With logo: 300pcs.
4. For Amazon seller.
We can ship to amazon warehouse directly, only need offer us Amazon lables, will handle all things.
5. What is your diffuser warranty?
18 months warranty, longer than most of factories in China
6. What is your defective rate?
We are offering full inspection, and our defective rate under 0.1%
7. How to do if there is diffuser broken?
Just send us video or photos, will make replacement in your next shipment.
8. OEM Service
Customization on diffuser and package box.
9. What kind of Power adapter you can offer?
UK, Australia, European and American power adapters are available.
