high quality hvac metal air duct machine / auto duct line 3 for sale
US $13500-$15000
HVAC rectangular duct manufacturing machine
- Category: Duct Making Machine >>>
- Supplier: Maanshan Longbow Machinery Manufacturing Co. Ltd.
Share on (1600077460806):
Product Overview
Description
Products Description
Performance Features
1. The linear structure of machine makes processing smoothly and occupies a small space.
2. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
3. Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
4. The locating system is very accurate with servo feeding mechanism, especially when processing square-shaped pipes.
5. It's equipped with 10 inch LCD touch screen and optional dual keyboard mode to keep operation stable.
6. It requires at least one person to operate and each shift can output 600-2000.
7. With production memory functions, the production orders can be tracked and checked.
2. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
3. Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
4. The locating system is very accurate with servo feeding mechanism, especially when processing square-shaped pipes.
5. It's equipped with 10 inch LCD touch screen and optional dual keyboard mode to keep operation stable.
6. It requires at least one person to operate and each shift can output 600-2000.
7. With production memory functions, the production orders can be tracked and checked.
Main Features
Function:
It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 600-2000 square meters. Only with
inputting dimensions in duct, production line can automatically complete uncoiling, leveling,beading, punching, shearing, locking,
forming TDF / angle steel / C-shaped flange and folding.
Main import Configuration:
1 MITSUBISHI HMI Display And PLC
2 MITSUBISHI Frequency Converter
3 Japan NEMICON Inverter
4 Taiwan Hydromax Pump
5 Taiwan High Temperature Resistant Tubing

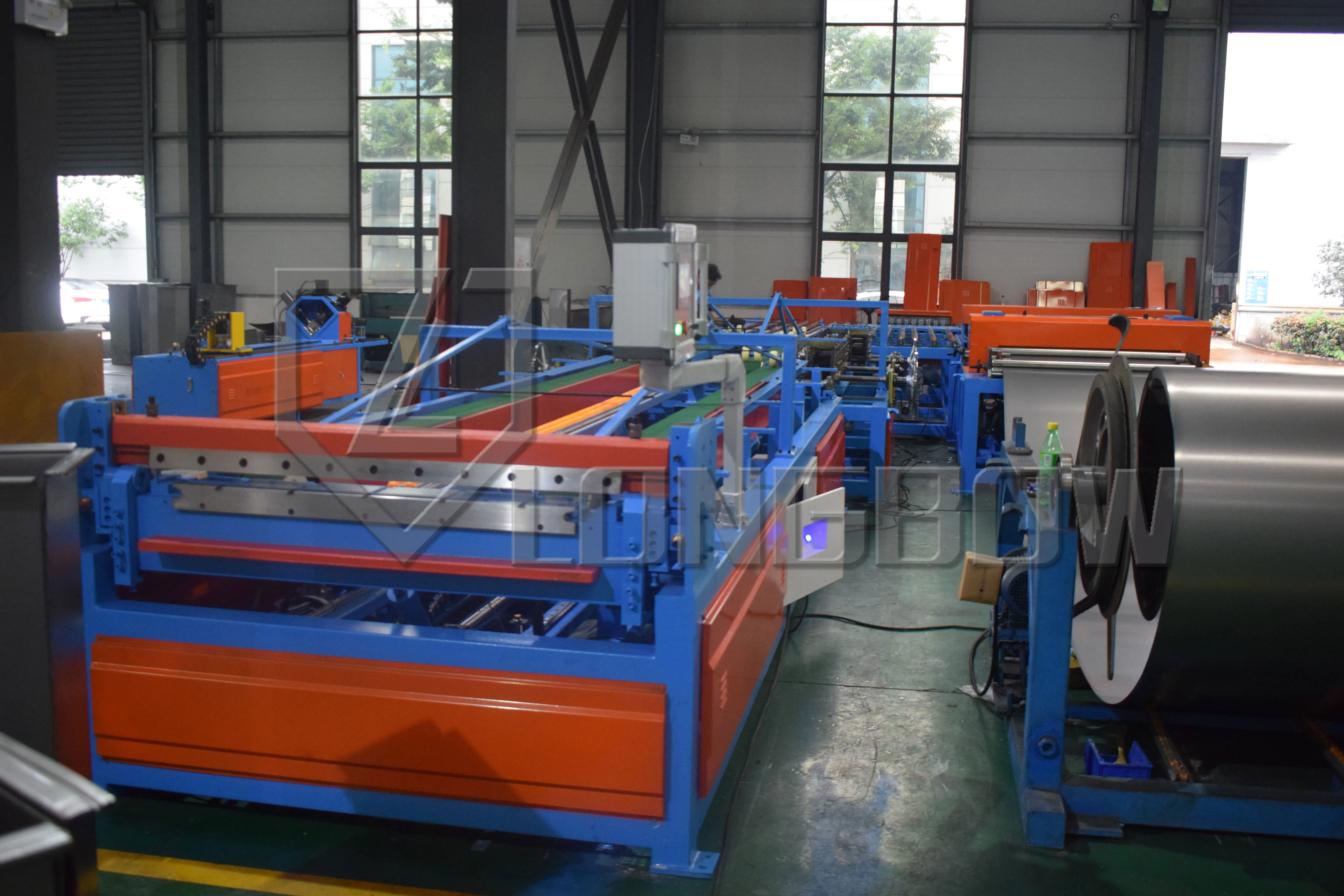

Basic Configuration:
1. Two electric coil cradles, 4 material trays (5-7t each roll)
2. One rack
3. One host (line 2 host)
4. One mechanical arm clutching, locating and transferring platform
5. One displacement type locking machine
6. One duplex TDF flange forming machine
7. One duplex angle steel flange forming machine
8. One servo feeding platform
9. One hydraulic folding machine
10. One set of computer controlling system
It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 600-2000 square meters. Only with
inputting dimensions in duct, production line can automatically complete uncoiling, leveling,beading, punching, shearing, locking,
forming TDF / angle steel / C-shaped flange and folding.
Main import Configuration:
1 MITSUBISHI HMI Display And PLC
2 MITSUBISHI Frequency Converter
3 Japan NEMICON Inverter
4 Taiwan Hydromax Pump
5 Taiwan High Temperature Resistant Tubing
Basic Configuration:
1. Two electric coil cradles, 4 material trays (5-7t each roll)
2. One rack
3. One host (line 2 host)
4. One mechanical arm clutching, locating and transferring platform
5. One displacement type locking machine
6. One duplex TDF flange forming machine
7. One duplex angle steel flange forming machine
8. One servo feeding platform
9. One hydraulic folding machine
10. One set of computer controlling system
Model | Thickness (mm) | Max width (mm) | Working speed (m/min) | Weight of coil (T) | Dimension(L*W*H) (mm) | Power (kw) | Weight (T) |
AML-U5-1300 | 0.5-1.2 | 1300 | 0-23 | 7 | 14000*5000*1350 | 7 | 3 |
AML-U5-1500 | 0.5-1.2 | 1500 | 0-23 | 7 | 14000*5000*1350 | 8.5 | 3.2 |
Our Campany
Certifications
Packing & Delivery
Related Products
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
