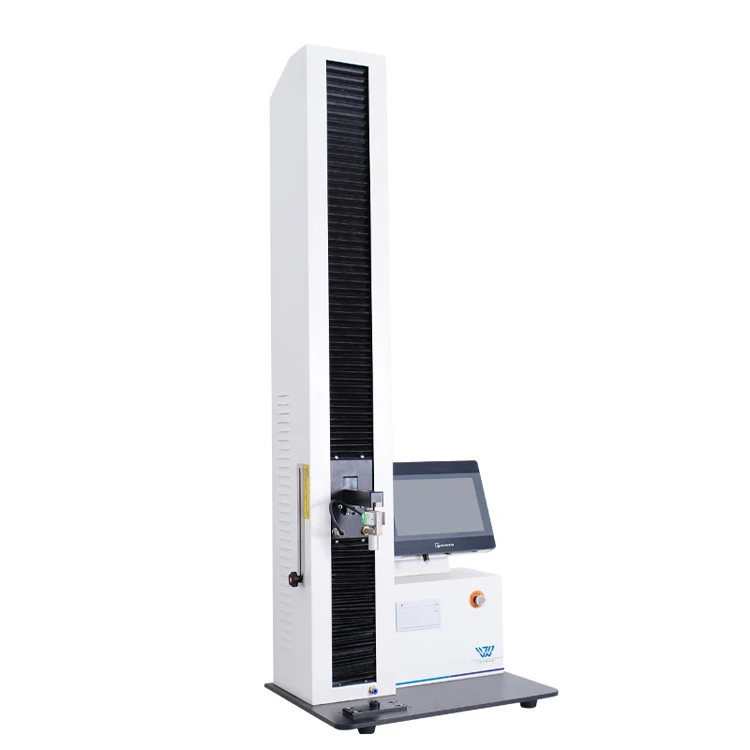

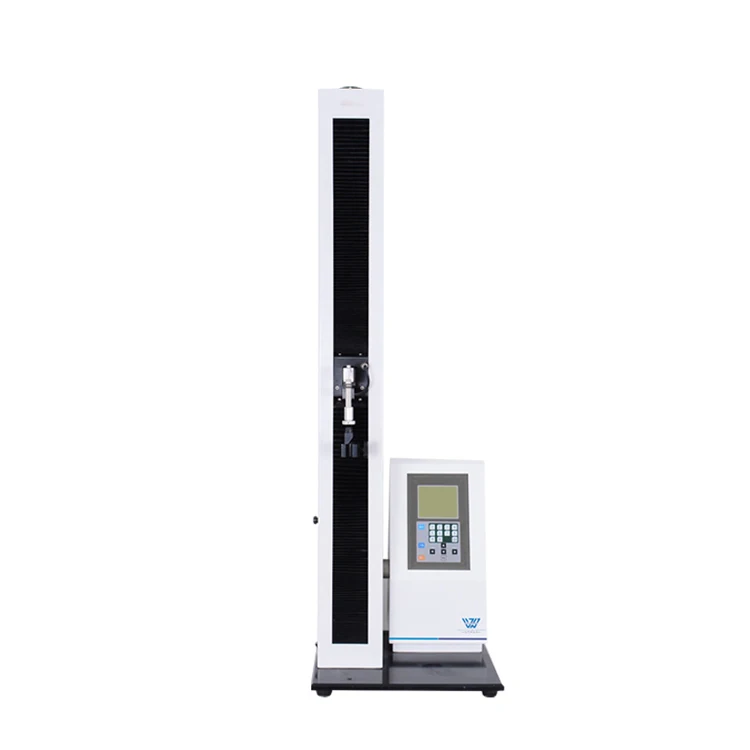

0 1000 N electrical universal tensile testing machine
- Category: Testing Equipment >>>
- Supplier: Jinan Vieleader Instruments Co. Ltd.
Share on (1600078005140):
Product Overview
Description
Product Description
Intelligent Electronic Tensile Testing Machine
Intelligent electronic tension testing machine specializing in testing the mechanical properties of various soft packaging materials, such as tensile properties; mainly used for testing the thermal bonding strength, tensile strength, peeling strength, breaking elongation of pharmaceutical packaging materials, aluminum foil, PVC hard sheet, composite
film, syringe, card bottle and other products; ampoule bottle breaking force testing; Testing of opening force, puncture force and tearing force of aluminium sheet for aluminium-plastic composite cover: testing functions of syringe sealing, sliding performance, connecting force between needle and needle seat, etc., is a multi-functional testing instrument combined with different fixtures.
Its ultra-high accuracy (0.5 level) ensures the accuracy of the test; seven independent test procedures, various specifications of force sensors, stepless speed change, can meet the various test conditions of users; intelligent operation software not only facilitates users to control equipment, but also provides a variety of practical functions such as data analysis and comparison.
Professional technology
* The tester adopts 7-inch professional color LCD screen.
* Chinese and English menu display: nominal specification, pipe wall, span, set load, maximum deflection, print setting, test, up, down, time, calibration.
* The program is set by the intelligent controller, and the test data is printed on board.
film, syringe, card bottle and other products; ampoule bottle breaking force testing; Testing of opening force, puncture force and tearing force of aluminium sheet for aluminium-plastic composite cover: testing functions of syringe sealing, sliding performance, connecting force between needle and needle seat, etc., is a multi-functional testing instrument combined with different fixtures.
Its ultra-high accuracy (0.5 level) ensures the accuracy of the test; seven independent test procedures, various specifications of force sensors, stepless speed change, can meet the various test conditions of users; intelligent operation software not only facilitates users to control equipment, but also provides a variety of practical functions such as data analysis and comparison.
Professional technology
* The tester adopts 7-inch professional color LCD screen.
* Chinese and English menu display: nominal specification, pipe wall, span, set load, maximum deflection, print setting, test, up, down, time, calibration.
* The program is set by the intelligent controller, and the test data is printed on board.
Specification
Test range | 30N、100N，500N，1000N |
Accuracy | 0.5 class |
Force Resolution | 0.001N |
Displacement resolution | 0.1mm |
Test speed | 5-800 mm/min |
Travel | 800mm |
Power | 220 V/50Hz/60W |
Net Weight | 72KG |
