4U on shelf intelligent manufacturing machine Perfectly compatible with ATX, Micro ATX and Mini ITX industrial motherboards
- Category: Industrial Computer & Accessories >>>
- Supplier: Guangzhou Xiyang Electronics Co. Ltd.
Share on (1600078040205):
Product Overview
Description
Product Description

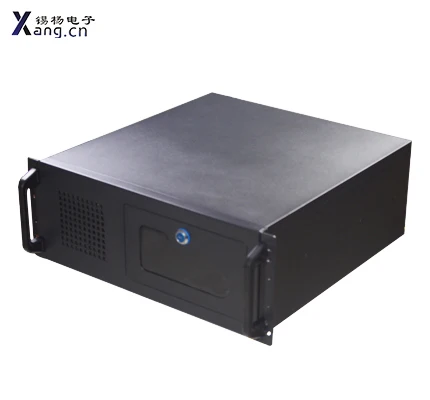

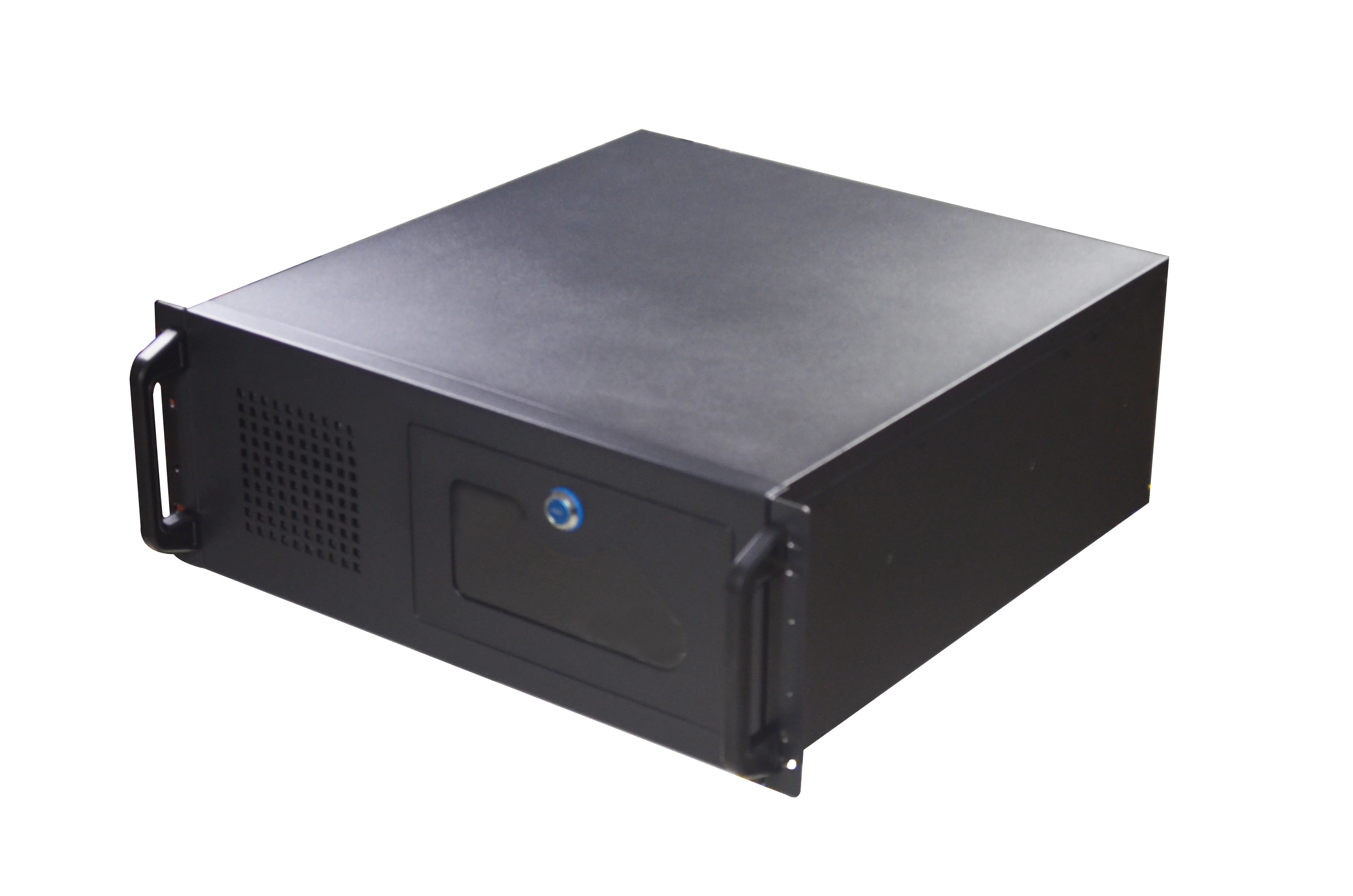

4U on-shelf intelligent manufacturing machine IPC-6041B
Product characteristics:
| Perfectly compatible with ATX, Micro-ATX and Mini-ITX industrial motherboards |
| The use of high-quality 1.2mm SGCC environmental protection steel, high-temperature spraying wear-resistant paint, strong, durable, corrosion-resistant, paint surface dirt resistance. Fingerprint |
| Compatible with two 3.5 "hard disk bits and one 5.25" optical drive bit |
| Standard 12025 fan, good cooling effect, quiet and durable |
| Provides 7 full-height PCI/PCIE expansion bays with crimping bar and fixing frame |
| Optional COM port for knockout hole |
| The power switch, reset switch, power indicator and hard disk indicator are arranged in the front cabin door which can be locked and clairvoyant, which is effective. Prevent unauthorized operations |
| Compatible with 250W, 300W, 400W AC and DC industrial power supplies |
| It can be widely used in industrial sites with many dusts, oils and vibrations. |
Product specifications:
| Project | Description |
| Product type | 4U on-shelf intelligent manufacturing machine |
| Compatible motherboard types | H61M10 |
| 2.5 "drive ready. Bit | 2 2.5 "SSD solid state disks ready for installation |
| 3.5 "Drive ready. Bit | 2 3.5 "hard drive mounting bits |
| 5.25 "drive pre-. Reserve position | 1 5.25 "optical drive installation bit, shielded by a blank bezel when unmatched |

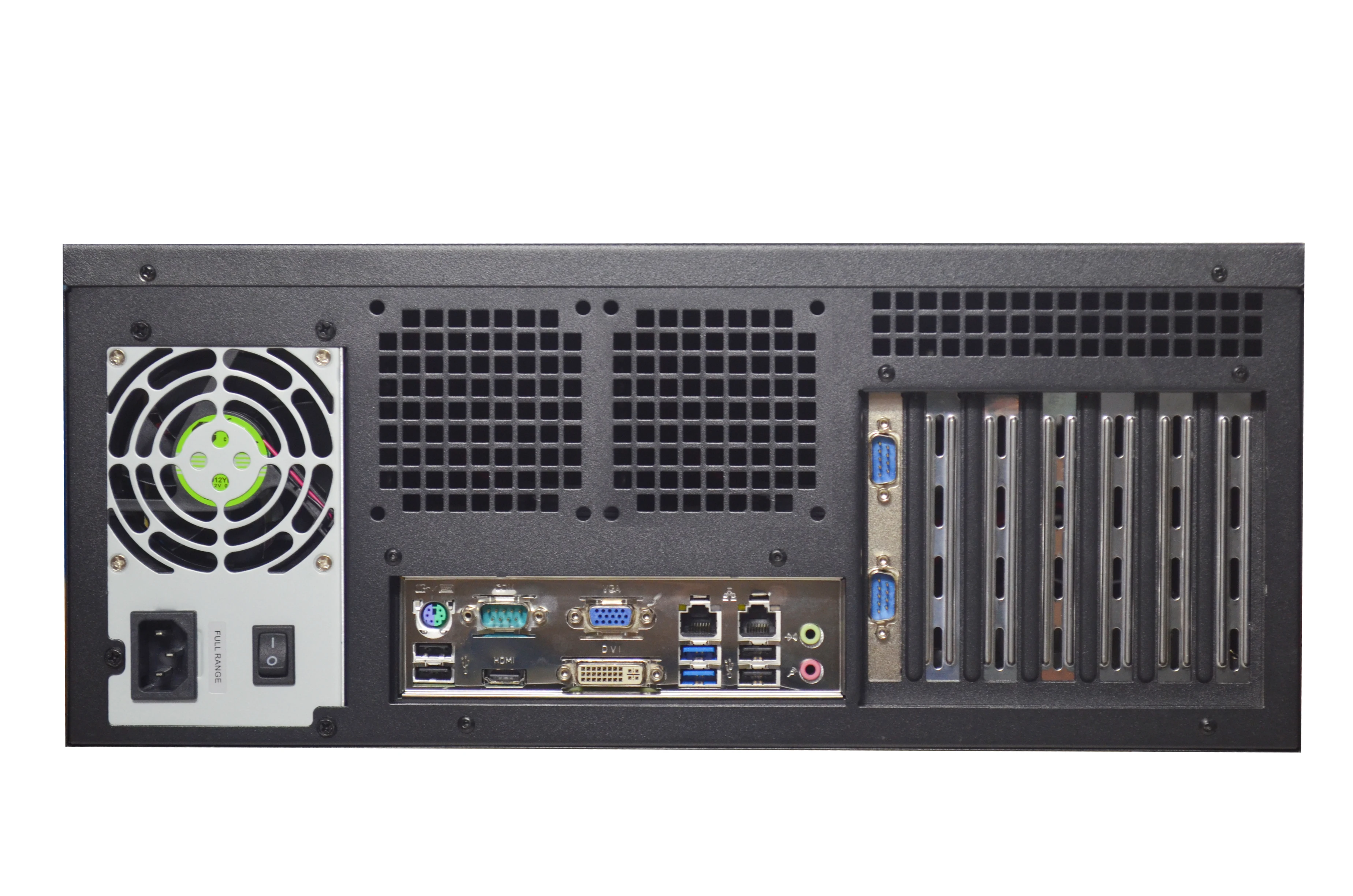

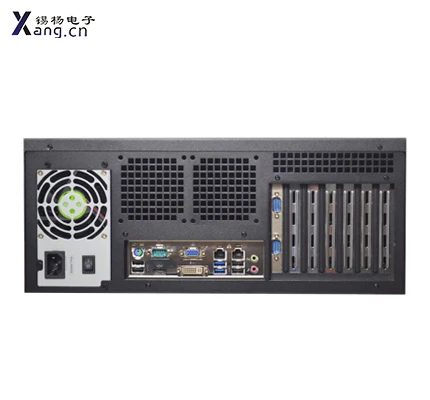

| I/O | 6 * rear + 4 * front pin. 10 (1*COM port + 9 * pin (RS232 serial port). 1*LINE-IN/ MIC IN Ruiyu 8 ALC662 HD Audio Decoding Control. Apparatus |
| Expansion slot | Provides 7 full-height PCI/PCIE expansion bays with crimping bar and fixing frame |
| Cooling system | Standard 12025 fan with removable dust screen |
| Working environment atmosphere bar. Parts | Temperature 0 ℃ ~ 60 ℃, relative humidity 20% ~ 80%, atmospheric pressure 85~105kPa |
| Storage environment atmosphere strip. Parts | Temperature-40 ℃ ~ 60 ℃, relative humidity 20% ~ 93% (40 ℃), atmospheric pressure 85~105kPa |
| Anti-vibration performance | Working status 1Grms@5~500Hz, non-working status: 2Grms@5~500Hz |
| Impact resistance | 3-direction, 10G (11ms semi-sine wave), 3 times per direction |
| Reference standard of the whole machine | Conforms to the national standard GB/T 9813.4-2017 (the national standard for Wechat computers for industrial applications) |
| Power supply | Ac input 220V 50Hz (adaptable to 220V / 242V / 50Hz / 51Hz). Standard 300W ATX power supply, compatible with 250W, 300W, 400W PS2 power supply |
| Dimensions (W*H*D) | 450mm * 177mm * 430mm (excluding ears and handles) |
| Weight | The chassis with power supply weighs about 15KG |
Product configuration:
| IPC-6041B | H61M10 | I3-2120 | 4G | 128G | 300W |
Packaging & Shipping
Our Services
Company Information
Guangzhou Xiyang Electronics Co., Ltd. was founded in 2008, is a professional engaged in embedded industrial control motherboard and industrial control computer sales and development, focusing on customization-based high-tech company, with an independent production workshop. Since the establishment of the company, with efficient, standardized and scientific management, rapid and stable development has been achieved. The company's products and business involve financial ATM\\ VTM, intelligent transportation ETC, rail transit, electric power, wind power, visual optical intelligent detection, laser, petroleum, chemical, metallurgy, electromechanical, food, textile, military academies and other industries. And won the reputation of the industry users and the general commercial reputation.
Guangzhou Xiyang Electronics Co., Ltd. is located in Room 1008, Building C, Qihe Science and Technology Park, 28 Xintang Street, Tianhe District, Guangzhou, China. Our products include embedded industrial control motherboard, Yanxiang industrial control products, gigabyte motherboard and so on. Our products enjoy a high status among consumers, and the company has established a long-term and stable cooperative relationship with a number of retailers and agents.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: What payment method do you accept?
A: T/T, Western Union, PayPal.
4.Q: What is the lead time of your products?
A: 1-3 days for one sample, 15 working days for a large quantity.
