Product Overview
Description
Product Description
Cop Rh140 Back Hammer for DTH Drilling
In case of jamming of any drilling tool in the boring process, the backhammer will help you save time and money.
The backhammer may be mounted on the drill pipe joint between the borehole gripper and the swivel head, thus creating a combined effect of effective reverse impact and vibration.

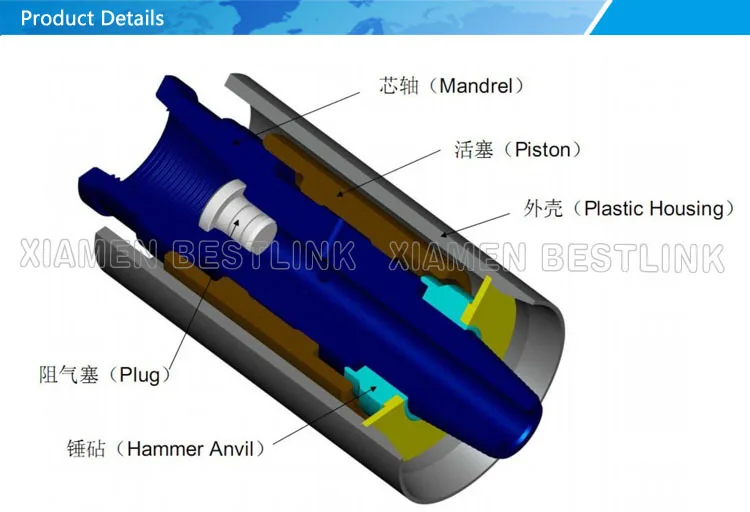

Sturdy and reliable, the backhammer is composed of three components and a plastic housing which acts both as an exhaust emissions guider and a muffler. With regards to the maintenance, it's only necessary to kecp it clean and the linking section we protected when the backhammer is not in use.
The backhammer may be mounted on the drill pipe joint between the borehole gripper and the swivel head, thus creating a combined effect of effective reverse impact and vibration.
Sturdy and reliable, the backhammer is composed of three components and a plastic housing which acts both as an exhaust emissions guider and a muffler. With regards to the maintenance, it's only necessary to kecp it clean and the linking section we protected when the backhammer is not in use.
Main Technical data:
| Product | Pressure | Thread | Total length(mm) | Diamter(mm) | Kg |
| HBH14 | 8 bar | API 3 1/2" | 510 | 180 | 31 |
| HBH16 | 8 bar | API 3 1/2" | 540 | 200 | 44 |
| HBH19 | 8 bar | API 3 1/2" | 540 | 225 | 63 |
Product Details:

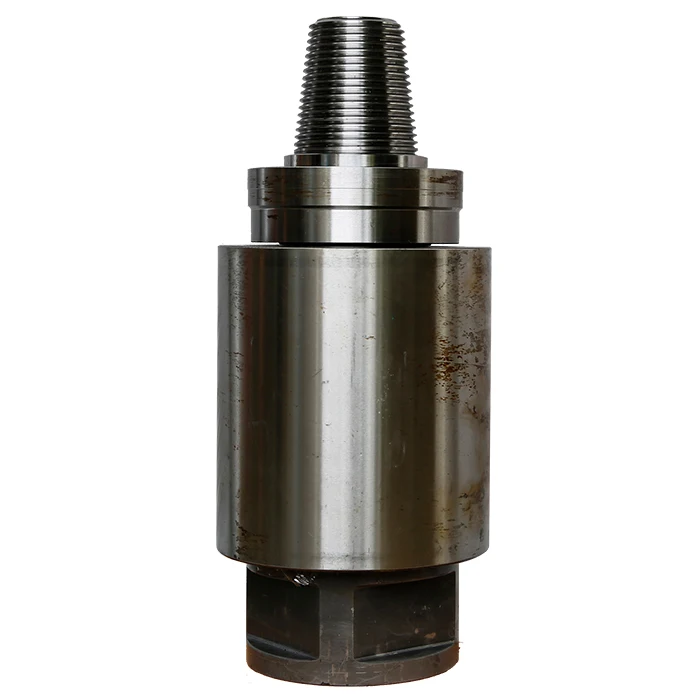

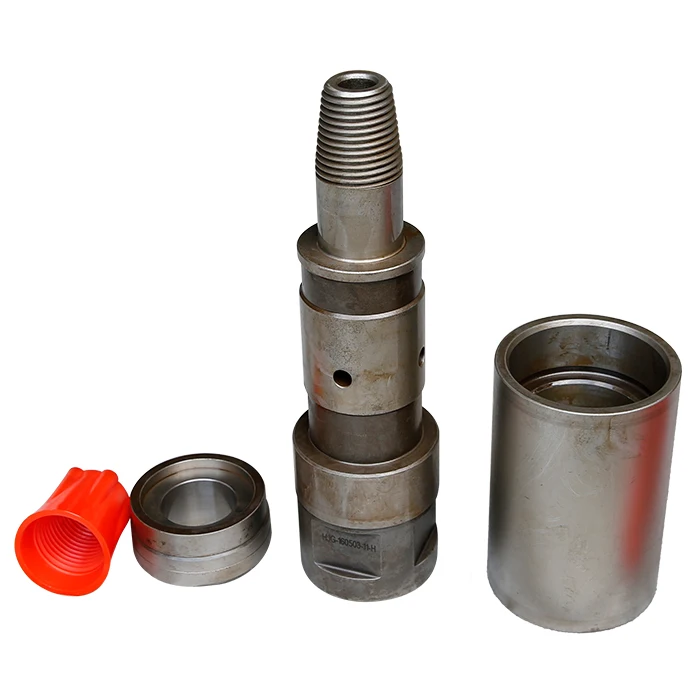

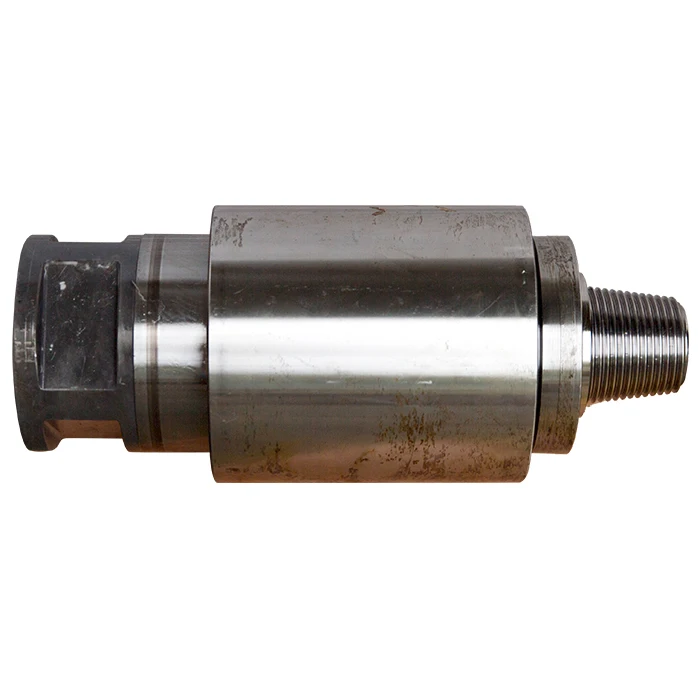

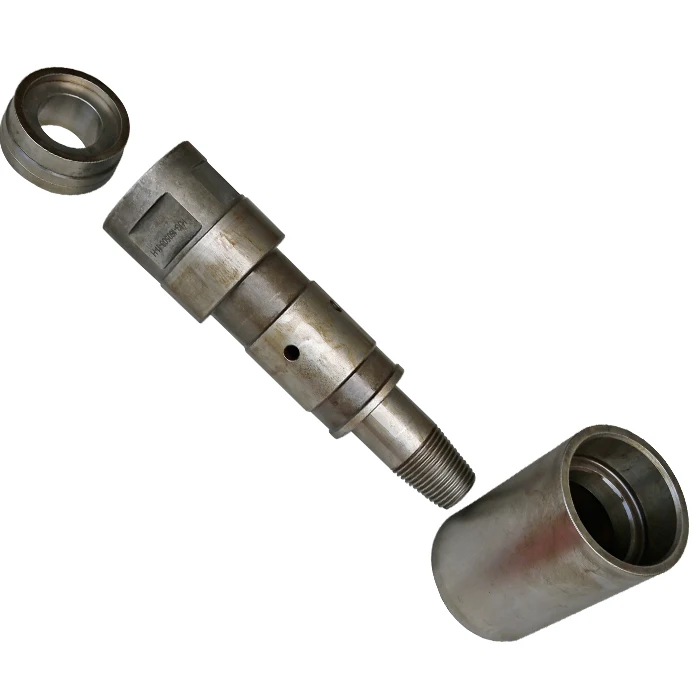

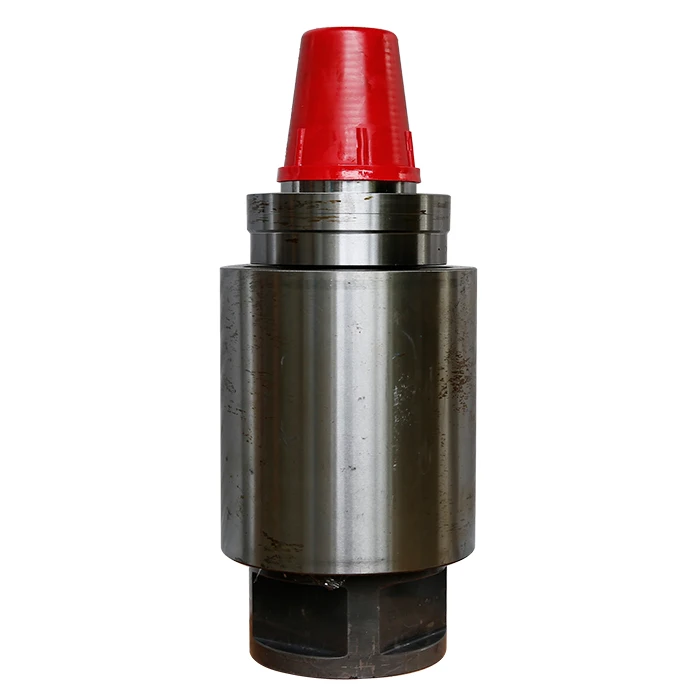

Complete pictures:
Packaging & Shipping
Factory and workship
Company Information
Xiamen Bestlink Factory Co., Ltd is committed to provide the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in china.
we offers a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
With years of experience,our quality products are being exported to more than 45 countries all over the world including USA, and Europe with high reputation.
Our Services
1) All Drilling and Quarrying equipments
website: www.quarryingtools.com
2) Natural Stone Processing/Cutting/Splitting machines
website: www.split-stone.com
Our products range:
1. Expansive mortar (non-explosive demolition agent, soundless cracking agent)
2. Hand-held rock drill Y6,Y20, Y24, and Y26 (pneumatic),TY24C
3. Fully hydraulic rock drill BH26, BH28 (with pushing cylinder)
4. Pneumatic rock drill with pushing air-leg YT18, Y19A,YT24, YT28
5. Internal combustion rock drill (hand held, gasoline) YN27
6. Line drilling machine
7. DTH driller, diamond wire saw
8. Button bits, cross bit, chisel bits
9.Plug hole rod, Extension rod, shank adapter,coupling sleeves
10. DTH hammers & bits,DHD, COP, IR, Bulroc and SD series
11. Diamond wire rope, hydro-bag (steel), air bag (polymer) for blocks pushing
12. Stone cutter for block cutting
13. Hydraulic splitting machine
14. Wedges & feathers
15. Hose (for air, water, hydraulic...)
