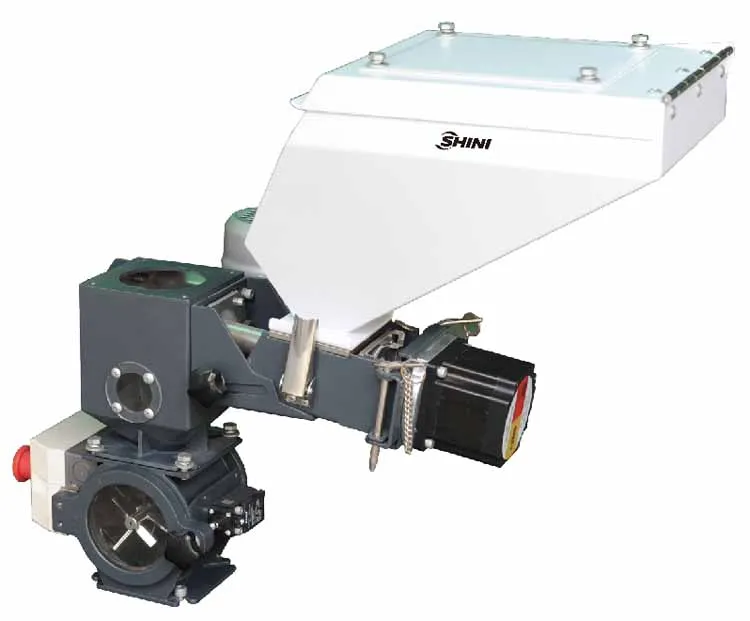

Shini SCM 16EB Volumetric Masterbatch Doser with Step Motor / Doseurs volumetriques
- Category: Plastic Raw Material Machinery >>>
- Supplier: Shini Plastics Technologies (Dongguan) Inc.
Share on (1600078993451):
Product Overview
Description
Product Description
SCM-EB “budget” series volumetric dosers are suitable for auto-proportional mixing of new materials, regrinds, master batch and additives. A stepping motor is coupled to a dosing screw of 12, 16, 20, and 30mm diameter to offer four models with different output ranging from 0.1 to 110kg/hr to clients. Double-color doser can be assembled from any two single color doser according to clients’ requirements.
Model | Single Color Unit | Double Color Unit | ||||||
SCM-12-EB | SCM-16-EB | SCM-20-EB | SCM-30-EB | SCM-D-EB | ||||
Motor Power (kW) (50/60Hz) | 0.06 | 0.06 | 0.06 | 0.06 | 0.06×2 | |||
Mixer power (kW, 50 / 60Hz) | 025 | 0.252 | 0.252 | 0.252 | 0.25 | |||
Screw External Dia. (mm) | 12 | 16 | 20 | 30 | ** | |||
Output Capacity (kg/hr) | 0.1 ~ 10 | 0.5 ~ 30 | 3 ~ 60 | 8 ~ 110 | * | |||
Storage Hopper (L) | 10 | 10 | 10 | 10 | 10 | |||
Main Material Hopper(L) | Optional (15) | Optional (15) | Optional (15) | Optional (15) | Optional (15) | |||
Mixer | Optional | Optional | Optional | Optional | Optional | |||
Floor Stand | Optional | Optional | Optional | Optional | Optional | |||

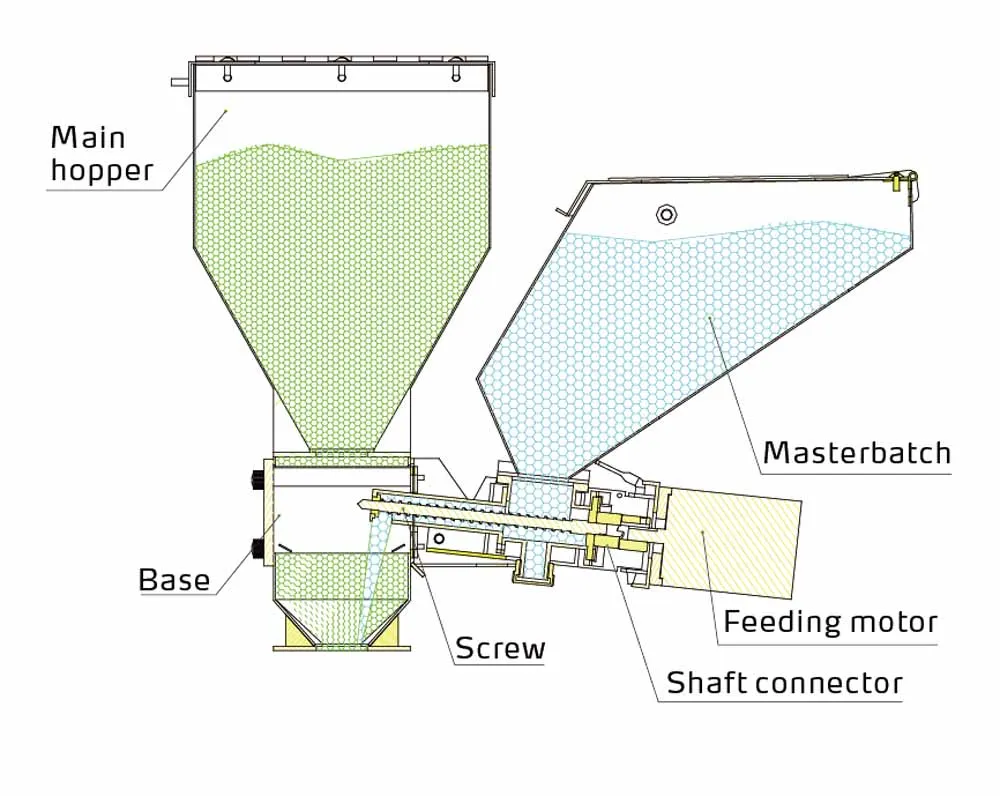

Working Principle
Signals from control cabinet are sent to motor, and then motor begins to work. The rotary force is transferred to the dosing screw through shaft connector. Color additives in hopper fall into the groove of conveying screw, then are taken to hopper base by rotating action of the screw.

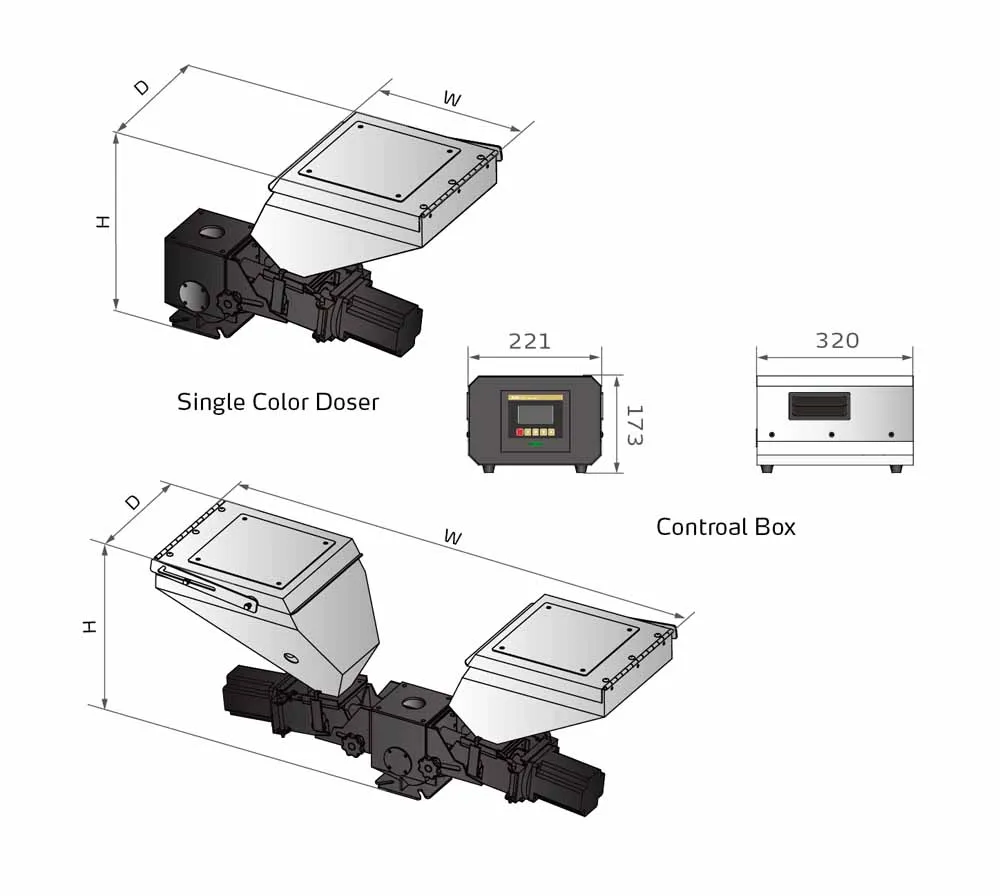

Size Information
Model | Single Color Unit | Double Color Unit | ||||||
SCM-12-EB | SCM-16-EB | SCM-20-EB | SCM-30-EB | SCM-D-EB | ||||
H (mm) | 420 | 420 | 420 | 420 | 420 | |||
W (mm) | 585 | 585 | 585 | 585 | 1030 | |||
D (mm) | 300 | 300 | 300 | 300 | 300 | |||
Weight (kg) | 18 | 18 | 18 | 18 | 30 | |||
