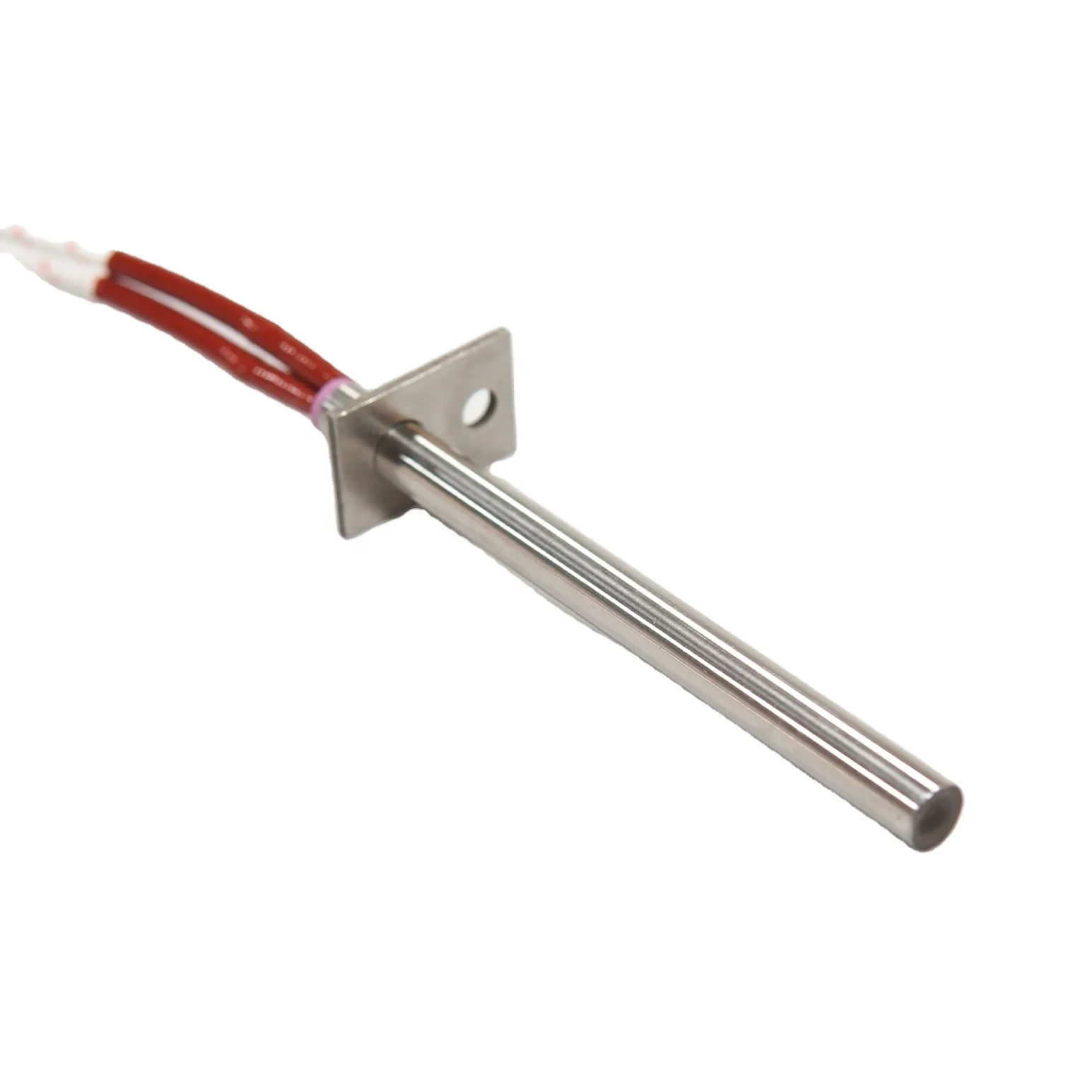

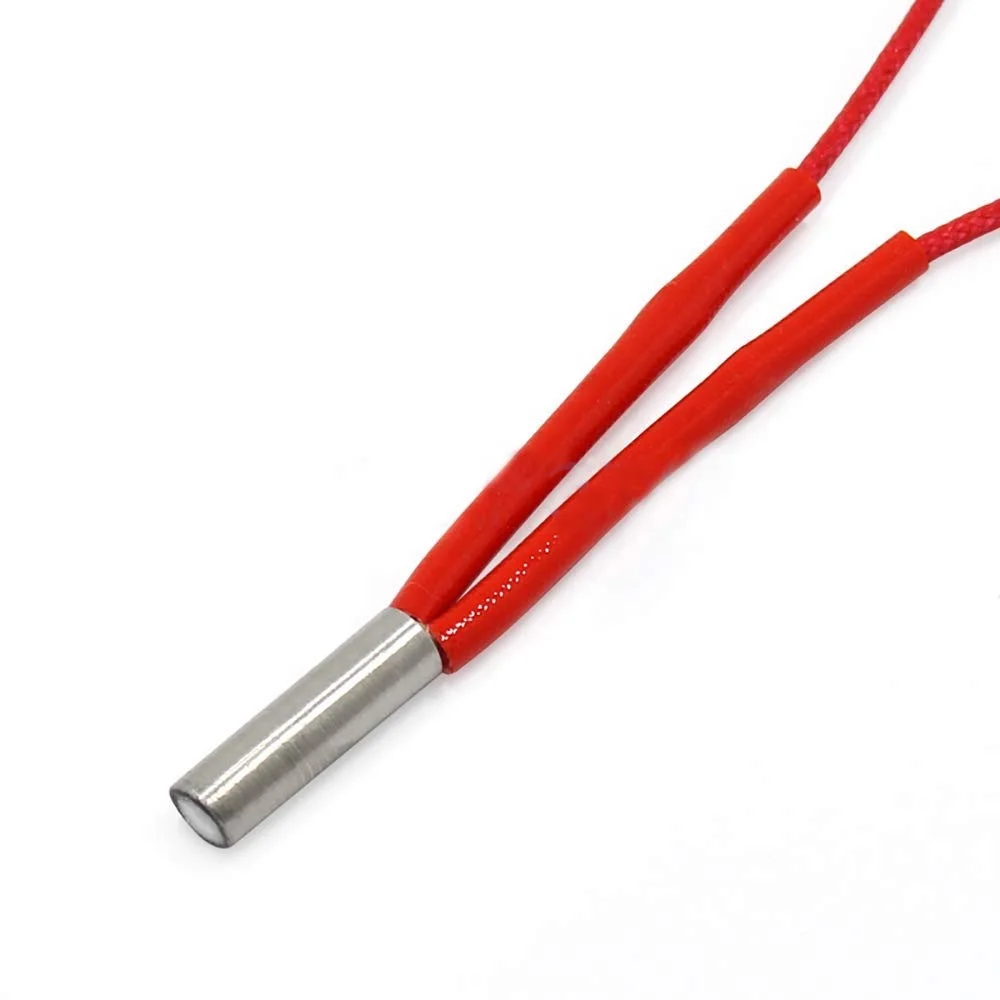

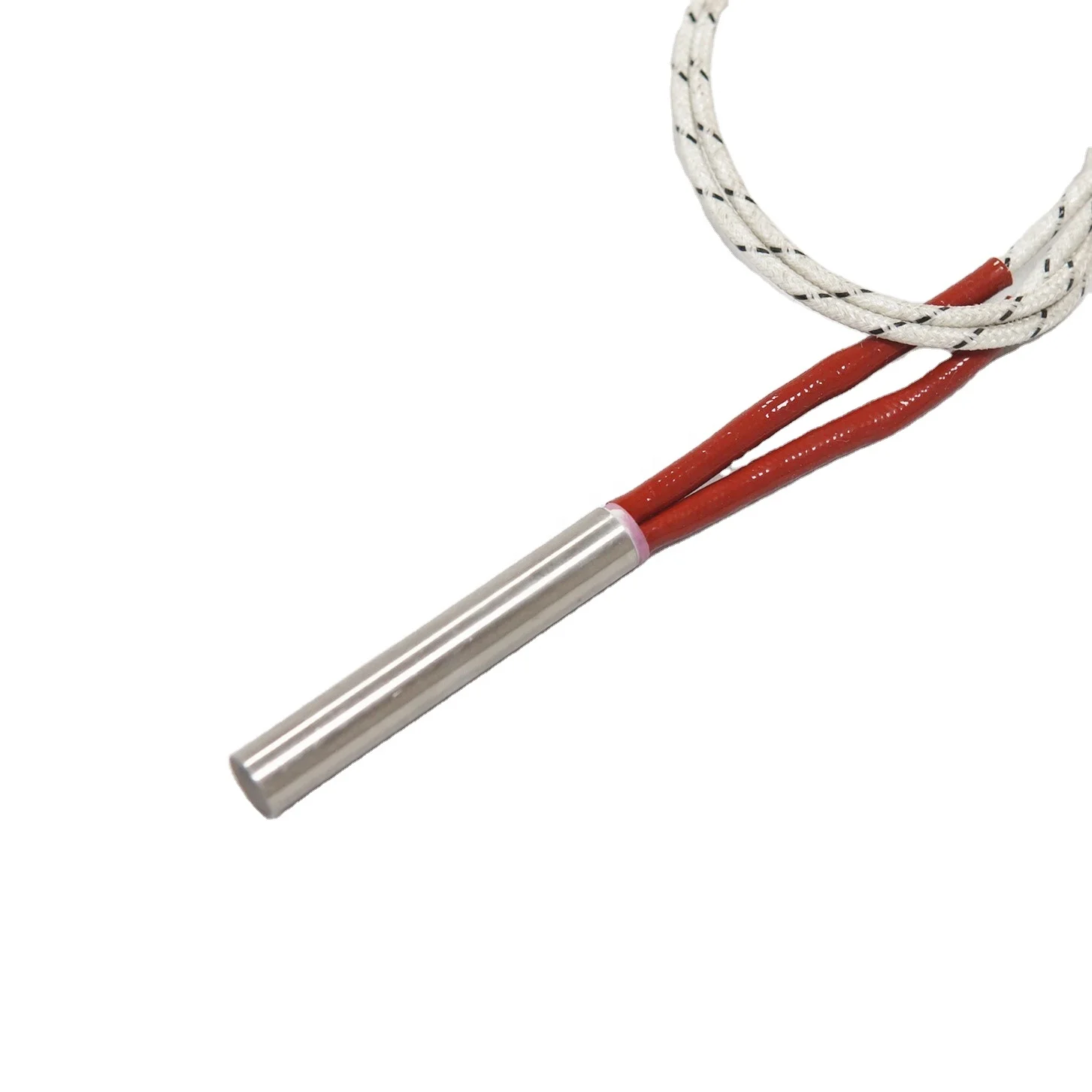

China industry electric 30w 100w 12v 12 volt water dc resistance cartridge heater heating element 158 mm factory
- Category: Heating Equipment >>>
- Supplier: Suzhou Reheatek Electrical Technology Co. Ltd.
Share on (1600079097367):
Product Overview
Description
Product Description

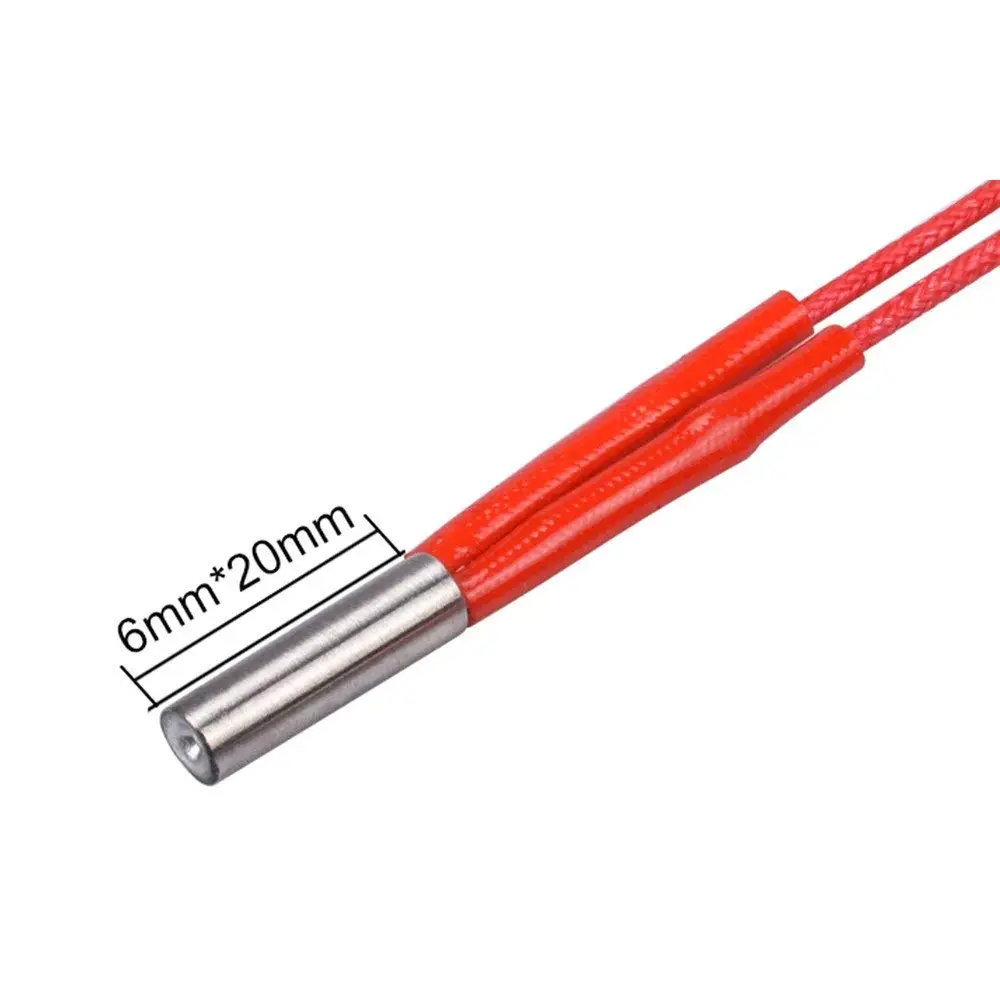

Electric cartridge heater is tube-shaped heating element widely used in many industries, such as packaging machines, extruders, medical equipment, food processing and other applications.
Usage

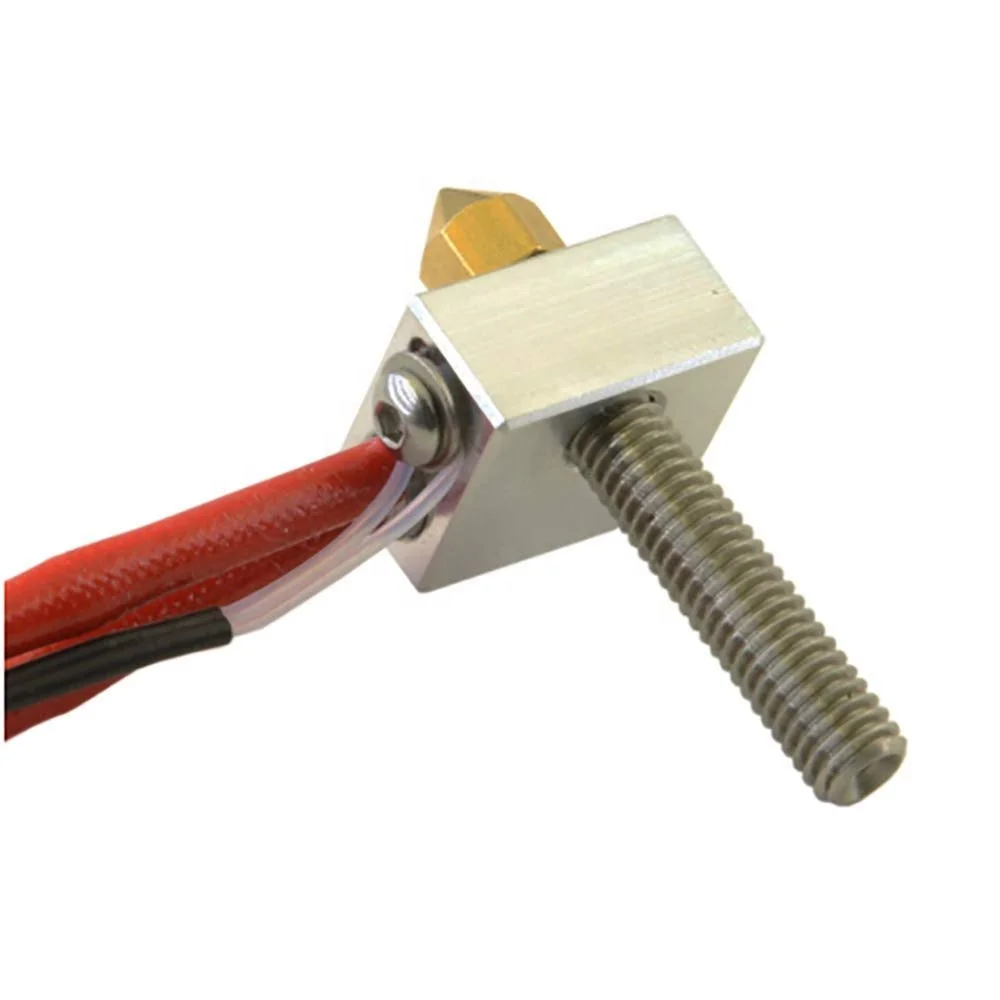

Cartridge heaters are used to heat metal blocks, molds, hotplates, shaping dies, heat sealing, marking and others .
Specification

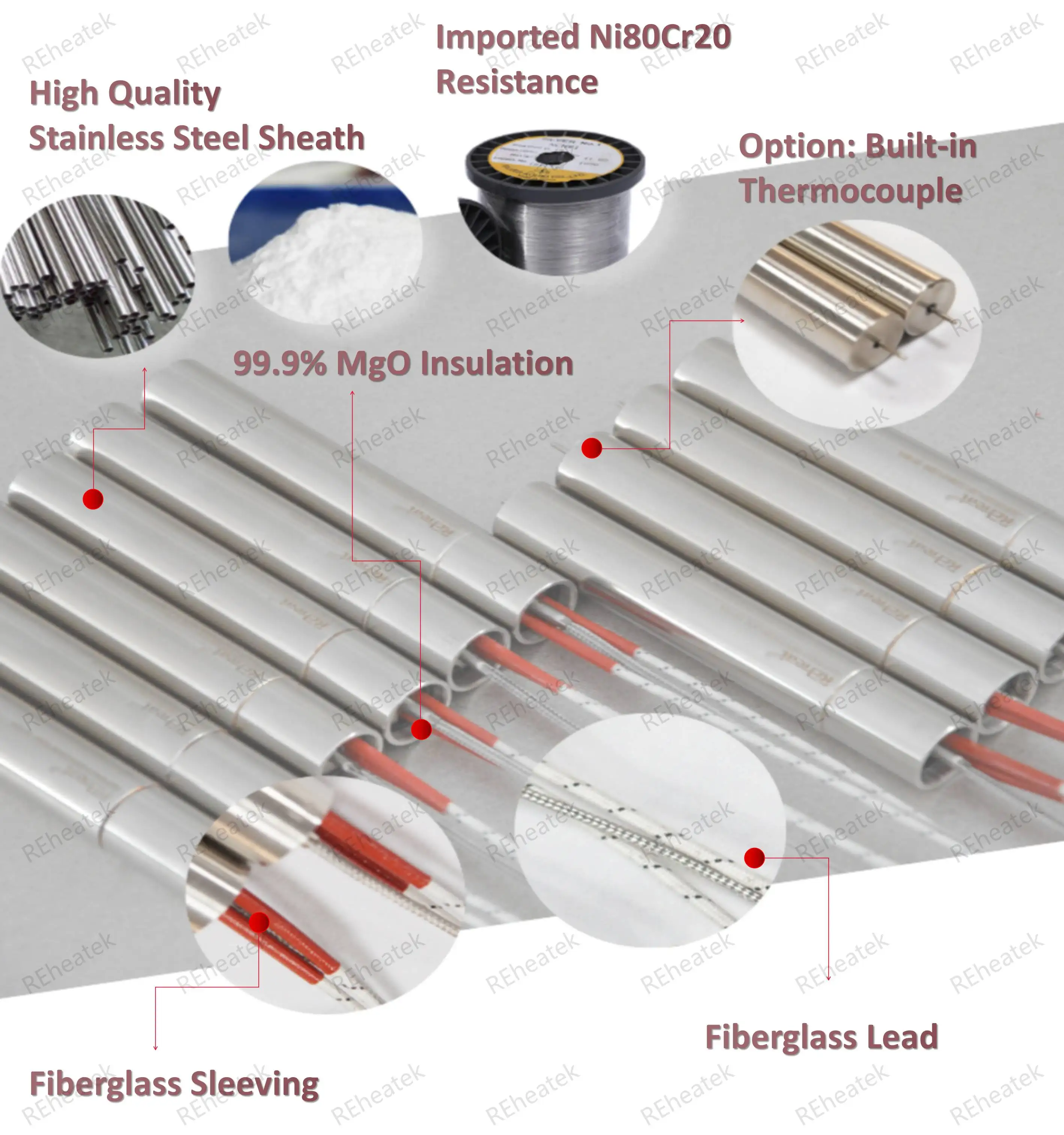

REheatek cartridge heaters can be made with
Sheath seamless or seamed stainless steel SUS304, SUS310, SUS316, Incoloy 800.
Insulation 99% MgO rod, high temperature MgO powder.
Imported Cr20Ni80 resistance wire.
Ni conductor lead.

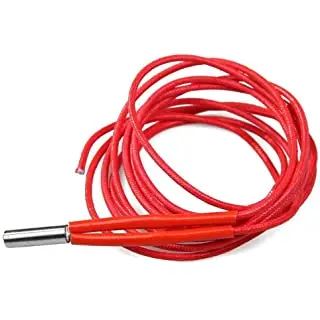

Silicone fiberglass lead wire (also provide Mica fiberglass wire, Teflon wire, and nickel fiberglass wire.
Main Materials | ||
Sheath | SUS304/316/321, Incoloy800/840 (NCF800/840） | |
Resistance Wire | Ni80Cr20 | |
Insulation | High purity MgO | |
Lead wire | Fiberglass (Max. Temp. 250℃) Tflon (Max. Temp. 250℃) Silicone (Max. Temp. 200℃) High temp fiberglass (Max. Temp.450℃) Ceramic beads(Max. Temp. 800℃) | |
Lead protection | Silicone glass fiber sleeve Steel braid Steel hose | |
Seal | Ceramic (Max. Temp. 800℃) Silicone (Max. Temp. 180℃) Epoxy (Max. Temp. 315℃) | |

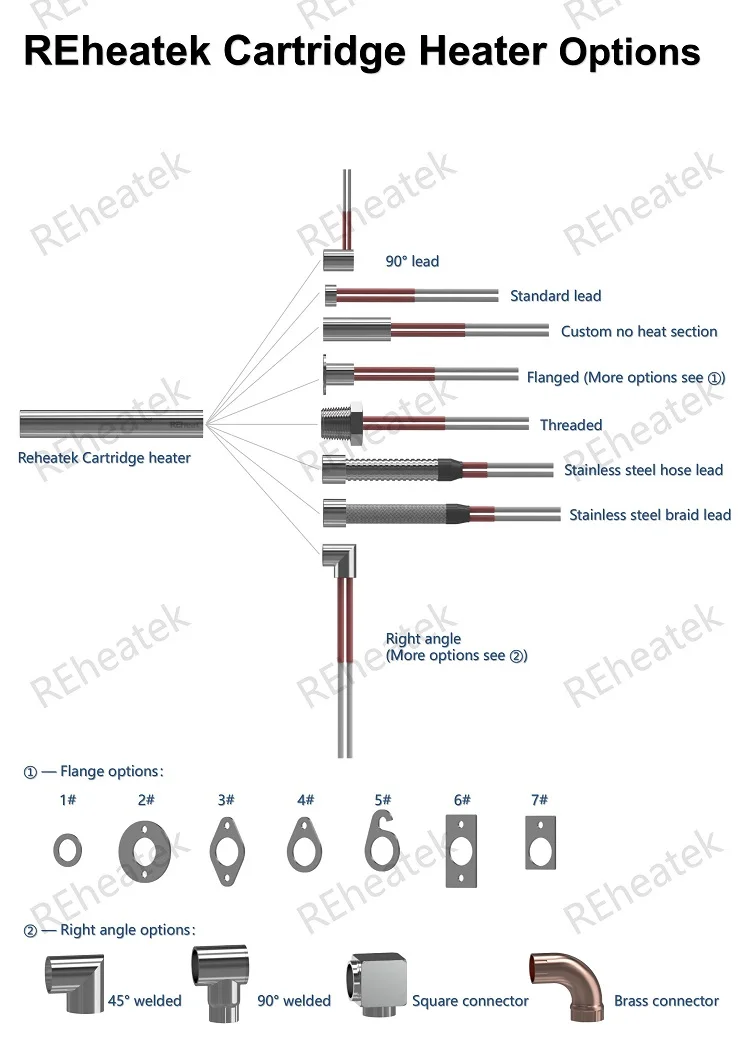

Reheatek provide customization services to fit different applications.
Options including below details:
1. Built-in thermocouple
2. Voltage (phase ) & power & watt density
3. Non-heating part length
4. Tube diameter & length
5. Sheath material
6. Lead/ lead protection
7. Seal material
8. Installation - flange/ locating ring/ screw
9. Finned
10. Inner structure - e.g. custom distributed wattage
Please contact us for more details.
Contact REheatek for custom details
OPTION 2 - BUILT-IN THERMOCOUPLE
One option of cartridge heater is built-in thermocouples. These thermocouples could be attached at the end or middle of the cartridge heater, grounded or ungrounded. Thermocouples could be type “J” or “K”.
OPTION 2 - MATERIALS FOR HIGH TEMPERATURE
If heaters are operating under extreme high temperature, Reheat cartridges could be sealed by ceramic end cap could be used and sealed with high temperature ceramic glud. Maximum temperature could reach 800℃
OPTION 3 - INSTALLATION METHOD
Different installation materials are available.
Flange (other styles are available)
Locating Ring
Screw (other styles are available)
1. Simple structure, high heating power
2. Easy and economical installation3. Designed and manufactured with good materials
4. Uniform temperature
5. Accurate dimensions, maximum heat transfer
6. Easy maintenance and replacement
7. CE & RoHS approved

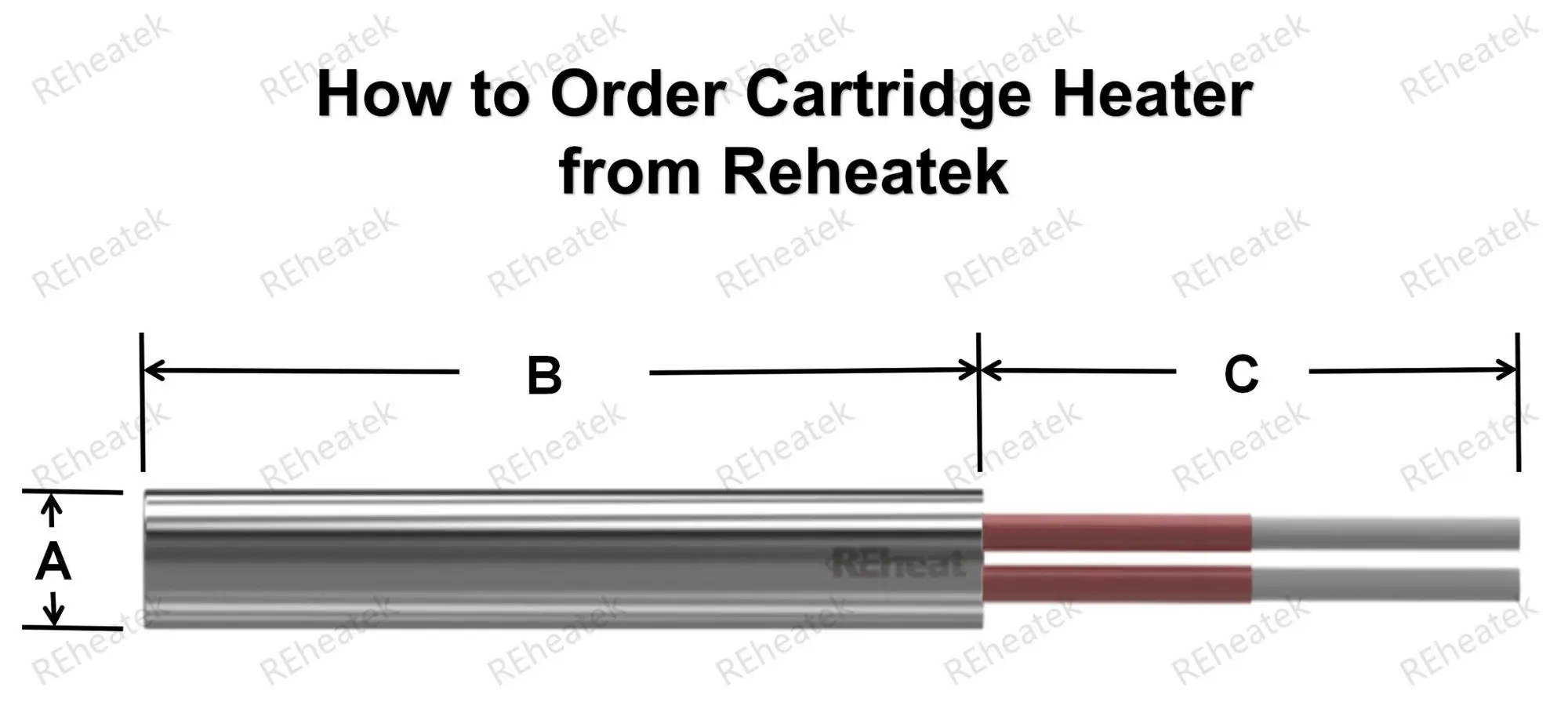

How to order cartridge heater from Reheatek?
1. A - Diameter
2. B - Total length
3. C - Lead wire length - standard 250mmL
4. Operating voltage & phase
5. Power (wattage)
6. Any other requirements (e.g.)
- Sheath - standard SS304
- Lead - standard silicone fiberglass lead
- Sleeving - Standard fiberglass sleeving
- Construction - internal or external
2. B - Total length
3. C - Lead wire length - standard 250mmL
4. Operating voltage & phase
5. Power (wattage)
6. Any other requirements (e.g.)
- Sheath - standard SS304
- Lead - standard silicone fiberglass lead
- Sleeving - Standard fiberglass sleeving
- Construction - internal or external
Application

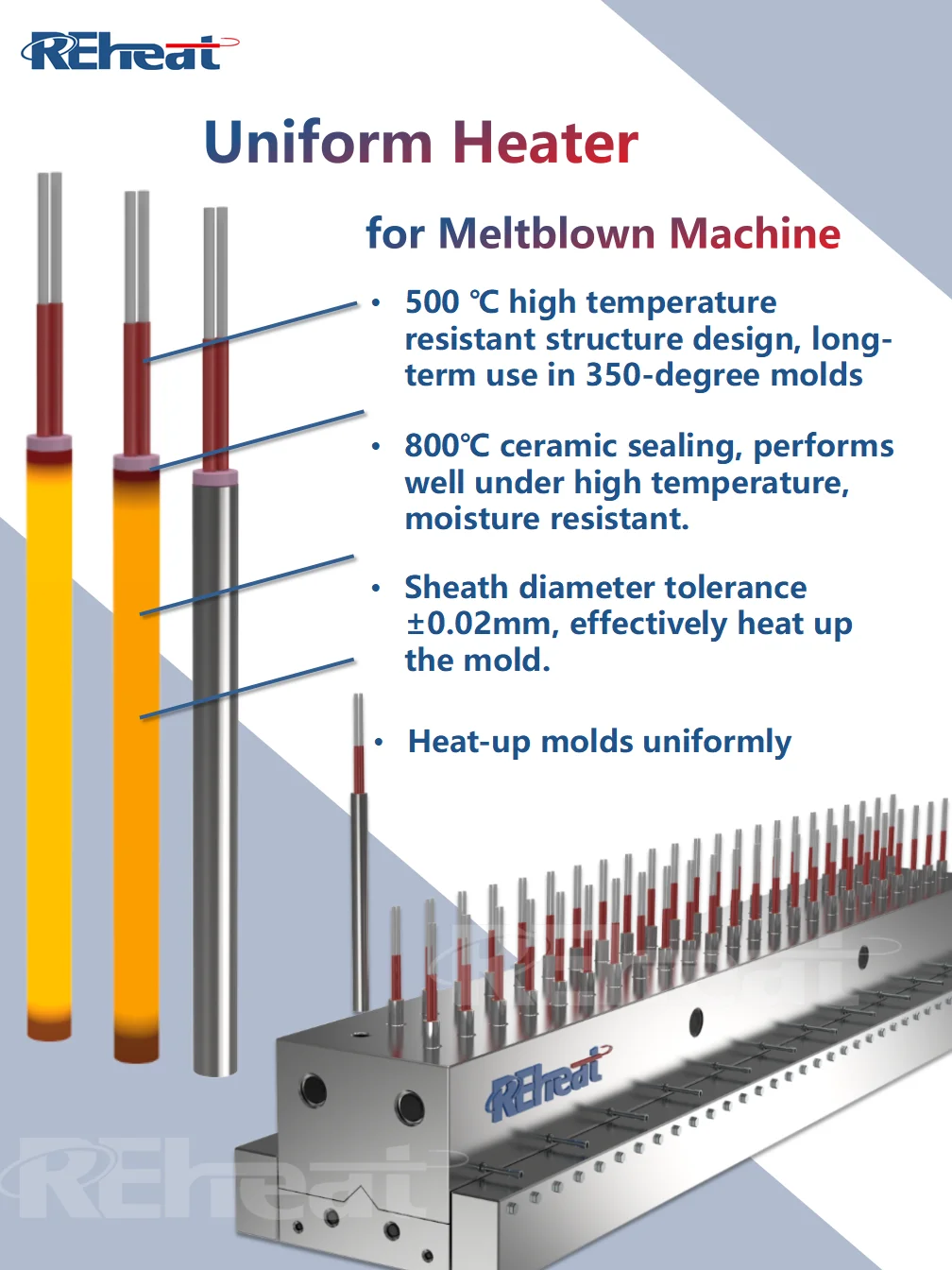

Uniform Heater

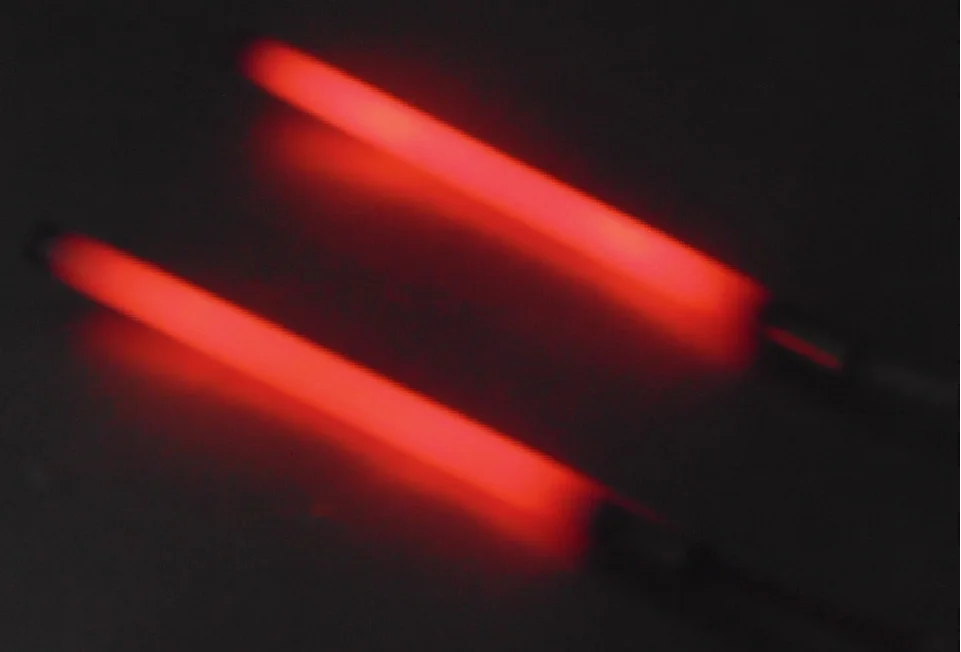

Heat up efficiently and uniformly.

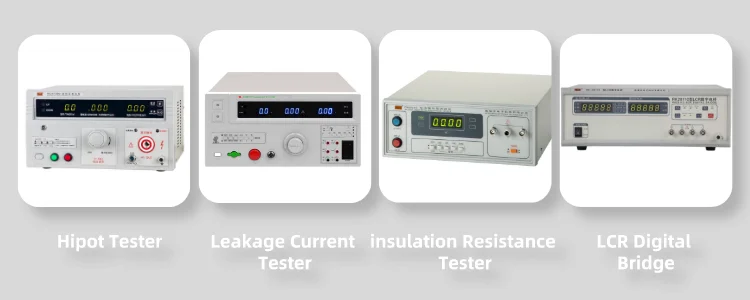

Reheatek QC Standards | ||
Diameter Tolerance | ± 0.02mm | |
Length Tolerance | ± 1mm | |
Leakage Current | ＜0.6mA | |
Power Tolerance | ≤ 1000W ±10% ＞1000W -10% ~ +5% | |
Withstand Voltage | ＞ 2000V 1min. | |
More Products
Why Choose Us
We were founded with over 10 years’ experience. We provide customized heating elements and thermal heating solutions.
How Reheatek can work for you?
Design, engineering, manufacture
Quality - ISO9001 /CE&RoHS /100% Inspection
Expertise - Designs services to support from concept to production.
Professional - Functional and thermal stability of each new designs will be tested in our professional the laboratory.
Reheatek Product Certificates
CE CERTIFICATE
ROSH CERTIFICATE
ISO9001 CERTIFICATE
Production Process
Wire Winding
MgO Filling
Tube Shrinking
Welding
Assembling
Test
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: What is the lead time for Reheatek products?
A: Samples - within 3 working days with materials in stock
Mass production - usually 7-14 days (depends on quantity and raw material situation, please further discuss with our team. )
Q: What is the MOQ for Reheatek products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
Got more questions? Please call or send us a mail. Will get you to the best answers fast.
A: Samples - within 3 working days with materials in stock
Mass production - usually 7-14 days (depends on quantity and raw material situation, please further discuss with our team. )
Q: What is the MOQ for Reheatek products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
Got more questions? Please call or send us a mail. Will get you to the best answers fast.
