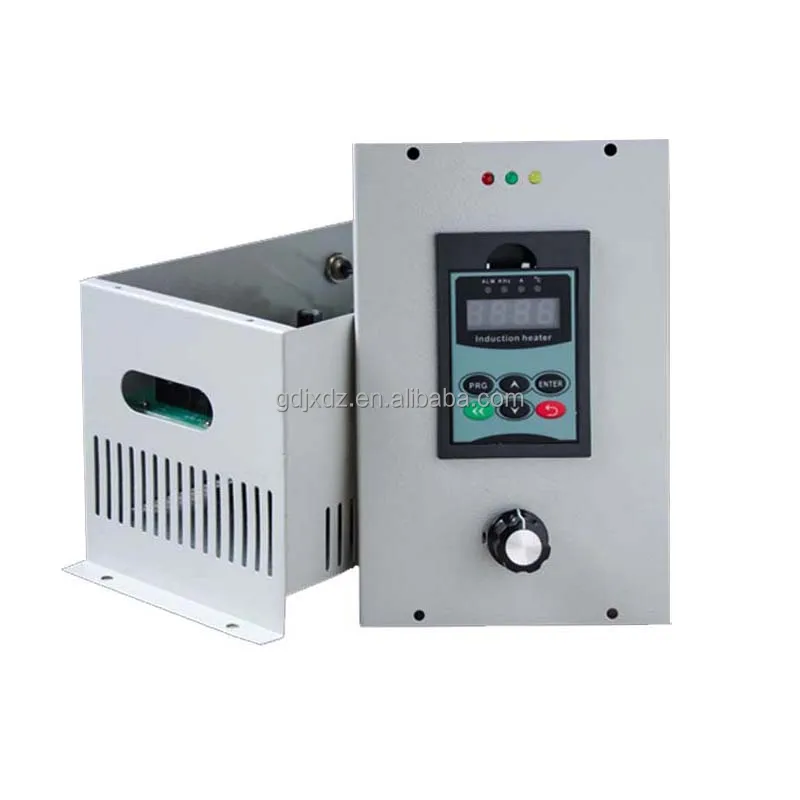

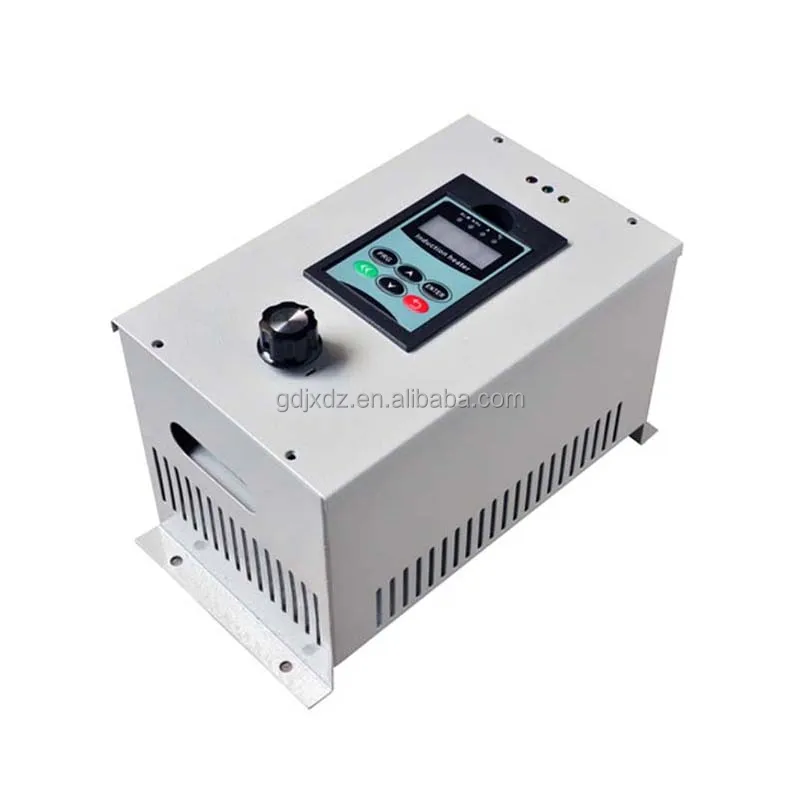

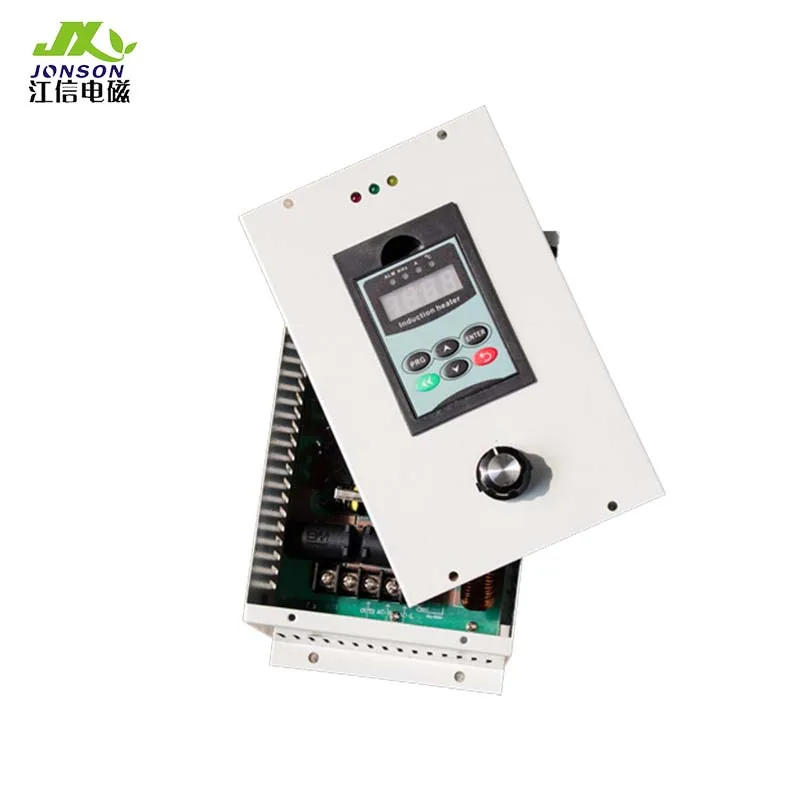

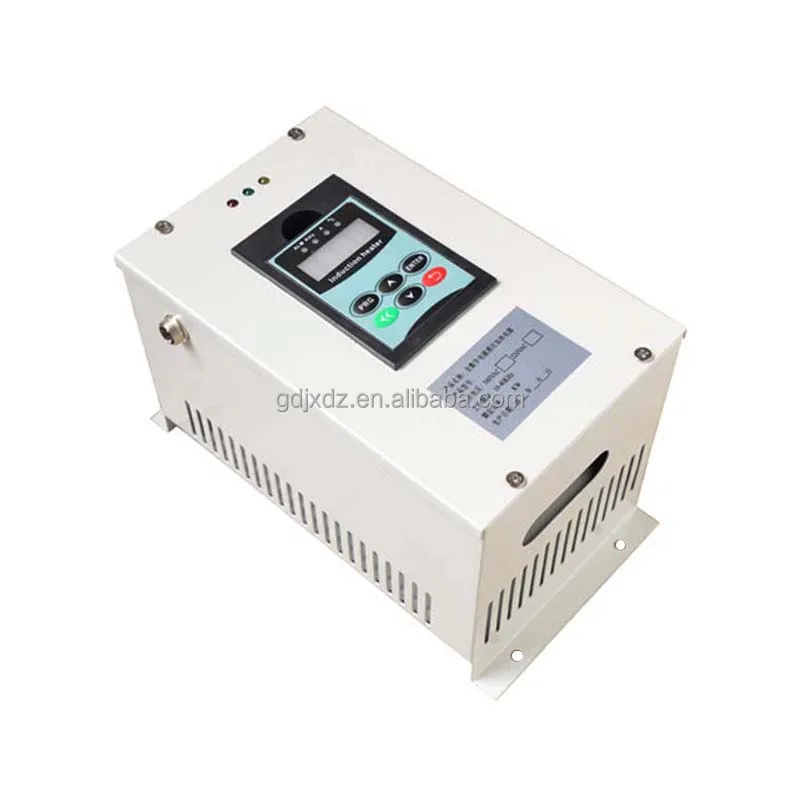

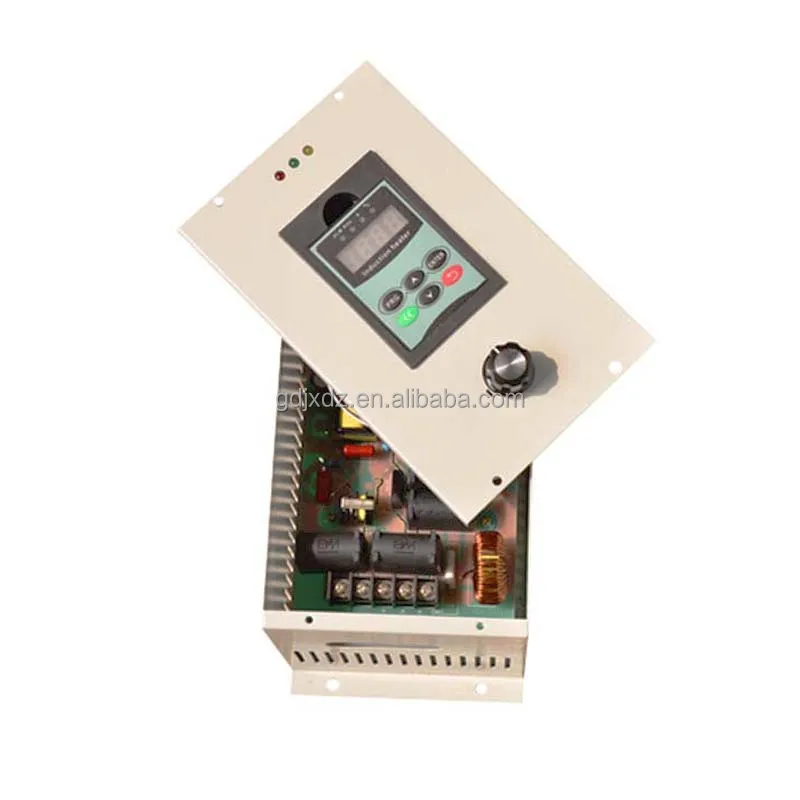

Индукционное нагревательное оборудование с низкой мощностью кВт, индукционный нагреватель, производитель индукционной нагревательной системы
- Category: Heating Equipment >>>
- Supplier: Guangdong Jiangxin Electronic Technology Co. Ltd.
Share on (1600559285572):
Product Overview
Description
Description
Induction Heating
The control board of induction devices has been specially designed to save energy in the heating needs of injection molding, extrusion machines and cable production machines as a result of 15 years of R&D.
After the installation of the product, injection molding machine etc. Energy savings of 30% to 80% will be achieved in the electrical energy required to heat the such devices. Therefore, induction heating devices are ideal heating equipment especially for specified machines.
Is your heating process costly and spends a lot of energy?
The control board of induction devices has been specially designed to save energy in the heating needs of injection molding, extrusion machines and cable production machines as a result of 15 years of R&D.
After the installation of the product, injection molding machine etc. Energy savings of 30% to 80% will be achieved in the electrical energy required to heat the such devices. Therefore, induction heating devices are ideal heating equipment especially for specified machines.
Is your heating process costly and spends a lot of energy?
Heat losses and inconsistent application of heat cause product quality to decrease, unit costs to increase and profit to be consumed. Energy cost is one of the most important expense items in the production. In this regard, the most economical products are produced with the correct energy application.
Induction heating focuses energy only on the area of the part you want to heat. Since energy is transferred directly from the coil to your material, there is no heating loss, such as no flame or air, therefore the induction heating will increase your heat treatment efficiency. As seen in the energy comparison above, 2.5 KW induction heater is used to heat the material that saves at least 30% energy saving compared to the application of 2.5 KW conventional resistance heater。
Can Induction Heating Improve Your Process Heating?
If your process matches well with induction heating, induction heating can increase your efficiency and safety, saving energy. However, not every application is suitable for induction heating. In processes that do not take advantage of the primary benefits of induction heating, such as sensitivity and thermal insulation, this heating is not recommended.
How to Design a Coil in Induction Heating?
Induction heating focuses energy only on the area of the part you want to heat. Since energy is transferred directly from the coil to your material, there is no heating loss, such as no flame or air, therefore the induction heating will increase your heat treatment efficiency. As seen in the energy comparison above, 2.5 KW induction heater is used to heat the material that saves at least 30% energy saving compared to the application of 2.5 KW conventional resistance heater。
Can Induction Heating Improve Your Process Heating?
If your process matches well with induction heating, induction heating can increase your efficiency and safety, saving energy. However, not every application is suitable for induction heating. In processes that do not take advantage of the primary benefits of induction heating, such as sensitivity and thermal insulation, this heating is not recommended.
How to Design a Coil in Induction Heating?
Induction heating has been used for decades in the manufacturing industry, as this type of heating ensures wireless transmission of energy to any conductive material, so it is possible to heat a sample without direct contact with the heater.
In induction heating, the sample is placed in a magnetic field that is released thousands of times per second, the power transmitted depends on the electrical conductivity and the magnetic properties of the material.
We can assist you with material selection, coil design and parameters such as frequency and magnetic field amplitude. In detail, we can help you with the following activities
• Optimization of the power and homogeneity of the magnetic field
• Frequency and amplitude selection
• Coil design, shape, diameters, length
• Material selection
In induction heating, the sample is placed in a magnetic field that is released thousands of times per second, the power transmitted depends on the electrical conductivity and the magnetic properties of the material.
We can assist you with material selection, coil design and parameters such as frequency and magnetic field amplitude. In detail, we can help you with the following activities
• Optimization of the power and homogeneity of the magnetic field
• Frequency and amplitude selection
• Coil design, shape, diameters, length
• Material selection
Products Description
rated power | Single-phase 2.5KW |
Rated input current | 10-11(A) |
Rated output current | 100-150(A) |
Rated voltage frequency | AC 220V/50Hz |
working frequency | 5~40KHz |
Main circuit structure | Half-bridge series resonance |
monitor | Programmable digital display |
start time | <1S |
Instantaneous overcurrent protection time | ≤2US |
Power overload protection | 130% instantaneous protection |
Soft start mode | 1,Fully electrically isolated soft start heating / stop mode 2,With 12V and 24V input start / stop mode |
Support PID adjustment power | Identify 0-5V input voltage |
Support 0 ~ 150 ºC load temperature detection | Accuracy up to ± 1 ºC |
Adaptive coil parameters | 2.5KW 4 square line, length 23m, inductance 100 ~ 150uH |
Coil to load distance(Thermal insulation thickness) | 20-25mm for circle, 15-20mm for plane, 10-15mm for ellipse and within 10 mm for super ellipse |

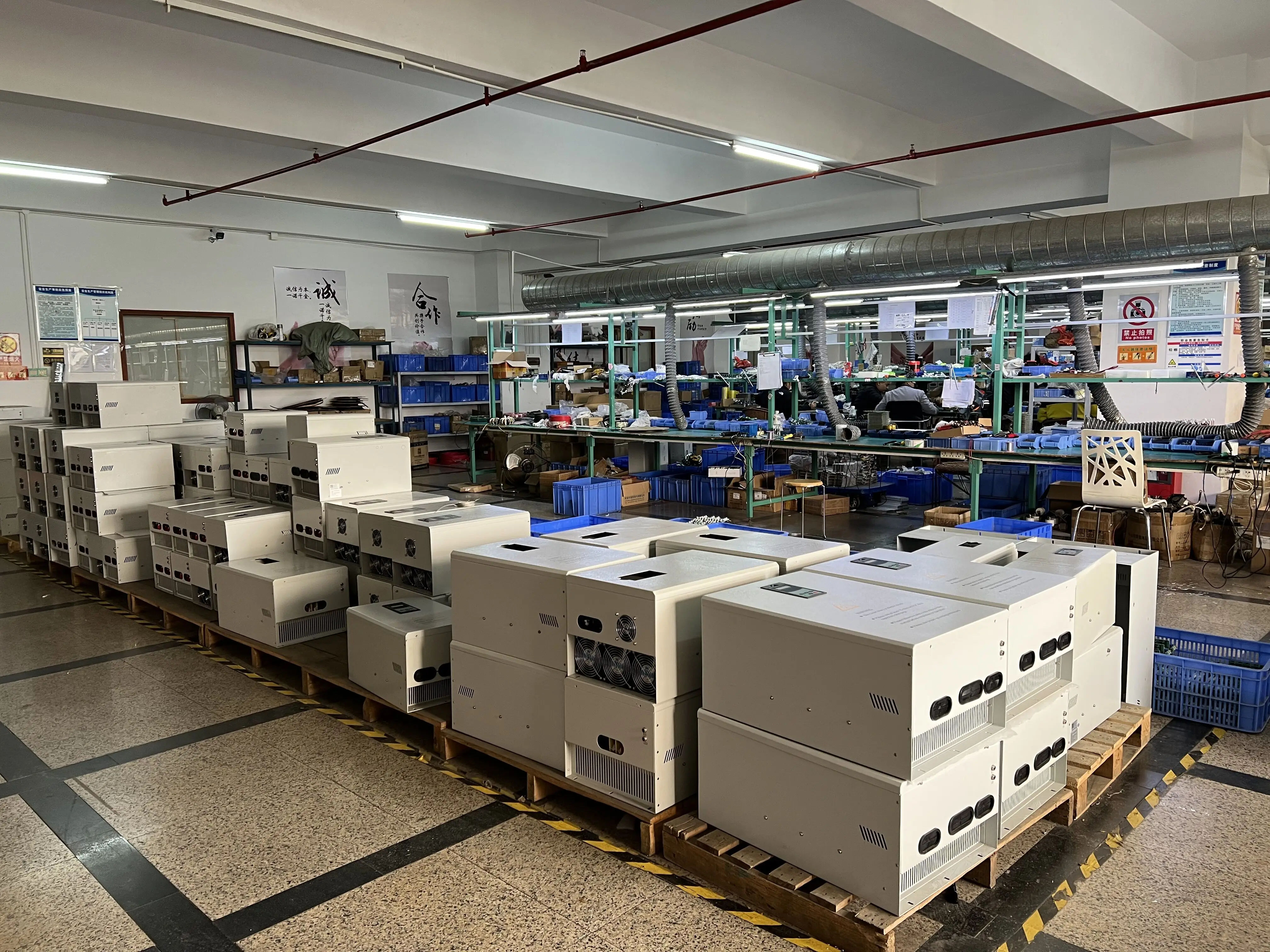

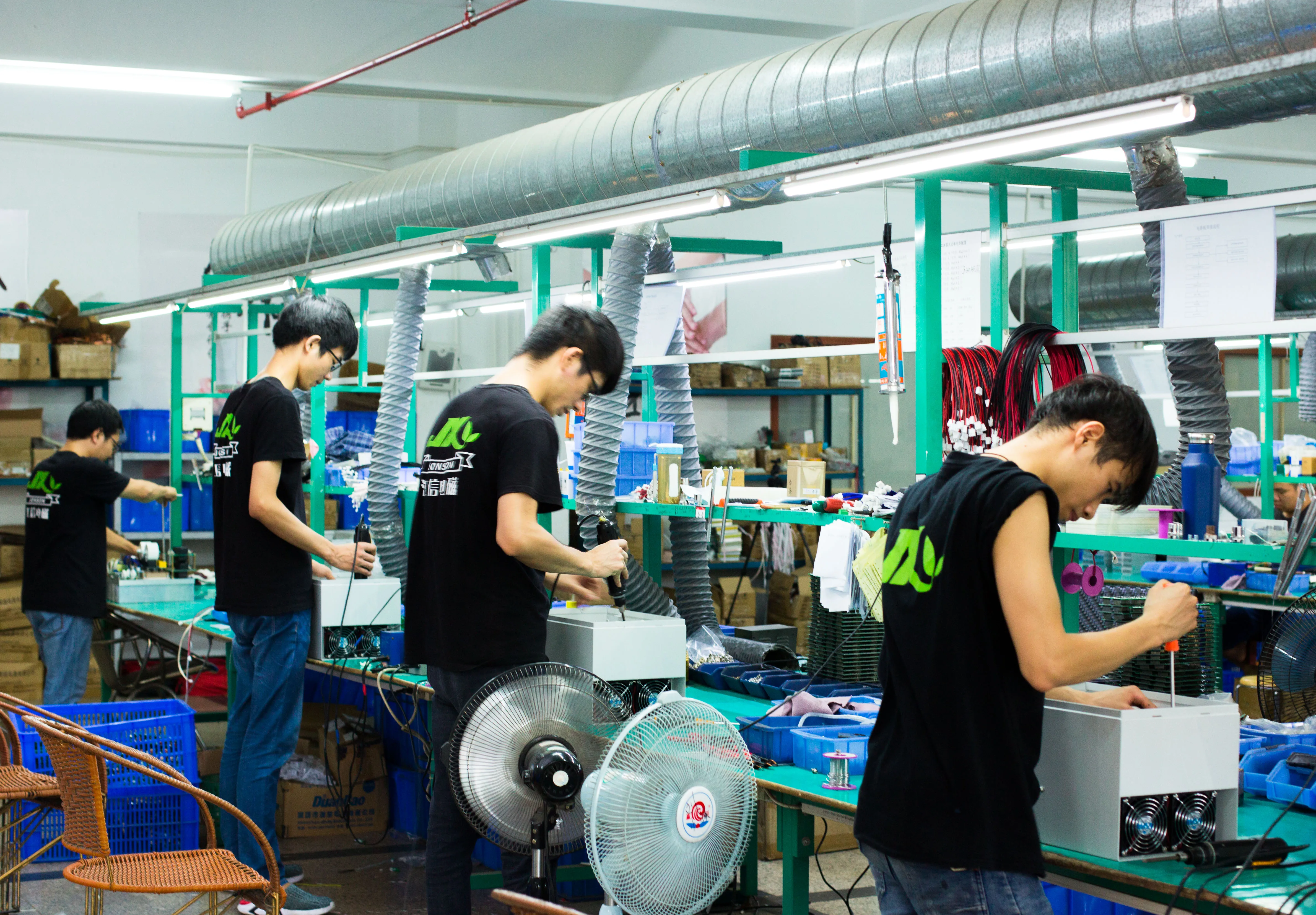

Company Profile
Guangdong Jiangxin Electronic Technology Co., Ltd.
Guangdong Jiangxin Electronic Technology Co., Ltd. is an extraordinary energy-saving solution provider. Its products and solutions are widely used in heating, chemical industry, mold manufacturing, plastic machinery, food processing and other industries. The company has a strong product R & D and engineering technology team, which is committed to transforming wisdom into excellent products and services, meeting the needs of different customers and continuously creating value for customers.
Jiangxin electromagnetic is a brand of Guangdong Jiangxin Electronic Technology Co., Ltd. and is committed to promoting the sustainable and steady development of China's energy conservation and emission reduction. With its comprehensive advantages in the field of electromagnetic induction heating, we strive to become a leader in the industry. Taking improving the earth's natural environment as its own responsibility, meeting the principle of social sustainable development, and building reliable and stable green energy-saving products and solutions for users are the key to maintaining the advantages of the company.
Adhering to the purpose of "scientific and technological innovation and military quality", we solemnly promise that the service life of the whole machine is guaranteed for ten years, one year free maintenance and lifelong maintenance. We believe that with your care and support and our tireless efforts, Jiangxin Electronics will enter a brilliant future with you.
Jiangxin electromagnetic is a brand of Guangdong Jiangxin Electronic Technology Co., Ltd. and is committed to promoting the sustainable and steady development of China's energy conservation and emission reduction. With its comprehensive advantages in the field of electromagnetic induction heating, we strive to become a leader in the industry. Taking improving the earth's natural environment as its own responsibility, meeting the principle of social sustainable development, and building reliable and stable green energy-saving products and solutions for users are the key to maintaining the advantages of the company.
Adhering to the purpose of "scientific and technological innovation and military quality", we solemnly promise that the service life of the whole machine is guaranteed for ten years, one year free maintenance and lifelong maintenance. We believe that with your care and support and our tireless efforts, Jiangxin Electronics will enter a brilliant future with you.

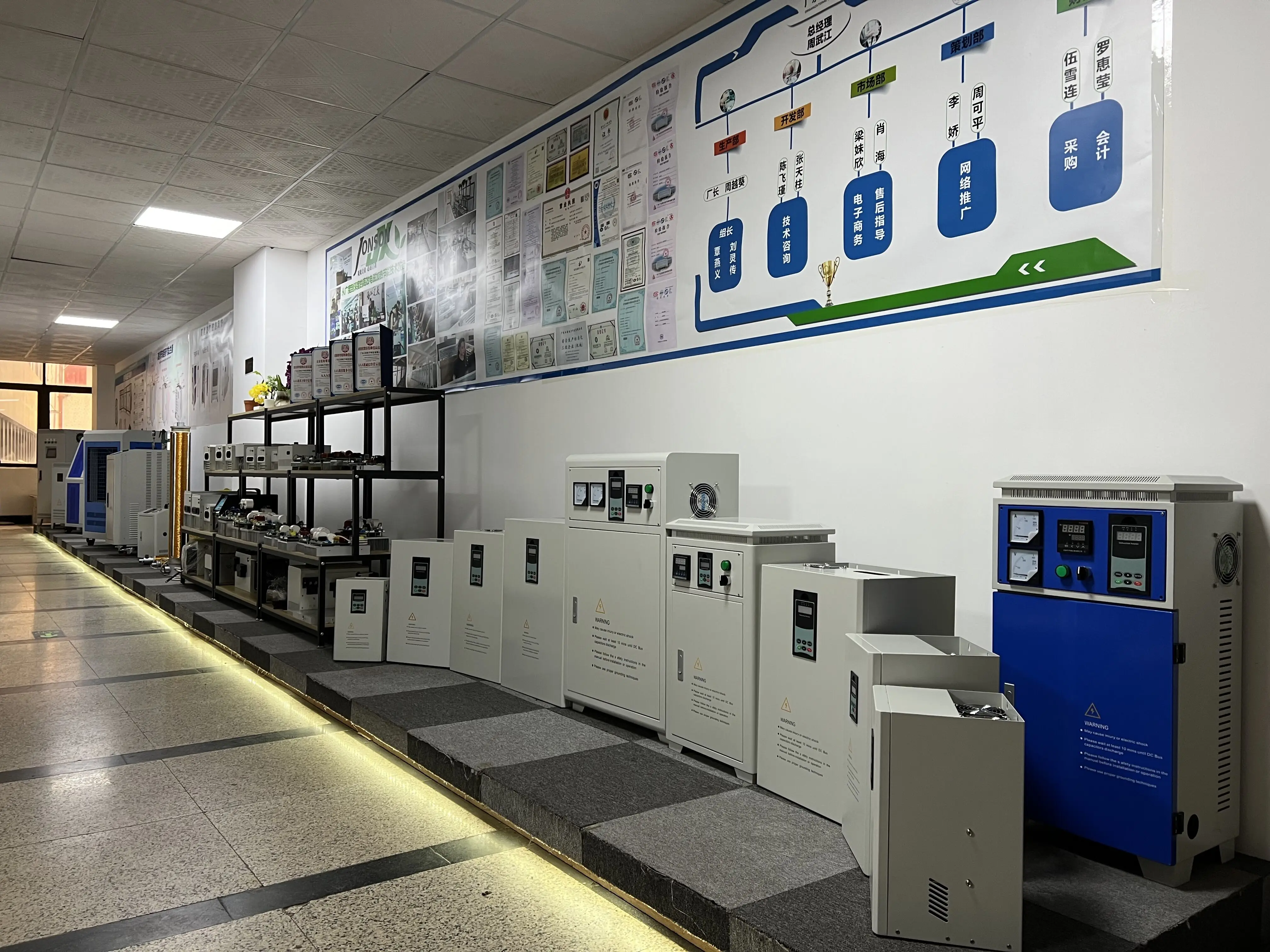

Exhibition
Certifications
Product Shipping
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
-Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep goodquality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
