Бесплатный образец плоской и гофрированной металлической диафрагмы для уплотнения диафрагмы
- Category: Instrument Parts & Accessories >>>
- Supplier: Shaanxi Carne Sensor Co. ltd.
Share on (1600080713626):
Product Overview
Description
Product Description
Product name | Metal Diaphragm |
Material | Tantalum, Titanium, HC276 SS316L, Inconel625,Monel400 |
MOQ | 50 pieces |
Hot sale size | φ18.4*0.025mm φ12.4*0.03mm φ30*0.05mm, φ50*0.05mm, φ65*0.08mm φ18.8*0.02mm φ89*0.08，φ100*0.1mm |
Application | Diaphragm pressure gauge Pressure sensor Pressure Transmitters Diaphragm valve pressure switch |
Details Information

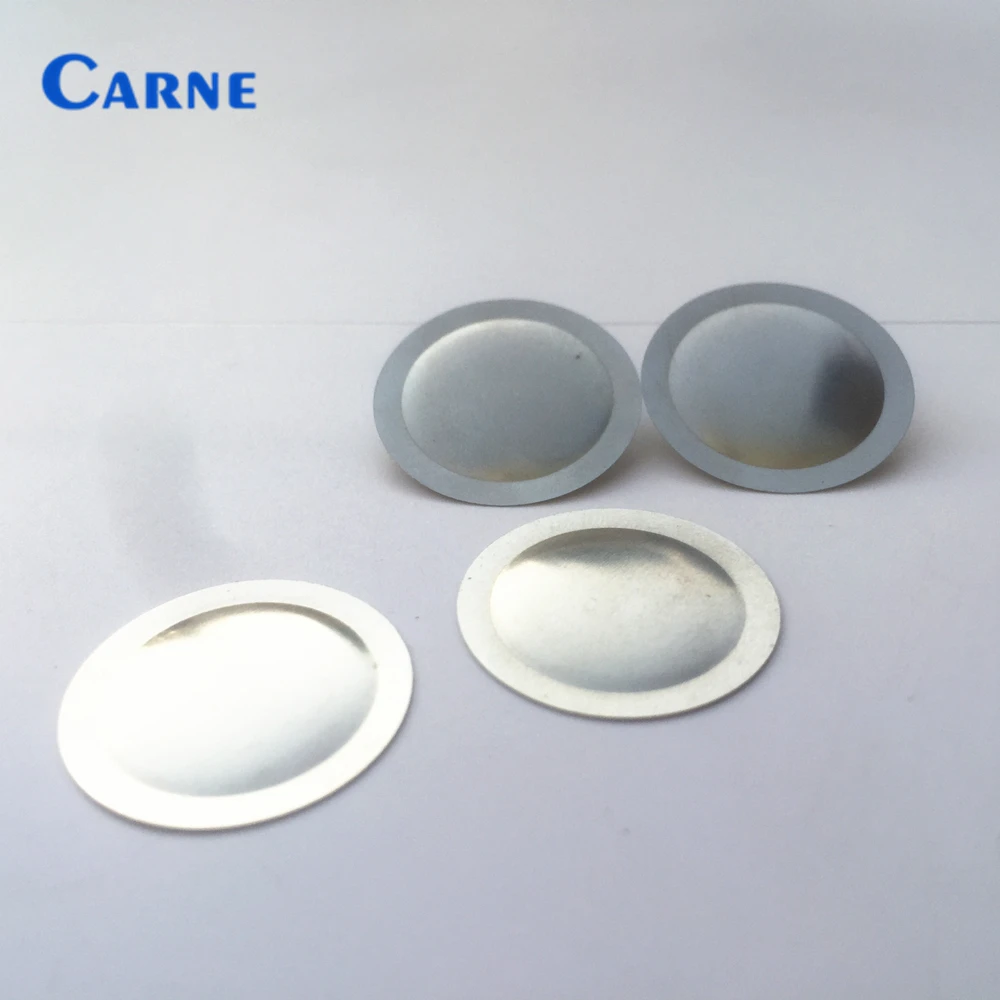

SS316L metal diaphragm
Suitable environment: Domestic water, Industrial
water, Raw water well, urban sewage weakly corrosive acid,Alkali, Salt solutio.
MOQ: 100 Pieces
Pressure sensor common diaphragm dimesions:
water, Raw water well, urban sewage weakly corrosive acid,Alkali, Salt solutio.
MOQ: 100 Pieces
Pressure sensor common diaphragm dimesions:
φ12.4*0.02mm
φ12.4*0.025mm
φ12.4*0.05mm
φ18.4*0.02mm
φ18.4*0.025mm
φ12.4*0.025mm
φ12.4*0.05mm
φ18.4*0.02mm
φ18.4*0.025mm
φ18.4*0.05mm
φ50*0.08mm
φ65*0.05mm
φ100*0.1mm
Titanium Diaphragm
Material: Gr1, G2
Working environment: Sodium, Potassium, Ammonium, Seawater; Potassium hydroxide (Concentration less 50%), ammonium hydroxide,
Barium hydrofluoric alkaline solution. hydrochloric acid(Concentration less than 40%)
MOQ: 50 pieces
Working environment: Sodium, Potassium, Ammonium, Seawater; Potassium hydroxide (Concentration less 50%), ammonium hydroxide,
Barium hydrofluoric alkaline solution. hydrochloric acid(Concentration less than 40%)
MOQ: 50 pieces
Hot sale size:
φ58*0.05mm
φ70*0.08mm
φ98*0.1mm
Tantalum Diaphragm
Working enviroment:
Chlorine Dioxide,Ferric Chloride, Hypochlorous acid, Sodium, Cyanide, Acetic acid and the like; oxidizing acids such as nitric
acid(Including fuming nitric acid) and aqua regia at temperature below 80 Celsius
Due to the tantalum material is expensive, so the MOQ of the Tantalum diaphragm is only 50 pieces
Chlorine Dioxide,Ferric Chloride, Hypochlorous acid, Sodium, Cyanide, Acetic acid and the like; oxidizing acids such as nitric
acid(Including fuming nitric acid) and aqua regia at temperature below 80 Celsius
Due to the tantalum material is expensive, so the MOQ of the Tantalum diaphragm is only 50 pieces
HC276 Metal diaphragm
Working enviroment:
Oxidizing, salts such as Fe, Cu, Seawater phosphhoric acid, Organic acid, Choride, Magnesium, Aluminum, Calcium, Ammonium, Iron
and so on
MOQ: 50 Pieces
Oxidizing, salts such as Fe, Cu, Seawater phosphhoric acid, Organic acid, Choride, Magnesium, Aluminum, Calcium, Ammonium, Iron
and so on
MOQ: 50 Pieces
Hot sale size:
φ45*0.05mm
φ28*0.08mm
φ65*0.1mm
Application

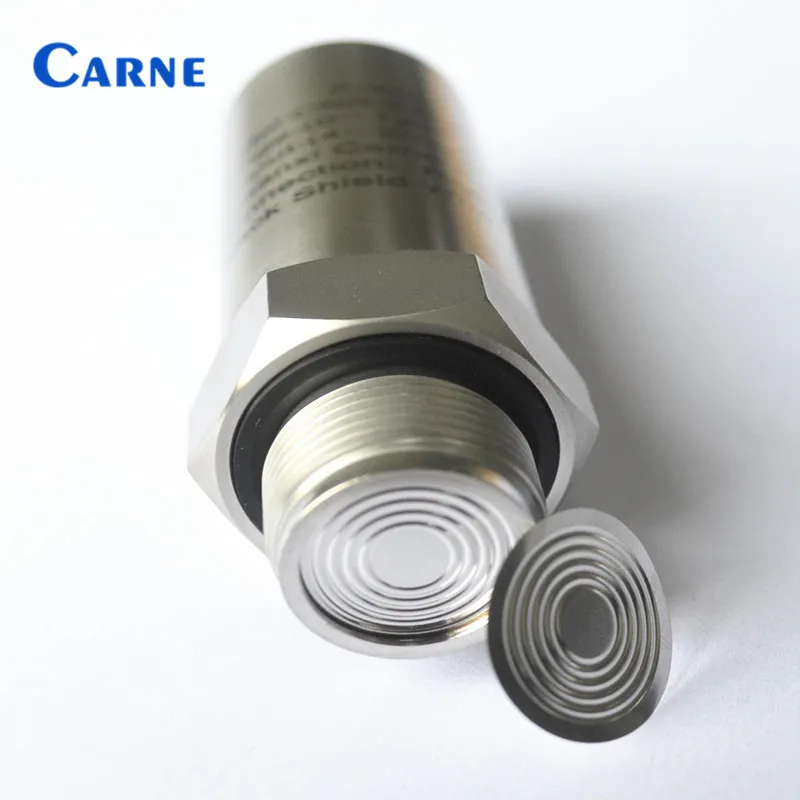

Pressure Transmitter

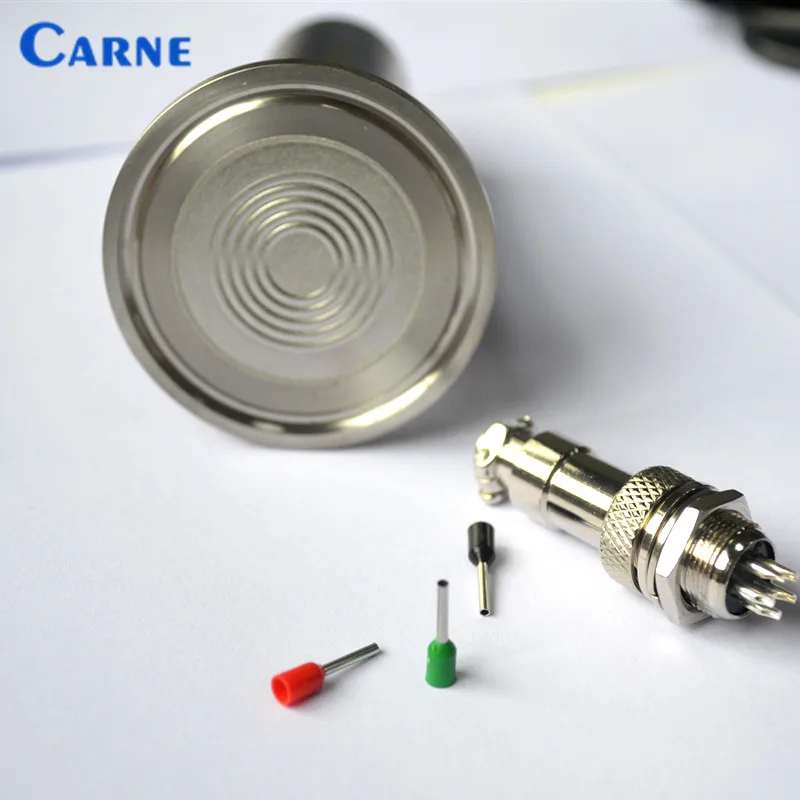

Diaphragm seals
Packing&Shipping

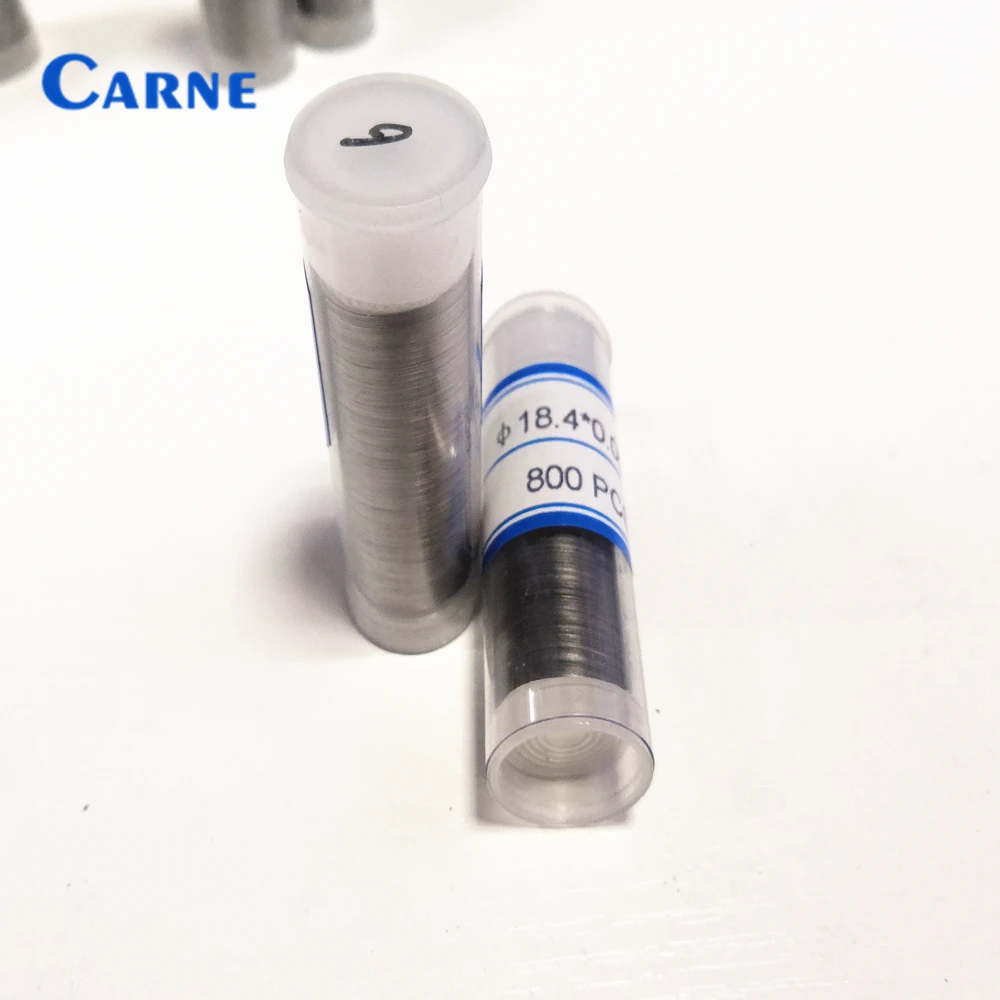

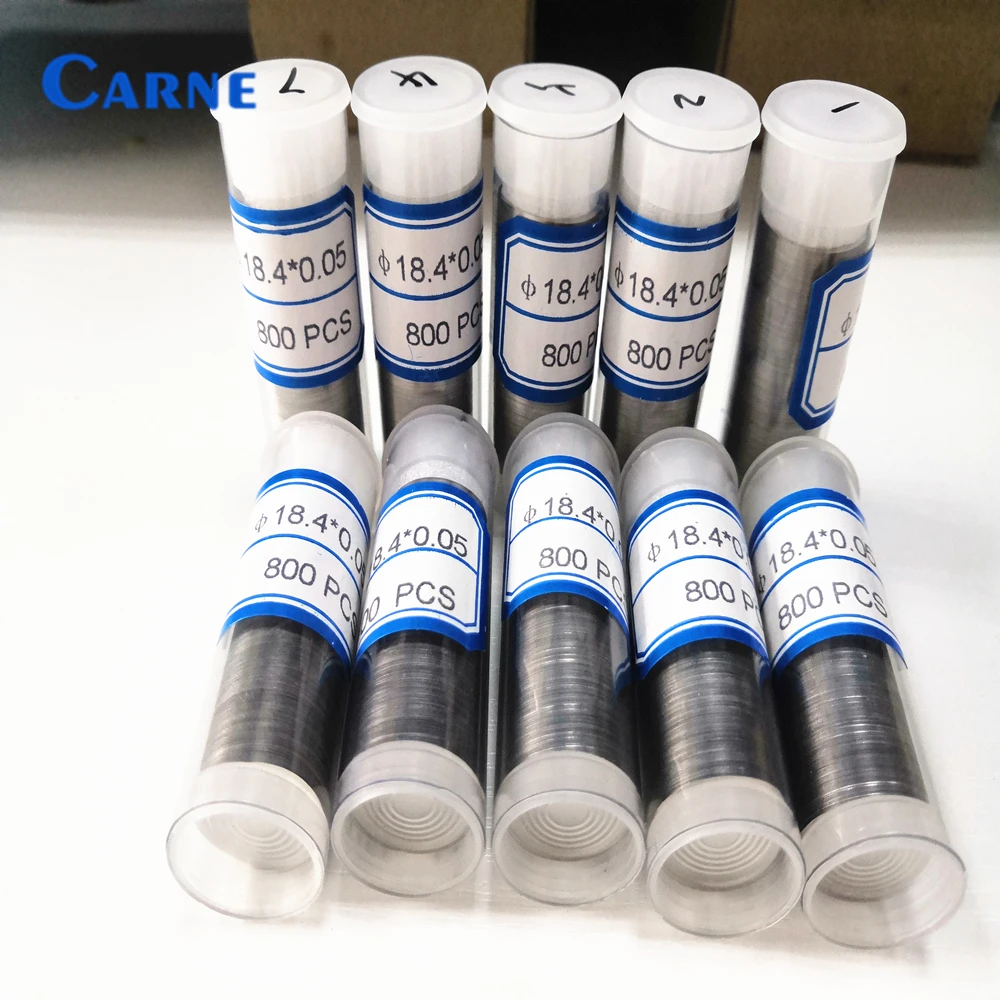

How to package the small size diaphragm
For the diameter ≤18.4mm, we put it in a plastic
pipe, then put it in the carton case full of the high quality foam,then Fully wrapped with yellow waterproof tape
pipe, then put it in the carton case full of the high quality foam,then Fully wrapped with yellow waterproof tape
How to package the bigger size diaphragm
For the Diameter ＞18.4mm, we put it in the
plastic bag,then put it in the carton case full of the high quality foam,then Fully wrapped with yellow waterproof tape
plastic bag,then put it in the carton case full of the high quality foam,then Fully wrapped with yellow waterproof tape
