Product Overview

Description

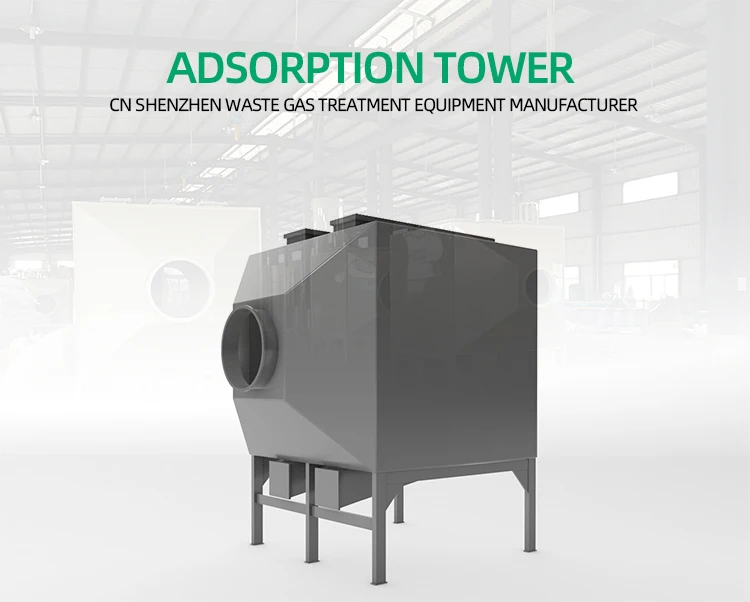

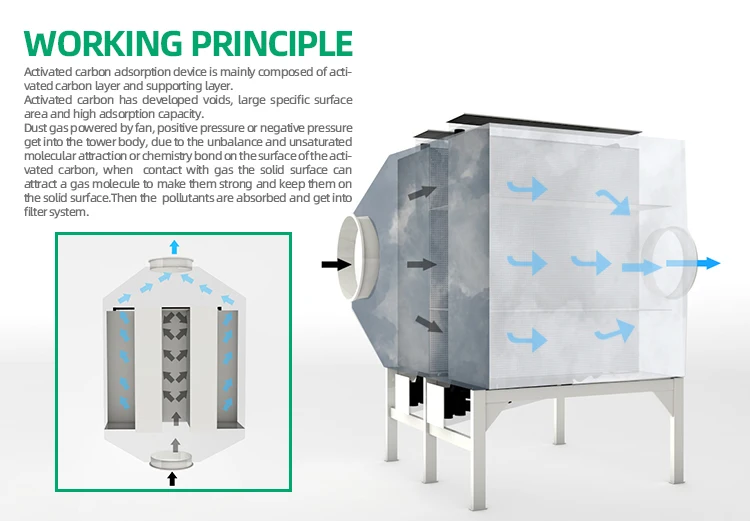

The activated carbon adsorption tower is the best purification equipment for dealing with organic waste gas and odor treatment. Activated carbon adsorption is an effective way to remove the odor of water, natural and synthetic dissolved organic matter, micro polluting substances and so on. Most of the larger organic molecules, aromatic compounds can be firmly adsorbed on the surface or voids of the activated carbon,The results showed that humus, synthetic organic matter and low molecular weight organic matter could be removed effectively .Adsorption of activated carbon as the depth of purification process, often used in the last stage of waste water treatment, but also can be used for producing long water, purified water of life. When the dust particles and more, activated carbon adsorption device can simultaneously and water curtain machine and water spray tower and UV plasma used together to discharge waste gas purification.

Activated carbon tower common specification size
Air volume	Specification	With activated carbon	Thickness	Through area
1500	1400*750*750	125kg	8mm	0.56 (M2)
3000	1500*1000*1000	200kg	8mm	1(M2)
4000	1700*1500*1000	275kg	8mm	1.5 (M2)
5000	1700*1500*1125	300kg	10mm	1.69 (M2)
6000	1950*1500*1125	350kg	10mm	2.14 (M2)
8000	1950*1500*1500	475kg	10mm	2.85 (M2)
10000	2500*1500*1500	600kg	10mm	3.6 (M2)
12000	2700*1500*1500	700kg	10mm	4.2 (M2)
15000	2700*2000*1500	850kg	10mm	5.18 (M2)
18000	3000*2000*1500	1000kg	10mm	6.3 (M2)
20000	3200*2000*1500	1100kg	10mm	6.98(M2)
Activated carbon commonly used specifications are: cylindrical, diameter 4mm.



1. Are you a factory?
--- Yes, we are a professional exhaust gas treatment manufacturer for more than 15 years.
2.How do you check the goods?
--- We inspect all the materials when they arrive, and have sot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
---The parameters above is just for your reference. We need you to provide us the air flow, solvent composition, working hours,etc for our team to design the suitable unit for you.
4.How and when can I get the quotation?
--- Send us the inquiry or leave us message. We will get back to you within 5 minutes during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
--- Usually we accept 100%T/T at present. 50% initial payment,down payment before shipment. Other payment terms can be discussed when order confirmed.
6.Where is your factory Located? How can I visit there?
--- We located in Shengtaian industrial park B,Loucun,Baoan district,Shenzhen, Guangdong Province

7.Do you provide OEM service?
--- Yes! We provide OEM & ODM service.
8.What's the lead time for your goods?
--- Normally 25 workdays. For some special parts, the delivery date will be discussed in detail
