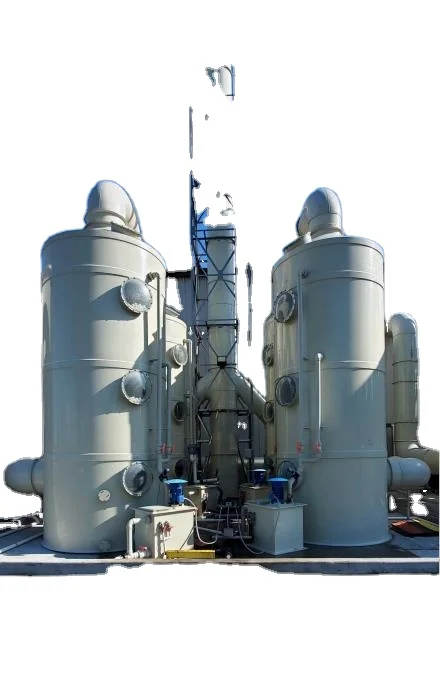

Easy to maintain wet scrubber system for chlorine gas low energy consumption purification tower
- Category: Gas Disposal Machinery >>>
- Supplier: Xicheng Ep Ltd
Share on (1600780375110):
Product Overview
Description
Product Description
1.Working Principle:
Wet scrubbers (also referred to as packed bed or packed column scrubbers) are designed for chemical scrubbing of contaminants from gas streams. Internal packing in the scrubber housing provides a large wetted surface area to induce intimate contact between the contaminated gas and the scrubbing liquid. The contaminant is then absorbed into or reacted with the scrubbing liquid. Recirculation of the scrubbing liquid, which may contain caustic or acid scrubbing agents, is often required to achieve the desired outlet emissions.
Wet scrubbers (also referred to as packed bed or packed column scrubbers) are designed for chemical scrubbing of contaminants from gas streams. Internal packing in the scrubber housing provides a large wetted surface area to induce intimate contact between the contaminated gas and the scrubbing liquid. The contaminant is then absorbed into or reacted with the scrubbing liquid. Recirculation of the scrubbing liquid, which may contain caustic or acid scrubbing agents, is often required to achieve the desired outlet emissions.
Wet packed scrubbers for the removal of corrosive, noxious and odourous gases from airstreams. Designed for high collection efficiency, maximum corrosion resistance. Scrubber design is characterized by low liquid irrigation rates, high volume air flow and low pressure drop.
2. The equipment features:
1. The equipment is applicable to continuous and intermittent exhaust waste gas treatment.
2. The equipment features:
1. The equipment is applicable to continuous and intermittent exhaust waste gas treatment.
2. It can purify various of pollutants at the same time, and has good defogging performance.
3. The packing adopts high efficiency and low resistance environmental protection ball, it can thoroughly remove the odors and harmful substances in the gas.
4.Material: The whole body of the tower adopts brand-new PP board, which has the advantages of anti-corrosion, anti-aging, anti-ultraviolet and so on. Suitable for a variety of work environments.
5.Configuration: The vertical anticorrosion pump in the spray tank inside the tower body can be idled, no dry burning, no leakage and easy to maintain. The auxiliary water tank is controlled by floating ball, automatic water feeding and no manual maintenance
3.Uses of Wet Packed Scrubbers
1.Chemical Plants for noxios gas control
2.Waste water treatment plants for odour control
3.Rendering plants for odour control
4.Tanneries for hydrogen sulphide control
5.Pulp & Paper plants for noxious gas control
6.Particle Board plants for formaldehyde control
7.Food processing plants for odour control
3.Uses of Wet Packed Scrubbers
1.Chemical Plants for noxios gas control
2.Waste water treatment plants for odour control
3.Rendering plants for odour control
4.Tanneries for hydrogen sulphide control
5.Pulp & Paper plants for noxious gas control
6.Particle Board plants for formaldehyde control
7.Food processing plants for odour control
Sweet type
1. About product customization: We can customize the processing according to customer requirements.
2. About engineering installation: We can arrange professional engineers to conduct on-the-spot investigations, give professional
solutions, and arrange professional engineering teams to go to the site for installation and construction.
3. About after-sales: Our equipment will have a one-year shelf life, we can provide repair and replacement.
2. About engineering installation: We can arrange professional engineers to conduct on-the-spot investigations, give professional
solutions, and arrange professional engineering teams to go to the site for installation and construction.
3. About after-sales: Our equipment will have a one-year shelf life, we can provide repair and replacement.
Gas purification rate
The name of gas | Molecular formula | The kind of cleaning mixture | Removal rate |
Hydrochloric acid | HCl | H2O | 90~95% |
NaOH | 95~99% | ||
Hydrofluoric acid | HF | H20 | 90~95% |
NaOH | 95~99% | ||
Annonia gas | NH3 | H2O | 90~95% |
H2SO4 | >99% | ||
Cyanic acid | HCN | NaOH | 90~98% |
Sulfur dioxide | SO2 | NaOH | >95~99% |
Chlorine | Cl2 | NaOH | >95~99% |
Hydrogen sulfide | H2S | NaOH | 95~99% |
Sulfuric acid | H2SO4 | H2O | >95~99% |
Chromic acid | CrO3 | H2O | 95~99% |
Sodium hydroxide | NaOH | H2O | 95~99% |
Nitric acid | HNO3 | H2O | 90~99% |
Product Paramenters
Air volume(M3/H) | Size (mm) | THK (mm) | Drain outlet(mm) | Water tank size (mm) | Inlet and outlet size (mm) | Pump (kw) | Wind resistance (Pa) |
200-4000 | 800 | 8 | DN63 | 700*550*H600 | 315 | 0.75 | 500 |
4000-5500 | 1000 | 8 | DN63 | 750*600*H600 | 400 | 1.1 | 500 |
5500-8000 | 1200 | 8 | DN63 | 750*600*H600 | 500 | 1.5 | 500 |
8000-12000 | 1500 | 8 | DN63 | 750*600*H600 | 600 | 2.2 | 500 |
12000-17000 | 1800 | 10 | DN63 | 850*600*H700 | 650 | 3 | 500 |
17000-21000 | 2000 | 10 | DN63 | 850*600*H700 | 700 | 4 | 500 |
21000-25000 | 2200 | 10 | DN63 | 950*600*H700 | 750 | 4 | 600 |
25000-32000 | 2500 | 12 | DN63 | 950*600*H700 | 800 | 5.5 | 600 |
32000-40000 | 2800 | 12 | DN63 | 1000*700*H700 | 900 | 7.5 | 600 |
40000-48000 | 3000 | 12 | DN63 | 1000*700*H700 | 1000 | 7.5 | 600 |
This form is a common size and we can customize different sizes and requirements according to your needs.
Certificate and test report
Company Profile
XICHENG,EP LTD. is located in Guangming District, Shenzhen. It is an environmental protection equipment manufacturer integrating technology research and development, equipment manufacturing, product sales and after-sales service. Our company which has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and various accessories. Our company has an excellent team with advanced service concept. We are committed to provide quality products and services to our customers in scientific management mode.
Exhibition
FAQ
1. Q. Are you a trading company or manufacture?
A: We are manufacture; we have our professional manufacturing teams and technicians
2. Q. How long is the warranty of your equipment?
A: One year warranty, in the meanwhile, quality inspection before delivery; during the warranty period, we can replace the
damaged consumables for free, after the warranty period, we have a good price for consumables for our customers.
3. Q: Do you have technical support?
A: Our Company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.
4. Q: Is overseas after-sales service available?
A: Yes, and after installation we will teach you basic operation and maintenance method.
5. Q: May I customize my own equipment?
A: Yes, please inform us your needs in details and we will design the facility per your data.
A: We are manufacture; we have our professional manufacturing teams and technicians
2. Q. How long is the warranty of your equipment?
A: One year warranty, in the meanwhile, quality inspection before delivery; during the warranty period, we can replace the
damaged consumables for free, after the warranty period, we have a good price for consumables for our customers.
3. Q: Do you have technical support?
A: Our Company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.
4. Q: Is overseas after-sales service available?
A: Yes, and after installation we will teach you basic operation and maintenance method.
5. Q: May I customize my own equipment?
A: Yes, please inform us your needs in details and we will design the facility per your data.
