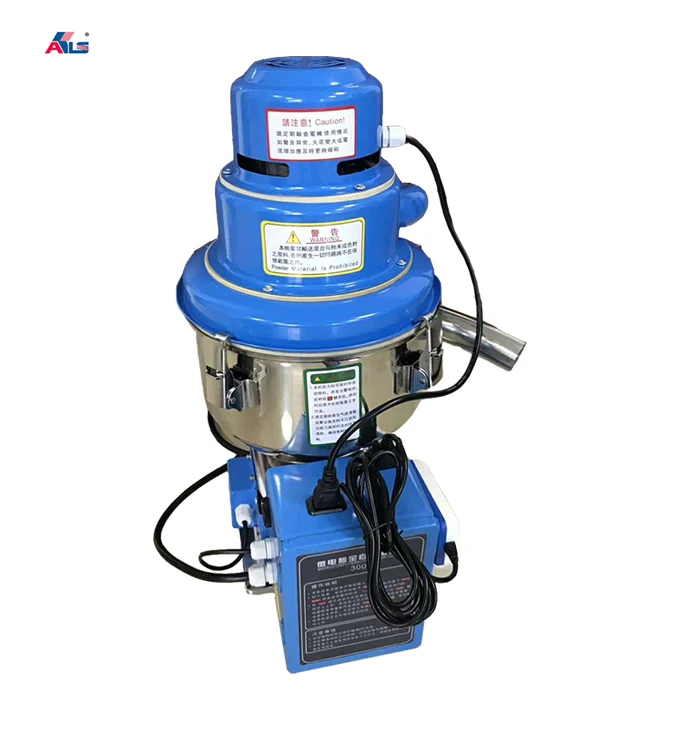

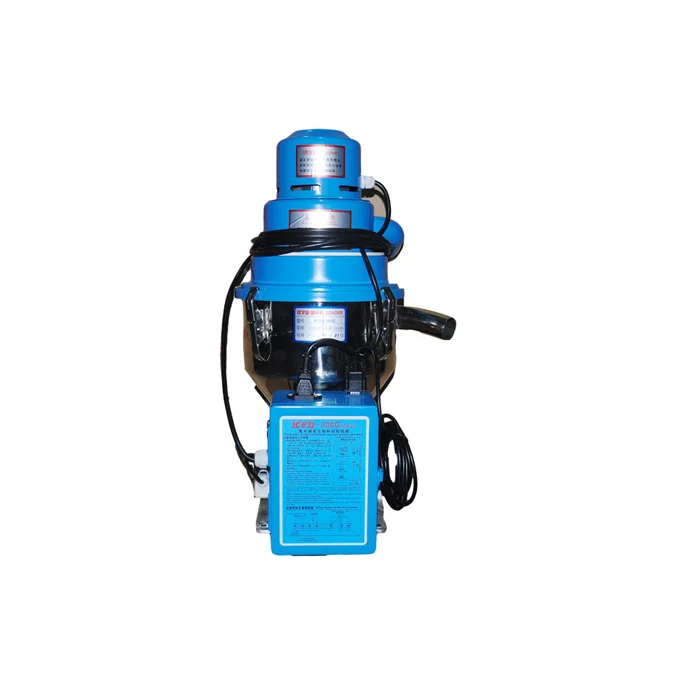

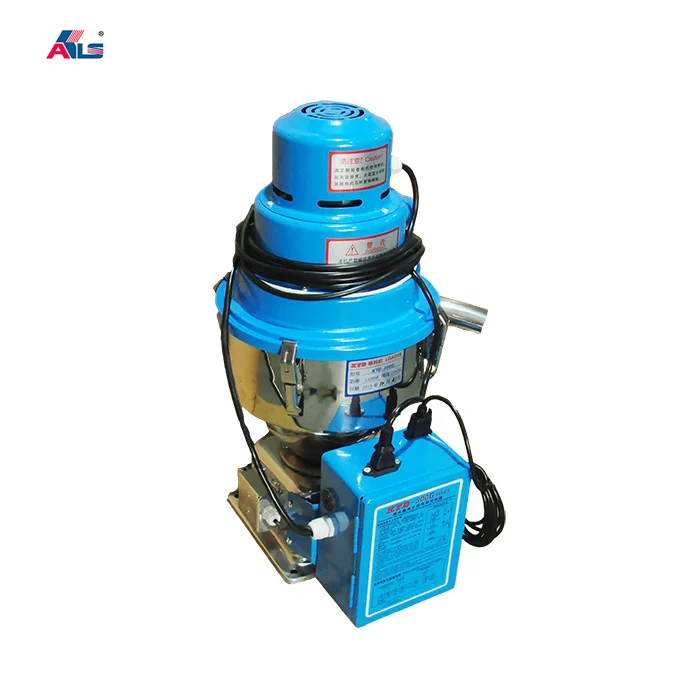

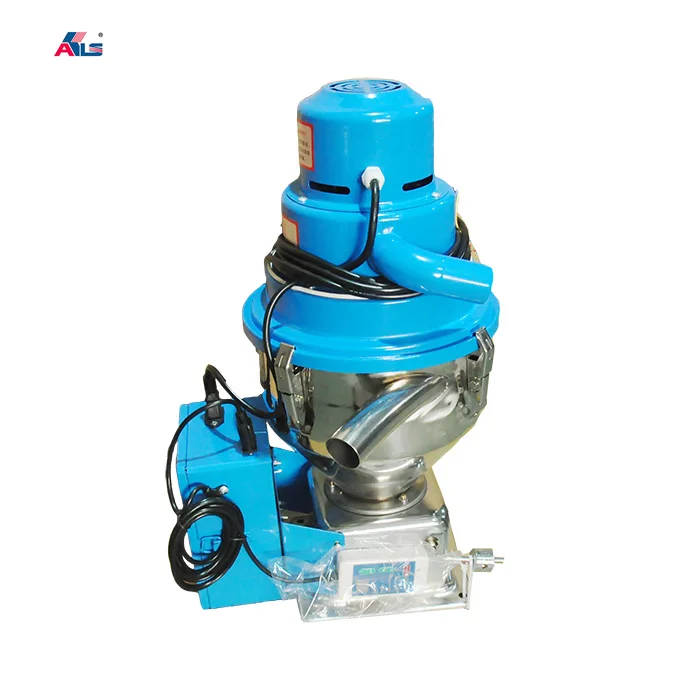

Efficient Cost 300G Plastic Pellets Auto Vacuum Hopper Loader
- Category: Plastic Raw Material Machinery >>>
- Supplier: Dongguan Excellence Technology Co. Ltd.
Share on (1600087539714):
Product Overview
Description
AL-300G | AL-700G | AL-800G | AL-900G |
AL series full automatic vacuum hopper loader is widely used in the raw material conveying of injection molding machines, extruders and other plastic processing industry.
There are two kind of structure - integral type and seperation type with totally 5 models: AL-300G.AL-400G,AL-700G,AL-800G and AL-900g
Entire models adopt PLC control, making sure high quality and run reliable and durable
Entire models adopt PLC control, making sure high quality and run reliable and durable
Specification
Model | Motor | Conveying ability | Lift | Hopper volume | Diameter of pipe | Size | Weight | ||||
Type | Specification | Machine | Package | ||||||||
AL-300G | Carbon brush | 220v/3Φ 1.5hp | 350kg/h | 4m | 7.5L | Φ38 | 206*330*545 | 370*360*640 | 14kg | ||
AL-400G | Induction | 380v/3Φ 1hp | 400kg/h | 4m | 7.5L | Φ38 | 206*330*670 | 430*440*730 | 26kg | ||
AL-700G | Carbon brush | 220v/3Φ 1.5hp | 400kg/h | 4m | 7.5L | Φ38 | 365*295*540 | 700*340*580 | 25kg | ||
AL-800G1 | Induction | 380v/3Φ 1hp | 400kg/h | 4m | 7.5L | Φ38 | 445*375*625 | 740*410*710 | 47kg | ||
AL-800G2 | Induction | 380v/3Φ 1.5hp | 550kg/h | 4m | 7.5L | Φ38 | 445*375*625 | 740*410*710 | 51kg | ||
AL-800G3 | Induction | 380v/3Φ 2hp | 700kg/h | 5m | 7.5L | Φ38 | 445*375*625 | 740*410*710 | 53kg | ||
AL-900G1 | Induction | 380v/3Φ 1hp | 400kg/h | 4m | 7.5L | Φ38 | 420*470*1080 | 480*520*1200 | 55kg | ||
AL-900G2 | Induction | 380v/3Φ 1hp | 550kg/h | 4m | 7.5L | Φ38 | 420*470*1080 | 420*470*1080 | 60kg | ||
AL-900G3 | Induction | 380v/3Φ 1hp | 700kg/h | 5m | 7.5L | Φ38 | 420*470*1080 | 480*520*1200 | 65kg | ||
AL-300G adopts high speed motor, low noise as well as strong suction, suitable for conveying original material.

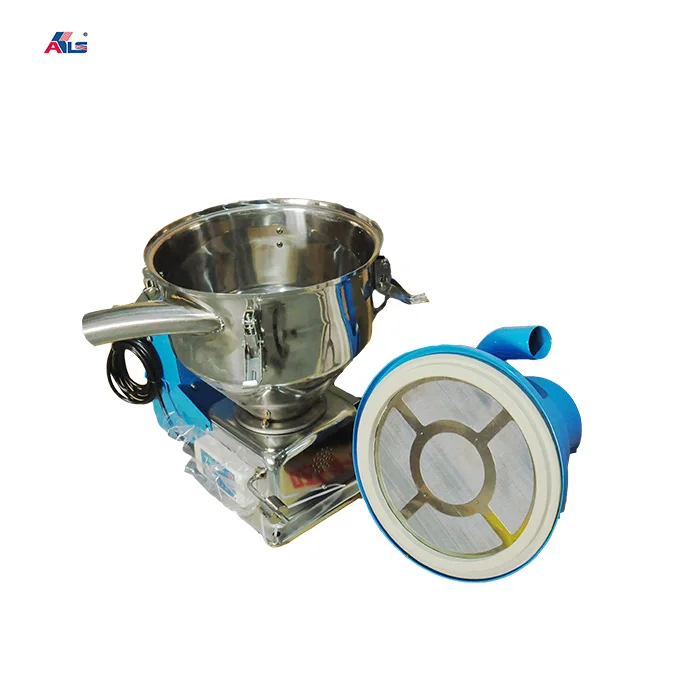

The dense cloth filter screen can filter even though tiny dust and powder, provide the motor constant and long pretection
Open structure, easy to operate and clean, stainless steel material prevent from get rusty, last lifetime.
Accesory | ||
1 | loader 1 pc | |
2 | 3m Hose 1pc | |
3 | 60cm SS pipe 1pc | |
4 | Bag for exhaust 1pc | |
5 | Gasket 1pc | |
6 | Manual 1pc | |
