GI 600 1200 stainless steel leather machine tannery drum hide tan machine

Product Overview

Description

PRODUCT DESCRIPTION

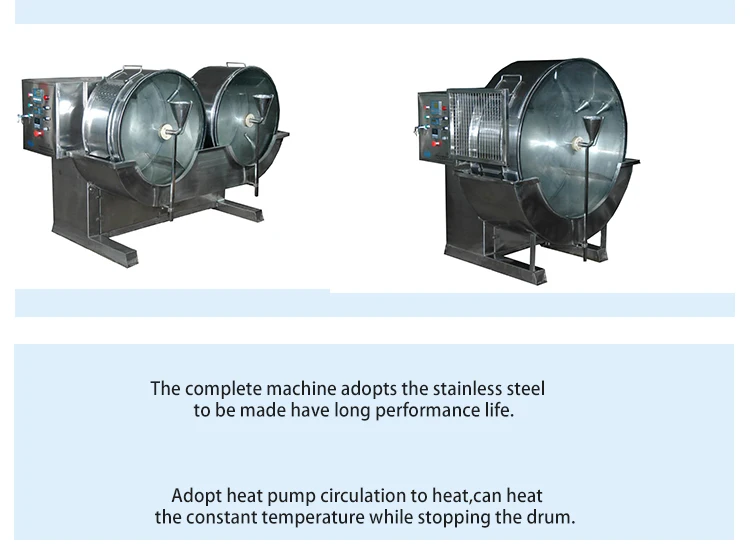

u The complete machine adopts the stainless steel to be made,have long performance life.

u Adopt heat pump circulation to heat,can heat the constant temperature while stopping the drum.

u Infinitely variable speeds,the speed of speed is adjustable.

u Heat automatically,constant temperature,correct temperature control.

u Set up the electricity and heat, the steam is heated(users choose).

u Brand-new opening type drum door,easy to operate quickly.

u It can work normally under very small liquid ratio and no liquid

u Heat the liquid separated from liquid in the drum and washing completely, not having incomplete liquid and waste residue.

u Electrical machinery, electricity are heated the tube has long performance life.

u Set up working time total timing, positive and negative to can rotate folk prescription to rotate timing have.

u There are systems of working at night, can control temperature while spending the night in the leather liquid,rotate,make drum for stir,dye even preventing because hide from park drum is it keep line and low-temperature appear color person who spend abnormal situation under the situation to extrude for a long time in time regularly.





TECHNICAL PARAMETER



Model	GI -600	GI -801	GI -1001	GI -1201	GI -1400	GI -1500	GI -1600
Size	Φ600×300	Φ800×400	Φ1000×500	Φ1200×500	Φ1400×600	Φ1500×600	Φ1600×600
Loading capacity(KG)	10	20	40	60	80	90	90
Drumspeed(n/t)	0-30	0-25	0-25	0-25	0-25	0-25	0-25
Temperature rage regulated	0-70 ℃±1℃	0-70 ℃±1℃	0-70 ℃±1℃	0-70 ℃±1℃	0-70 ℃±1℃	0-70 ℃±1℃	0-70 ℃±1℃
Motor power(Kw)	3.7	5.5	5.5	6.2	12	12	12
Weight(Kg)	320	520	550	670	700	720	750
