Оборудование для дубильной промышленности D2.5M by 2M, топливный деревянный барабан для кожи/барабан для окрашивания кожи/деревянный грезер (60283497006)

Share on:


Price:99,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Φ2500X2000mm wooden overloading drum configuration form



















































































































The Specification(mm)



Φ2500X2000mm wooden overloading retanning & tanning drum



Loading capacity



For retanning and dyeing, load about 1 ton leather



Drum body



Wood Material



Imported Ekki from Africa



Plate thickness(plank)



70mm, 1400kg/m3



Wood Guarantee



15 years



 Drum’s door



Material and style of the door



AISI 316L Stainless steel traversing gate, screw is AISI 316L stainless steel



Dimension of the door



Size of the door 500x500



Gearwheel



Diameter



Φ2000mm,M12



Material



standard cast-steel ,integrated casting with main spindle



Guarantee



All use life except normal abrasion



Spider/star



Diameter



Φ1200mm



Material



standard cast-steel ,integrated casting with main spindle



Guarantee



All use life except normal abrasion



Drum Revolution speed



9rpm,single speed,


Customer need confirm drum speed



Motor



18.5kw


Customer need confirm voltage and frequency



Gear box



Hard-surface gear,160 style Specially used in drum ,and provide pneumatic brake


Customer need inform the gear box direction, it means it’s on left or right side when person faces drum standing on the ground.



Pinion of gear box



Wear-resistant alloy steel pinion



Main spindle and the bearing



Main spindleZG45#,provide 3532 self-aligning bearing



Drain valve



All Material of drain valve are AISI 316L stainless steel, draining one side , 3 valves



Vent valve



Venting one side,3 valves, AISI 316L stainless steel



Outside drum



HoopsΦ20x8, hot galvanization, Material are 45# steel .



Drainage banana



1 PP material drainage bananas



Inside drum Shelf



 3 Huge diagonal inclined shelves, I-stainless steel frame



Rotating joint



Combine with stainless steel and bronze



Inside Screws touched leather



Except PP nylon cap for gearwheel and star, other touched leather screws are AISI 316L stainless steel material



Electrical control cabinet



Every drum has a cabinet with functions of forward and reverse starting, crawl, controlling total working time, reduced voltage starting and brake lag.







 drum in customer 8.jpgIMG_0751.JPG3.jpgIMG_0242.jpgIMG_4258.JPG

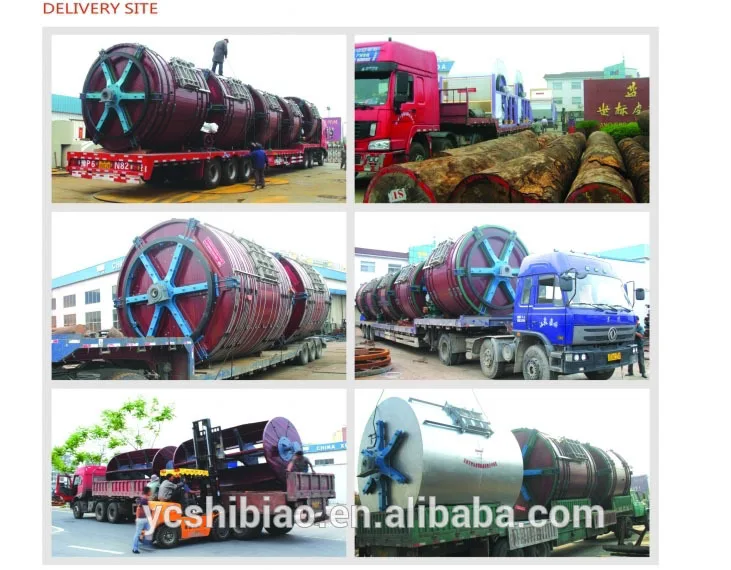

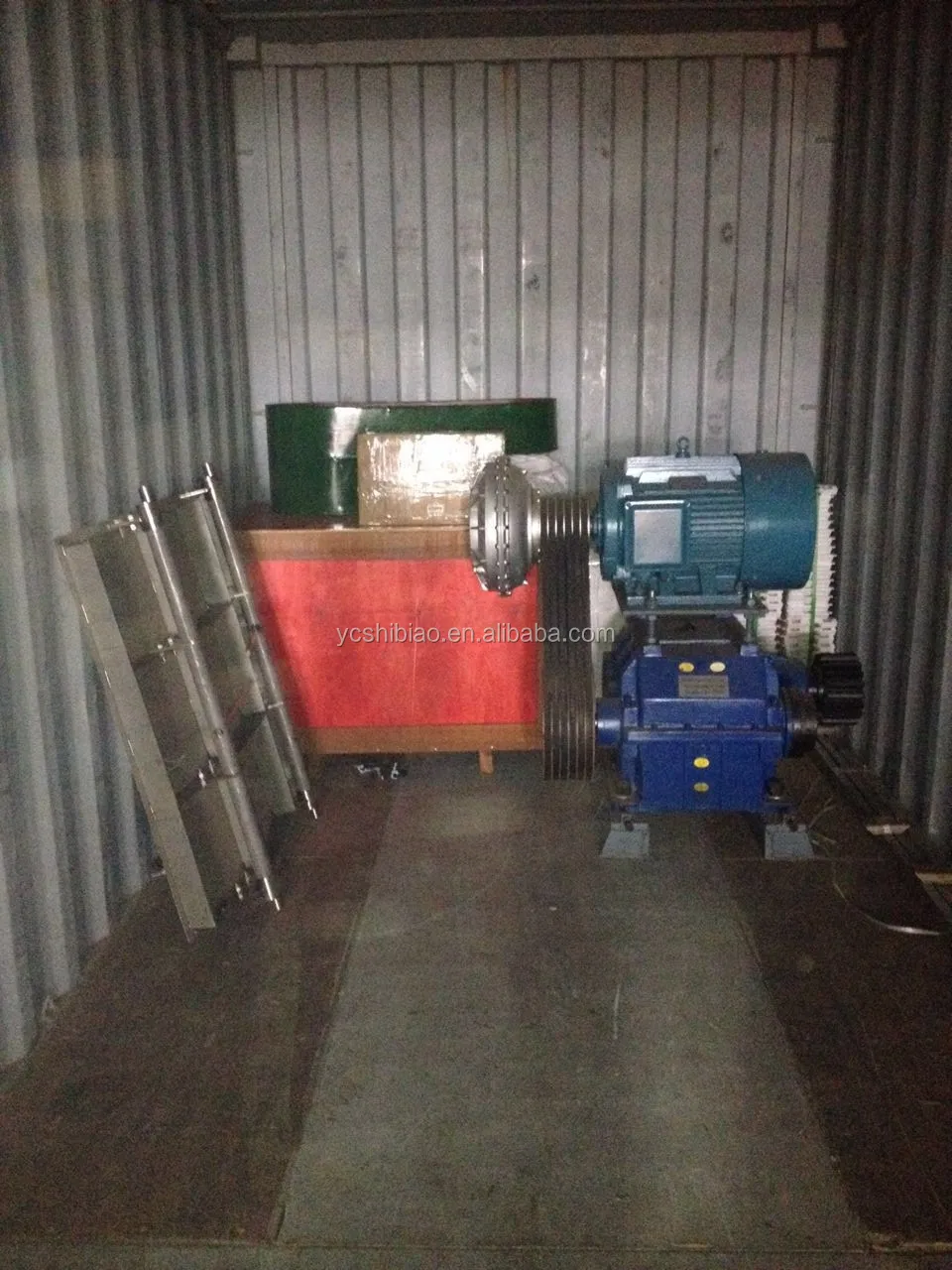

Packaging & Shipping


 6.jpg1 (1).jpg















Our Services


1. )Warranty:
Engineers available to serive All of our leather wooden drums overseas.


During the guaranteed period, any of the parts could be replaced upon receipt of your photos for proof.
1. The wooden  frame 15 years
2. grear reducer:5 years
3. gearwheel/spider:all use life except normal abrasion
4. The whole machine:1 year except normail abrasion


5. 24 hours online service, 24 hours on call


6. LC available, MOQ 1 PC.
7. Help you supervise all the manufacture step, and take photos for you.
8. Delivery fast and on time.


9.Supply some parts for free.


10.All of ourleather wooden drums reaches international standard, we get the certificate like SGS, etc.


11.Competitive price, the more drums you order, the better price we will afford.








Company Information




Our company provides GJOB1-2 series impendent iron, wooden drums, GJOF series full-automatic stainless steel cylinder, octagonal milling drums, HC series paddles, and many other leather machinery products all the year round. Our Products are sold well in Zhejiang, Shandong, Guangdong, Fujian, Henan, Hebei, Sichuan, Xinjiang, Liaoning, and other areas. They are popular with many leather factories all over the country. Our products have been successively passed provincial tests and the test conducted by National Leather & Shoe Machinery Quality Testing and Supervision Center. They were awarded the Silver Prize on China High- and New- Technology & New- Products Exhibition in year of 2005. Our product parts, steel-cored nylon-plastic drum posts, have obtained national patent right. At the same time, our company provides many services including design of leather machinery with special specifications, repair and adjustment of equipment, and technical reform. We have established complete testing system and reliable after-sale services.
