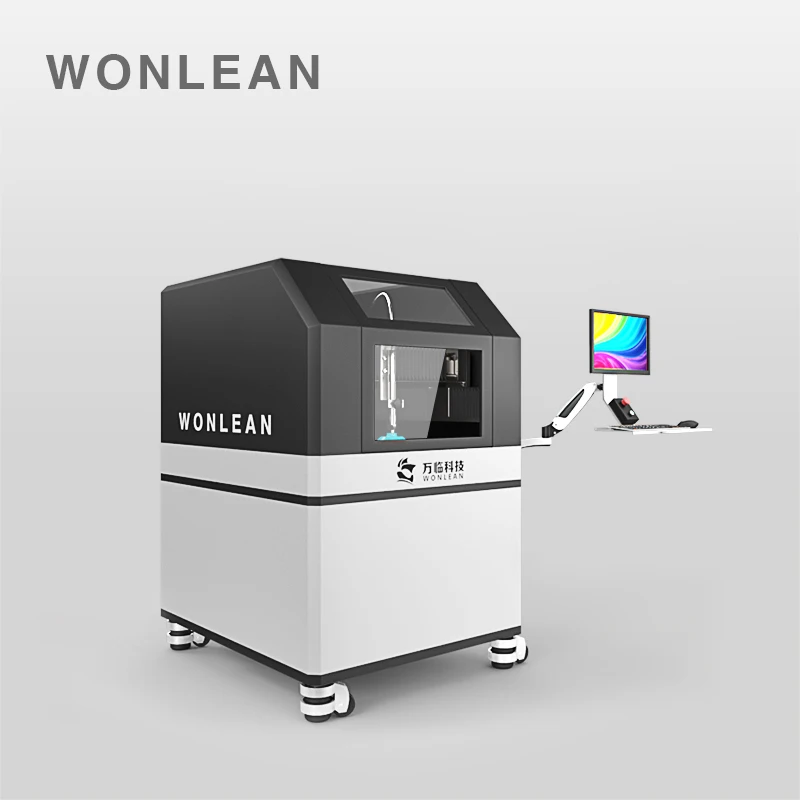

mini cnc fully enclosed ceramic tile water jet cutting system abrasive water jet cutter
- Category: >>>
- Supplier: Liaoning Wanlin Technology Co. Ltd.
Share on (1600091079483):
Product Overview
Description
Waterjet Cutting Machine for glass, metal, stone and rubber, plastic, etc.
Product Description
15 Years Experience

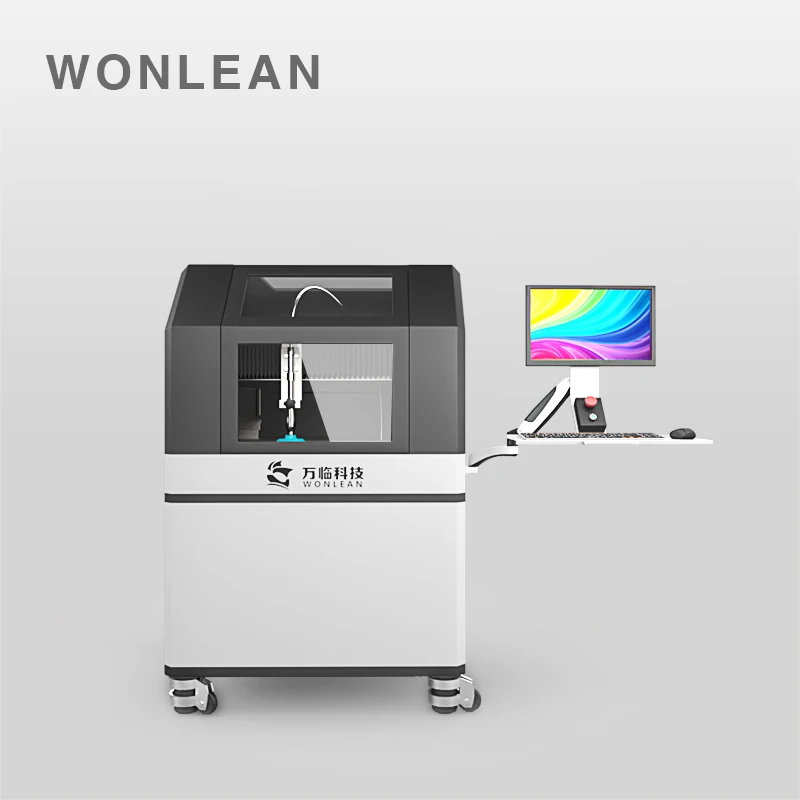

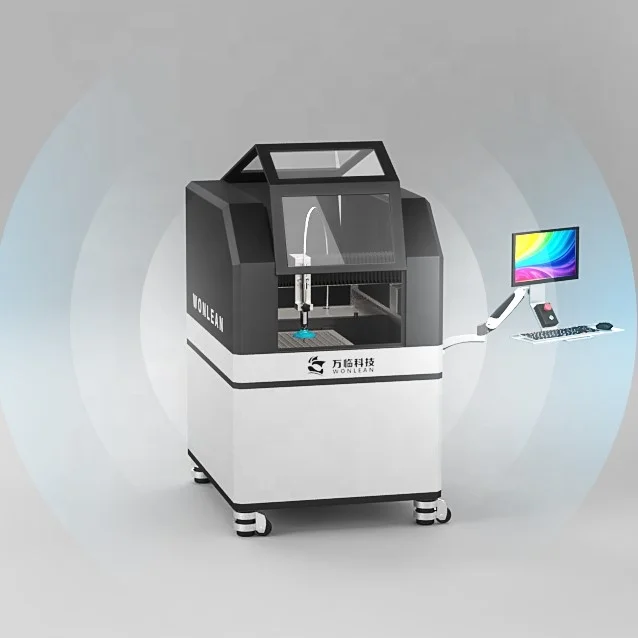

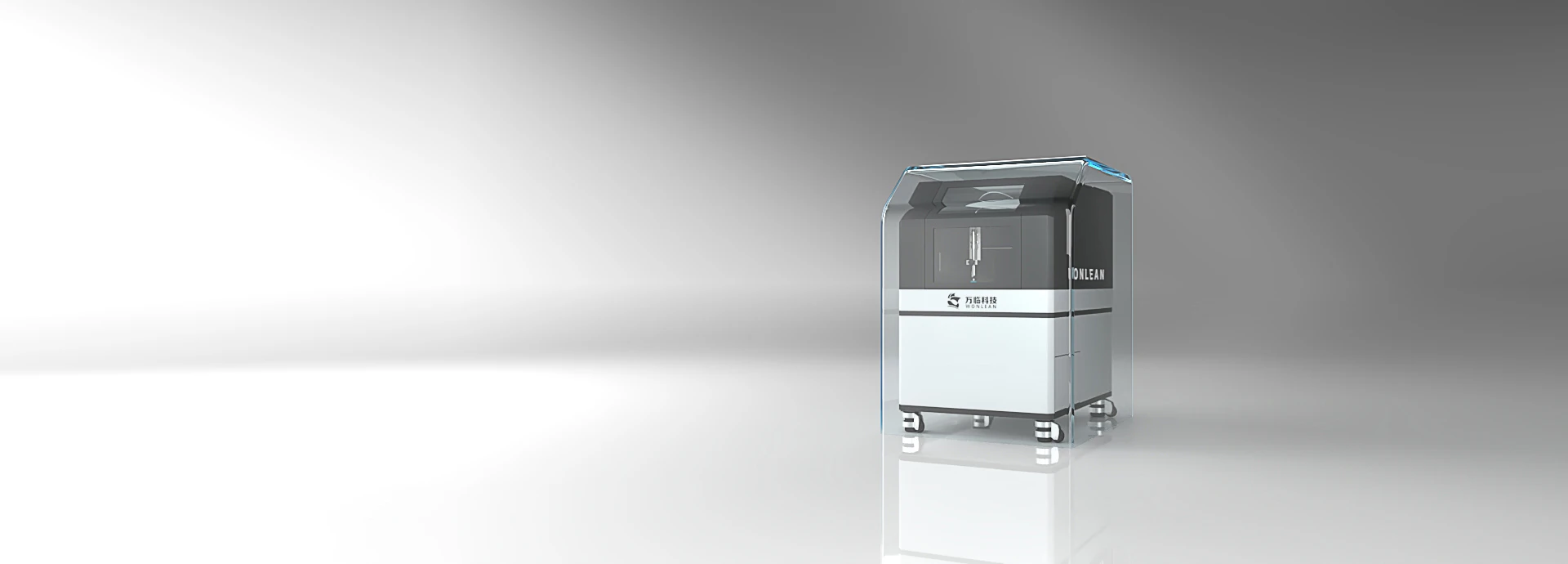

FULLY ENCLOSED MINI CNC WATERJET
CUTTING MACHINE
✔Support non-standard customization
✔Provide free sample trial cutting service for you
15 years of practice creates classic
Wonlean new product fully enclosed CNC waterjet cutting machine

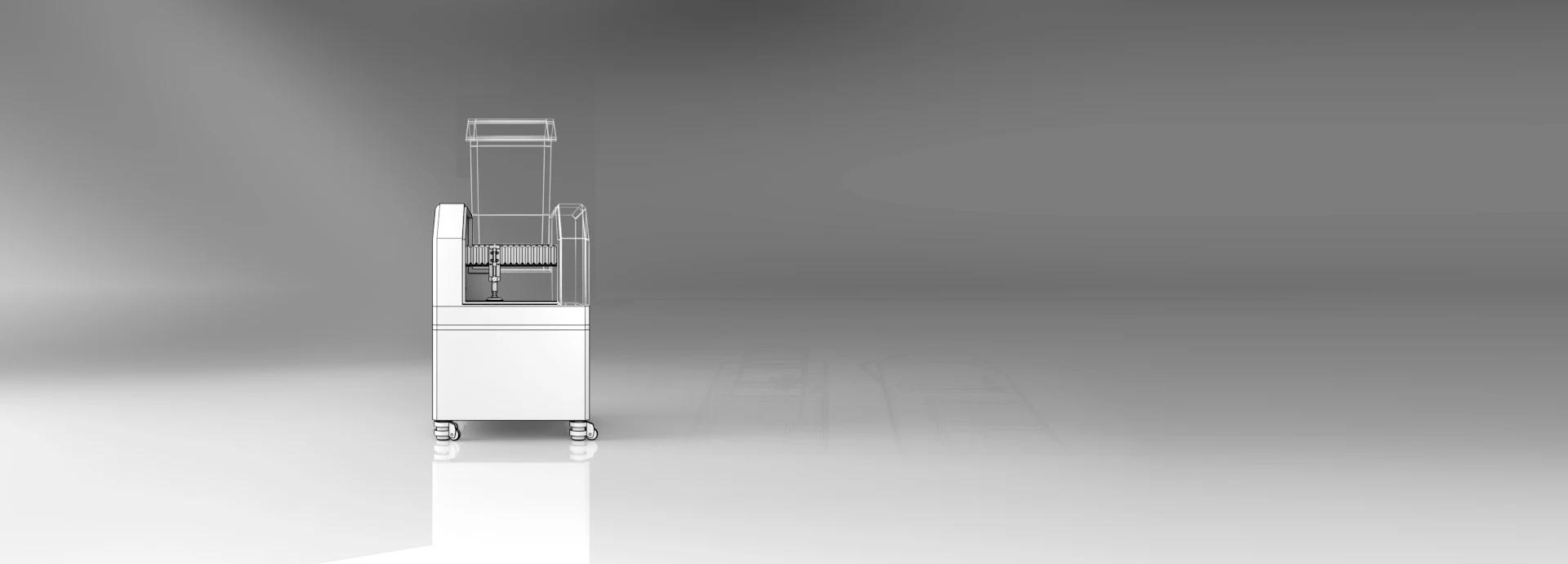

It integrates CNC Controller and Sand Feeder as one of the fully enclosed cutting table, which is of compact structure design and makes the floor space smaller.

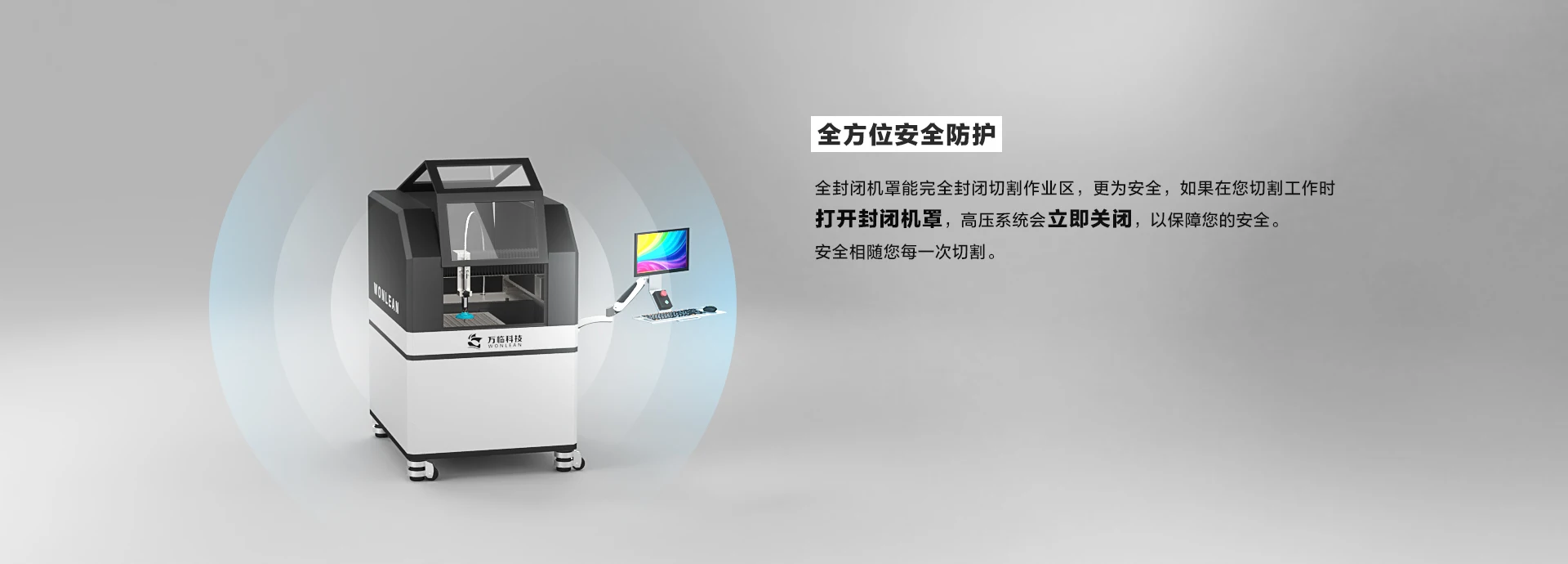

✔The fully sealed structure can completely prevent the splashing of abrasive and water and reduce the impact of noise on the
environment during cutting.✔Cancel the external start-up of sand supply tank and integrate the built-in sand supply drawer, which is convenient to add
abrasive.
✔Equipped with large size observation window can observe the cutting state in time.
Intelligent lubrication system
It is equipped with intelligent lubricating oil pump to deliver lubricating oil to every corner of the transmission system, with intermittent control up to 0.01 seconds.
Greatly avoid the wear of waste sand on the transmission system while lubricating.
Greatly avoid the wear of waste sand on the transmission system while lubricating.
Intelligent variable pressurization system
Equipped with a variable oil pump and an intelligent variable high pressure system composed of four imported valve bodies, which can intelligently adjust the amount of oil according to the pressure requirements and has high cutting efficiency, better oil temperature control and more energy-saving, so that each pressurization is just right.
Intelligent identification and one-touch processing
Identify CAD E-drawings, automatically generate cutting path and access parameters, reduce manual coding and repeated operations, simple operation, improve production capacity.
Support customization
We can design the bed according to your workpiece size, and only the most suitable one is the best.
Tilting compensation system
Through the dynamic compensation of the intelligent five axis software and two Japanese Yaskawa servo motors, the "V"shaped incision of the waterjet is accurately compensated to make the cutting incision vertical up and down or achieve bevel cutting
within 8 degrees.
The main components adopt internationally renowned brands
World-leading quality accomplishes the WONLEAN classic
High pressure system specifications | ||||||
Model | WL30018Z | WL38030Z | WL42037Z | |||
Max. Pressure | 300Mpa | 380Mpa | 420Mpa | |||
Continuous working pressure | 260Mpa | 340Mpa | 380Mpa | |||
Power | 18KW | 30KW | 37KW | |||
Maximum water flow | 3.7L/min | 3.7L/min | 3.7L/min | |||
Maximum nozzle diameter | 0.33mm | 0.33mm | 0.33mm | |||
Working power supply | 380V/50HZ | |||||
Why Choose Us
Company Profile
ABOUT US
Liaoning Wonlean Technology Co., Ltd. is a high-tech enterprise specializing in the development and application of ultra-high pressure water jet technology. Our products have won all praise from our customers by advanced technology and reliable performance. In the production line of Wonlean, we have a variety of advanced mechanical processing equipment and more than 100 people with rich experience in professional production team. Wonlean Technology will be your side of the water cutting experts and we will provide you with professional waterjet cutting solutions.
Service
Packing and Delivery
Delivery Time | 30days |
Payment Term | T/T,30% in advance ,70% before shipment(negotiable) |
Packaging details | Normal packaging is container. We can also according to the special requirements of customers for packaging |
port | Dalian |
Validity | 45 days from the date we offered validity |
FAQ
Q: What is the advantage of water jet cutting machine?
A :Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.
Q: How to choose the cutting table?
A:You need to offer the size of the materials you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate?
A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
Application and advantages of waterjet cutting:
Waterjet Cutting Machine is an effective tool for any shape of artistic creation. The traditional cutting method is saw cutting only in a row. When cutting the curves, the model should be made according to the size and then polished. Waterjet Cutting Machine can cut any shape of models under the control of the CNC program.
1. Smooth cutting quality is perfect.
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and water jet cutting can also make very complex puzzles and murals.
3. Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.

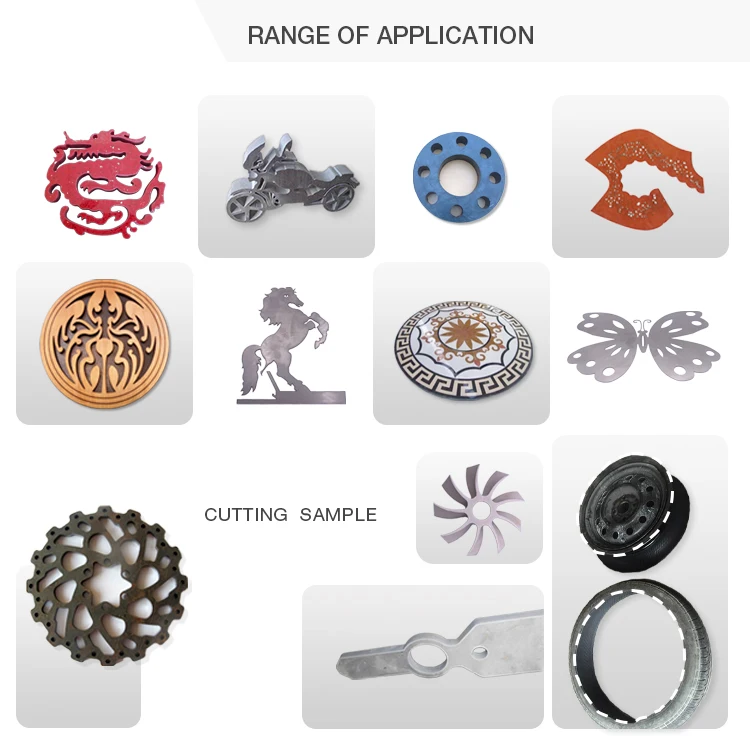

8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble, glass, etc.
1. Smooth cutting quality is perfect.
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and water jet cutting can also make very complex puzzles and murals.
3. Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.
8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble, glass, etc.
