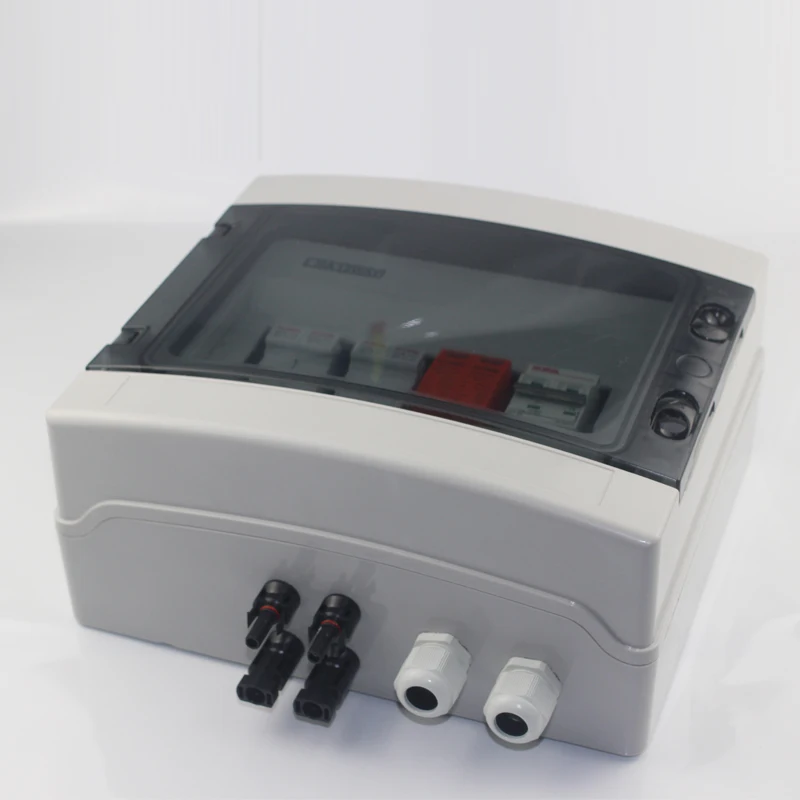

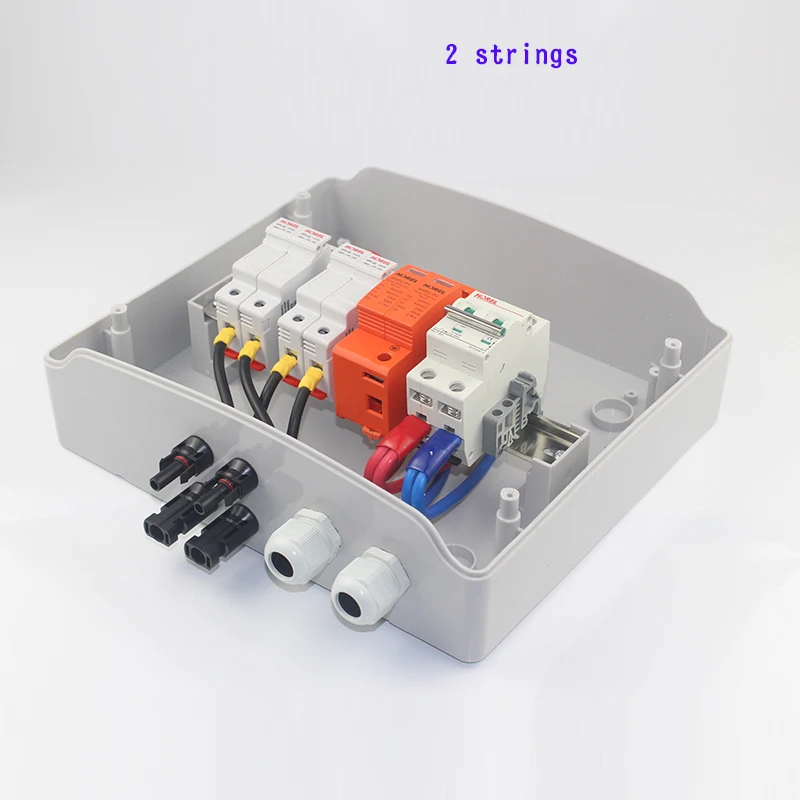

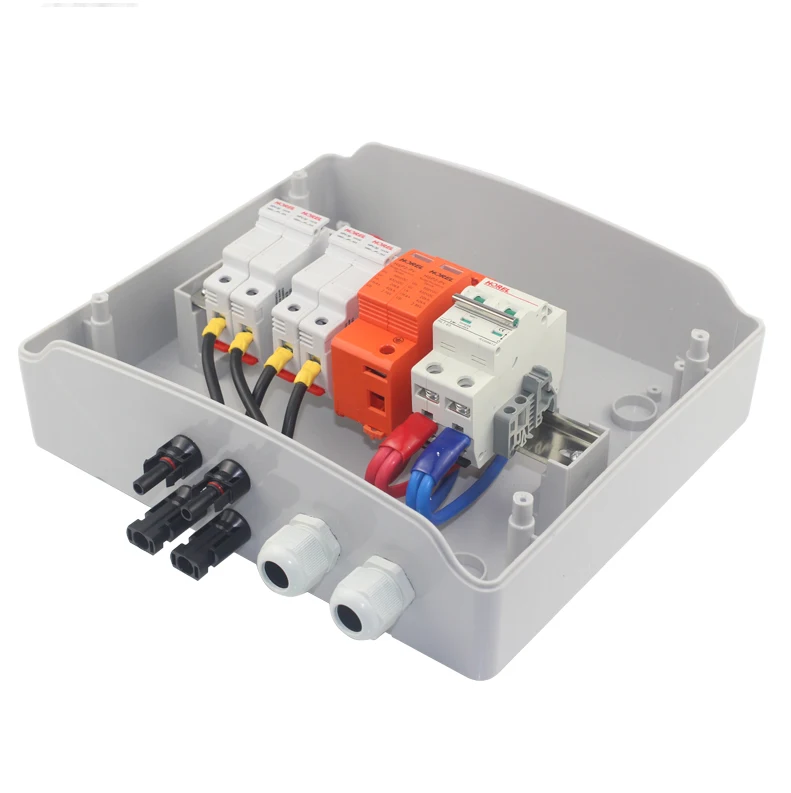

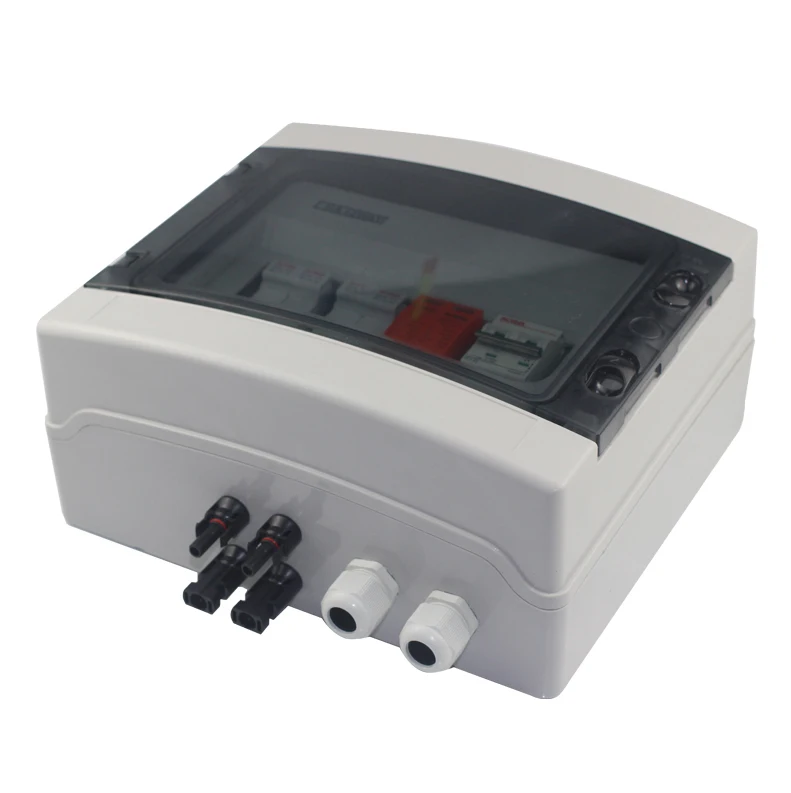

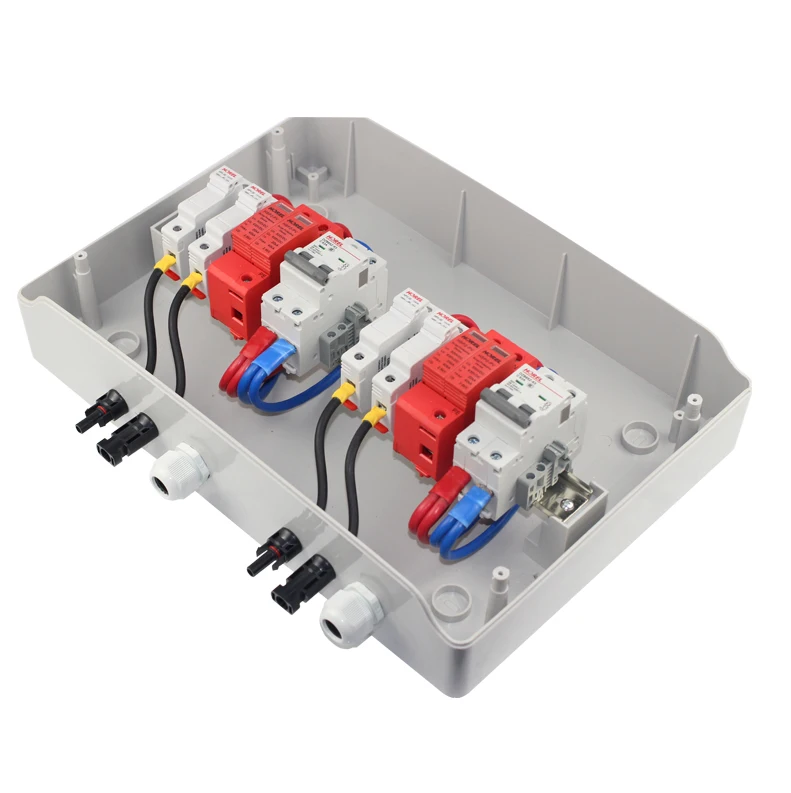

Фотогальваническая параллельная сетчатая Коробка постоянного тока распределительная коробка распределения солнечной энергии комбайнер коробка
- Category: Solar Related Products >>>
- Supplier: Yueqing Lanpu Electrical Co. Ltd.
Share on (1600094608228):
Product Overview
Description
Name | HRPV-1/1 | |
Electric parameter | ||
system Max DC Volt | 550V | 1000V |
Max input amp for each string | 15A | |
Max input strings | 1 | |
Max output switch amp | 16A/20A | |
Number of inverter MPPT | 1 | |
Number of output strings | 1 | |
Lighting protection | ||
category of test | II grade protection | |
Nominal discharge amp | 20KA | |
Max discharge amp | 40KA | |
Volt protection level | 2.8KV | 3.8KV |
Max continuous operation volt Uc | 630V | 1050V |
Poles | 2P | 3P |
structure characteristic | plug push module | |
system | ||
Protection grade | IP65 | |
Output switch | DC circuit breaker/DC isolation switch(optional) | |
solar connector | standard | |
PV DC fuse | standard | |
PV surge protector | standard | |
Monitoring module | Optional | |
preventing diode | Optional | |
Box material | PVC | |
Installation method | wall mounting type | |
Operating temperature | -25℃- +55℃ | |
Elevation of temperature | 2KM | |
Permissible relative humidity | 0-95% No condensation | |
Environment Humidity | 0~99% | |
Installation: indoors/outdoors (IP65 electronics) | Yes | |
mechanical parameter | ||
widh*high*Depth(mm) | 300*260*140 | |
