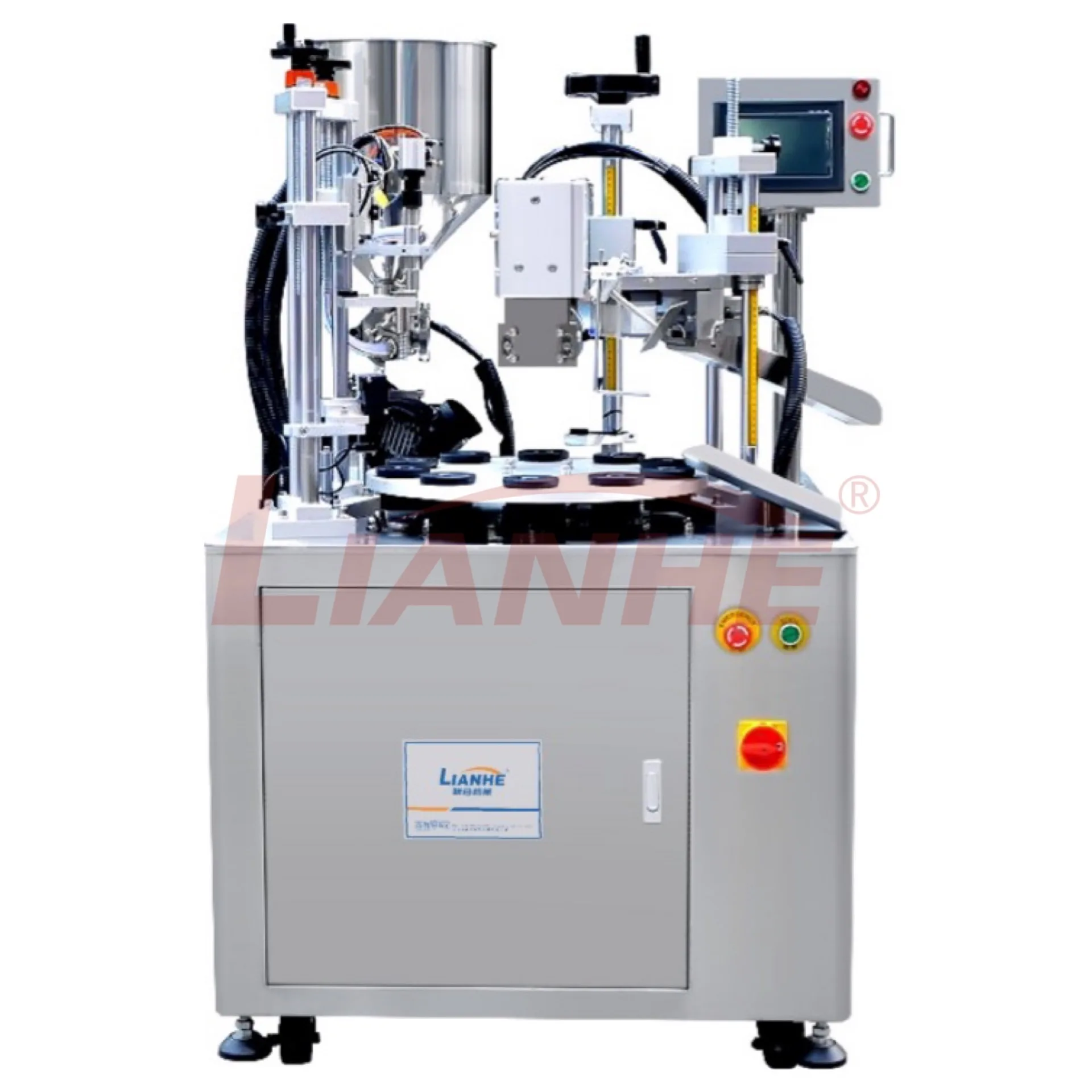

Automatic Aluminium Plastic Tube Filling And Sealing Machine Cosmetic Toothpaste Cream Lotion Filler And Sealer

Share on (1600096045676):


Price:$35,000.00

Quantity:


Product Overview

Description



Product Description


Description Automatic Aluminium Tube Filling and Sealing Machine for Cosmetic Toothpaste





Brief Introduction





Automatic Aluminium Tube Filling and Sealing Machine for Cosmetic Toothpaste is used for aluminum tube, plastic tube or laminate tube.





This machine can be used for filling cream, cosmetic, toothpaste and liquid materials, and its characteristics with firm filling, high precision of dosage. The three functions of filling, sealing and batch numbering can be automatically completed. Its widely used in pharmacy, daily chemical, food chemical industries, such as for filling pharmacy cream, hair colorante, toothpaste, leather oil, glue, AB glue, neoprene adhesive etc. Convenient and quick dosage adjustment, high efficiency, good-looking, compact structures are the features of the machine. The tube cups can be adjusted according to the tube dimensions. The important parts of the machine which contact directly to the filling material are made of stainless steel (SUS304 is for general use, and SUS316L is for pharmacy use). A special valve makes this machine be suitable for filling cream and liquid material. Its an ideal and economical filling machine in the pharmacy, daily chemical, fine chemical and other fields.

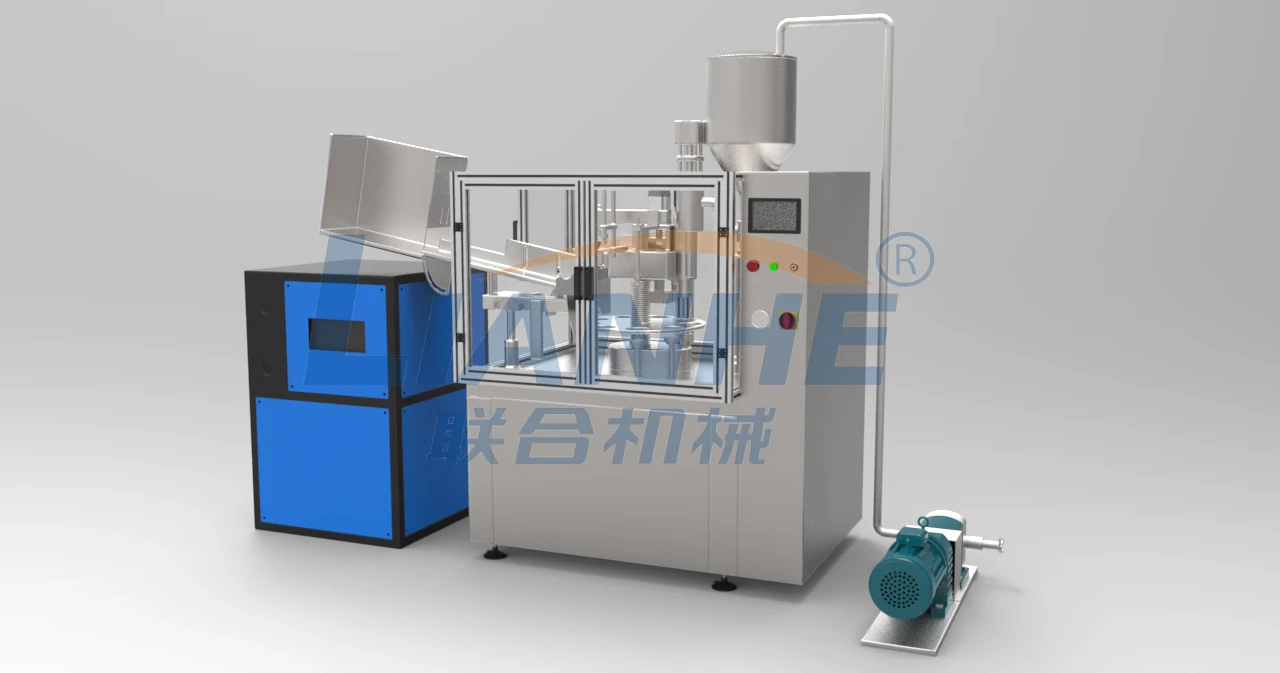

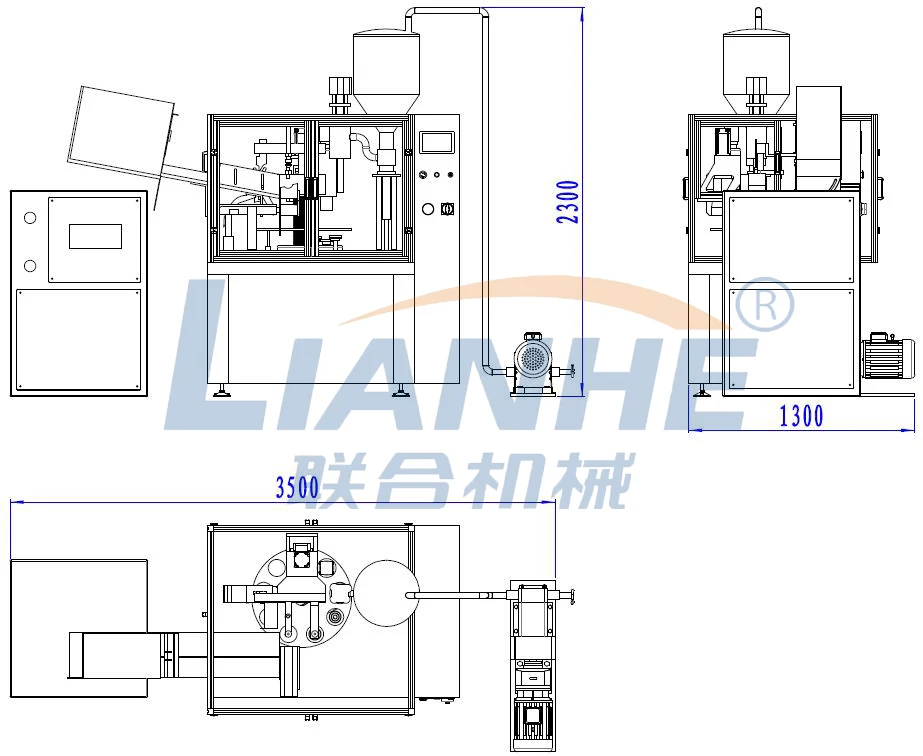

3D-12D





Technical Parameters

































































Filling Volume



5-250ml(tube)



Filling Accuracy



±1%



Capacity



40 tubes/min(normal type);


60-70 tubes/min(high speed type)



Tube Diameter



OD10-50mm



Tube Length



210mm(Max. length)



Hopper Volume



40L



Power



220V/380V, can be customized



Equipped Motor



1.1KW



Air Pressure



0.5-0.7Mpa



Air Feeding



0.37KW



Convulsions



0.37KW



Hot Air



3KW



Dimension



L1900*W850*H1900mm



Weight



1800kg (approx)

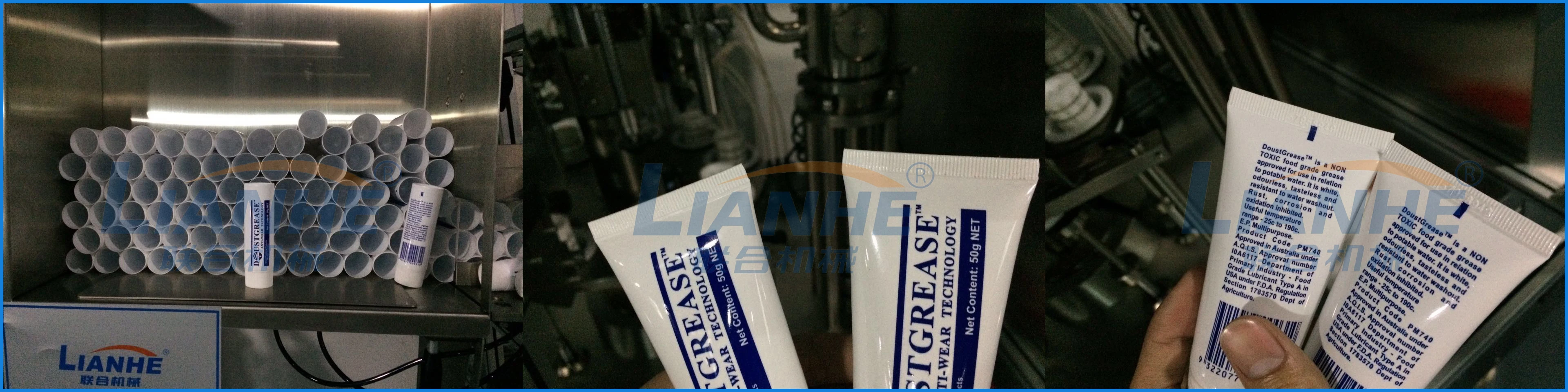

 Working Performance

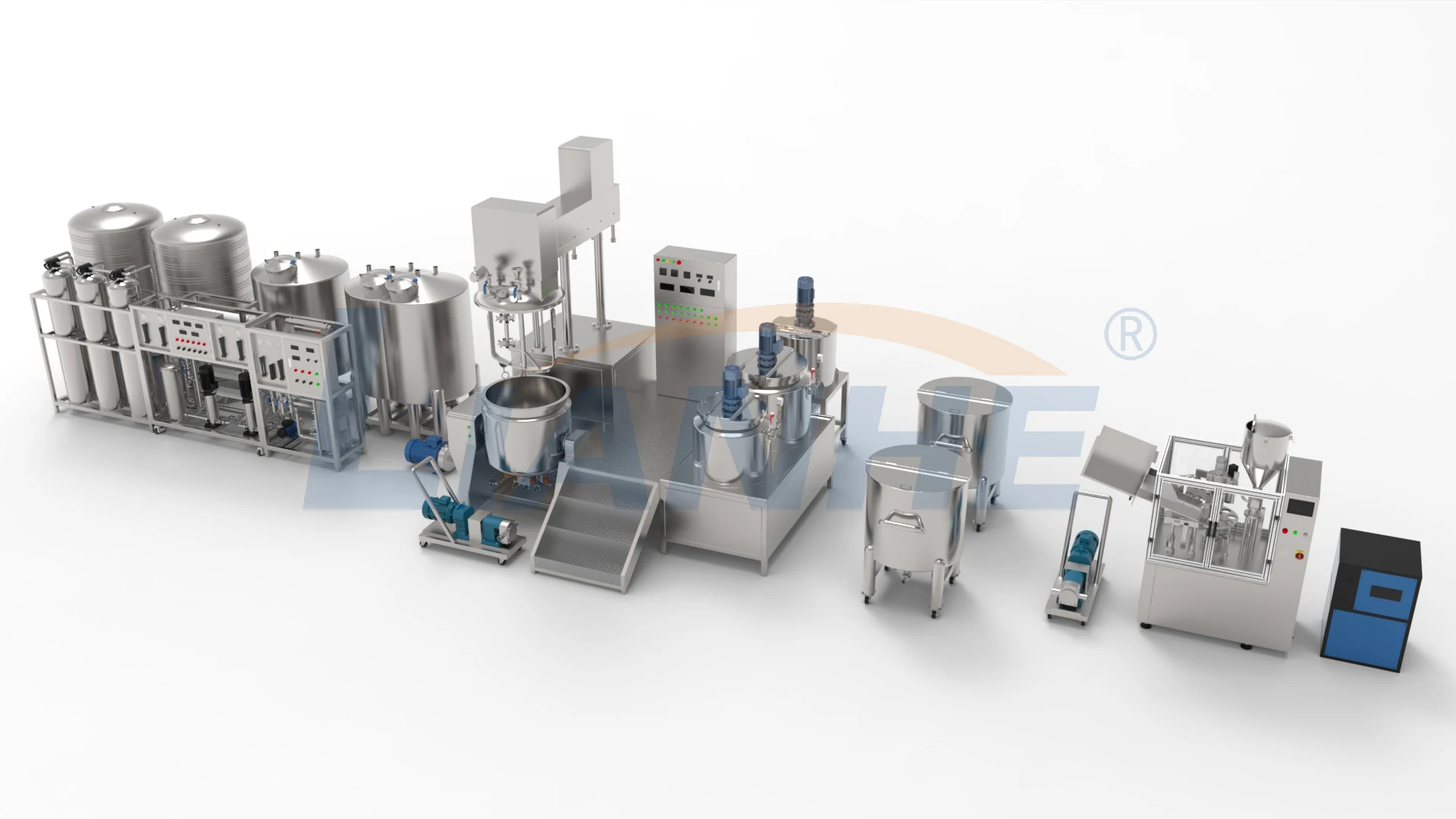

Whole Production Line Overview


300L












Why Choose Us


Why Choose Us





Packaging & Shipping


Nomally the machine will be packed in wooden case. it also can be customized.Packing Delivery
