Version Introduction:
FPA2000-30W:
- In dual channel output mode, the maximum output power of each channel can reach 30W, the maximum output amplitude is 50Vpp (±25V), and the maximum output current is 1A;
- In single channel output mode, the maximum output power can reach 40W;
- In the dual-channel differential output mode, the maximum output amplitude can reach 100VPP (±50V).

FPA2000-50W:
- In dual-channel output mode, the maximum output power of each channel can reach 50W, the maximum output amplitude is 70Vpp (±35V), and the maximum output current is 2A;
- In single-channel output mode, the maximum output power can reach 60W;
- In the dual-channel differential output mode, the maximum output amplitude can reach 140VPP (±70V).

Features:
- Dual channels
- Powered by single DC power supply. Easy to use outdoors
- The maximum bandwidth of sine wave signal is 100KHz

Application Examples:
1. Drive solenoid
2. Drive exciter
3. Drive ultrasonic horn
4. Drive ultrasonic vibrator
5. Metal detector transmitter coil drive

Specifications:

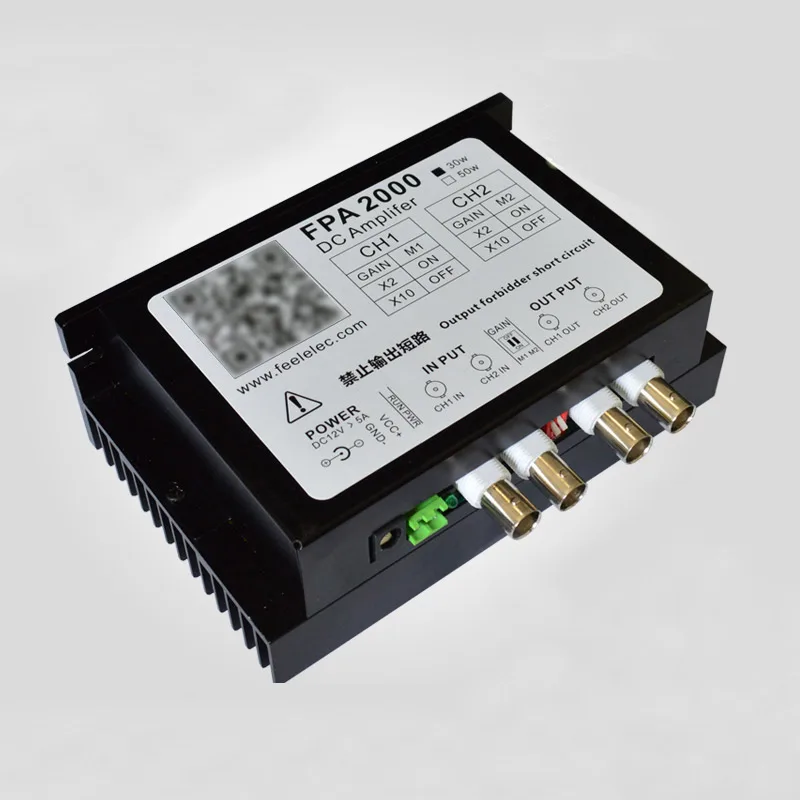

- Model: FPA2000-30W
- Full Power Bandwidth Range (Sine Wave): DC~100KHz
- Max. Output Amplitude (Dual Channel Output Mode): 50Vpp(±25V), no-load
- Max. Output Amplitude (Dual Channel Differential Output Mode): 100Vpp(±50V), no-load
- Amplitude Range of Input Signal:
  * 0-25Vpp (2 times gain)
  * 0-5Vpp (10 times gain)
- Max. Output Current: 1A
- Max. Output Power:
  * Both channels can output simultaneously, and each channel has a maximum output power of 30W
  * Use only one channel to output, the maximum output power can reach 40W
- Heat Dissipation Method: Natural heat dissipation of shell
- Voltage Gain: 2X and 10X, 2 gears optional
- Gain Adjustment Method: Toggle switch adjustment
- Input Impedance: ≥10KΩ
- Output Impedance: <2Ω
- Slew Rate: ≥10V/us
- Safe Use Load Value: ≥4Ω
- Power Supply Voltage: DC12V power supply input
- Working Condition: Temperature: 0~60℃, humidity: <80%
- Size: 150 x 97 x 52mm (LxWxH)
- Weight: 550g

Package Included:
- 1 x Set of Power Amplifier

Package: Normally we use the standard exporting packaging. We also can according to clients' request .
