Заводская поставка HC SR602 инфракрасный датчик движения человеческого тела SR602 мини пироэлектрический инфракрасный PIR датчик движения переключатель расстояния 5 м
- Category: Sensors >>>
- Supplier: Shenzhen Hua Yu Xin Science And Technology Ltd.
Share on (1600100744739):
Product Overview
Description
Products Description
Features:
This module has high sensitivity, fast response, small static power consumption, small size, easy to install, and is installed.
This module has high sensitivity, fast response, small static power consumption, small size, easy to install, and is installed.
The lens, the pin header has been soldered, and the power supply is provided without debugging.
Parameters:
Pyroelectric Infrared Sensor Module
Model: SR-602
Sensing distance: up to 5 meters; recommended 0-3.5M.
Output: high level, H=3.3V, L=0V
Power supply DC: 3.3V-15V
Quiescent current: 20uA
Points:

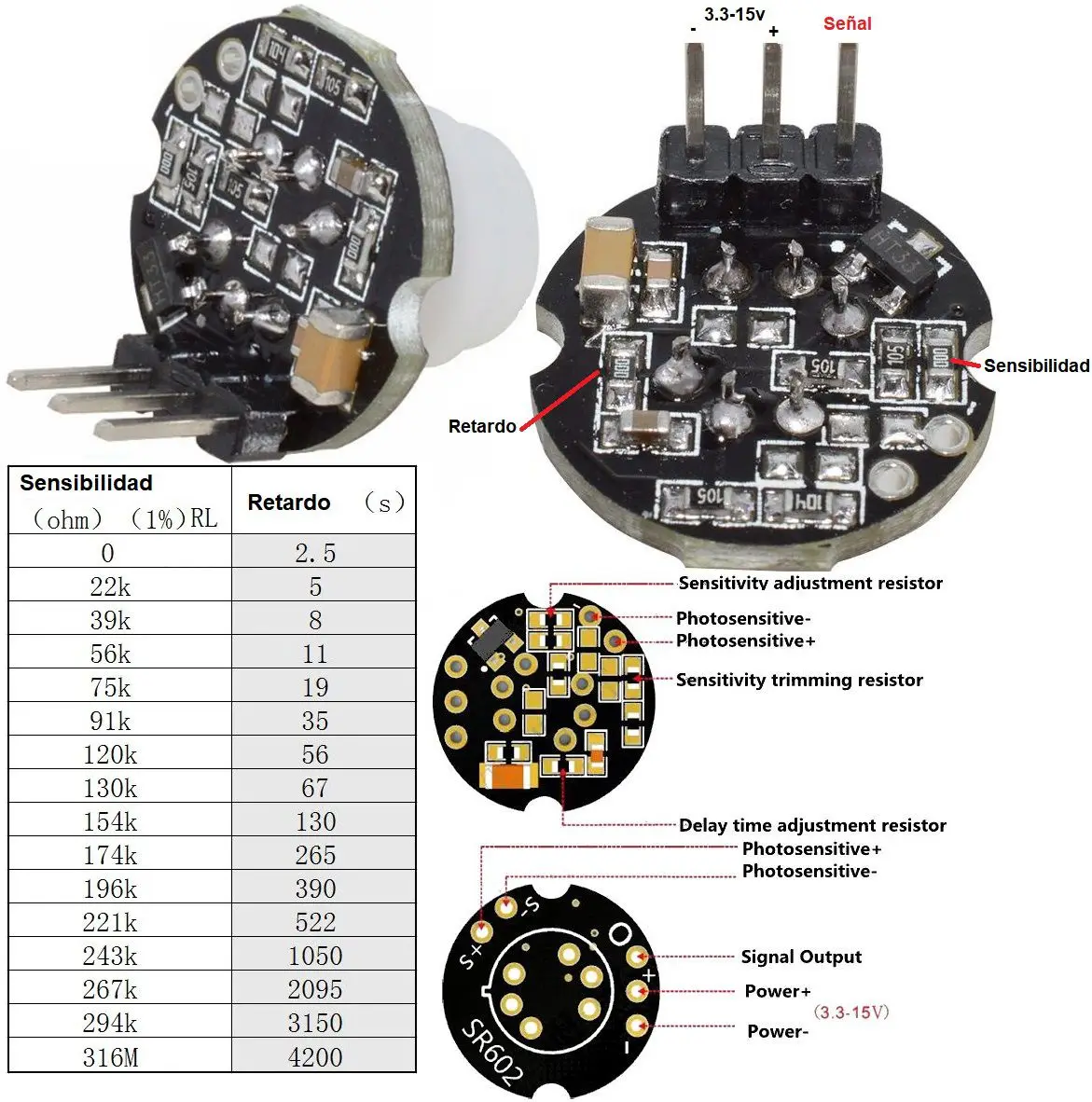

1. The high level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.
It is 2.5 seconds, and you can change one chip resistor if you need to change it.
2. Blocking time, 2 seconds, not adjustable.
3. The factory is defined as repeatable trigger and cannot be changed.
4. The supply voltage of this module is 3.3V to 15V, and the limit voltage is 2.8V to 18V.
5. Module output timing is: output high level for 2 seconds after power-on, then go low, enter standby
status. If the delay time is changed, the time when the module outputs a high level after power-on will increase accordingly, which can be understood as
The startup time after entering the normal working state after the electric power will increase.

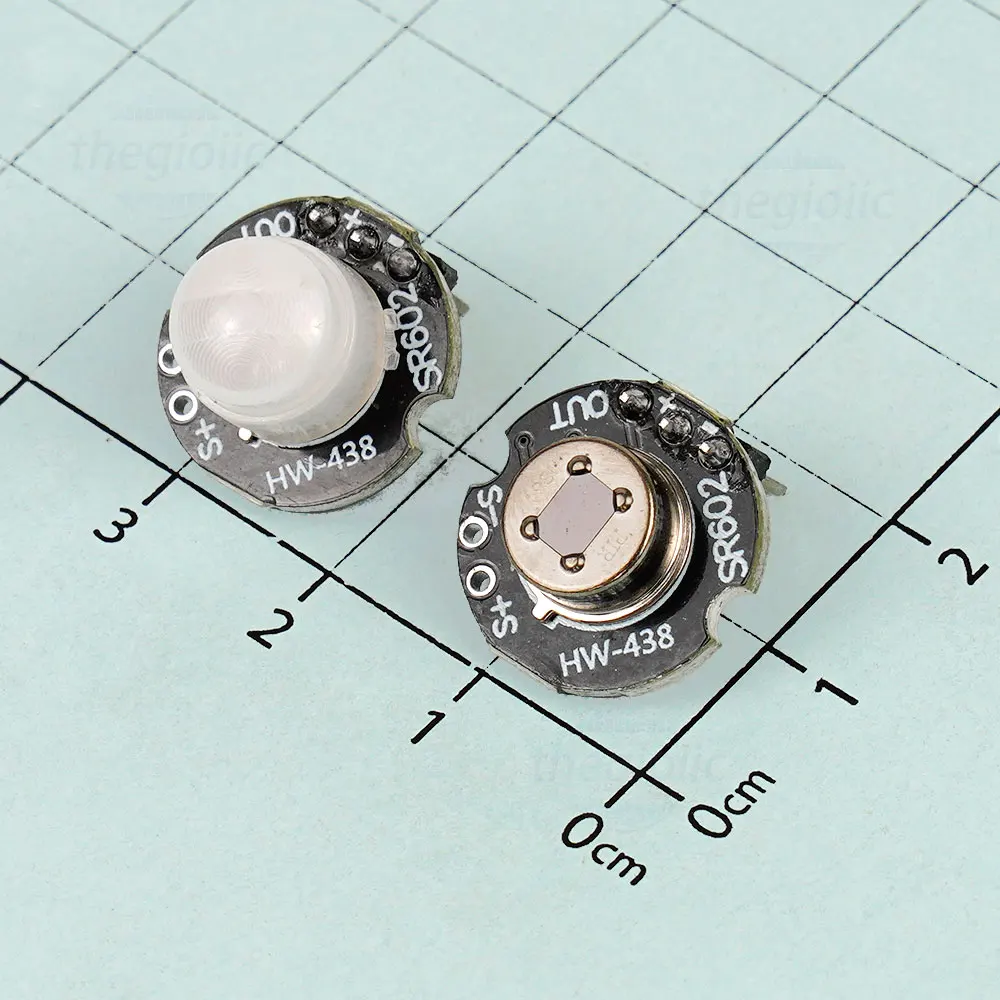

6. After installing the photosensitive element, it does not work during the day, work at night, does not contain photosensitive components, and works all day.
It is considered that there is no photosensitive element installed.
7. This module is very sensitive, pay attention to the installation position, try to avoid the heat source radiation source (air outlet / direct sunlight)
8. The sensitivity of this module is adjustable, and you need to change a chip resistor.
grid.
9. When soldering with 220V ordinary soldering iron, it is necessary to unplug the power supply before welding. It is recommended to use
24V low voltage soldering iron.

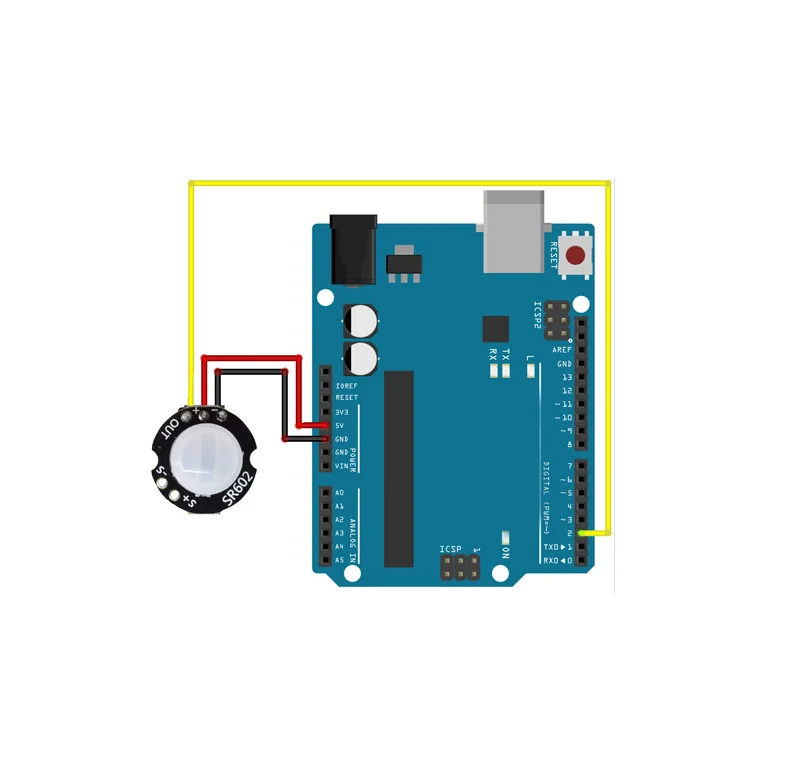

10. If you follow the MCU and connect the lamp, please read the reference circuit diagram.
Pyroelectric Infrared Sensor Module
Model: SR-602
Sensing distance: up to 5 meters; recommended 0-3.5M.
Output: high level, H=3.3V, L=0V
Power supply DC: 3.3V-15V
Quiescent current: 20uA
Points:
1. The high level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.
It is 2.5 seconds, and you can change one chip resistor if you need to change it.
2. Blocking time, 2 seconds, not adjustable.
3. The factory is defined as repeatable trigger and cannot be changed.
4. The supply voltage of this module is 3.3V to 15V, and the limit voltage is 2.8V to 18V.
5. Module output timing is: output high level for 2 seconds after power-on, then go low, enter standby
status. If the delay time is changed, the time when the module outputs a high level after power-on will increase accordingly, which can be understood as
The startup time after entering the normal working state after the electric power will increase.
6. After installing the photosensitive element, it does not work during the day, work at night, does not contain photosensitive components, and works all day.
It is considered that there is no photosensitive element installed.
7. This module is very sensitive, pay attention to the installation position, try to avoid the heat source radiation source (air outlet / direct sunlight)
8. The sensitivity of this module is adjustable, and you need to change a chip resistor.
grid.
9. When soldering with 220V ordinary soldering iron, it is necessary to unplug the power supply before welding. It is recommended to use
24V low voltage soldering iron.
10. If you follow the MCU and connect the lamp, please read the reference circuit diagram.
Use:
Can be used for body sensor lights, alarms, security,
Access control on-demand imaging, automatic equipment for agriculture, forestry and mining.
Can be used for body sensor lights, alarms, security,
Access control on-demand imaging, automatic equipment for agriculture, forestry and mining.
Application range:
Human body induction lamps / Human body induction toys
Human body induction lamps / Human body induction toys
Security Products / Industrial Automation Control
Automatic induction electrical equipment / Battery-powered automatic control
Working parameters:
Working parameters:
Pyroelectric human body infrared sensor module, model: SR-602 | ||||||||
Sensing distance: up to 5 meters; recommended 0-3.5M | ||||||||
Output: high level, H=3.3V, L=0V | ||||||||
Power supply DC: 3.3V-15V | ||||||||
Quiescent current: 20uA | ||||||||
Package list
1×Pyroelectric Infrared motion sensor | ||||||||
Standard Anti-static Poly Bag | ||||||||
