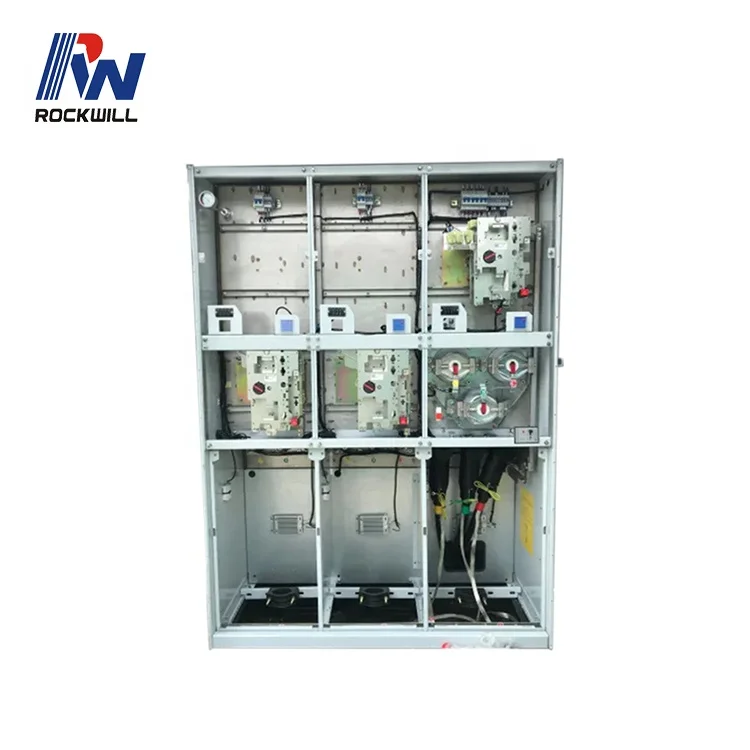

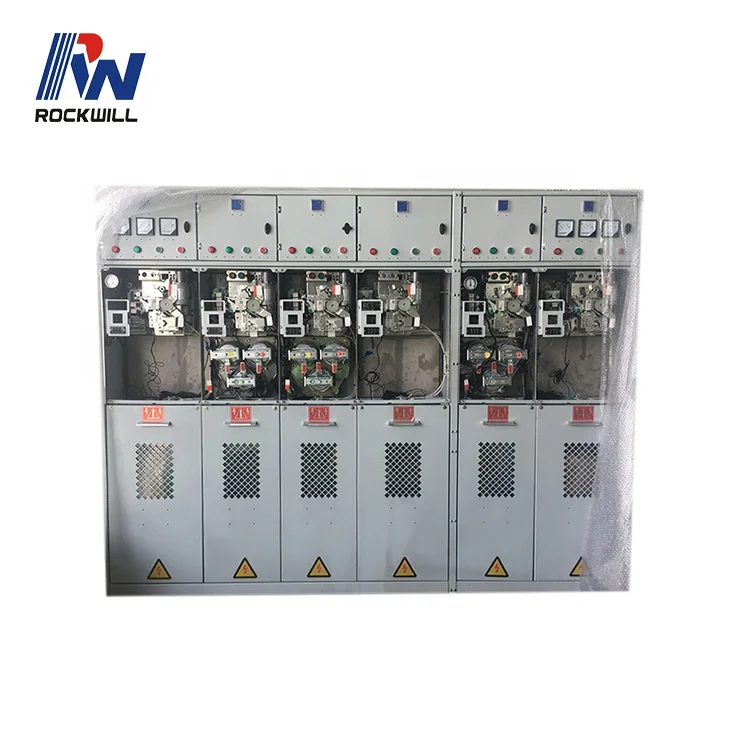

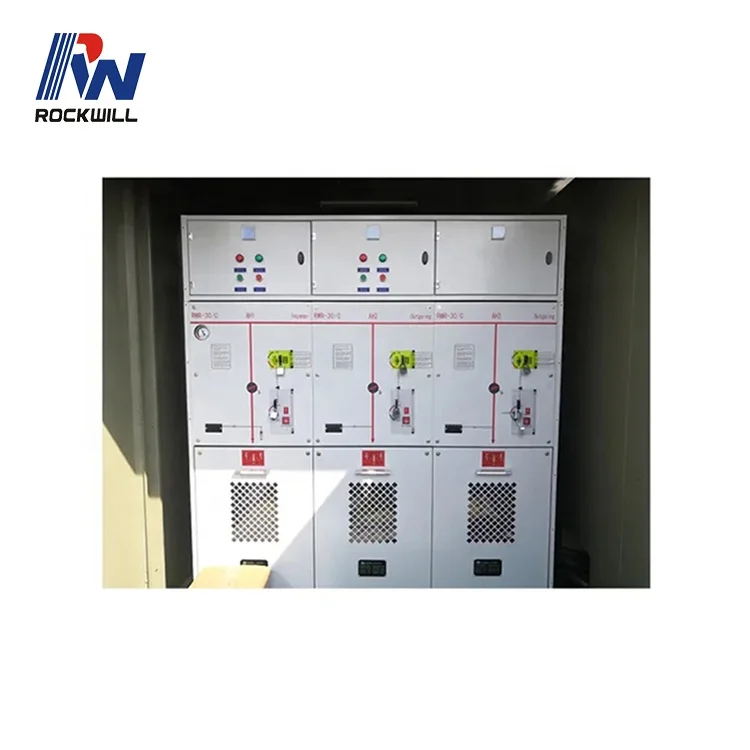

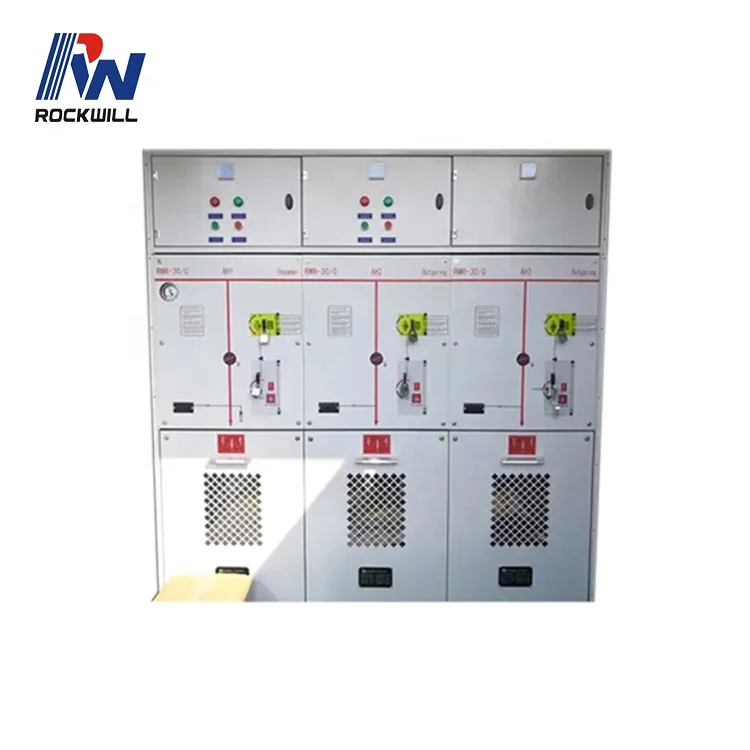

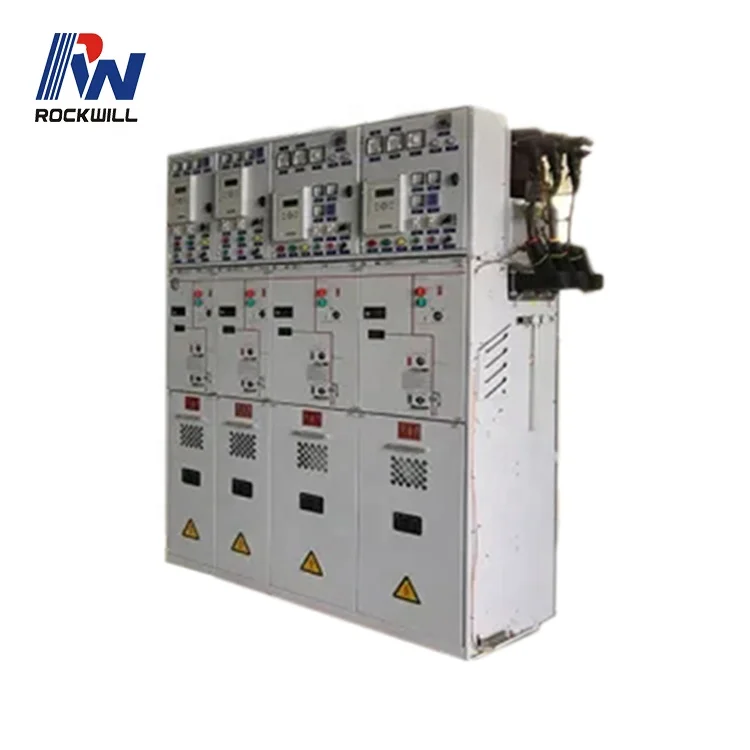

Distribution Board Electric Panel SF6 11kV 22kV 33kV Industry Switchgear

Price:

Quantity:

No.	Item	Unit	C Module (Load Break Switch)					V Module (Circuit breaker)
1	Rated voltage	kV	12	24	36	12	24	36
2	Rated current	A	630(200A/F)
3	Rated frequency	Hz	50/60
4	1 min power frequency withstand voltage	kV	45	55	80	45	55	80
5	Lightning impulse withstand voltage	kV	75	125/150	170/ 195	75	125/ 150	170/ 195
6	Rated trasnfer current	A	1700	1400	1200	/
7	Rated active load and close circuit breaking current	A	630
8	Rated cable charge breaking current	A	50/10
9	Rated short circuit breaking current	kA	/					20	16	16/20
10	Rated short circuit making current(peak)	kA	63	50	40/50	63	50	40/50
11	Short time(2s) withstand current, load switch/earth	kA	25/ 20	20/ 20	16/ 20	25/ 20	20/ 20	16/ 20
12	Rated withstand current(peak)	kA	63	50	40/50	63	50	40/50
13	Mechanism life	Times	3000			2000	10000	3000	5000

Note:for short circuit breaking and peak current is based on fuse plus combination of module.
